Surveon CAM2300 Manuel utilisateur
CAM2300/CAM2320
Megapixel Box Indoor Network Camera
User Manual
Release 1.0
December, 2010
1
Surveon Network Camera User Manual
CAM2200/2400
AllRightsReserved©SurveonTechnology2010
CopyrightStatement
No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written consent of
Surveon Technology Inc.
Disclaimer
Surveon Technology makes no representations or warranties with respect to
the contents hereof and specifically disclaim any implied warranties of
merchantability or fitness for any particular purpose. Furthermore, Surveon
Technology reserves the right to revise this publication and to make changes
from time to time in the content hereof without obligation to notify any
person of such revisions or changes. Product specifications are also subject to
change without notice.
Trademarks
Surveon and Surveon logo are trademarks of Surveon Technology Inc. All
other names, brands, products or services are trademarks or registered
trademarks of their respective owners
www.surveon.com
2
CAM2300/2320
Table of Contents
Copyright Statement.......................................................................... 1
Table of Contents ............................................................................. 2
Chapter 1. Overview.......................................................................... 4
1.1. Network Camera Introduction ......................................................4
1.2. Network Camera Features...........................................................4
1.3. Network Camera Specifications ....................................................5
System Structure ..........................................................................7
1.4. Network Camera Hardware Installation ..........................................7
Chapter 2. Connecting to the Network Camera......................................... 8
2.1. Connecting with a Web Browser ...................................................9
Logging into the System for the First Time ......................................... 10
Installing Active X Components in Internet Explorer .............................. 11
Logging Out of the System ............................................................. 12
Using the Help Interface ............................................................... 12
2.2. Connecting with an RTSP Player .................................................13
Connecting with a Mobile Device RTSP Player...................................... 13
Chapter 3. Web Interface...................................................................14
3.1. Interface Layout.....................................................................14
Control Descriptions .................................................................... 15
3.2. Settings................................................................................17
General.................................................................................... 17
Basic Settings ....................................................................... 17
User Account ........................................................................ 19
Date & Time......................................................................... 22
Network................................................................................... 23
Network Configuration............................................................. 24
Port Settings......................................................................... 25
UPnP.................................................................................. 26
Video & Audio Settings ................................................................. 27
3
Surveon Network Camera User Manual
CAM2200/2400
Basic Settings ....................................................................... 27
Image Appearance.................................................................. 28
Video Streams....................................................................... 32
Audio Settings....................................................................... 34
PTZ......................................................................................... 35
Recording ................................................................................. 36
Recording Basic Settings .......................................................... 36
Recorded File Management....................................................... 37
Event Notification....................................................................... 39
Event Server......................................................................... 39
Motion Detection ................................................................... 41
Tampering Detection .............................................................. 42
Tampering Detection .............................................................. 43
DI & DO............................................................................... 44
Event Settings....................................................................... 46
System..................................................................................... 52
MicroSD Card Management........................................................ 52
System Status ....................................................................... 53
System log ........................................................................... 54
Firmware Upgrade.................................................................. 55
Reset to Factory Default .......................................................... 56
Export/Import & Reboot .......................................................... 57
www.surveon.com
4
CAM2300/2320
Chapter 1. Overview
1.1. Network Camera Introduction
CAM2300 and CAM2320 are professional IP network cameras that use Internet
Protocol (IP) to transmit video streams and control signals over networks. Capable
of operating over both LANs and WANs, they provide a complete budget-conscious
remote surveillance solution that are ultra clear and highly integrated.
CAM2300/2320 combine a user-friendly interface and simplified installation with a
powerful feature set, including Motion Detection and Tampering Detection to
provide users an easy upgrade path to new digital surveillance system in a virtual
environment. These highlights make CAM2300/2320 ideal choices for environments
that require remote surveillance or video transmission.
1.2. Network Camera Features
Supports up to 10 simultaneous users
Built-in web server to allow real-time remote surveillance and control
using standard web browsers
Built-in microSD card slot for local backup
Supports dynamic IP, LAN, and the Internet (ADSL, Cable modem)
Supports most network protocols including: HTTP, TCP/IP, SMTP, DDNS,
DNS, DHCP, FTP, RTSP,CIFS, PPPoE
Supports 2-way audio
Automatically adapts image compression rate to available bandwidth
Provides signal loss and motion-detection alerts (adjustable area and
sensitivity level)
Supports most PTZ camera protocols
Supports image recording and still image capture
Self-recovery feature automatically re-establishes broken network
connections.
5
Surveon Network Camera User Manual
CAM2200/2400
1.3. Network Camera Specifications
CAM2300 CAM2320
Image sensor 1/3” 2 megapixel progressive scan
CMOS 1/3” 3 megapixel progressive
scan CMOS
Lens Changeable (CS/C mount)
WDR N/A Yes
Day/Night ICR N/A
IR LED N/A
Min illumination 0.5 Lux @ F1.0, 2856°K
Iris control DC drive
Shutter time 1/5 ~ 1/15,000 s
Video
compression H.264/MPEG-4/MJPEG
Resolution Up to 1920 x 1080 Up to 2048 x 1536
Frame rate
30 fps at Full HD (1920 x 1080), 30
fps at SXGA (1280 x 1024),
30 fps at HD720 (1280 x 720),
30 fps at VGA (640 x 480),
30 fps at QVGA (320 x 240)
15 fps at QXGA (2048 x 1536),
30 fps at Full HD (1920 x 1080),
30 fps at SXGA (1280 x 1024),
30 fps at HD720 (1280 x 720),
30 fps at VGA (640 x 480),
30 fps at QVGA (320 x 240)
Video stream Dual simultaneous streams at H.264, MPEG-4, and MJPEG
Bit rate 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality
Video control AGC (Auto Gain Control), AWB (Auto White Balance), BLC (Back Light
Compensation), image adjustment
Intelligent video Motion detection, tampering detection (blocked, redirected,
defocused, or spray-painted) (Phase II)
Video jack N/A
Built-in MIC N/A
Audio
compression 32KHz, ADPCM
Audio input 3.5mm phone jack
Audio output 3.5mm phone jack
Alarm in 2, terminal block
Alarm out 1, terminal block
AUX Power Output 12VDC 400mA
Video buffer 5 second pre-alarm, 30 second post-alarm (Phase II)
Event action Send snapshot or video clip by FTP or email, record to NAS, record to
local storage, trigger DO (Phase II)
Supported
protocols IPv4, ARP, TCP, UDP, ICMP, DHCP, HTTP, UPnP, RTSP, RTCP
(NTP, DDNS, SMTP, FTP, CIFS, PPPoE, 3GPP in Phase II)
www.surveon.com
6
CAM2300/2320
CAM2300 CAM2320
Ethernet 10/100 Base-T / RJ45
10/100 Base-T / RJ45
Local storage microSD/SDHC x 2
(Class 4/Class 6 only)
RS-485 1 (2 pin on terminal block)
USB N/A
SDK Surveon SDK 2.0
OS Microsoft Windows XP/Vista/7
Browser Microsoft IE 6.0 or above
Software Surveon VMS 2.4
Temperature Operation: -10°C~ 50°C (14°F~122°F)
Storage: -30°C ~ 60°C (-22°F~140°F)
Humidity 5 to 90%
Power 12VDC 1.5A；PoE (IEEE 802.3af) with Class 3
Power
consumption Max. 7W without AUX PW
Dimension
(WxHxD) 74.95mm x 59.3mm x 153.5mm (2.95" x 2.34" x 6.04")
Weight Net: 435g (0.96 lb)
Gross: 1085g (2.4 lb)
Certification Safety: LVD
EMC: FCC, CE
7
Surveon Network Camera User Manual
CAM2200/2400

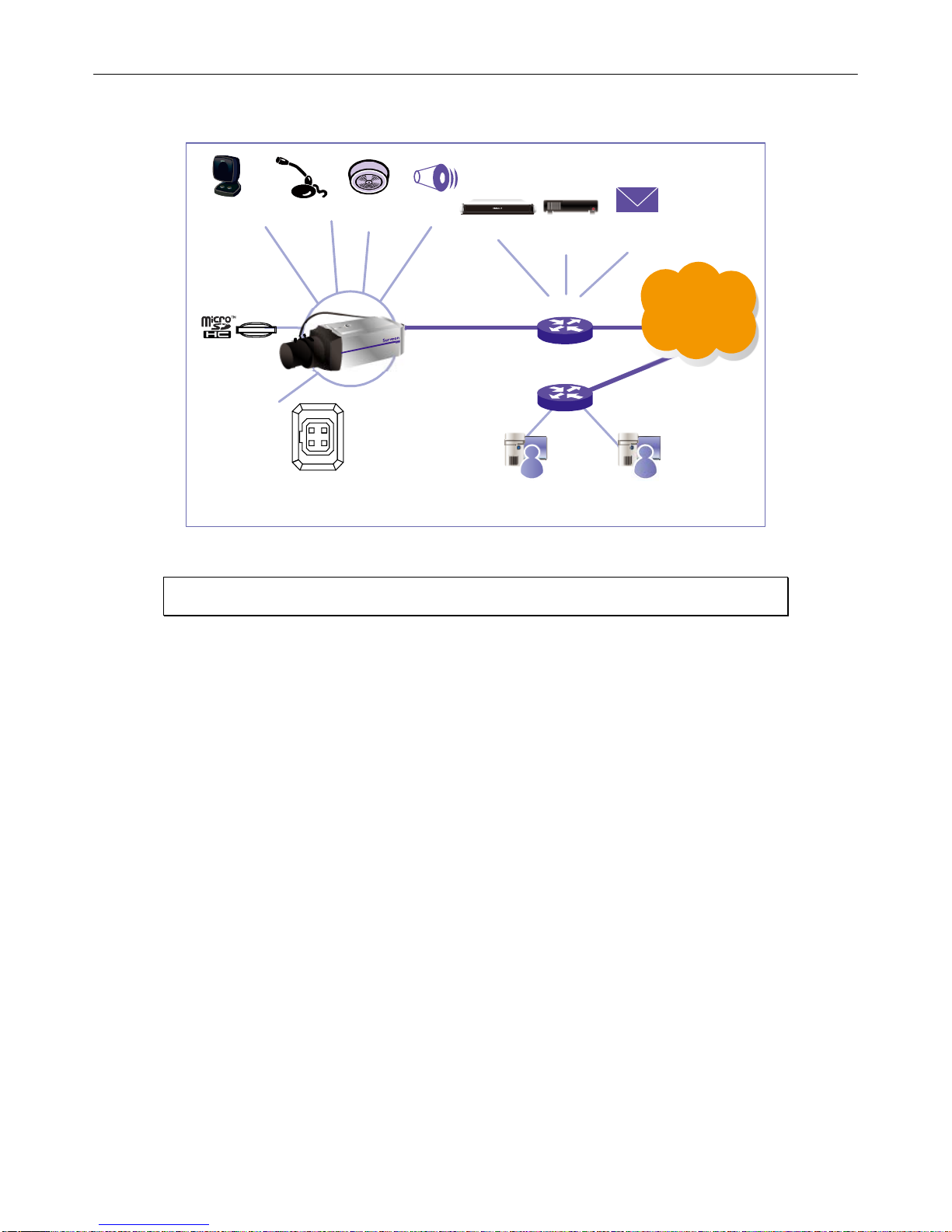

System Structure
1.4. Network Camera Hardware Installation
Before the network camera is configured:
1. Install the camera in a suitable spot. The camera should have an
unobstructed view of the area to be surveyed.
2. Connect the camera to a power source. CAM2300/2320s can accept
power from a power adapter or from Power over Ethernet enabled
switches.
3. Connect the camera to a switch using an Ethernet cable. The Ethernet
port is located on the rear of the camera.
Router
NAS FTP
Server Email
Server
AlarmSmoke
Detector
Microphone
Speaker
microSD
Remote Client 2
(Browser)
Remote Client 1
(Browser)
Router
Internet
DC-Iris
www.surveon.com
8
CAM2300/2320
Chapter 2. Connecting to the
Network Camera
This section demonstrates how to connect to the network camera through two
methods:
•Web Browser – A simple web-based interface. Internet Explorer is the
recommended web browser for use with Surveon network cameras, and
our examples will be from this browser. Usage on other browsers will
be similar.
•RTSP Player – These include common streaming media players, such as
RealPlayer or Quicktime Player. These players can provide live view of
the camera using the Real-Time Streaming Protocol (RTSP).
