Surix IP Entrix Manuel utilisateur

Surix IP Entrix

1° Edición

Made in Argentina

IMPORTANT!: This product´s warranty is 1 year from the reception of this Warranty

Name of holder

ZIP Code

Company Particular

Address where the IP Entrix is installed

Installer

Company/Installer´s phone number

Installer´s phone number

Date of purchase

FIRST NAME AND LAST NAME

NAME

FIRST NAME AND LAST NAME

SERIAL NUMBER

DAY MONTH YEAR

WITH LONG DISTANCE CODE

IWITH LONG DISTANCE CODE

STREET AND NUMBER

CITY STATE/COUNTRY

Please proceed to complete the following information for warranty registration, and send it as

soon as possible, by mail, e-mail, or fax.

Warranty Registration

Correa 2573 (C1429DRO) Cap. Fed

[email protected] / www.surix.net

Tel-fax: (54 11) 4702 9500 / 4702 4358 / 4701 5488

How to contact us:

IP Entrix - v1

BS"D

For technical support:

[email protected]

How to contact us:

Correa 2573 (C1429DRO) Cap. Fed

[email protected] / www.surix.net

Tel-fax: (54 11) 4702 9500 and rotary lines

Phone

number

Company or installer from who you purchased

the equipment

How did you get to know of the existance of this

product?

IP Entrix

Introduction

General Description

Technical Features

Installation

Conection

Programming

Main Menu

Front´s functionality

Call by Building-Floor-Apartment

Front´s setting

Welcome text

Building-Floor-Apartment

Call by Intern

Front´s setting

Welcome text

Interns by number

Key programming

Push-buttons programming

Communication parameteres

Temporizers

Keys and buttons programming

Passwords

IP Entrix status

Door 1 opening password

Door 2 opening password

This is what the user dials in the intern that is in communication with the IP Entrix to activate

the relay that opens doors 1 and 2, respectively.

IP Entrix in IP PBX login password

Password that the IP Entrix uses to register in the IP PBX central if its registration is required.

In the submenu IP Entrix Status there are the following items:

The

Busy (In conversation or call)

If at that moment the IP Entrix was making a call (or receiving one), this value will be On. If it

was not, it will be Off.

Registered in IP PBX central

It shows if it is registered in the IP PBX central whose data is in the Communication Parameters

menu.

Jumpers

It shows the conection state of the jumpers (in case you want to verify, for example, if the start

jumper was left with the default IP address).

NOTE: This submenu tab is not renewed automatically. The user should reload the page in his

browser to get the updated values.

red colour in the numbers indicates that it is not possible to alter them by programming

(they are read-only values).

BS"D

IP Entrix - v1

219

Administrator Password

Password used to enter programming. If it gets lost, the user can enter programming with the

previously described procedure.

In the submenu Temporizers there are the following elements to be programmed:

Maximum response waiting time

This is the time the IP Entrix waits for the extension it is calling to pick up, before it undoes

the call.

In the submenu Passwords there are the following elements to be programmed:

BS"D

IP Entrix - v1

Introduction

¡Welcome to the SURiX Door Phone products users' network!

The product you have purchased is part of a SURiX S.R.L's important line of products and

communication systems for homes, office, and multifamily systems for buildings and gated

communities.

General Description

The SURiX IP Entrix is an intelligent IP Door Phone, that is connected as an IP intern of an IP

PBX.

There are models for buildings (or gated communities) of diverse sizes: 25, 50, 75, 100, 150,

200 and 250 apartments/houses. The model is shown in the box and on all the programming

screens.

It has two dry-contact relays to open two doors (activate alerts or other applications).

The IP Entrix setting is done through an internal web server, which can be used with any

standard Internet browser. If you were not in a network environment, you can connect a

crossover UTP patch cord.

Use of the IP Entrix:

18 3

Parameters used by the IP Entrix for its communication:

Equipment´s address (IPEntrix)

IP address that will be used by the IP Entrix for all the IP communications.

Its default value is 10.0.0.100 . If this address is changed, the next accesses to the

programming web server will have to be made to: http://nueva_dirección:8085

UDP Port SIP protocol Origin

Number of UDP port the IP Entrix uses in the SIP protocol.

IP Entrix login password in IP PBX

Password the IP Entrix uses to register in the IP PBX if its registration is required.

Intern number of this equipment (IP Entrix)

Intern number the IP Entrix will have for the IP PBX central (if it is connected to an IP central).

IP PBX IP Address

Verify that the IP address of the IP Entrix and the IP PBX are in the same range (accessible).

IP PBX Port

Port number in which the IP PBX will attend the IP Entrix comunication requirement.

Minimum range number of UDP ports

Maximum range number of UDP ports

These parameters may have to be set if the network router filters the RTP packages by port (the

rule foresees this may happen).

Sub-network Mask

Defines the network addresses range.

IP Address Gateway

If there is an intermediate gateway.

IP PBX domain

For hosted centrals or broadworks systems.

Expiring time (in minutes) SIP Service Register

Negotiated time with the IP PBX central.

IMPORTANT: It is advised not to increase this number.

Connection

1. Set the Ethernet wire on the RJ45 (CN 12) connector.

2. Connect a 12 Vca/cc - 1 A power supply, in the CN 1 terminal.

3. If there are door-opening circuits (with external supply), pass those circuits through the

terminals indicated as DOOR 1 and DOOR 2 that are basic open contacts, which close

when they receive the corresponding command.

Technical Features

LAN/ IP-PBX integration

Interface: Ethernet

Door opening through any LAN/ IP-PBX extension

Separated microphone and speakers volume control

Configurable through an internal web-server

Supported codec: G.711 PCM ley u 64 kbps

VolP protocol: SIP-RTP

DTMF detection: RFC 2833

Supply: 12 VAC/VDC 1 A

Exit to relays: 20 A/125VAC - 20 A/14 VDC

Installation

Remove the screw from the bottom plastic tip.

Slide downwards the front and separate it from the plastic flush mount.

ATTENTION: follow the assembly orientation of the flush mount, do not invert it.

The flush mount has weakened areas for wire entrance; drill the one that corresponds.

Fix the box to the wall in the hole that has been made to insert it.

Enter the power cords and UTP wires in the box.

Connect the wires to the board (See following section).

Fix the cover to the flush mount again, first fitting the upper screw and slightly pushing

up, set the inner top screw.

BS"D

IP Entrix - v1

BS"D

417

Programming

The IP Entrix has an internal web server that responds in port 8085.

The setting of the configurable parameters of the IP Entrix is done by a web browser (Internet

Explorer, Firefox, etc.)

At the initial start-up, the IP Entrix has the IP adrress: 10.0.0.100. To start the setting, browse:

http://10.0.0.100:8085

NOTES:

If your network does not provide you this range of addresses, you can momentarily

alter the computer setting from which you will program the equipment, removing the

DHCP and placing a fixed address in the IP Entrix address range.

If you want to program it without being in a network, you can do it considering the

address (previous item) and placing a between the

computer and the IP Entrix.

crossover UTP patch cord

IP Entrix - v1

The last 3 types of action, are generally used in independent push-buttons but not in

telephone keyboard keys.

After the key action is programmed, the element N Key Programming is programmed. It

defines what digit, intern number, IP address, building number, floor, or Apartment activates

this key.

To program the dialed digit, 0 to 9 are used for numbers, 10 for * (asterix), and 11 for #

(pound) in case the IP Entrix is required to dial these values.

In the submenu Push-buttons Programming there is the 10 push-buttons table that the IP

Entrix can have as part of its equipment.

The programming of the push-buttons is identical to the one explained for keys.

The only difference is that the first 2 push-buttons (1 and 2) can have an additional function:

Manual Door Opening.

If this action is programmed, the N Push-button Programming for the programmed push-

button will define which of the 2 relays will activate a pulse in that push-button.

NOTE: This feature is used when a visitor is leaving (or someone from the security post), so

that he can press a button that activates lock opening for a programmed time and exit the

building.

In the submenu Communication Parameters you will see the following elements to be

programmed:

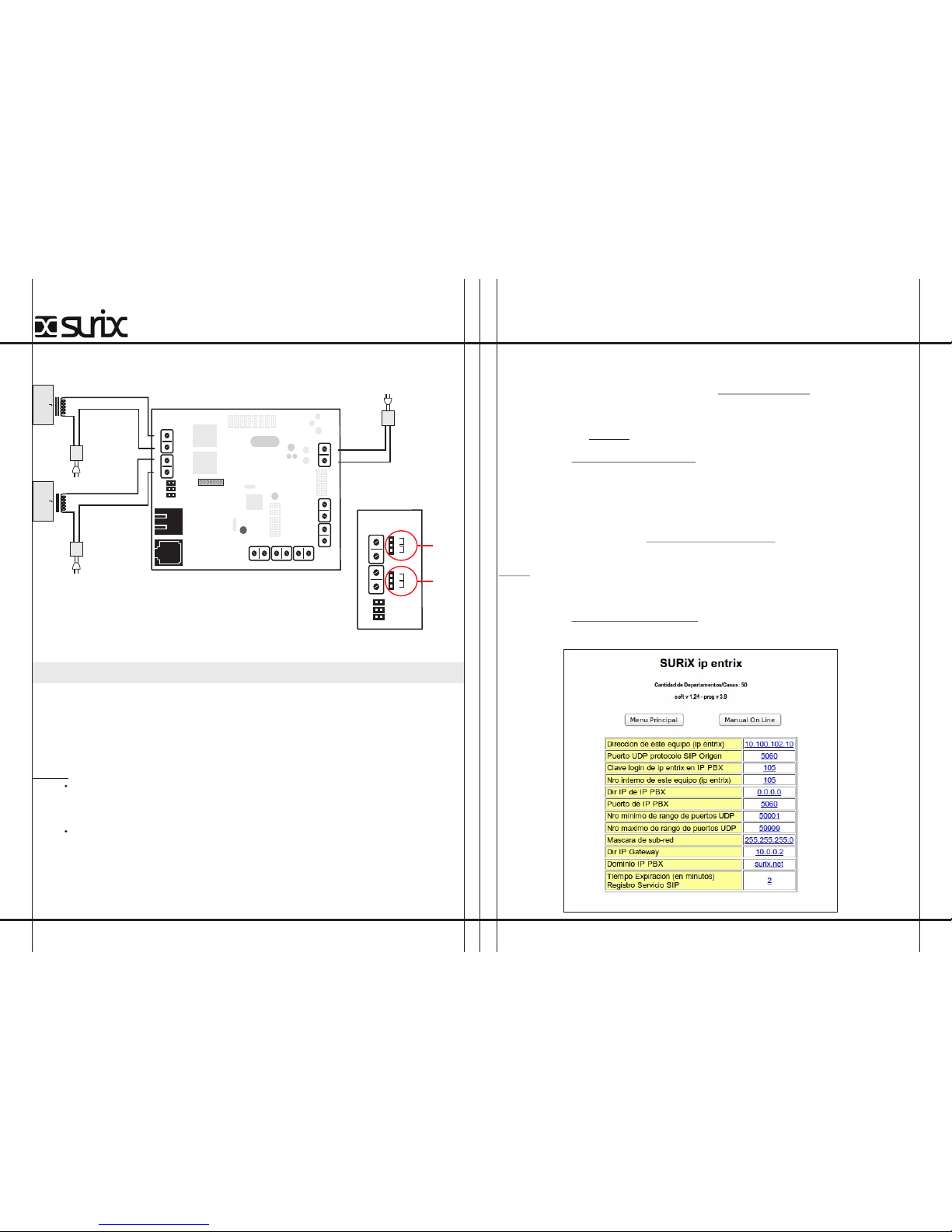

DOOR OPENER

TERMINAL BOARD

MIC.

TERMINAL

DOOR 1

12 VAC/DCSPEAKER- MIC +

BUTTON 1

RJ-45 ETHERNET

CONNECTOR

SPEAKER

TERMINAL

BUTTON 2

TELEPHONE

KEYPAD

FEED

TERMINAL

LOCK

POWER SUPPLY

DOOR 2

LOCK

POWER SUPPLY

DOOR 1

DOOR OPENER

TERMINAL BOARD

DOOR 1

DOOR 2

12 3

NC DOOR 1

DETAIL

12 3

NC DOOR 2

RJ-45 CONNECTOR

TELEPHONE

KEYPAD GND

The programming is active for 10 minutes aproximately. If more time passes without

any command entered, the equipment exits the programming and the key has to be re-

entered to start the programming again.

In the submenu Key Programming it can be seen the telephone keyboard table, which includes

the keys * (asterisk) and # (pound).

N key action

The telephone keyboard has the keys 0 to 9, * (asterix), and # (pound).

The action of all of these keys is programmable in the same way:

Simple key

Generates the single-digit dialing (as in a regular phone) that will be used to

compose an Intern Number.

Direct extension call

Sends the direct call (one touch) to an intern number.

Direct IP call

Sends the direct call (one touch) to an IP address.

Dials Building number

The key is interpreted as dialing a number of tower.

Dials Floor number

The key is interpreted as dialing a floor number.

Dials Apartment number

The key is interpreted as dialing an apartment number.

NOTES:

If the programming is altered or unknown, follow this restart steps that allow the user to

work with the default numbers: the equipment's IP address and programming key (the

programmed IP and key numbers stay the way they were, the IP Entrix sets this

numbers temporarily)

Turn off the equipment

Place a jumper between conector contacts 1 and 2,

as shown in the figure

Turn on the equipment

Enter programming in the URL

http://10.0.0.100:8085 with the key sx1234

Modify the programming parameters as wished

Turn off the equipment

Remove the previously indicated jumper from

between the contacts

Turn on the equipment

The IP Entrix should respond with this screen to entry the programming key:

The Online Guide button is available in all the menus and (with Internet access) by clicking it,

another window will open, accessing to this guide in pdf.

It can be downloaded to the computer or read online.

The password/key by default is: sx1234

BS"D

IP Entrix - v1

The main menu shows the parameters that usually require to be altered.

At the bottom, there are two buttons that are only in the main menu:

REBOOT:

Restarts the equipment (the address should be typed in the browser manually). Follow this

procedure to reload the IP address if it was modified. Except for the IP address, all of the

other parameters are immediately changed when the equipment is reprogrammed.

RESTORES:

Reloads all default programming values (except for the IP address).

When in programming, the Main Menu screen is shown: In the submenu Interns by Number the numeration table that the user marks and its

correspondence with the IP PBX interns the IP Entrix calls.

NOTE: See in this example that the user can mark 1 or 10.

To avoid exiting the screen, the table is assebled in a paginated form (10 items per page).

To move across it, you can move to Next, Back, First, or Last page through the indicated

links, or entering the corresponding page number in the text box that says Page.

NOTE: In the figure, you are not able to click on First or Back, because it is the First page so

there is not Back.

BS"D

IP Entrix - v1

All the menus work the same way: they are tables with two kinds of rows:

Elements to be programmed

Links to other submenus

The Elements to be programmed show (in yellow background) the element´s description and

on its side (in link format) the actual value of the parameter. By clicking on this link, the

screen that allows its reprogramming is visualized.

For example:

In the text box (or drop-down list) you can:

Write (or select) the new value and press the Programming button (the minimum

and maximum values are specified), or

Press the Back button to go back to the previous menu, or

Press the Main Menu button to go back to the main menu.

The links to submenus lead to other menus of elements to be programmed, grouped by

concept.

Particularly, the Front Functionality element to be programmed defines the door phone

operation from the users's point of view:

The Building, Floor, Apartment sequence can be dialed (building+Floor+Apartment

when there are many buildings in the same complex, or just Floor+Apartment if it is

only one building), or

Dial the intern number (extension, annex) of the IP PBX central to which it is

connected.

IMPORTANT: The programming of many items depend on how this element is programmed;

this way, it is convenient that it is programmed the right way before you continue to program.

When the element Front Functionality is programmed as Calls by intern, in the submenu Front

Programming there can be seen the following elements to be programmed:

Maximum number of dialing digits

Maximum dialing time

For the operation to be intuitive, the visitor user is not asked to validate the data by pressing

Enter or something similar. To recognize between apartments (house, ground lot, or intern) 1

and 15, the IP Entrix waits some time after every dialed digit. After that time, it automatically

validates the data (as if the user would have pressed Enter).

On the other hand, to avoid waiting that time for data validation, a numeration plan with a fixed

number of digits can be chosen so that the number of dialed digits is what validates the data.

In the submenu Welcome texts and Invitation to dial Apartment (Intern number), the welcome

text is programmed (E.g.: instead of Dial Intern, if it was a gated community, maybe the user

prefers Enter number of House or Ground lot).

BS"D

IP Entrix - v1

When the element Front Functionality is programmed as: Calls by Building-Floor-Apartment,

in the submenu: Front Programming you will see the following elements to be programmed:

Maximum dialing time

For the operation to be intuitive, the visitor user is not asked to validate the data with Enter or

something similar. Therefore, to recognize between floor 1 and floor 15, the IP Entrix waits

some time after every dialed digit. After that time, it validates the data automatically (as if the

visitor user had pressed Enter).

Another way to represent it would be:

Original table:

Modified table:

Floor Apartment 1 Apartment 2 Apartment 3 Apartment 4

7 T: 1 – P: 7 – D: 1

6 T: 1 – P: 6 – D: 1 T: 1 – P: 6 – D: 2 T: 1 – P: 6 – D: 3 T: 1 – P: 6 – D: 4

5 T: 1 – P: 5 – D: 1 T: 1 – P: 5 – D: 2 T: 1 – P: 5 – D: 3 T: 1 – P: 5 – D: 4

4 T: 1 – P: 4 – D: 1 T: 1 – P: 4 – D: 2 T: 1 – P: 4 – D: 3 T: 1 – P: 4 – D: 4

3 T: 1 – P: 3 – D: 1 T: 1 – P: 3 – D: 2 T: 1 – P: 3 – D: 3 T: 1 – P: 3 – D: 4

2 T: 1 – P: 2 – D: 1 T: 1 – P: 2 – D: 2 T: 1 – P: 2 – D: 3 T: 1 – P: 2 – D: 4

1 T: 1 – P: 1 – D: 1 T: 1 – P: 1 – D: 2 T: 1 – P: 1 – D: 3 T: 1 – P: 1 – D: 4

Floor Apartment 1 Apartment 2 Apartment 3 Apartment 4

8 T: 1 – P: 8 – D: 1 T: 1 – P: 8 – D: 2

7 T: 1 – P: 7 – D: 1 T: 1 – P: 7 – D: 2

6 T: 1 – P: 6 – D: 1 T: 1 – P: 6 – D: 2 T: 1 – P: 6 – D: 4

5 T: 1 – P: 5 – D: 1 T: 1 – P: 5 – D: 2

4 T: 1 – P: 4 – D: 1 T: 1 – P: 4 – D: 2 T: 1 – P: 4 – D: 3 T: 1 – P: 4 – D: 4

3 T: 1 – P: 3 – D: 1 T: 1 – P: 3 – D: 2 T: 1 – P: 3 – D: 3 T: 1 – P: 3 – D: 4

2 T: 1 – P: 2 – D: 1 T: 1 – P: 2 – D: 2 T: 1 – P: 2 – D: 3 T: 1 – P: 2 – D: 4

1 T: 1 – P: 1 – D: 1 T: 1 – P: 1 – D: 2 T: 1 – P: 1 – D: 3 T: 1 – P: 1 – D: 4

BS"D

IP Entrix - v1

Table des matières

Autres manuels Surix Système d'interphone

Surix

Surix iP Access Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
