SurePoint PUMPRIGHT PR17 Manuel utilisateur

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022

PumpRight &

With PWM Control

Maximum Pump Flow and Application Rates

396-4953Y1

Number of

Diaphragms

Max Flow

GPM

Max GPA on 40’ at

6 MPH

Max GPA on 60’

at 6 MPH

PR17 317 35 23.5

PR30 330 62 41

PR40 440 82 55

D250 655 75

Operator should read this

manual before operating the

system.

SurePoint Sentinel

Rate Control

Sentinel Instructional Videos

Scan or click

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022

See the Sentinel Manual, 396-4035Y1, for harness layouts, system setup, module addressing and

more about operating the Sentinel Rate Control system.

Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube.

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control ii Revised 05/13/2022

Table Of Contents

Introduction

• Important Safety Information—Read this first...................................................

• Basic Steps to Install your Fertilizer System ....................................................1

• Complete Fertilizer System Example Drawing .................................................2-3

Components

Liquid

Components - Liquid

• Flowmeters ......................................................................................................4-5

• Section Valves .................................................................................................6

• Pressure Sensor, .............................................................................................7

• Pump Priming and Air Bleed Valve ..................................................................8

• Recirculation & Agitation..................................................................................9

• Flow Indicators and Manifolds, Check Valves, Orifice Charts...........................10-17

• Dual Check Valve Systems, Row Distribution ..................................................18-21

• Metering Tube Charts ......................................................................................22-24

Components

Wiring & Elec.

Components - Wiring & Electrical

• See 396-4035Y1 Sentinel Setup and Operating Manual

Installation

Overview

Installation Overview

• Floating Ball Flow Indicators, PumpRight Installation .......................................26,27

• Hydraulic Connections, PWM Valve, Hydraulic Oil Flow Requirements ...........28-30

• Liquid Plumbing Connections...........................................................................31-32

Setup &

Operation

Setup & Operation

• See 396-4035Y1 Sentinel Setup and Operating Manual

Maintenance

& Parts

Maintenance & Parts

• Air Bladder, Winterization, Pump Oil, Diaphragm and Valve Replacement.. ....41

• Pre-season Service .........................................................................................42

• Replacing Valves and Diaphragms ..................................................................43-45

• Pump Assemblies and Parts Breakdowns........................................................46

• PWM Valve and Motor Parts............................................................................47

• See 396-4034Y1 PumpRightManual

Trouble-

Shooting

Troubleshooting

• Pump Will Not Turn, Manual Operation Mode..................................................34

• Application Rate Fluctuates or Slow Getting to Target Rate.............................34

• Flowmeter Troubleshooting and Tap Test........................................................36

• Section Valve Won’t Move, Pressure Sensor Issues........................................37

• Other Troubleshooting Issues..........................................................................38-39

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control iii Revised 05/13/2022

Safety A

TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR

ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS.

FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.

THIS SYMBOL MEANS

ATTENTION!

BECOME ALERT!

YOUR SAFETY IS INVOLVED!

Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate

signal word for each has been selected using the following guidelines:

DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or se-

rious injury. This signal word is to be limited to the most extreme situations typically for machine

components which, for functional purposes, cannot be guarded.

WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or

serious injury, and includes hazards that are exposed when guards are removed. It may also be

used to alert against unsafe practices.

CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or

moderate injury. It may also be used to alert against unsafe practices.

NOTICE is used to address safety practices not related to personal safety.

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control iv Revised 05/13/2022

Hydraulic Fluid and Equipment Safety

This system uses hydraulic equipment with hydraulic fluid under extremely high pressure.

Hydraulic fluid escaping under pressure can have sufficient force to penetrate the skin causing serious injury.

Keep all hoses and connections in good serviceable condition. Failure to heed may result in serious personal

injury or death. Avoid the hazard by relieving the pressure before disconnecting lines or performing work on

the system.

Make sure hydraulic fluid connections are tight and all hydraulic hoses and lines are in good condition before

applying pressure to the system. Use a piece of paper or cardboard, NOT BODY PARTS, to check for sus-

pected leaks. Wear protective gloves and safety glasses or goggles when working with hydraulic systems.

DO NOT DELAY!

Check hydraulic hoses and fittings frequently. Loose, broken, and missing hardware can cause equipment to

not perform properly and can result in serious injury or death.

Hydraulic systems can be hot and cause burns. Before working on any system, wait until the fluid has

cooled.

If an accident occurs, see a doctor familiar with this type of injury immediately. Any fluid injected into the skin

or eyes must be treated within a few hours or gangrene may result.

A Word to the Operator

It is YOUR responsibility to read and understand the safety messages in this manual. YOU are the key to

safety.

SAFETY IS YOUR RESPONSIBILITY.

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022

See the Sentinel Manual, 396-4035Y1, for harness layouts, system setup, module addressing and

more about operating the Sentinel Rate Control system.

Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube.

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022

General Description

You have purchased a SurePoint fertilizer system for your equipment. This system will be

controlled by your SurePoint Sentinel ECU Rate Controller via your ISO VT display. The

Rate Controller will adjust the speed of the SurePoint PumpRight hydraulic pump based

on feedback from the flowmeter and vehicle speed. The system is capable of using section control or

prescription rates in conjunction with Task Control on your display to minimize overlap areas with optional

section valves or to do variable rate application.

Introduction

Basic Installation Steps

1. Mount the Sentinel ECU in a secure, convenient location.

2. Open the packages and familiarize yourself with the components. See the System Overview Example on

the following page to see the big picture of how SurePoint Fertilizer Systems are installed. Refer to

manual sections B & D for component information.

3. Mount the PumpRight pump and make hydraulic connections. See section E for hydraulic plumbing

information.

4. Plumb the tank to the PumpRight inlet. See section E for details.

5. Install the plumbing kit including section valves, flow indicator columns / manifolds, check valves,

plumbing to each row unit delivery point. See section B for information on these components.

6. Attach the flowmeter outlet to section valve or manifold inlet. Attach section valve outlets to flow indicator

inlets.

7. Attach harnesses as shown in the Sentinel Manual, 396-4035Y1.

8. Set up Controller for SurePoint fertilizer system as shown in the Sentinel Manual, 396-4035Y1.

9. Fill system with water, conduct initial operation and tests per the Sentinel Manual, 396-4035Y1.

10. Winterize system with RV Antifreeze if freezing temperatures are expected.

11. Do pre-season service each year as described on page 39.

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control 2Revised 05/13/2022

System Overview Example

The following gives an example of a complete SurePoint Fertilizer system with these

components:

• Display with UT or VT and Task Control

• Sentinel ECU Module

• PumpRight PR30

• Section Valves

• Flow Indicators

• Check Valves with Colored Disc Orifices

Introduction

SurePoint Adapter Harness-

(connector detail in 396-4035Y1

Manual)

Sentinel

Rate

Controller

Display

with VT or

UT in cab

ISO

Harnesses

Fertilizer Opener,

Seed Firmer, SS

Tube, etc.

Typically 3/4” hose used to

feed each manifold. Length

of this hose can vary

significantly.

This is usually 3/8” hose. Typi-

cal length is 1-4’ with check

valves placed on each row that

distance from ground.

This is usually 3/8” hose.

Maximum recommended length

is 20 feet.

Check valve is mounted

near each row. 1/4 turn

cap is always check valve

outlet. Colored disc orifice

can be placed under cap.

TANK

Hose is used from the flowmeter outlet to section

valves. If not using section valves, flowmeter is

plumbed directly to flow indicators or a simple tee

is used to divide flow to multiple flow indicator

manifolds.

Strainer

PWM Pump Harness

(connector detail in 396-

4035Y1 Manual)

Section Valve Harness

(connector detail in 396-4035Y1

Manual)

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control 3Revised 05/13/2022

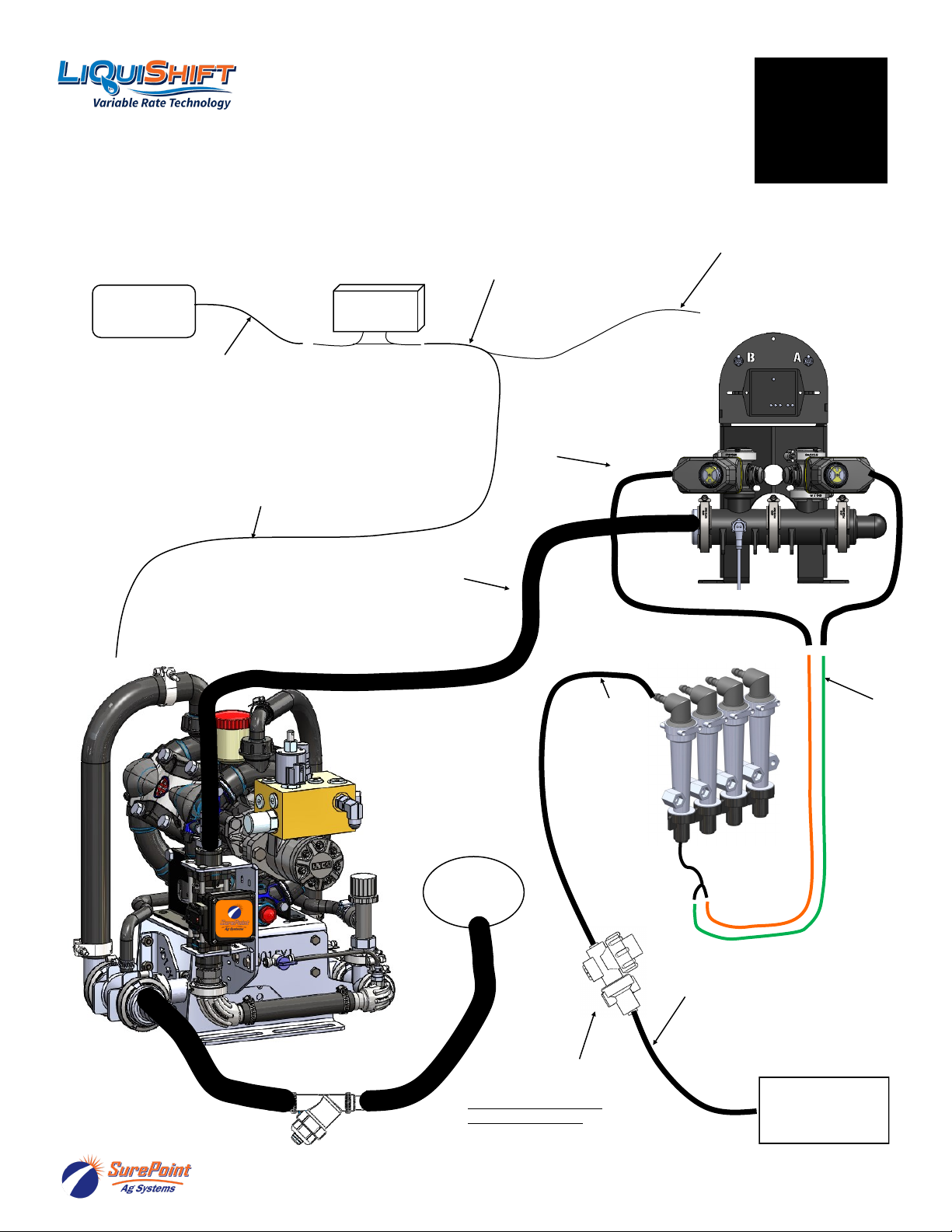

System Overview Example A

Introduction

Sentinel

ECU

Display with

UT or VT in

cab

ISO

Harnesses

Fertilizer Opener,

Seed Firmer, SS

Tube, etc.

The dual

color

LiquiShift

tubes run

from this

point and

end just

under

each

isolated

feed flow

indicator

column.

This is usually 3/8” hose. Typi-

cal length is 1-4’ with check

valves placed on each row that

distance from ground.

This is usual-

ly 3/8” hose.

Maximum

recommend-

ed length is

20 feet and

lengths do

not need to

be equal.

Zip valve or check valve is

mounted near each row.

1/4 turn cap is always

check valve outlet.

Hose is used from the flowmeter

outlet to LiquiShift valve stack

inlet

PWM Pump Harness

(connector detail in Section D)

Extension harness to

reach LiquiShift mount-

ing location

The following gives an example of a complete SurePoint Fertilizer system with Gen2

LiquiShift and these components:

• Display with UT or VT and Task Control

• Sentinel Rate Controller

• PumpRight PR30

• LiquiShift Valve Stack

• Isolated Feed Flow Indicators

• Check Valves SurePoint adapter harness for 2

products and section valves

3/4” or 1” hose typical

from each LiquiShift

valve to each Li-

quiShift tube assem-

bly.

TANK

Strainer

396-4953Y1 SurePoint PumpRight for Sentinel Rate Control 4Revised 05/13/2022

PR17 & PR30 Electromagnetic Flowmeter Kits

0.13 - 2.6 GPM Item Number 500-02-2082 (PR17)(FM only 204-01-46211CUF00)

0.3 - 5.0 GPM Item Number 500-02-2085 (PR17) (FM only 204-01-46211CUF01)

0.6 - 13 GPM Item Number 500-02-2090 (PR17 & PR30) (FM only 204-01-46211CUF02)

1.3 - 26 GPM Item Number 500-02-2095 (PR30) (FM only 204-01-46211CUF03)

Kits include flowmeter, adapter harness, mounting bracket, hose barb fittings & hose

clamps.

Flowmeter Model

(black meter with orange label)

Flow Cal

Pulses per gallon FPT Size

Hose Barb

In kit

0.13 - 2.6 GPM 3000 3/4” 1”

0.3 - 5 GPM 3000 3/4” 1”

0.6 - 13 GPM 2000 3/4” 1”

1.3 - 26 GPM 2000 1” 1”

Components

Liquid

-Before doing any arc welding on the implement, unplug the cable to the flowmeter, or damage to the

flowmeter may result.

-Do not power wash the flowmeter. High pressure spray directed at the back edge of the face plate or at

the wire connector may allow water into the flowmeter electronics.

Amp SuperSeal 3-pin connector

Use adapter 201-17842

to connect to 3-pin MP harness

Mounting Bracket,

400-3826Y1 (QTY 1)

(not used for PR40 and

D250 Pump)

Mounting Bracket,

410-4015Y1 (QTY 1)

(not used for PR40 and

D250 Pump)

Troubleshooting Tip:

3-pin MP Tower A- Signal B- 12V Power C- Ground (See the next page for more flowmeter tips)

3-pin AMP SuperSeal 1– Ground 2– 12V Power 3– Signal

Remove red guard to reach pins. Be careful so you don’t break red side keepers.

1 2 3

Electromagnetic flowmeters are superior to traditional turbine flowmeters in two basic ways. First, they

have no moving parts. There are no wear items or potential for contaminants to jam a spinning turbine.

Second, electromagnetic flowmeters detect the flow by electrically measuring the velocity of the liquid,

which makes them independent of viscosity or density of the fluid measured. They are extremely accurate

using the standard calibration number. SurePoint still recommends you perform a catch test to verify the

system is properly installed and configured.

The flowmeters will accurately read higher than the rated range.

Earlier model flowmeters (meters with white labels with black text) have different calibration numbers. The flow cal

number (pulses per gallon) is printed on the serial number sticker on the side of the flowmeter.

Ce manuel convient aux modèles suivants

Table des matières

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
