EP-9428-g
54M WLAN CardBus Adapter
UserManual
4819428GZ000
2
1.Introduction--------------------------------------------------------------------------------------------------------3
1.1Feature-------------------------------------------------------------------------------------------------------------3
1.2Specification------------------------------------------------------------------------------------------------------4
1.3Package Contents---------------------------------------------------------------------------------------------- 4
1.4Systems Requirements----------------------------------------------------------------------------------------5
2.Hardware Installation------------------------------------------------------------------------------------------5
2.1Connecting the CardBus--------------------------------------------------------------------------------------5
2.2 Removing the CardBus---------------------------------------------------------------------------------------6
3.Software Installation-------------------------------------------------------------------------------------------7
3.1Installing WLAN CardBus Adapter Utility and Driver--------------------------------------------------7
3.2Uninstalling the Driver and Utility---------------------------------------------------------------------------11
4.Configuration Utility--------------------------------------------------------------------------------------------14
4.1Using the configuration utility---------------------------------------------------------------------------------14
4.1.1Profile---------------------------------------------------------------------------------------------------------15
4.1.1.1 System Configuration Edit profile Network Type--------------------------------------------15
4.1.1.2 Edit Profile---------------------------------------------------------------------------------------------17
4.1.1.3 Authentication and Security-----------------------------------------------------------------------19
4.1.2 Link Status---------------------------------------------------------------------------------------------------20
4.1.3 Site Survey---------------------------------------------------------------------------------------------------21
4.1.4 Statistics----------------------------------------------------------------------------------------------------- 22
4.1.5 Advance----------------------------------------------------------------------------------------------------- 23
4.1.6 About--------------------------------------------------------------------------------------------------------- 24
5.Glossary------------------------------------------------------------------------------------------------------------ 25
3
1 Introduction
The 54Mbps WLAN CardBus Adapter provides greater performance than ever before. Incorporated with latest IEEE
802.11g technology, the CardBus is not only compliant with other 802.11g products but allows you to connect with other
802.11b devices. With WPA (Wi-Fi Protected Access) and 64/128-bit WEP encryption, the CardBus ensure the security
of your network communication. All you need is laptop computer with one 32-bit CardBus interface and Windows
98SE/2000/ME/XP operating system; the Plug-and-Play feature will enable you to complete the set up process within
minutes. This wireless network CardBus has been designed for both home and business users, enables you to
communicate seamlessly with other wireless networking products wherever you are.
1.1 Features
1.IEEE 802.11b-DSSS (BPSK,QPSK,CCK)
2.IEEE 802.11g-OFDM(64-QAM,16-QAM,QPSK,BPSK)
3.54Mbps high Data Rate
4.Support 32bit CardBus interface.
5.Auto Rate fallback for optimizing communication possibility in worse channel conditions and over larger distances.
6.64/128bit WEP data encryption security
7.Compliant with Windows 98SE/2000/ME/XP
8.Power save in infrastructure mode.
9.Build-in PCB patch space diversity antenna.
10.Plug-and-Play and easy to setup.
11.Easy-to-Use Graphical Configuration utility saves detailed connectivity profiles for frequently accessed networks.
4
1.2 Specification
Model:54Mbps WLAN CardBus Adapter
Radio:Complies with IEEE 802.11b/g
Frequency Band:2.412-2.462GHz(U.S.) 2.412-2.484GHz(Japan)2.412-2.472GHz(ETSI)
Modulation TYPE :BPSK,QPSK,CCK,16-QAM,64-QAM
Operating Channels:11 channels (US)13 channels (ETSI)14 channels (Japan)
Data Rate:1 / 2 / 5.5 / 6/9/11/12/24/36/48/54Mbps
Output Power: 18dBm@11Mbps;14dBm@54Mbps
Receive sensitivity: Min.80dBm for 11Mbps (@BER 8%) Min. -70dBm for 54 Mbps(@BER 10%)
Antenna Type: Build-in PCB patch space diversity antenna
Current Consumption: 3.3V, Tx mode 400 mA (Max.) Rx mode 250 mA (Max.)
Package: 3.3V CardBus
Certification:Radio: EU: ETS 300 328; USA: FCC Part 15C
EMC: EU ETS 300 826; USA: FCC Part 15B Safety: EN60950
Driver:Windows 98SE/2000/ME/XP
1.3 Package Contents
1.One 54Mbps WLAN CardBus Adapter.
2.One setup Utility CD-ROM (User Guide on CD).
3.Quick Installation Guide.
5
1.4 Systems Requirements
1.One PCMCIA Type II or Type III slot.
2.A laptop computer with an available 32bit CardBus slot.
3.Operating System: Windows 98SE/2000/ME/XP
4.2M bytes free disk space for utility and driver installation.
Note : If you insert the WLAN CardBus before installing the driver and utility, the operating system will detect a new
device and start to configure the new device. Click Cancel to finish the wizard. Follow the instruction step by step to
install the WLAN CardBus Adapter.
2.Hardware Installation
2.1Connecting the CardBus
Insert the CardBus into the PC Card slot on your notebook, and push it until it is firmly seated.
6
2.2 Removing the CardBus
If you want to remove the CardBus, press the Eject Button to make it stretch out. Press the eject button again and
remove the CardBus out of the slot.
7
3.Software Installation
3.1Installing WLAN CardBus Adapter Utility and Driver
Insert the setup CD into your CD-ROM Drive. Then, the Install Shield Wizard should launch automatically, if it does
not launch automatically, Double-click setup.exe in your CD-ROM Drive.
8

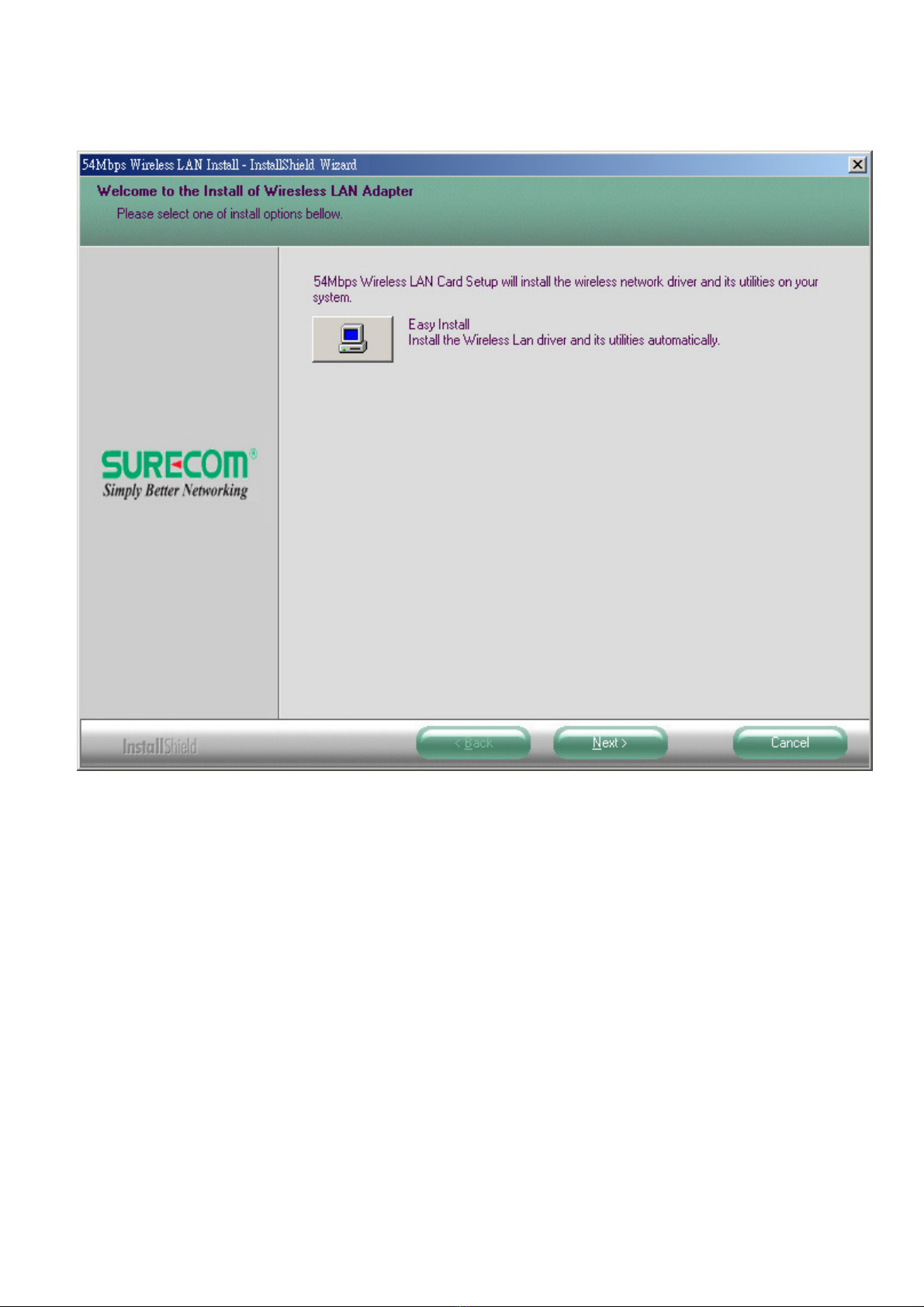

Click Next button in the following window.
9
The Install Shield Wizard is copying the necessary files to the system. The progress indicator shows the installing
status.
Plug-in the WLAN CardBus Adapter into your CardBus slot when the window below appears.
10
If this is the first time you install the software, the window below will appear. Select your current country region then
click Next.
Click Finish ,when the installation is completed.
