suprema biostation Manuel utilisateur
www.supremainc.com
Innovative Fingerprint Terminal
Installation Guide
(ver 1.1)
EN 101.00.BST V1.31
2
ⒸCopyright 2007Suprema Inc.
Contents
Product Contents 3
Connectors for External Interfaces 5
Cable and Connector Pinout 6
Installation Example 7
Product Dimension 8
Installation of Wall-mount Bracket 9
Power Connection 10
USB Cable Connection 11
LAN Connection 12
Wireless LAN Connection 13
RS485 Network Connection 14
USB Memory Connection 15
Intercom Connection 16
Relay Connection –Fail Safe Lock 17
Relay Connection –Fail Secure Lock 18
Relay Connection -Automatic Door 19
TTL Input Port Connection –RTE Switches 20
TTL Output Port Connection 21
Wiegand Input Connection –External reader 22
Wiegand Output Connection –Control Panel 23
Ferrite Core Installation 24
System Specification 25
Electrical Specification 26
FCC Rules 27
3
ⒸCopyright 2007Suprema Inc.
Product Contents
Basic Contents
Product Contents
BioStation fingerprint terminal Wall mounting metal bracket
USB cable
Wall mounting
screwsand holders - 3 ea Star-shape screw for fixing
main body
Star-shape small wrench
5pin, 3pin, 6pin, 4pin, 7pin cable –1 ea Software CD Diodes –1 ea
4
ⒸCopyright 2007Suprema Inc.
Product Contents

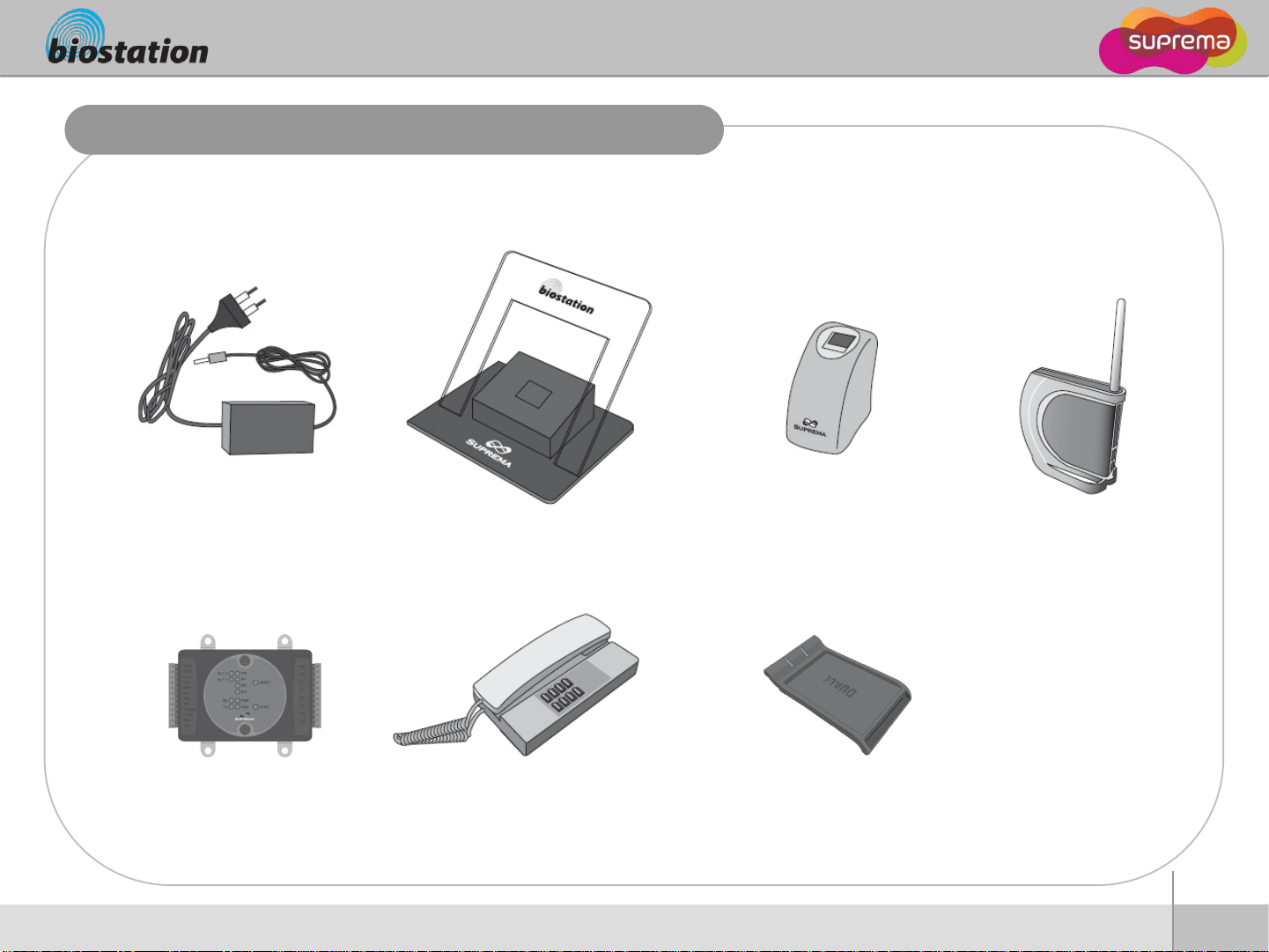

Optional accessories
USB fingerprint scanner
for enrollment on PC
12V power adaptor Plastic stand type A
Interphone
Wireless LAN Access Point
Secure I/O USB Mifare
reader/writer
5
ⒸCopyright 2007Suprema Inc.
Connectors for External Interfaces
Bottom
Rear
Slot for USB memory device : USB type A
Slot for PC USB connection : Mini USB
Ethernet cable connector : RJ45
3pin cable connector -Door
6pin cable connector –Input/Output or Wiegand
4pin cable connector -RS485
7pin cable connector -RS232 or BEACon
5pin cable connector –Power and doorphone
12V power adaptor
6
ⒸCopyright 2007Suprema Inc.
Cable and Connector Pinout
PIN PIN DESCRIPTION WIRE
1PWR +VDC RED
2PWR GND BLACK
3INPH AUD ORANGE
4INPH DTA BLUE
5SH GND GRAY
Power & Doorphone
Relay
TTL I/O or Wiegand
RS485
RS232
PIN PIN DESCRIPTION WIRE
1RLY NO WHITE
2RLY COM BLUE
3RLY NC ORANGE
PIN PIN DESCRIPTION WIRE
1TTL / WG IN0 BLUE
2TTL / WG IN1 YELLOW
3TTL / WG OUT0 GREEN
4TTL / WG OUT1 WHITE
5TTL / WG GND BLACK
6SH GND GRAY
PIN PIN DESCRIPTION WIRE
1485 TRXN YELLOW
2485 TRXP BLUE
3485 GND BLACK
4SH GND GRAY
PIN PIN DESCRIPTION WIRE
1232 GND BLACK
2232 TX BLUE
3232 RX YELLOW
4TTL OUT1 WHITE
7SH GND GRAY
Before Start
7
ⒸCopyright 2007Suprema Inc.
Installation Example
Exit Button
Door Lock
PC Network hub
6pin cable
3pin cable
7pin cable
Ethernet
USB
USB
RS232
8
ⒸCopyright 2007Suprema Inc.
Product Dimension
BracketFront Side
128
135
128
50
108
112
88
(unit : mm)
9
ⒸCopyright 2007Suprema Inc.
Installation of Wall-mount Bracket
Fix wall mount bracket on a wall using wall
mounting screws
Hook BioStation on the wall mount bracket.
Wall Mounting
Screws
Star-shape Screw
Star-shape Small Wrench
Fix BioStation and wall mounting bracket using a
star shape screw.
10
ⒸCopyright 2007Suprema Inc.
Power Connection
Method 1
Method 2
Recommended power supply
12V ±10%, at least 2500mA for BioStation alone installation.
Comply with standard IEC/EN 60950-1
Use a separate power supply for Secure I/O, electric lock and BioStation respectively. If
connecting and using the power supply to these devices together, the devices may malfunction.
DC12V ADAPTOR
+-
(1) PWR +VDC (Red)
(2) PWR GND (Black)
