SC512 CHASSIS

Series

USER’S MANUAL

1.0a

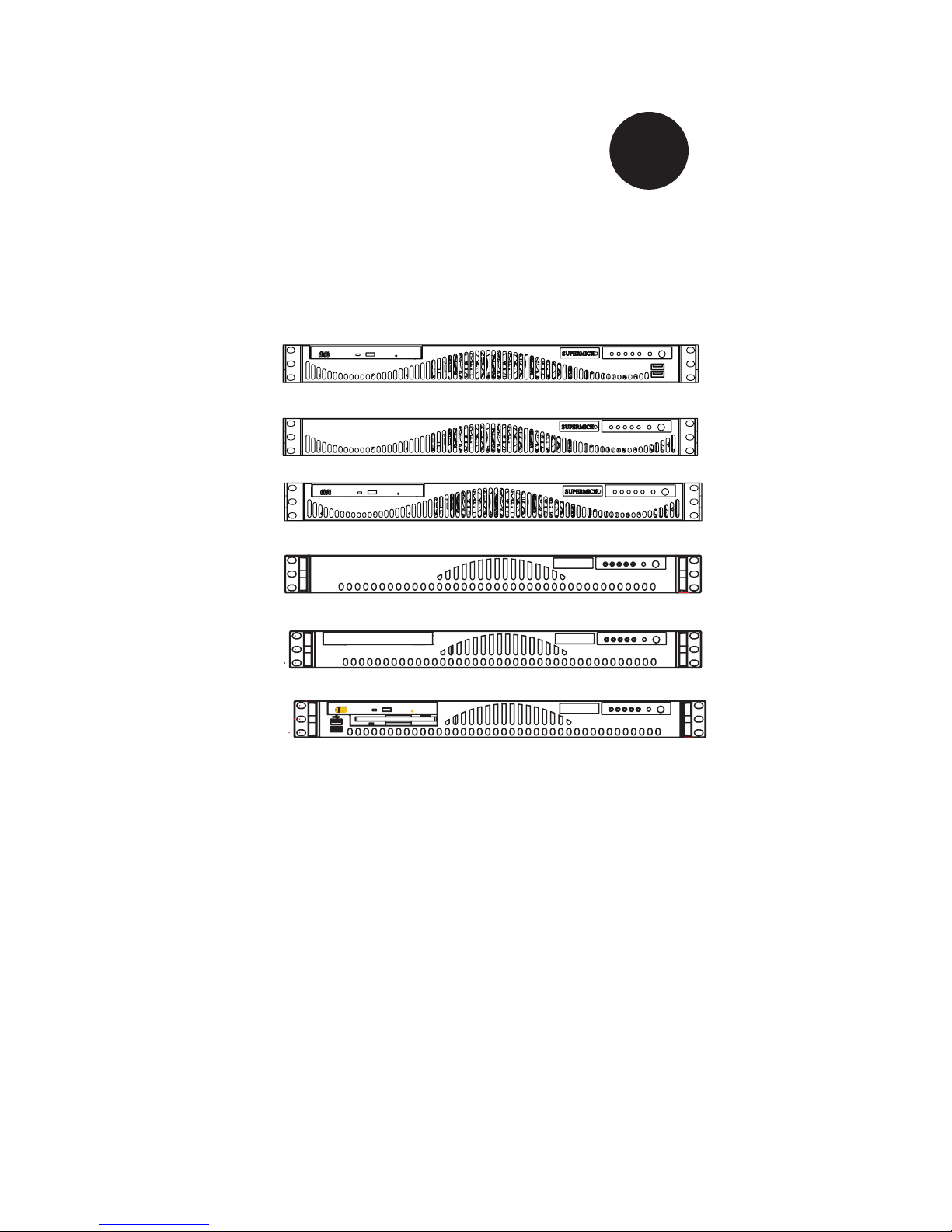

SC512-200B

SC512C-260(B) SC512F-280(B)

SC512F-520(B) SC512L-260(B)

SC512F-520L(B) SC512L-260(B)-LCD

SC512F-410(B) SC512L-200B

SC512F-260(B)

SUPER ®

SC512 Chassis Manual

Manual Revision 1.0a

Release Date: October 1, 2009

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software, if any,

and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or

reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the SC512 1U chassis. Installa-

tion and maintenance should be performed by experienced technicians only.

Supermicro’s SC512 1U chassis features a unique and highly-optimized design for

dual-core Xeon platforms. The chassis is equipped with a 200, 260, 280. 410, or

520 Watt high efciency power supply for superb power savings. High-performance

fans provide ample optimized cooling for FB-DIMM memory modules in a 1U form

factor.

This document lists compatible parts available when this document was published.

Always refer to the our Web site for updates on supported parts and congura-

tions.

SC512 Chassis Manual

Manual Organization

Chapter 1: Introduction

The rst chapter provides a checklist of the main components included with this

chassis and describes the main features. This chapter also includes contact infor-

mation.

Chapter 2: System Safety

This chapter lists warnings, precautions, and system safety. You should thoroughly

familiarize yourself with this chapter for a general overview of safety precautions

that should be followed before installing and servicing this chassis.

Chapter 3: Chassis Components

Refer to this chapter for details on this chassis model including the fans, bays,

airow shields, and other components.

Chapter 4: System Interface

Refer to this chapter for details on the system interface, which includes the functions

and information provided by the control panel on the chassis as well as other LEDs

located throughout the system.

Chapter 5: Chassis Setup and Maintenance

Follow the procedures given in this chapter when installing, removing, or

reconguring your chassis.

Chapter 6: Rack Installation

Refer to this chapter for detailed information on chassis rack installation. You should

follow the procedures given in this chapter when installing, removing or reconguring

your chassis into a rack environment.

Appendix A Cables, Screws, and Other Accessories

Appendix B Power Supply Specications

Preface

Table of Contents

About This Manual .............................................................................................iii

Manual Organization ..........................................................................................iv

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Shipping List.................................................................................................... 1-1

Part Numbers .................................................................................................. 1-1

1-3 Chassis Features ............................................................................................ 1-2

I/O Expansion slots ......................................................................................... 1-2

Peripheral Drives............................................................................................. 1-2

Dual Hard Drives............................................................................................. 1-2

1-4 Contacting Supermicro.................................................................................... 1-3

1-5 Returning Merchandise for Service................................................................. 1-4

Chapter 2 System Safety

2-1 Overview ......................................................................................................... 2-1

2-2 Warnings and Precautions .............................................................................. 2-1

2-3 Preparing for Setup......................................................................................... 2-1

2-4 Electrical Safety Precautions .......................................................................... 2-1

2-5 General Safety Precautions ............................................................................ 2-2

2-6 System Safety ................................................................................................. 2-3

Chapter 3 Chassis Components

3-1 Overview ......................................................................................................... 3-1

3-2 Components .................................................................................................... 3-1

Chassis............................................................................................................ 3-1

Fans ................................................................................................................ 3-1

Blower ............................................................................................................. 3-1

Mounting Rails ................................................................................................ 3-1

Power Supply .................................................................................................. 3-2

Air Shroud ....................................................................................................... 3-2

3-3 Where to get Replacement Components........................................................ 3-2

3-4 Chassis Model Options ................................................................................... 3-2

Identifying Fan and Blower-Cooled Chassis Models ...................................... 3-2

Model SC512 .................................................................................................. 3-4

Model SC512C................................................................................................ 3-4

Model SC512F ................................................................................................ 3-5

Model SC512L................................................................................................. 3-7

SC512 Chassis Manual

Chapter 4 System Interface

4-1 Overview ......................................................................................................... 4-1

4-2 Control Panel Buttons ..................................................................................... 4-2

4-3 Control Panel LEDs ........................................................................................ 4-2

Chapter 5 Chassis Setup and Maintenance

5-1 Overview ......................................................................................................... 5-1

5-2 Installation Procedures.................................................................................... 5-1

General Maintenance...................................................................................... 5-1

5-3 Removing the Chassis Cover ......................................................................... 5-2

5-4 Installing Hard Drives...................................................................................... 5-3

5-5 Installing the Motherboard .............................................................................. 5-5

Important Motherboard Installation Information .............................................. 5-5

Standoffs ......................................................................................................... 5-6

5-6 Installing the DVD or CD-ROM Drive ............................................................. 5-7

Add-on Card/Expansion Slot Setup ................................................................ 5-8

5-7 Installing the Air Shroud.................................................................................. 5-9

Installation Complete..................................................................................... 5-10

5-8 System Fans ..................................................................................................5-11

System Fan Tray............................................................................................5-11

System Fan Tray Replacement..................................................................... 5-12

5-9 Power Supply ............................................................................................... 5-13

Power Supply Failure.................................................................................... 5-13

Replacing the Chassis LED Panel................................................................ 5-15

Chapter 6 Rack Installation

6-1 Overview ......................................................................................................... 6-1

6-2 Unpacking the System .................................................................................... 6-1

6-3 Preparing for Setup......................................................................................... 6-1

Choosing a Setup Location............................................................................. 6-1

Rack Precautions ............................................................................................ 6-2

General Server Precautions............................................................................ 6-2

Rack Mounting Considerations ....................................................................... 6-3

Ambient Operating Temperature ................................................................ 6-3

Reduced Airow ......................................................................................... 6-3

Mechanical Loading ................................................................................... 6-3

Circuit Overloading..................................................................................... 6-3

Reliable Ground ......................................................................................... 6-3

6-4 Rack Mounting Instructions............................................................................. 6-4

Identifying the Sections of the Rack Rails (Optional Item)............................. 6-4

vii

Preface

Installing the Inner Rail Extension .................................................................. 6-5

Installing the Outer Rails to the Rack............................................................. 6-6

Installing the Chassis into a Rack................................................................... 6-8

Mid-Mount Telco Rack..................................................................................... 6-9

Installing the Chassis into a Rack in Mid-Mount Position .............................. 6-9

Appendix A Cables, Screws, and Other Accessories

Appendix B Power Supply Specications

SC512 Chassis Manual

viii

Notes

Chapter 1

Introduction

1-1 Overview

Supermicro’s SC512 1U chassis features a unique and highly-optimized design.

The chassis is equipped with a high efciency power supply in a small form factor

for optimized space efciency.

1-2 Shipping List

Part Numbers

Please visit the following link for the latest shiping lists and part numbers for your par-

ticular chassis model http://www.supermicro.com/products/chassis/1U/?chs=512

Chapter 1: Introduction

1-1

SC512 Chassis

Model CPU HDD I/O Slots Power

Supply

SC512-200B UP 1x Fixed FH 200W

(High Efciency)

SC512C-200(B) UP 1x Fixed FH 200W

SC512C-260(B) UP 1x Fixed FH 260W

SC512F-520(B) DP/UP 1x Fixed FH 520W

SC512F-520L(B) DP/UP 1x Fixed FH 520W

SC512F-260(B) UP 1x Fixed FH 260W

SC512F-280(B) DP/UP 2x Fixed FH 280W

SC512L-200(B) UP 2x Fixed FH 200W

SC512L-260(B) UP 2x Fixed FH 260W

SC512L-260(B)-LCD UP 1x Fixed FH 260W

SC512 Chassis Manual

1-2

1-3 Chassis Features

The SC512 1U high-performance chassis supports a wide range of features. See

the Chassis Components section of this manual for a list of featues included in

each of the SC512 models.

CPU

The SC512 chassis supports a DP Xeon, Pentium D or UP P3/P4 processor.

Please refer to the motherboard specications pages on our web site for updates

on supported processors.

I/O Expansion slots

Each version of the SC512 chassis includes one full I/O expansion slot

Peripheral Drives

Some SC512 chassis support peripheral dives such as a DVD-ROM, CD-ROM or

oppy disk drive. These drives allows you to quickly install or save data.

Dual Hard Drives

Some SC512 chassis models support a second hard disk drive. For more details,

check the Chassis Components section of this manual or the Supermicro website

at www.supermicro.com.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Supero Serveur

Supero

Supero SuperServer 6026TT-HTF Manuel utilisateur

Supero

Supero SuperServer 5015A-PHF Manuel utilisateur

Supero

Supero SUPERSERVER 1026GT-TRF Manuel utilisateur

Supero

Supero SUPERSERVER 1027GR-TRF Manuel utilisateur

Supero

Supero SUPERSERVER 6025W-NTR+ Manuel utilisateur

Supero

Supero SuperServer 5013C-MT Manuel utilisateur

Supero

Supero SUPERSERVER 7047R-3RF4+ Manuel utilisateur

Supero

Supero SUPERSERVER 6025B-3 Manuel utilisateur

Supero

Supero SUPERSERVER 6015C-M3 Manuel utilisateur

Supero

Supero SUPERSERVER 6016T-6RFT+ Manuel utilisateur

Supero

Supero 1042G-TF Manuel utilisateur

Supero

Supero SUPERSERVER 6027PR-HC0R Manuel utilisateur

Supero

Supero SUPERO SuperServer 6026TT-H6RF Manuel utilisateur

Supero

Supero SUPERSERVER 5017R-WRF Manuel utilisateur

Supero

Supero A+ Server 4022G-6F Manuel utilisateur

Supero

Supero SC835BTQ - R1K28B Manuel utilisateur

Supero

Supero MicroCloud 5038ML-H12TRF Manuel utilisateur

Supero

Supero SUPERSERVER 6016XT-TF Manuel utilisateur

Supero

Supero SUPERSERVER 7047R-TRF Manuel utilisateur

Supero

Supero SUPERSERVER 1027TR-TF Manuel utilisateur

Supero

Supero FatTwin F617H6-FT+ Manuel utilisateur

Supero

Supero SUPERSERVER 6012P-6 Manuel utilisateur

Supero

Supero SuperServer 2027R-N3RF4+ Manuel utilisateur

Supero

Supero SUPERSERVER 6015T-INF Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur
