1-1 Overview

This quick reference guide serves as a supplement to the SC847 chassis manual.

It provides diagrams showing the supported backplane connectivity options for the

chassis, without including details on chassis maintenance, conﬁguration or safety

warnings. This guide is designed for use by experienced technicians. For detailed

information on the SC847 chassis visit the Supermicro Web site and dowload the

full chassis manual at http://www.supermicro.com/products/chassis/4U/?chs=847

Review the warnings and precautions listed in the SC847 chassis

manual before setting up or servicing the SC847 chassis. These

include information in Chapter 2: System Safety and the warnings/

precautions listed in the setup instructions.

Safety Warning: Before performing any chassis setup or mainte-

nance, it is recommended that the chassis be removed from the rack

and placed on a stable bench or table. For instructions on how to

uninstall the chassis from the rack, refer to Chapter 5 Rack Installa-

tion of the SC847 chassis manual.

1-2

SC847 Connectivity Conﬁgurations Quick Reference Guide

J1 J0

J2 J0

RAID Cards

SAS(or SAS2)-826EL1

SC847-E1 Chassis

SAS(or SAS2)-846EL1

1-2 Connectivity Conﬁgurations

The following diagrams represent the different connectivity conﬁguration options

supported by the SC847 E series chassis.

Conﬁguration One

Connectivity: Parallel•

Features: Performance•

Drive types: SAS/SATA•

Backplane type: Single expander•

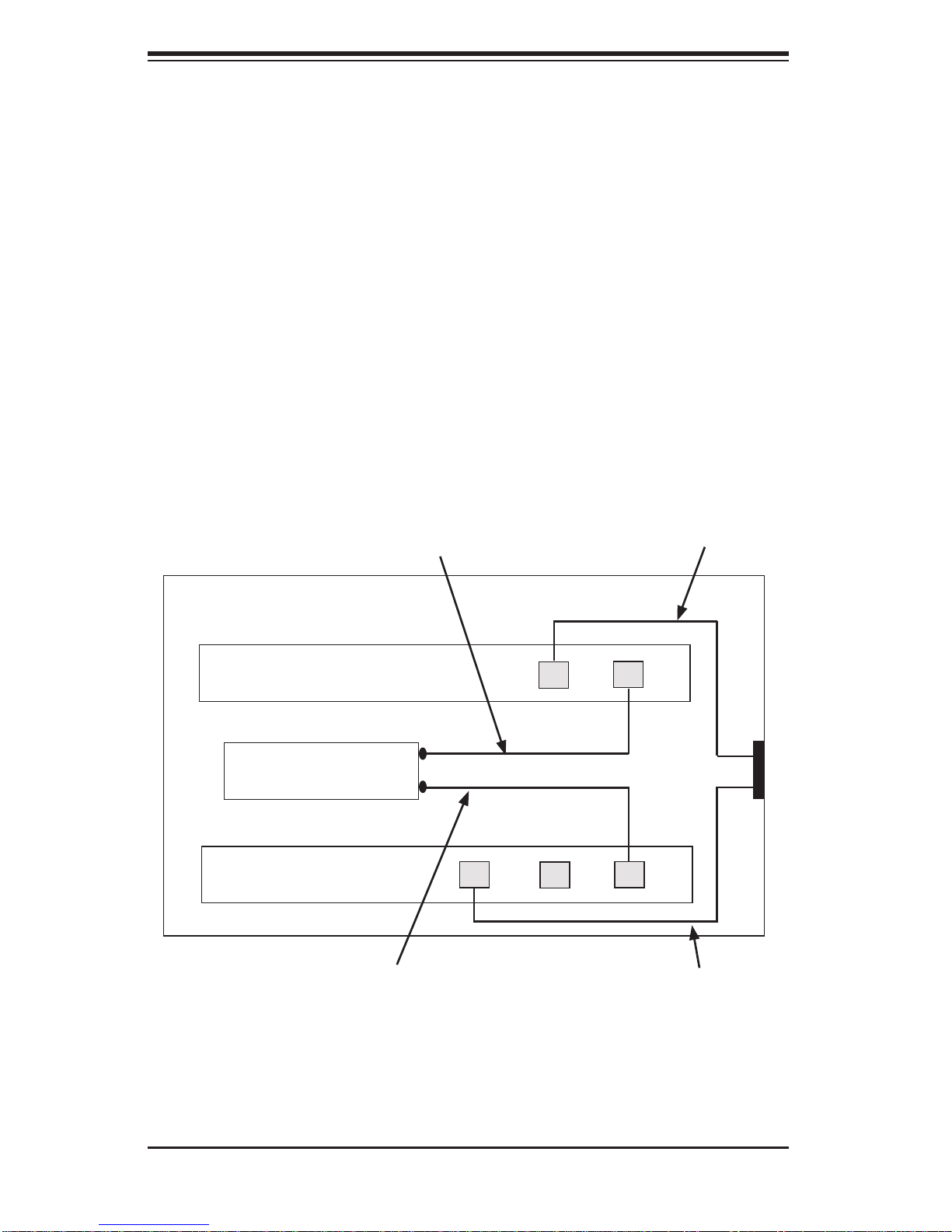

Figure 1-1: Connectivity Conﬁguration Option One

CBL-0281L

CBL-0281L CBL-0352L-LP

CBL-0352L-LP

1-3

Connectivity Conﬁguration Diagrams

J1 J0

J2 J0

RAID Cards

SAS(or SAS2)-826EL1

SC847-E1 Chassis

SAS(or SAS2)-846EL1

RAID Cards

Conﬁguration Two

Connectivity: Parallel•

Features: Performance/multi PCI buses•

Drive types: SAS/SATA•

Backplane type: Single expander•

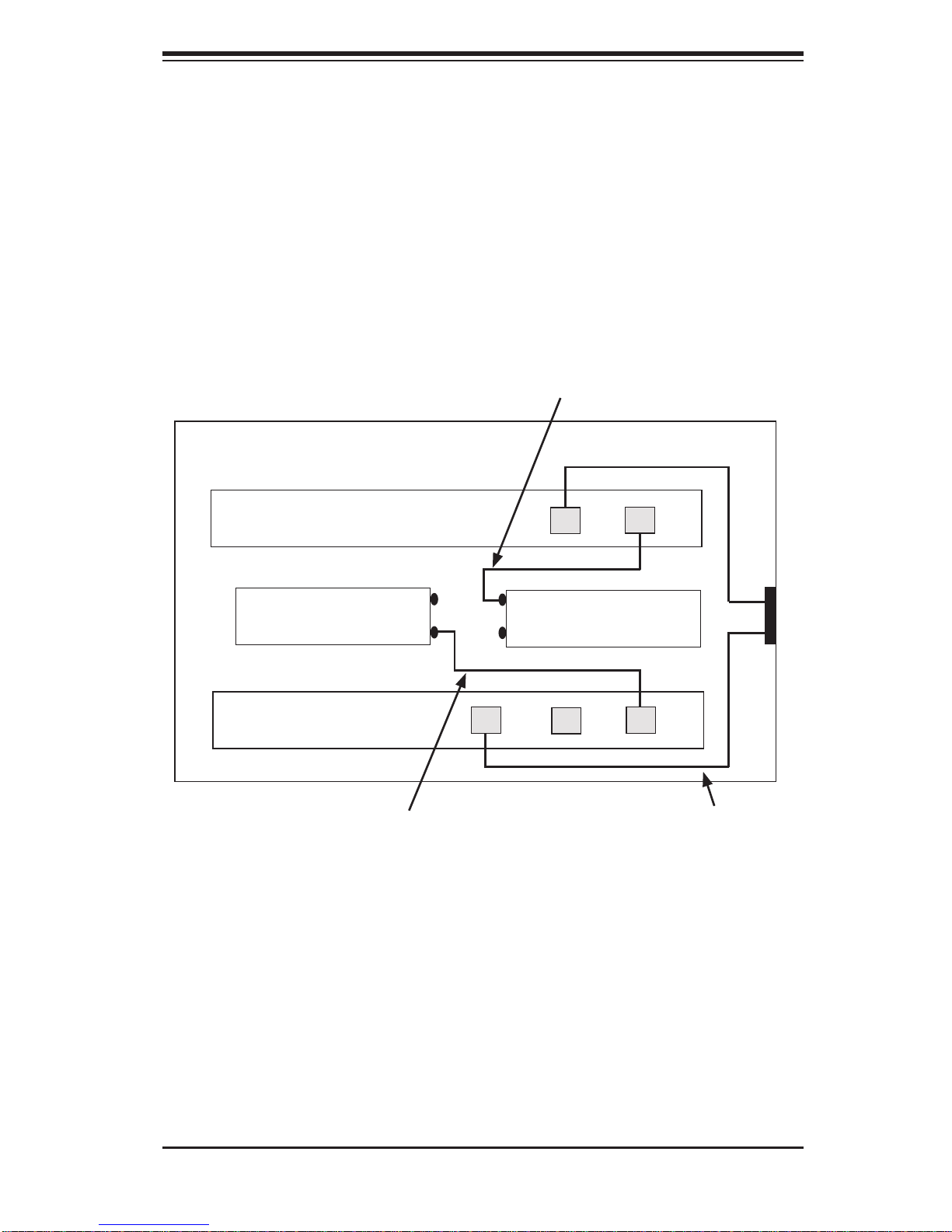

Figure 1-2: Connectivity Conﬁguration Option Two

CBL-0352L-LPCBL-0281L

CBL-0281L

1-4

SC847 Connectivity Conﬁgurations Quick Reference Guide

J1 J0

J2 J0

RAID Cards

SAS(or SAS2)-826EL1

SC847-E1 Chassis

SAS(or SAS2)-846EL1

Conﬁguration Three

Connectivity: Serial•

Features: Capacity•

Drive types: SAS/SATA•

Backplane type: Single expander•

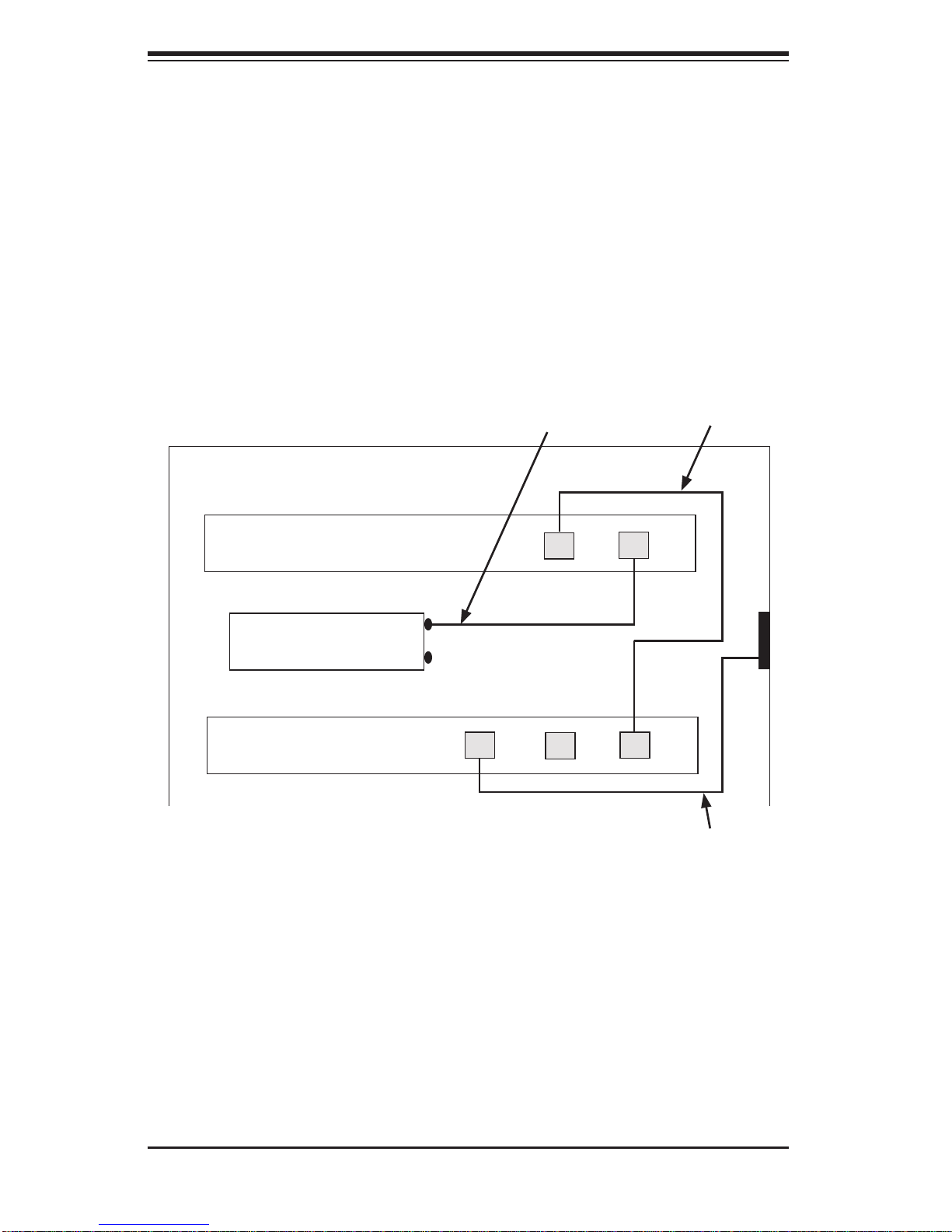

Figure 4-19: Connectivity Conﬁguration Option Three

CBL-0351L-LP

CBL-0281L CBL-0281L

1-5

Connectivity Conﬁguration Diagrams

J1 J0

J2 J0

RAID Cards

SAS(or SAS2)-826EL1

SC847-E1 Chassis

SAS(or SAS2)-846EL1

Conﬁguration Four

Connectivity: Serial•

Features: Capacity•

Drive types: SAS/SATA•

Backplane type: Single expander•

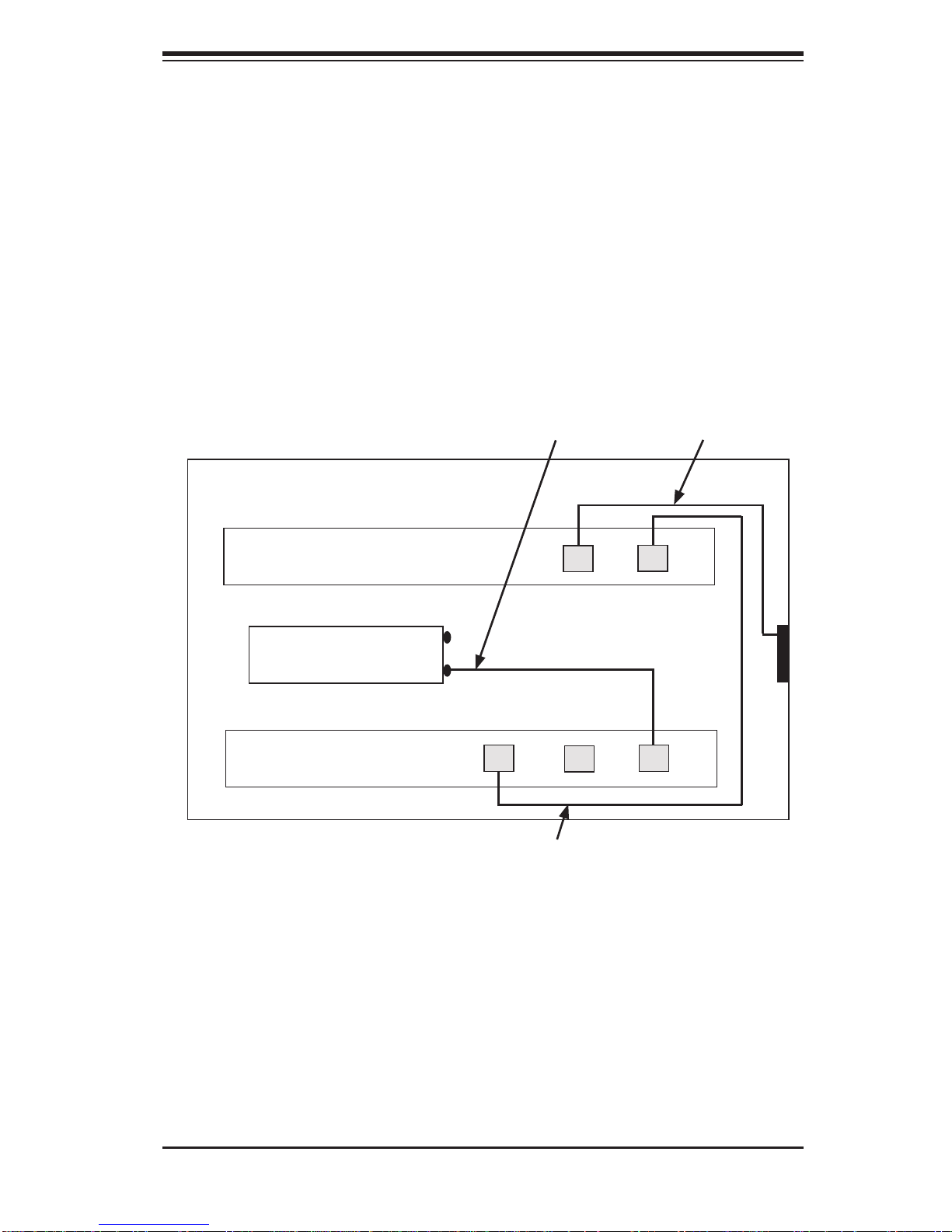

Figure 4-20: Connectivity Conﬁguration Option Four

CBL-0281L

CBL-0281L CBL-0351L-LP

1-6

SC847 Connectivity Conﬁgurations Quick Reference Guide

PRI-J1

PRI-J2PRI-J0

PRI-J1

SEC-J0 SEC-J2

SEC-J1

SEC-J1 SEC-J0 PRI-J0

RAID Cards

SAS(or SAS2)-826EL1

SC847-E1 Chassis

SAS(or SAS2)-846EL1

Conﬁguration Five

Connectivity: Serial•

Features: Redundancy•

Drive types: SAS only•

Backplane type: Dual expander•

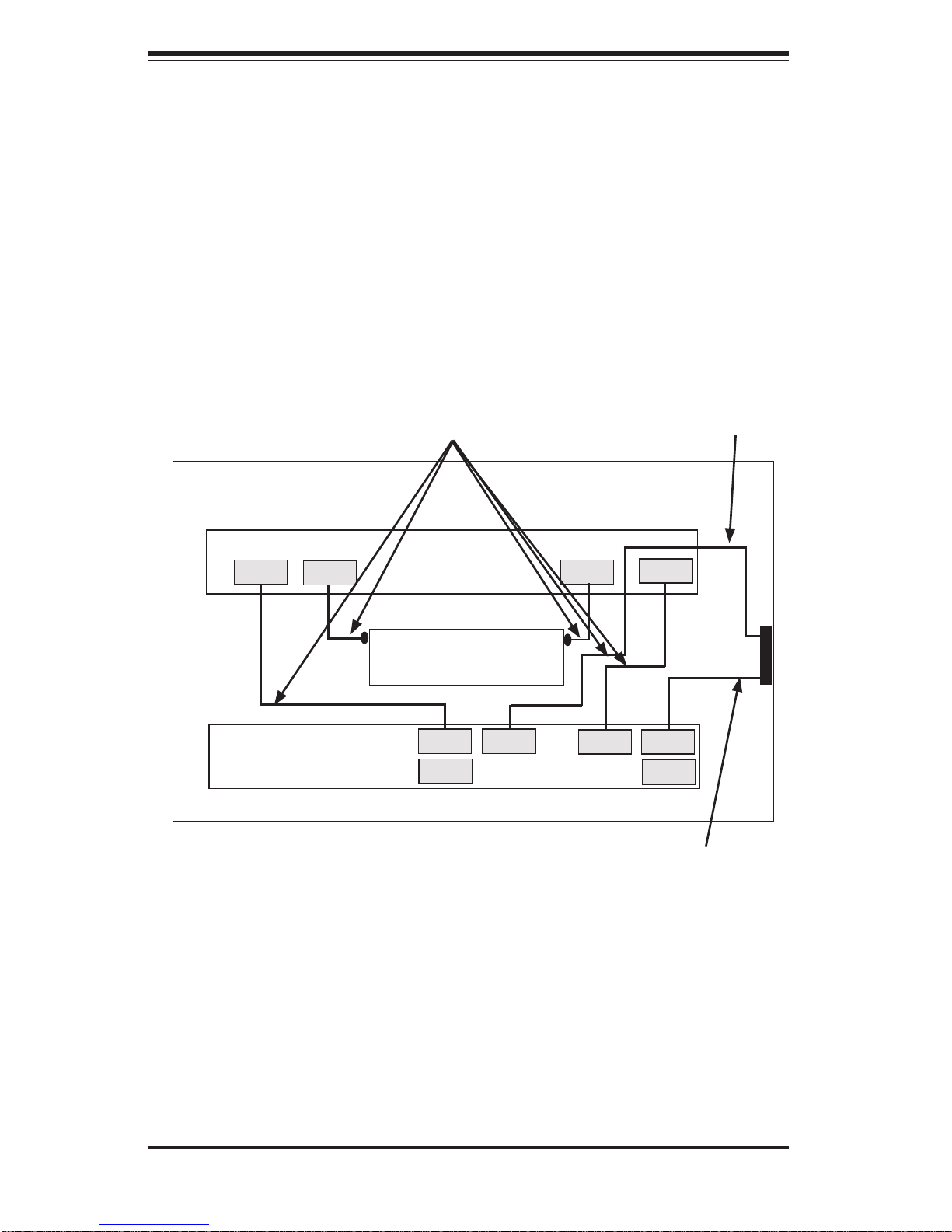

Figure 4-21: Connectivity Conﬁguration Option Five

CBL-0281L

CBL-0352L-LP
