Superlux TM58 Series Manuel utilisateur

TM58 SERIES

VOCAL MICROPHONE

USER GUIDE

Specications

Type

Dynamic microphone

Polar pattern

Unidirectional

（Cardioid）

, rotationally symmetrical about

microphone axis, uniform with frequency.

（Figure 1

）

Frequency response

50 to 18,000 Hz

（Figure 2）

Sensitivity

（at 1,000 Hz Open Circuit Voltage

）

-53±2 dB , 1Pa=94dB SPL

Rated impedance

500Ω

Max. SPL ( 1 kΩ load )

155 dB SPL

（THD ≦1% 1kHz）

Connector

Integral 3 pin male XLR type

Finish

Metal structure, grey, namel -painted , matte nished

Environmental conditions

The TM58 Series operates between -10 to +50

（

14 to 122）

with relative humidity between 0 to 95%.

Dimensions

Φ51.0mm x 163.0mm

（2.00 in. x 6.41in.），（Figure 3

）

Net weight

320 g

RoHS

The TM58 Series including the product and packages follow

the instruction of EU 2002/95/EC and comply to RoHS.

English

0

180

150150

120120

9090

6060

3030

-20dB

-15dB

-10dB

-5dB

125Hz

500Hz

1000Hz

TM58 2000Hz

4000Hz

8000Hz

TM58

0

180

150150

120120

9090

6060

3030

-20dB

-15dB

-10dB

-5dB

Figure 1

Figure 2

Figure 3

1K 2K 3K 5K 10K 20K500300200100503020

TM58

50.9

163.3

47.4

Description

TM58 series cardioid dynamic microphones are able

to deliver authentic sound without any unnecessary

sound coloration which are designed for speech and

performance.

Equipped with tailored diaphragm and precise directivity,

TM58 series give full and powerful sound. The higher

SPL and high-grade transient response of TM58 series

compared with other microphones will make the stage

performance strong and the penetrating.

TM58 is the correct choice for the perfectionists no

matter outdoors or indoors, speech or performance.

Features

• Balanced and clear true sound

• Frequency response is good for intelligent recognition

and the mid- high frequency band is bright, the low

frequency band is solid powerful

• High SPL capacity

• On/o switch with locking function

• Newly-designed capsule shock mount

English

Optional Accessories

Foam windscreen, various color S40

Table stand HM6

Table stand DS01

Microphone stand MS131

S40

DS01HM6 MS131

Accessories

Supplied Accessories

Microphone clip - HM9A

YA3 adaptor

Knowing your microphone

Superlux provides variety selection of microphones for

professionals and amatures. To know your microphone

is the rst step to successful result.

Type of transducer

Dynamics

Durable and simple structure, operates in all kinds of

environments. A good dynamic microphone is capable

to operate at very high sound pressure level without

distortion. Due to structure limit, dynamics cannot be

built as small as condenser, but dynamics don't require

power to operate.

About Frequency Response

Flat

Suitable for working at controlled environment, or

for acoustic measurements. Although people persuit

atness, but for none-professionals, it is a challenge to

makes it works as expectation.

Popular curve response

Based on years of practical experience of pro users.

There are curves to be build for various applications,

so that it is very simple to use the microphone for the

purpose. Limiting bandwidth, and emphasing are typical

skill.

Variable response

Incorporating switchable lters to elliminates

interference, such as sub-sonic lter to cut air-

conditioner and oor vibrations. And allows full at when

used in controlled environment.

English

Directivity

Cardioid

Picks up most signal on axis. Rejects side and picks up

least to the back. Suitable for live sound re-inforcement.

Apparent proximity eect and most singer likes to take

this bass boost advantages which is not good for

Using a handheld microphone

For best signal to noise ratio, distance from the handheld

microphone to the sound source shall be as short as

possible. For higher gain before feedback and lowest

background noise, the microphone shall be pointed

directly to the sound source. (refer to the illustration

below) The sensitivity of a super cardioid microphone

is highest on axis and lowest at 120 to 135 degrees. To

avoid interference between multiple microphones, each

sound source shall be picked-up by one microphone,

use as less microphones as possible in one space, or

turn-on as less microphones as possible at the same

time. To reduce crosstalk between microphones, an

1:3 guide line shall be follow: The distance between

microphone A to the sound source A is "1", the distance

between any other microphone to the sound source A

shall be more than 3 times. When the (super) cardioid

microphone get closer to the sound source, the low

frequency response is boosted, as so call "proximity

eect". Experience singer takes advantages of the

proximity eect to improve the richness of his/her

voice or to increase the bass of the instrument as if an

extremely high quality equalizer is used. Same idea to

reduce the bass by increase the distance to reduce the

bass when needed. Reecting surface aect sound as

well. Beware of these surfaces such as wall, table, or

oor. Place the microphone away from the hard surfaces

or directly contact these surfaces to form a pressure

zone microphone. When using the microphone outdoor

or in windy environment, additional foam wind screen

helps to reduce wind noise. Keep grill pop screen clean

to avoid degrading the sound quality. Do not expose the

microphone at high humidity/temperature environment

to avoid damage

90°

20-50mm

180°

0°

90°°

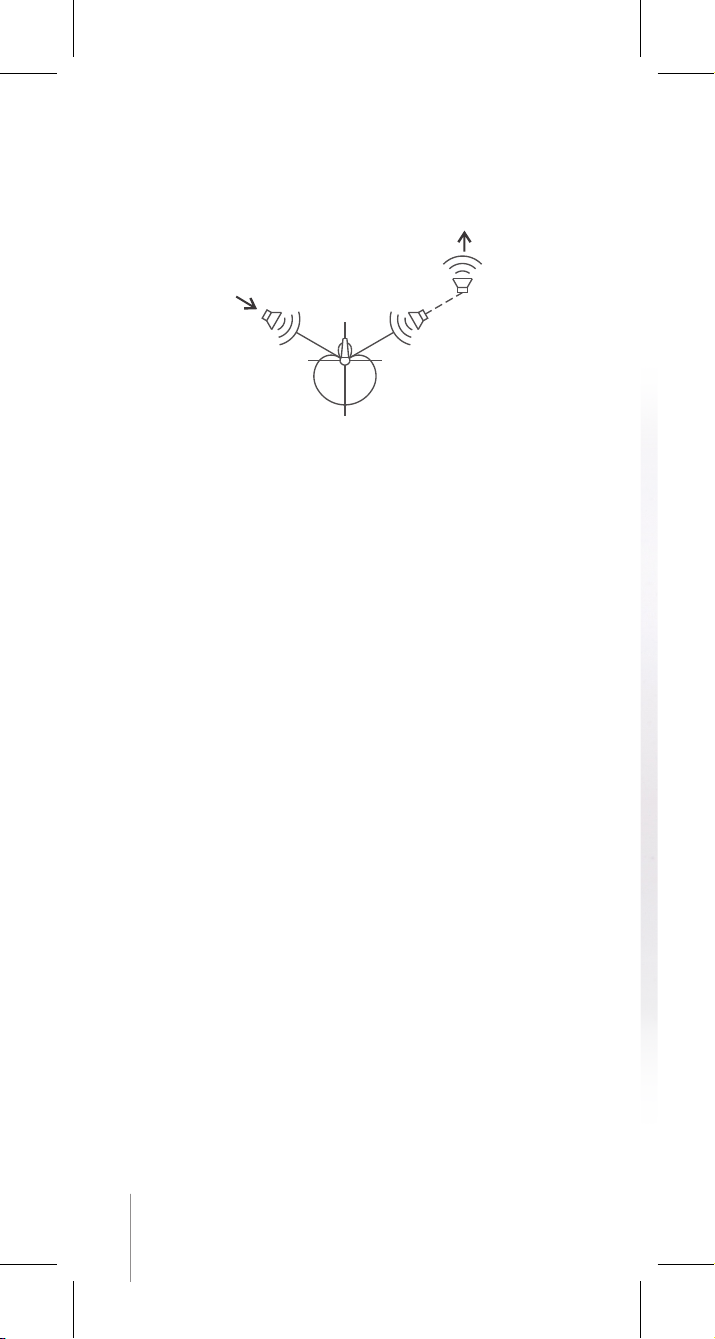

120 ~135° ° 12 0 ~135° °

Monitor

Loudspeaker(s)

P.A. System

Loudspeaker(s)

Recommended

Loudspeaker Locations

Mounting the microphone

Pressure gradient microphone is very sensitive to

vibration. Suitable shock mount for high performance

microphone is necessary for extreme low noise

recording. Sturdy stand can set the microphone excatly

at the sweet spot and keep it there. Choose heavy duty

microphone stand for studio condenser microphone

which weights much more than handle microphone.

Superlux provides wide range of microphone stands for

various demands. Big Foot Willie is specially developed

for large condenser microphones that able to support 2

large microphones with stereo bracket for single point

stereo recording. Extension foot on all the 'E' versions

serve to mount heavy studio microphone in limit space

live sound applications.

Maintainence

Condenser microphone shall be kept in low humidity

environment for best sound performance. Store the

condenser microphones in airconditioned room or

dehumidier to keep away form moisture. Clean air

is another important factor. Keep away from smoking

environment to avoid tar residuals.

動圈式人聲麥克風

使用手冊

TM58 SERIES

技术数据

类型

动圈式

指向性

心型，绕麦克风轴线旋转并对称，频率均匀（图 1）

频率响应

50~18,000 Hz（图 2）

灵敏度（1kHz 开路电压）

-53±3dB, 1Pa=94dB SPL

标称阻抗

500Ω

最大声压级（1kΩ 负载）

155 dB SPL（THD ≦ 1% 1kHz）

输出接插件

3 pin male XLR 型

外观颜色

金属结构，涂深灰瓷漆

环境要求

麦克风的工作温度范围 -10℃ ~50℃（14 ℉ ~122 ℉），

相对湿度范围 0~95%

外型尺寸

Φ51.0mm x 163.0mm（2.00 in. x 6.41in. ），（图 3）

净重量

320 g

环保

TM58 系列麦克风组成件，包括麦克风本身和包装，

严格执行欧盟 2002/95/EC 指令，符合 RoHS 标准
