Superlift K179 Manuel utilisateur

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 1 OF 26

MAKE SURE YOU HAVE THE

CORRECT LIFT FOR YOUR VEHICLE:

Double check the Year, Make, Model, Lift Height and

KIT Part Numbers.

Prior to beginning the installation, OPEN the Boxes and CHECK the Included Components Compared to

the Parts Breakdown. Check all parts and hardware in the box with the parts list below. Be sure you have all needed

parts and know where they install.

IF you ﬁnd a packaging error, contact SUPERLIFT directly. Do not contact the dealer where the system was originally

purchased. You will need the control number from each box when calling; this number is located at the bottom of

the part number label and to the right of the bar code.

Engineered for 4WD Models ONLY.

Fits:

2009-2014 Ford F-150 4WD

THANK YOU FOR CHOOSING SUPERLIFT FOR ALL YOUR SUSPENSION NEEDS!!

INTRODUCTION BEFORE INSTALLATION...

Installation requires a professional mechanic. In addition to these instructions, professional knowledge of

disassembly / reassembly procedures and post installation checks must be known.

PRIOR to beginning, inspect the vehicles steering, driveline, and brake systems, paying close attention to

the suspension link arms and bushings, sway bars and bushings, tie rod ends, pitman arm, idler arm, ball

joints and wheel bearings. Also check the steering sector-to-frame and all suspension-to-frame attaching

points for stress cracks. The overall vehicle must be in excellent working condition; repair or replace all

worn parts.

Read instructions several times before starting. Read each step completely as you go.

Be sure you have all needed parts and know where they install.

If being installed on a 2009 Model, You MUST Order a #77-15-9922 Separately!!

Vehicles Equipped with a 2-Piece Rear Driveshaft, You MUST Order #9935 for the

Carrier Bearing Shims.

• Front end alignment is necessary.A foot-pound torque reading is given in parenthesis ( ) after

each appropriate fastener.

• Tool and Wrench/Socket size is given in brackets [ ] after each appropriate step.

• Always wear safety glasses when using power tools.

• Prior to attaching components, be sure all mating surfaces are free of grit, grease, excessive undercoating, etc.

• Do not fabricate any components to gain additional suspension height.

• A factory service manual should be on hand for reference.

• Due to payload options and initial ride height variances, the amount of lift is a ‘base ﬁgure’.

Final ride height dimensions may vary in accordance to original vehicle stance.

2009-2014 FORD F-150 PICKUP 4WD

4.5 & 6 Inch Lift Kits

INSTALLATION INSTRUCTIONS

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 2 OF 26

BEFORE YOU DRIVE...

Check all fasteners for proper torque. Check to ensure for adequate clearance between all rotating,

mobile, ﬁxed, and heated members. Verify clearance between exhaust and brake lines, fuel lines, fuel tank,

ﬂoor boards and wiring harness. Check steering components for clearance.

Test and inspect brake system. Perform steering sweep to ensure front brake hoses have adequate slack

and do not contact any rotating, mobile or heated members. Inspect rear brake hoses at full extension for

adequate slack. Failure to perform hose check/replacement may result in component failure.

Perform head light check and adjustment.

It is the ultimate buyer’s responsibility to have all bolts / nuts checked for tightness after the

ﬁrst 100 miles and then every 1000 miles. The steering, suspension and driveline systems, plus wheel

alignment should be inspected by a qualiﬁed professional mechanic at least every 3000 miles.

TIRES & WHEELS...

Larger rim and tire combinations may increase leverage on suspension, steering, and related components.

When selecting combinations larger than OE,

consider the additional stress you could be

inducing on the OE and related components.

Stock 18” & 20”Wheels Will Fit back on

the vehicle once this suspension system is installed.

ANY larger or wider tire & wheel

combination other than listed Will Require Vehicle

Trimming.

IMPORTANT DISCLAIMER: The provided

tire/wheel ﬁtments are approximate. Actual

dimensions of a given tire size can vary

considerably from one brand to another.

Manufacturers’ wheel oﬀset and backspacing

measurement points are not always consistent.

Backspacing greatly impacts tire-to-fender

clearance when turning. Wheel width and

backspacing inﬂuence whether the tires protrude

past the fenders, and to what extent. Considering

these important factors, we recommend that

you ﬁt-check your tire/wheel selection prior to

purchasing.

TOOLS & TECH...

The chart is a listing of the main tools need to

install this lift kit system.

Tire Wheel Backspacing (IN) Offset (MM)

33 x 12.5 18 x 9 4.5 -

35 x 12.5 18 x 9 5.3 19

33 x 12.5 20 x 9 4.5 -

35 x 12.5 20 x 9 5.3 25

Tire Wheel Backspacing (IN) Offset (MM)

35 x 12.5 18 x 9 5.3 19

35 x 13.5 18 x 9 5 13

35 x 13.5 18 x 9 4.5 -

35 x 12.5 20 x 9 5.5 25

35 x 13.5 20 x 9 5 13

35 x 13.5 20 x 9 4.5 -

35 x 12.5 20 x 10 4.3 -19

RECOMMENDED TIRE SIZE SPECIFICATIONS

4.5 Inch Lift

6 Inch Lift

RECOMMENDED TIRE SIZE SPECIFICATIONS

Standard Metric

3/8" 8mm

7/16" 10mm

1/2" 13mm

PlasticFastenerRemovalTool 9/16" 15mm

5/8" 18mm

3/4" 19mm

13/16" 21mm

7/8" 27mm

8mmAllen

5mmAllen

TOOLS

DieGrinderwithCut‐OffWheel

Wrench/SocketSizesMiscellaneousTools

FlatheadScrewdriver

Hammer

FloorJack

JackStands

Drill

DrillBits‐7/32",9/32"&11/32"

TorqueWrench

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 3 OF 26

KitPartNumber K178 4.5"LiftKit KitPartNumber K179 6"LiftKit

PartNumber Qty.PartDescription PartNumber Qty.PartDescription

9922 1 KitBox,Knuckles 9922 1 KitBox,Knuckles

9926 1 KitBox,Crossmember,BellyPan&SwayBarDrop 9926 1 KitBox,Crossmember,BellyPan&SwayBarDrop

9927 1 KitBox,Differential,BumpStops&DriveshaftSpacer 9927 1 KitBox,Differential,BumpStops&DriveshaftSpacer

9929 1 KitBox,StrutSpacer 9928 1 KitBox,StrutSpacer

84057 1 KitBox,SUPERLIFTShocks 84057 1 KitBox,SUPERLIFTShocks

OR OR

KitPartNumber K178B 4.5"LiftKit KitPartNumber K179B 6"LiftKit

PartNumber Qty.PartDescription PartNumber Qty.PartDescription

9922 1 KitBox,Knuckles 9922 1 KitBox,Knuckles

9926 1 KitBox,Crossmember,BellyPan&SwayBarDrop 9926 1 KitBox,Crossmember,BellyPan&SwayBarDrop

9927 1 KitBox,Differential,BumpStops&DriveshaftSpacer 9927 1 KitBox,Differential,BumpStops&DriveshaftSpacer

9929 1 KitBox,StrutSpacer 9928 1 KitBox,StrutSpacer

84058 1 KitBox,BILSTEINShocks 84058 1 KitBox,BILSTEINShocks

KitPartNumber 9922 KitPartNumber 9928 6"LiftKit

PartNumber Qty.PartDescription PartNumber Qty.PartDescription

66‐01‐992

1 Knuckle,Driver10362 4 9/16"x3‐5/16"x12"Ubolts

66‐02‐992

1 Knuckle,Passenger 55‐09‐993

1 StrutSpacers(6"),Driver

55‐13‐992

1 StrutSpacers(6"),Passenger

KitPartNumber 9926 55‐31‐993

2 Block,Rear

PartNumber Qty.PartDescription 77‐1509 1 UboltNutsandWashers

55‐15‐992

1 Crossmember,Front

55‐16‐992

1 Crossmember,Rear KitPartNumber 9929 4.5"LiftKit

55‐07‐992

1 SwayBarDrop,DriverPartNumber Qty.PartDescription

55‐08‐992

1 SwayBarDrop,Passenger10352 4 9/16"x3‐5/16"x11"Ubolts

55‐10‐992

1 BellyPan 55‐11‐993

1 StrutSpacers(4.5"),Driver

77‐9922 1 HardwareBag,KnuckleSpacers,E‐Brake 55‐14‐992

1 StrutSpacers(4.5"),Passenger

77‐9926

1 HardwareBag,CamBolts 55‐30‐993

2 Block,Rear

77‐1509 1 UboltNutsandWashers

KitPartNumber 9927

PartNumber Qty.PartDescription KitPartNumber 84057

55‐03‐993

1 DifferentialDrop,DriverPartNumber Qty.PartDescription

55‐04‐993

1 DifferentialDrop,Passenger01‐8515

2 SUPERLIFTShockCylinder,Rear

55‐12‐993

2 BumpStop,Rear 77‐8703

2 HardwareBag,ShocksBushingsandSleeves

66‐11‐991

1 DriveshaftSpacer,Front

77‐993

1 HardwareBag,SUPERLIFTparts KitPartNumber 8405

77‐9932 1 HardwareBag,NutsandBolts PartNumber Qty.PartDescription

BE5‐6249‐H

2 BILSTEINShockCylinder,Rear

77‐8703

2 HardwareBag,ShocksBushingsandSleeves

KitPartNumber 77‐993

PartNumber Qty.PartDescription PartNumber Qty.PartDescription

01‐6041

4 01‐60418,HourglassBushing 10MFN 6 10mmFlangeNut

21‐3205 1 5/16"x3‐1/2"VacuumHose 10MFW 2 10mmFlatWasher

23‐3205 1 5/16"HoseAdapter 10MX1.5X150C

2 10mmx1.5x150mmBolt

24‐570

4 24‐5704,0.75"ODx0.50"IDx1.54"L,Sleeve 10MX1.5X90SH

6 10mmx1.5x90mmBolt,sockethead

55‐16‐991

1 BrakeLineBracket,Rear 14X12STB 2 1/4"x1/2"Bolt,Self‐Tapping

55‐18‐991

1 BrakeLineBracket,FrontPassenger 18MFW 8 18mmFlatWasher

55‐19‐991

1 BrakeLineBracket,FrontDriver 18MLN 6 18mmStoverNut

18MX2.5X150C

2 18mmx2.5x150mmBolt

KitPartNumber 77‐992

38C5FN 4 3/8"FlangeNut

PartNumber Qty.PartDescription 38X1C5CB 4 3/8"x1"CarriageBolt,CoarseThread

55‐12‐992

1 EmergencyBrakeBracket 516C5NN 2 5/16"NylocNut

12X114C5CS 1 1/2"x1‐1/4"Bolt,CoarseThread 516C8SN 1 5/16"StoverNut

12SW 1 1/2"SAEWasher 516SW 3 5/16"SAEWasher

12C5NN 1 1/2"NylocNut 516X1C5CS 1 5/16"x1"Bolt,CoarseThread

516X1C5CS 1 5/16"x1"Bolt,CoarseThread 516X1STB 1 5/16"x1"Bolt,Self‐Tapping

516SW 2 5/16"SAEWasher 516X34C5CS 2 5/16"x3/4"Bolt,CoarseThread

516C5NN 1 5/16"NylocNut 716C8SN 4 7/16"StoverNut

716SW 4 7/16"SAEWasher

KitPartNumber 77‐9926

716X1C5CS 4 7/16"x1"Bolt,CoarseThread

PartNumber Qty.PartDescription 916C8SN 3 9/16"StoverNut

66‐23‐992

2 18mmx160mmCamBolt,CamWasher&NylocNut 916SW 3 9/16"SAEWasher

66‐22‐994

2 18mmx140mmCamBolt,CamWasher&NylocNut 916X334C5C

3 9/16"x3‐3/4"Bolt,CoarseThread

F470

2 F470L,ThreadLocker

KitPartNumber 77‐8703

PartNumber Qty.PartDescription KitPartNumber 77‐15‐992

01‐6041

2 01‐60418,HourglassBushing PartNumber Qty.PartDescription

24‐570

2 24‐5704,0.75"ODx0.50"IDx1.54"L,sleev

15‐9922 4 BrakeCaliperSleeve

KitPartNumber 77‐150

PartNumber Qty.PartDescription

1511-B09 8 9/16" High Nut, Fine Thread

1509 8 9/16" Ubolt Washer

KKITBREAKDOWN

KITBOXBREAKDOWN

HARDWAREBAGBREAKDOWN

How to Read the Kit Breakdown Charts: The ‘K KIT BREAKDOWN’ lists the Part Numbers, Quantities & Part Description of

the Boxes that are included in the K KIT. The ‘KIT BREAKDOWN’ lists Part Numbers, Quantities & Part Description of the Individual

Components & Hardware Bags that are included in Each Box. The ‘HARDWARE BREAKDOWN’ lists the Part Numbers, Quantities

& Part Description of the Individual Components.

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 4 OF 26

Step PartNumber Qty.

perKit Description NewAttachingHardware Qty.per

Bracket

Hardware

Bag

Number

21 55‐03‐9930 1 DifferentialDrop,Driver9/16"x3‐3/4"Bolt,CoarseThread 1 77‐9932

9/16"SAEWasher 1

9/16"StoverNut 1

21 55‐04‐9930 1 DifferentialDrop,Passenger9/16"x3‐3/4"Bolt,CoarseThread 1 77‐9932

9/16"SAEWasher 1

9/16"StoverNut 1

21 21‐3205 1 5/16"x3‐1/2"VacuumHose 77‐9930

21 23‐3205 1 5/16"HoseAdapter

22 55‐07‐9922 1 SwayBarDrop,Driver7/16"x1"Bolt,CoarseThread 2 77‐9932

7/16"SAEWasher 2

7/16"StoverNut 2

22 55‐08‐9922 1 SwayBarDrop,Passenger7/16"x1"Bolt,CoarseThread 2 77‐9932

7/16"SAEWasher 2

7/16"StoverNut 2

23 55‐06‐9922 1 Crossmember,Rear 9/16"x3‐3/4"Bolt,CoarseThread 1 77‐9932

9/16"SAEWasher 1

9/16"StoverNut 1

18mmStoverNut 4

18mmFlatWasher 6

18mmx2.5x150mm,Bolt 2

55‐20‐9930,CamBolt(Long) 2 77‐9923

25 55‐05‐9922 1 Crossmember,Front 55‐20‐9922,CamBolt(Short) 2 77‐9923

18mmStoverNut 2 77‐9932

18mmFlatWasher 2

28 55‐10‐9922 1 BellyPan 3/8"x1"CarriageBolt,CoarseThread 4 77‐9932

3/8"FlangeNut 4

29 66‐11‐9910 1 DriveshaftSpacer,Front 10mmx1.5x90mmBolt,SocketHead 6 77‐9932

F470L,ThreadLocker 1

31 55‐09‐9930 1 StrutSpacer(6"),Driver 10mmFlangeNut 3 77‐9932

31 55‐13‐9922 1 StrutSpacer(6"),Passenger 10mmFlangeNut 3

31 55‐11‐9930 1 StrutSpacer(4.5"),Driver 10mmFlangeNut 3 77‐9932

31 55‐14‐9922 1 StrutSpacer(4.5"),Passenger 10mmFlangeNut 3

33 66‐01‐9922 1 Knuckle,DriverF470L,ThreadLocker 0.5 77‐9932

15‐9922‐BrakeCaliperSleeve(2009ModelsONLY) 2 77‐9922

33 66‐02‐9922 1 Knuckle,Passenger F470L,threadlocker 0.5 77‐9932

15‐9922‐BrakeCaliperSleeve(2009ModelsONLY) 2 77‐9922

41 55‐19‐9910 1 BrakeLineBracket,FrontDriver 5/16"x3/4"Bolt,CoarseThread 1 77‐9932

5/16"NylocNut 1

5/16"SAEWasher 1

1/4"x1/2"Bolt,Self‐Tapping 1

41 55‐18‐9910 1 BrakeLineBracket,FrontPassenger5/16"x3/4"Bolt,CoarseThread 1 77‐9932

5/16"NylocNut 1

5/16"SAEWasher 1

1/4"x1/2"Bolt,Self‐Tapping 1

50 55‐12‐9922 1 EmergencyBrakeLineBracket 1/2"x1‐1/4"Bolt,CoarseThread 1 77‐9922

1/2"SAEWasher 1

1/2"NylocNut 1

5/16"x1"Bolt,CoarseThread 1

5/16"SAEWasher 2

5/16"NylocNut 1

56 55‐31‐9930 2 Block,Rear(6") 9/16"x3‐5/16"x12"Ubolt,Square 4

9/16"HighNut,FineThread 8 77‐1509

9/16"UboltWasher 8

56 55‐30‐9930 2 Block,Rear(4.5") 9/16"x3‐5/16"x11"Ubolt,Square 4

9/16"HighNut,FineThread 8 77‐1509

9/16"UboltWasher 8

57 55‐16‐9910 1 BrakeLineBracket,Rear 5/16"x1"Bolt,CoarseThread 1 77‐9932

5/16"StoverNut 1

5/16"SAEWasher 1

5/16"x1"Bolt,Self‐Tapping 1

59 01‐85150 2 SUPERLIFTShockCylinder,Rear 01‐60418,HourglassBushing 2 77‐9930

24‐5704,0.75"ODx0.50"IDx1.54"L,Sleeve 2

59 BE5‐6249‐H5 2 BILSTEINShockCylinder,Rear 01‐60418,HourglassBushing 2 77‐9930

24‐5704,0.75"ODx0.50"IDx1.54"L,sleeve 2

60 55‐12‐9930 2 BumpStop,Rear 10mmx1.5x150mm,SocketBolt 1 77‐9932

10mmFlatWasher 1

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 5 OF 26

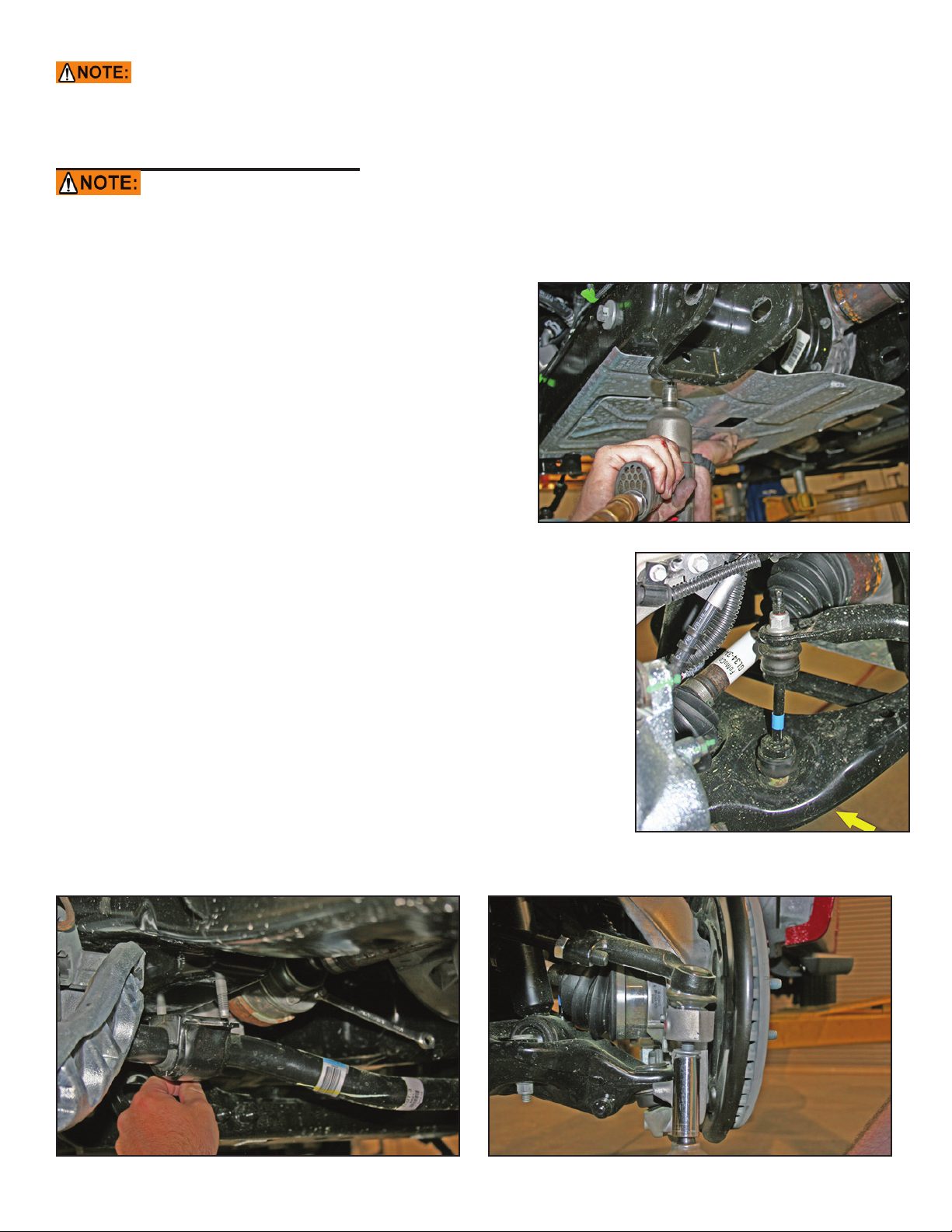

Use the check-off box



found at each step to help you keep your place. Two



denotes that one check-off box is for the Driver Side (Left) and one is for the Passenger Side

(Right). Unless otherwise noted, always start with the Driver Side.

FRONT DISASSEMBLY

Save all factory components and hardware for reuse, unless noted.

1) PREPARE VEHICLE...



Chock rear tires and place transmission in neutral. Raise front of vehicle with a jack and secure

a jack stand beneath each frame rail. Ease the frame

down onto the stands and place transmission in park.

Remove front tires. [Lug Nuts 21mm]

2) FRONT DIFFERENTIAL SKID PLATE...



[Illustration 1] If equipped, remove the factory front

differential skid plate and discard. [13mm] (Some

models are equipped with a secondary skid plate located

behind the front differential skid plate. Remove this skid

plate as well as the brackets bolted to the side of the

frame and discard.)

3) SWAY BAR LINKS AND SWAY BAR BODY…



[Illustration 2] Disconnect the lower end of the sway bar links

from the lower control arm. [18mm]



[Illustration 3] Remove four nuts retaining the sway bar body,

then remove the sway bar from the vehicle. [15mm] Remove the

stud plates from each side and retain for later use.

Perform steps 4 through 15 one side at a time.

4) STEERING TIE ROD END...



[Illustration 4] Remove the nut from the tie rod end and using

the appropriate puller tool remove tie rod from knuckle. If you do not

have a puller tool you can use a hammer by very carefully striking

the tie rod boss of the knuckle; do not strike the tie rod end. [21mm]

Illustration 2

Illustration 3

Illustration 1

Illustration 4

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 6 OF 26

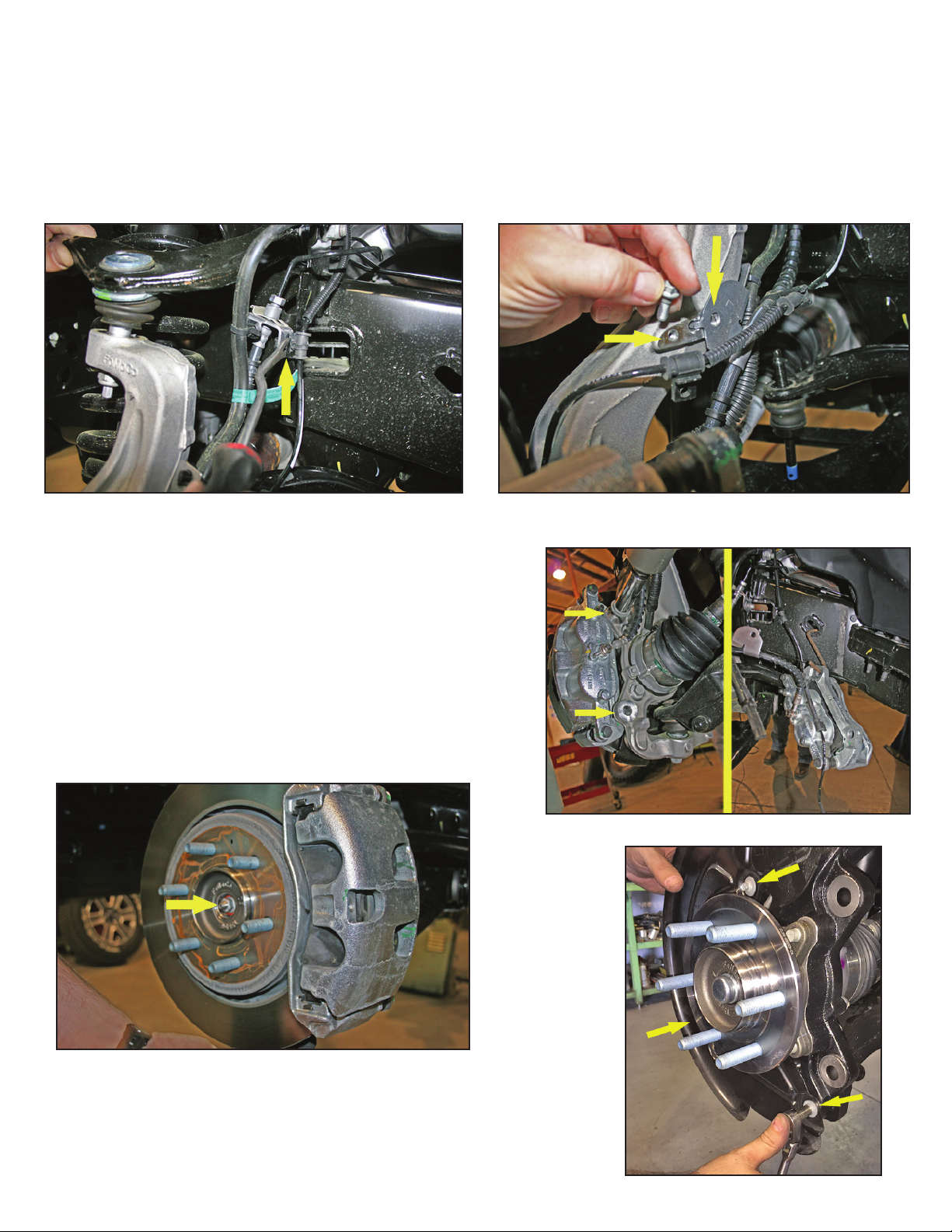

5) BRAKE LINE BRACKET AND ABS SENOR WIRE...



[Illustration 5] Unclip the vacuum lines from the brake line bracket. [plastic fastener removal tool]



[Illustration 6] Locate the brake line bracket on the steering knuckle and remove. [10mm]



[Illustration 6] Remove the ABS sensor wire from the steering knuckle. [8mm]

6) BRAKE CALIPER...



[Illustration 7] Unbolt the brake caliper and remove

from the rotor and secure it away from the work area.

NOTE: Do not let calipers hang from brake lines. [21mm]



Remove the front rotor from the hub.

7) CV SHAFT NUT...



[Illustration 8] Remove the CV shaft dust cap from

the outside of the hub assembly. Remove the retaining nut

from the CV shaft. [athead screwdriver, hammer, 13mm]

8) DUST SHIELD...



[Illustration 9] Remove the three bolts holding the dust shield

on the knuckle. [8mm]

Illustration 5 Illustration 6

Illustration 7

Illustration 8

Illustration 9

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 7 OF 26

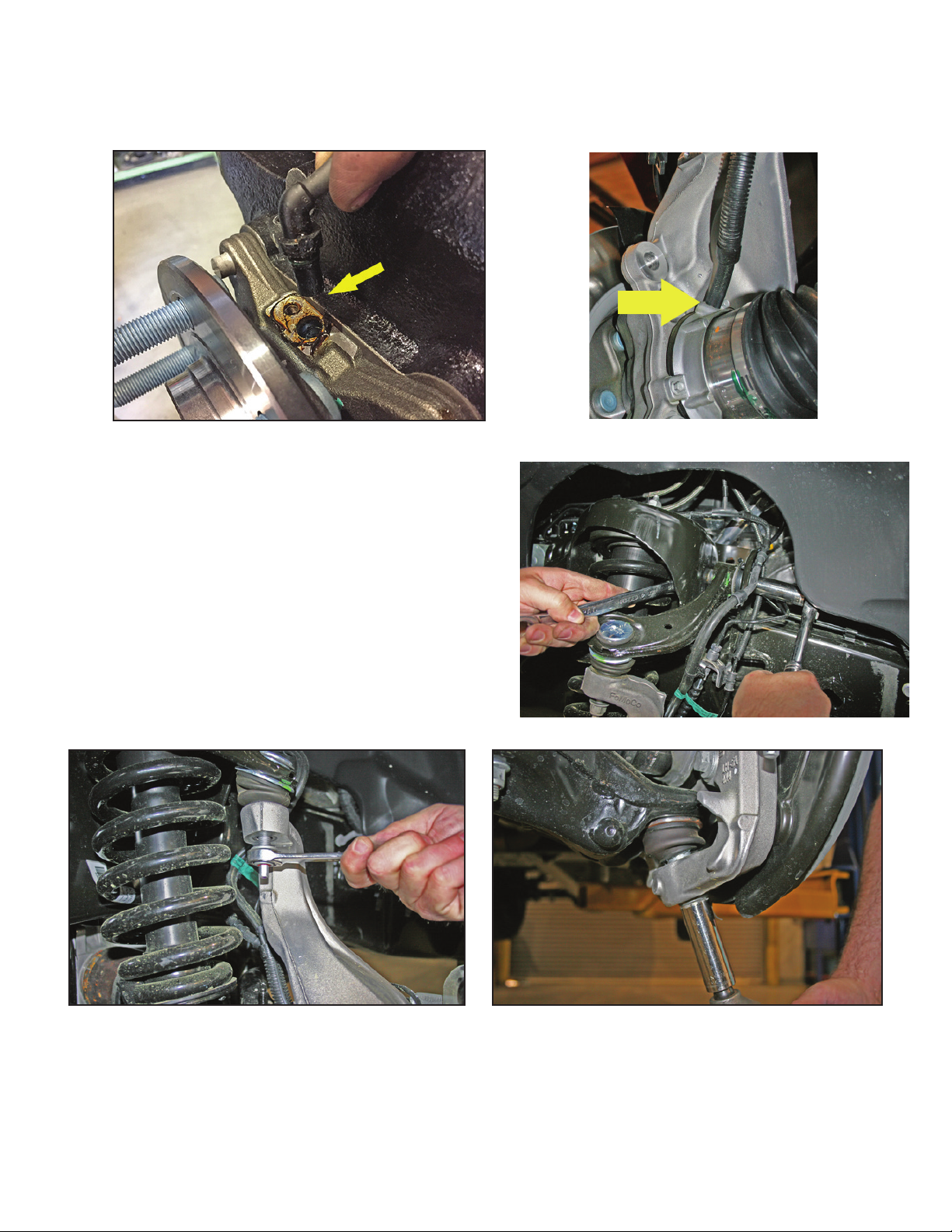

9) ABS SENSOR AND VACUUM LINES...



[Illustrations ] Remove the ABS sensors from the top of the hub assembly, and vacuum lines

from the vacuum module. [5mm allen, plastic fastener removal tool]

10) UPPER CONTROL ARM...



[Illustration 12] Loosen, but do not remove, the

four upper control arm bolts (2 per side). [21mm]

11) KNUCKLE...



[Illustrations 13 &14] Remove the nuts from the

upper and lower ball joints then using the appropriate

puller tool, disconnect the ball joints from the knuckle. If

you do not have a puller tool you can use a hammer by

very carefully striking the ball joint boss’ of the knuckle;

do not strike the ball joints. Remove knuckle from

vehicle. [upper ball joint 21mm, lower ball joint 24mm]

12) BRAKE LINE BRACKET...



[Illustration 15] Locate the brake line bracket on the side of the upper control arm mount and

remove. [10mm]

Illustration 10 Illustration 11

Illustration 12

Illustration 13 Illustration 14

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 8 OF 26

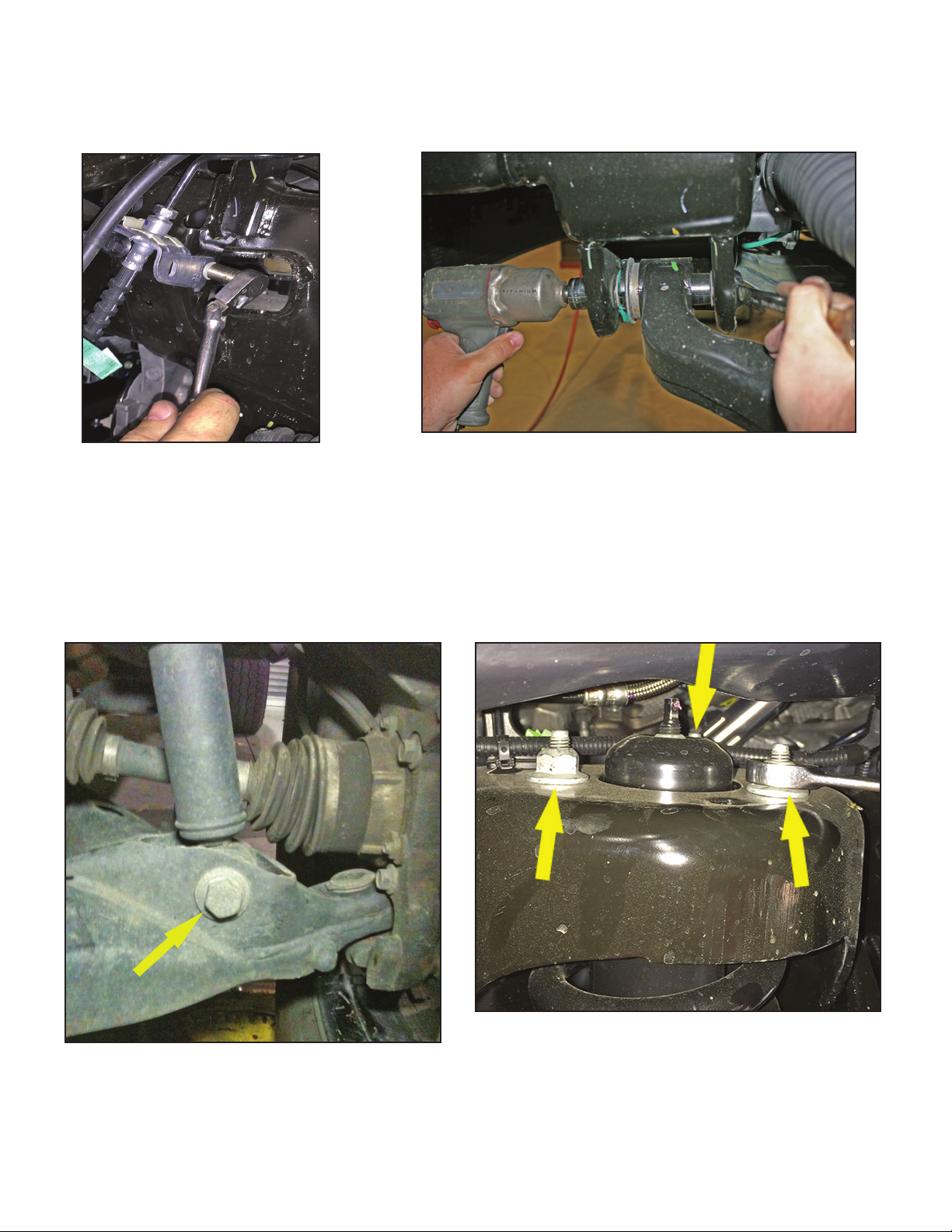

13) LOWER CONTROL ARM…



[Illustration 16] Loosen but do not remove the four lower control arm bolts (2 per side). [bolt

21mm, nut 27mm]

14) STRUT…



[Illustration 17] Remove the bolt from the lower strut studs and let the lower control arm swing

out of the way. [bolt 27mm, nut 30mm]



[Illustration 18 & 19] Remove the three nuts from the top of the strut and remove the strut from

the vehicle. [15mm]

15) LOWER CONTROL ARM...



[Illustration 20] Remove the lower control arm’s bolts then remove the lower control arm.

Repeat steps 4 through 15 on the remaining side.

Illustration 15 Illustration 16

Illustration 17 Illustration 18

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 9 OF 26

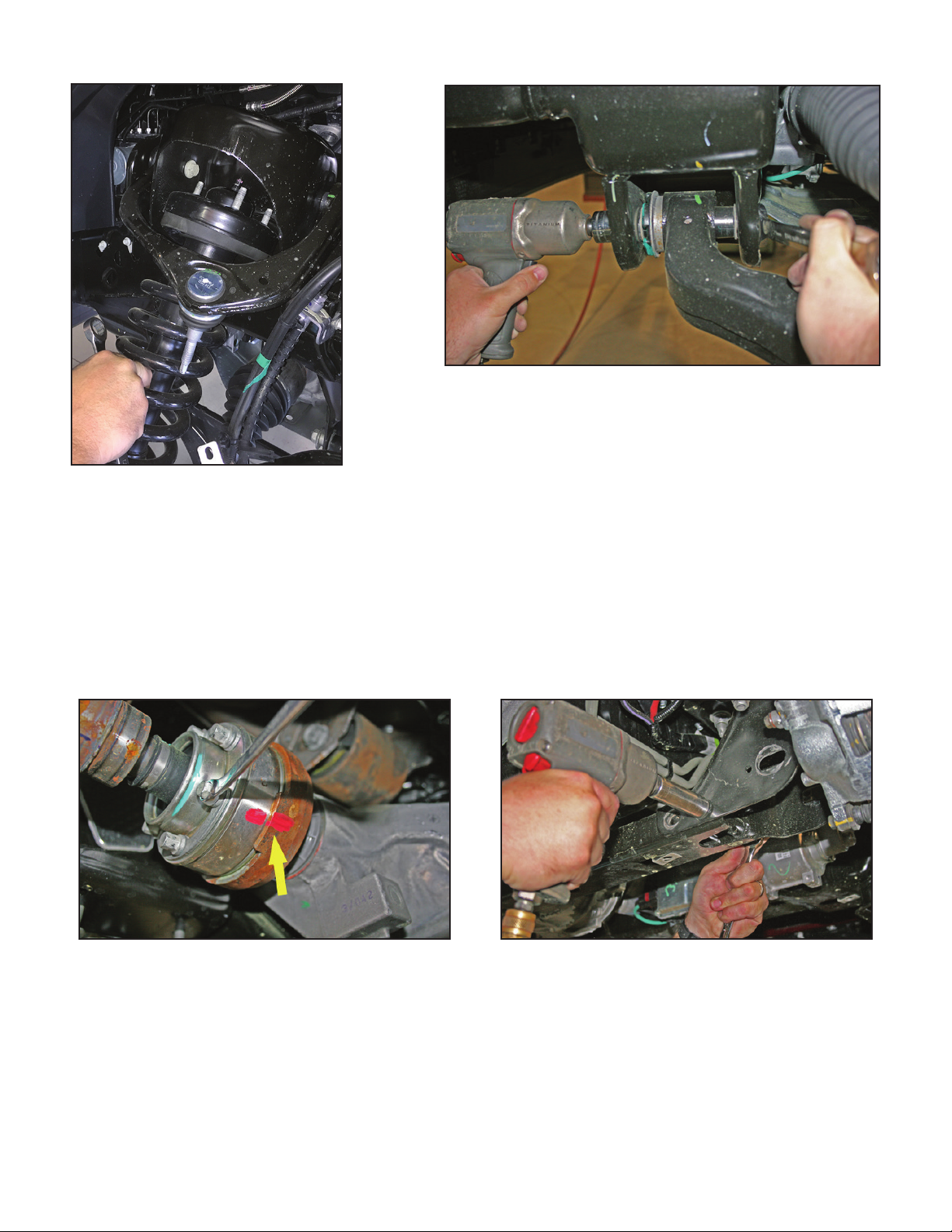

16) DRIVESHAFT...



[Illustration 21] Mark the orientation of the front driveshaft, then disconnect from the differential;

secure the driveshaft up and out of the way, do not let it hang. Discard the bolts and washer plates.

[10mm]

17) REAR CROSSMEMBER…



[Illustration 22] Remove the four bolts securing the rear crossmember and remove the rear

crossmember. [bolt 15mm, nut 18mm]

18) DIFFERENTIAL REMOVAL…



Disconnect vacuum line from differential located on the top of the center section towards the

middle of the vehicle.



[Illustrations 23 thru 25] Support the differential with a jack and remove the rear driver’s side

differential bolt, then remove the two front bolts. [driver’s side rear bolt 21mm, driver’s side front bolt

18mm, passenger’s side bolt 18mm]



Carefully remove differential assembly.

Illustration 19 Illustration 20

Illustration 21 Illustration 22

FORM#9922.02-05202019 PRINTED IN U.S.A. PAGE 10 OF 26

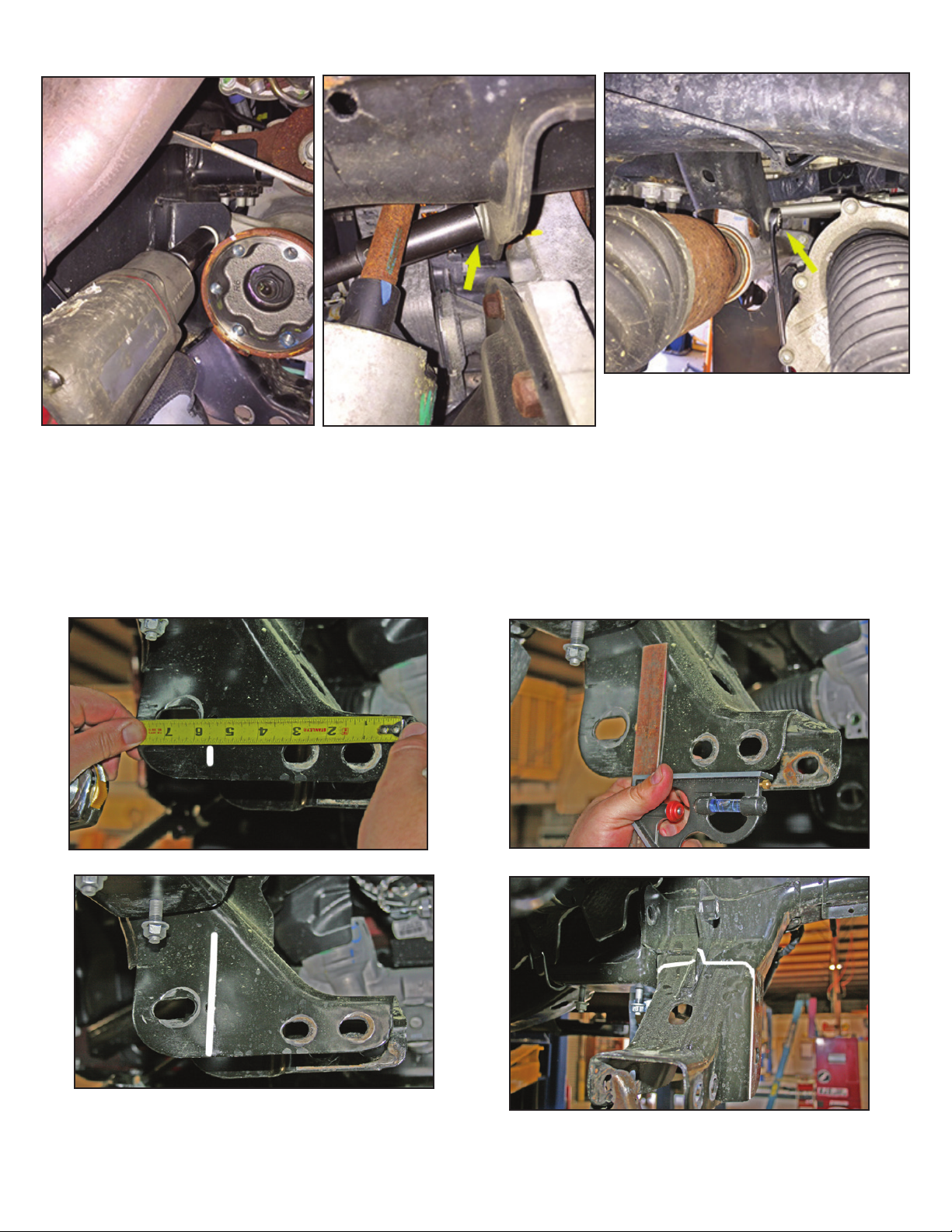

19) TRIMMING LOWER CONTROL ARM MOUNT…



[Illustrations 26 thru 31] The factory driver’s side rear lower control arm mount must be trimmed

as shown. Start on the rear side and measure from inside of the bracket out 5-1/2” and mark. Using

a square mark a line up and over the bracket maintaining the 5-1/2” distance from the inside edge.

Cut the bracket along the marked lines using a cut-off wheel or Sawz-All.



After cutting, clean and paint all exposed areas.

Illustration 23 Illustration 24 Illustration 25

Illustration 26 Illustration 27

Illustration 28 Illustration 29

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Superlift Accessoires automobiles

Superlift

Superlift K336F Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
