Superbrightleds WPFC-R1 Manuel utilisateur

Full Cuto󰀨 LED Wall Pack

Important: Read all instructions prior to installation. WPFC-R1 and

WPFCCT-R1 Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 04/27/2021

User Manual

5yr

120–277 VAC Input

0–10 V Dimming

Safety and Notes

SpecicationsWiring Diagram

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Green

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Green

• Product should be installed and serviced by a certied electrician in accordance

with applicable national, state, and local building and electrical codes.

• To reduce the risk of electric shock, ensure that the main power source and circuit

breakers are switched o󰀨 before performing any installation or wiring procedures.

• Avoid looking directly into lamp when illuminated.

• Ensure all mounts are securely attached and will support the weight of the xture.

Failure to properly support xture may result in damage or injury, for which the

manufacturer does not assume responsibility.

Model WPFC-R1 and WPFCCT-R1

Operating Temperature -22°–113° F (-30°–45° C)

IP Rating IP65

Check product label for specific electrical

specifications related to installation.

Improper installation will void warranty.

Opening Fixture

WPFC-R1-50K40-LD

screws

1/8” Drill Bit

Full Cuto󰀨 LED Wall Pack

Important: Read all instructions prior to installation. WPFC-R1 and

WPFCCT-R1 Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 04/27/2021

User Manual

5yr

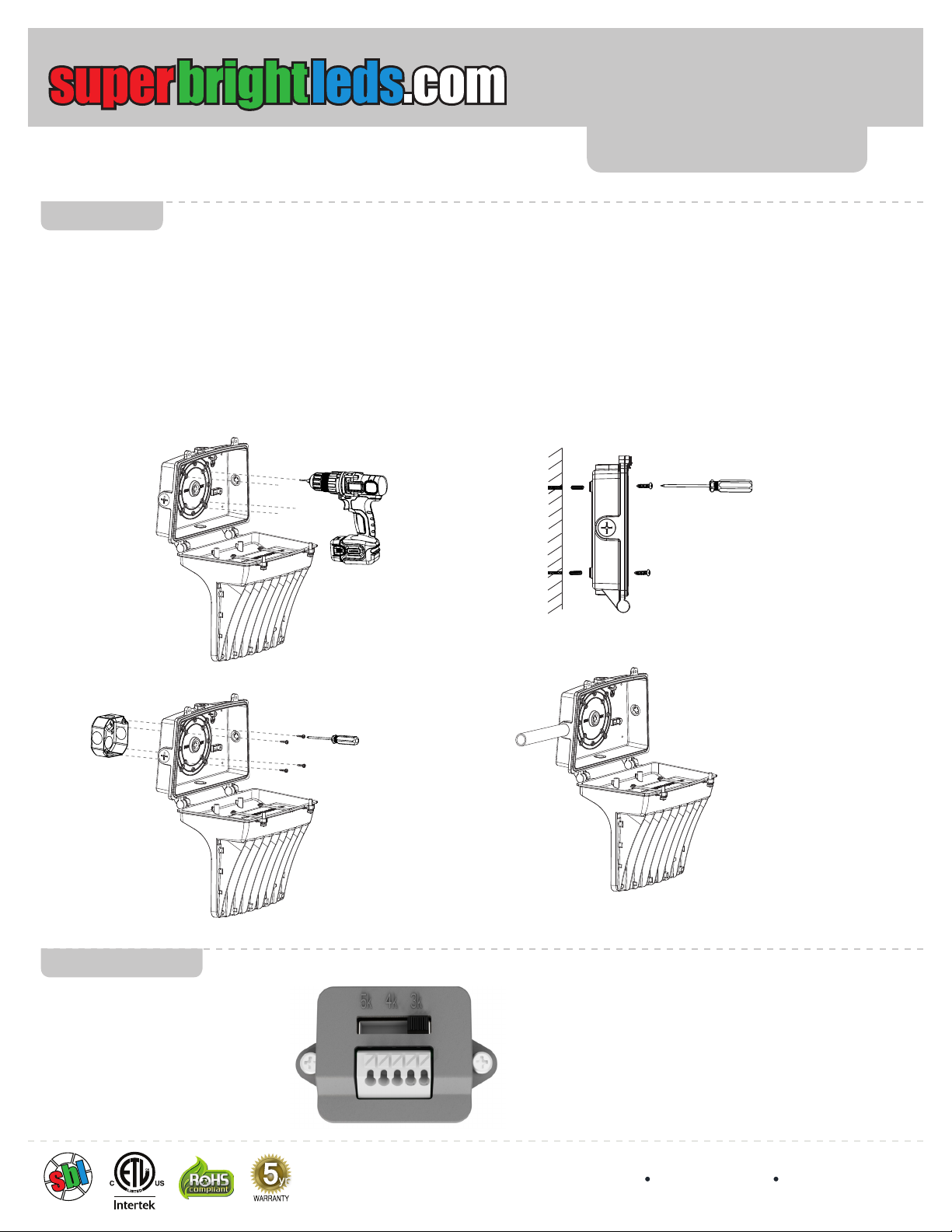

Installation

CCT Adjustment

1. Remove screws and swing front housing down.

2. Drill holes in rear housing for mounting.

Note: For junction box wiring, remove rear pipe plug and for conduit mounting remove one of the side plugs.

3. Measure and create mounting holes on wall as needed.

4. Apply gasket and mount rear housing.

5. Select desired CCT using internal switch.

6. With supply power o󰀨, connect wiring.

7. Resecure front housing to rear housing.

Junction Box Installation Conduit Installation

On equipped models, selectable CCT

can be set using the internal switch.

Make certain supply power is switched

o󰀨 when performing this procedure.

screws

1/8” Drill Bit
