SuperATV TSK-CA-DEF-004 Manuel utilisateur

INSTALLATION INSTRUCTIONS

Read instructions and view illustrations before beginning.

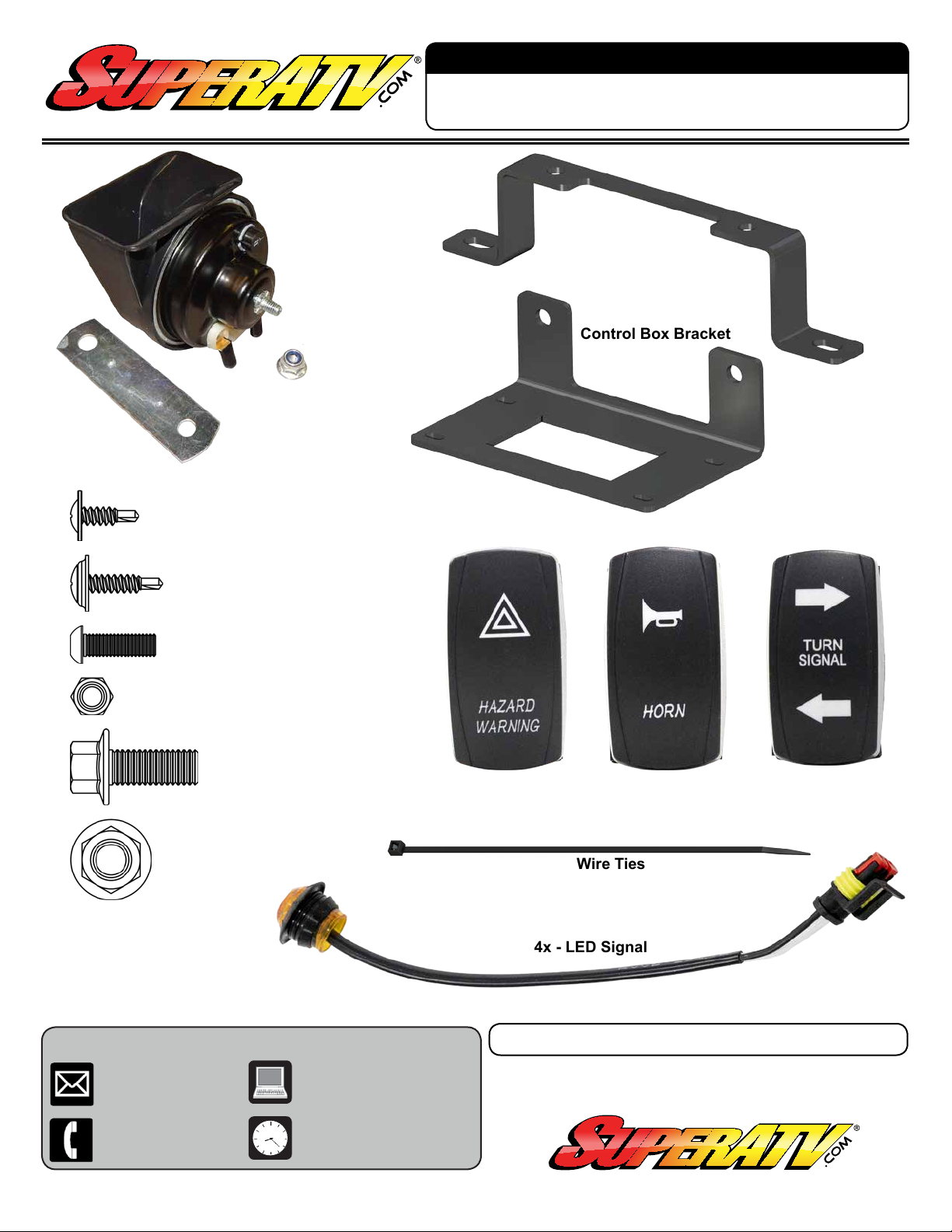

Plug and Play Turn Signal Kit:

for Can-Am Defender

Wire Ties

Horn Kit

2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427

Thank You

For Choosing

Need help with your installation?

www.superatv.com

8:00am - 9:00pm EST M-Th

8:00am - 7:00pm EST Friday

9:00am - 2:00pm EST Saturday

sales@superatv.com

1-855-743-3427

Hazard Light Switch Horn Switch Turn Signal Switch

#8-18 x 3/16” Lg. Screw2x

#8-18 x 3/4” Lg. Screw2x

M5-.80 Nylock Nut4x

M5-.80 x 16mm Lg. BHCS4x

4x - LED Signal

Control Box Bracket

Mounting Bracket

Components may be installed in locations other than where shown. Alway verify wire harness length.

M8-1.25 Nylock Nut4x

M8-1.25 x 20mm Lg. FHCS4x

(disregard any remaining hardware)

IN-TSK-CA-DEF-004

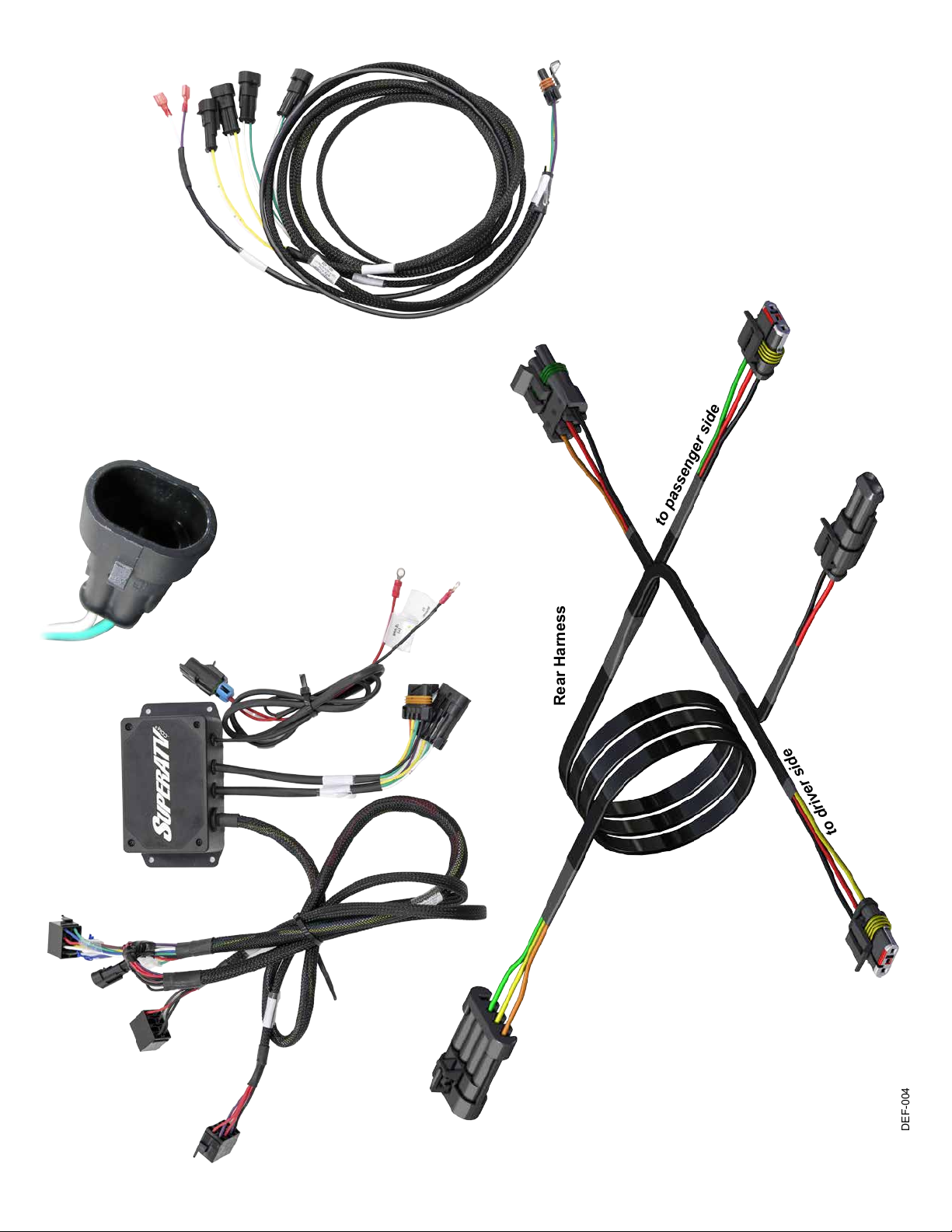

Front Harness

Main Harness

use provided dielctric grease

on all connections

Always consult labels on Wiring Harnesses

when making connections.

to passenger side

Rear Harness

to driver side

to License (if applicable)

to stock Harness

to Control Box

IN-TSK-CA-DEF-004

(passenger)

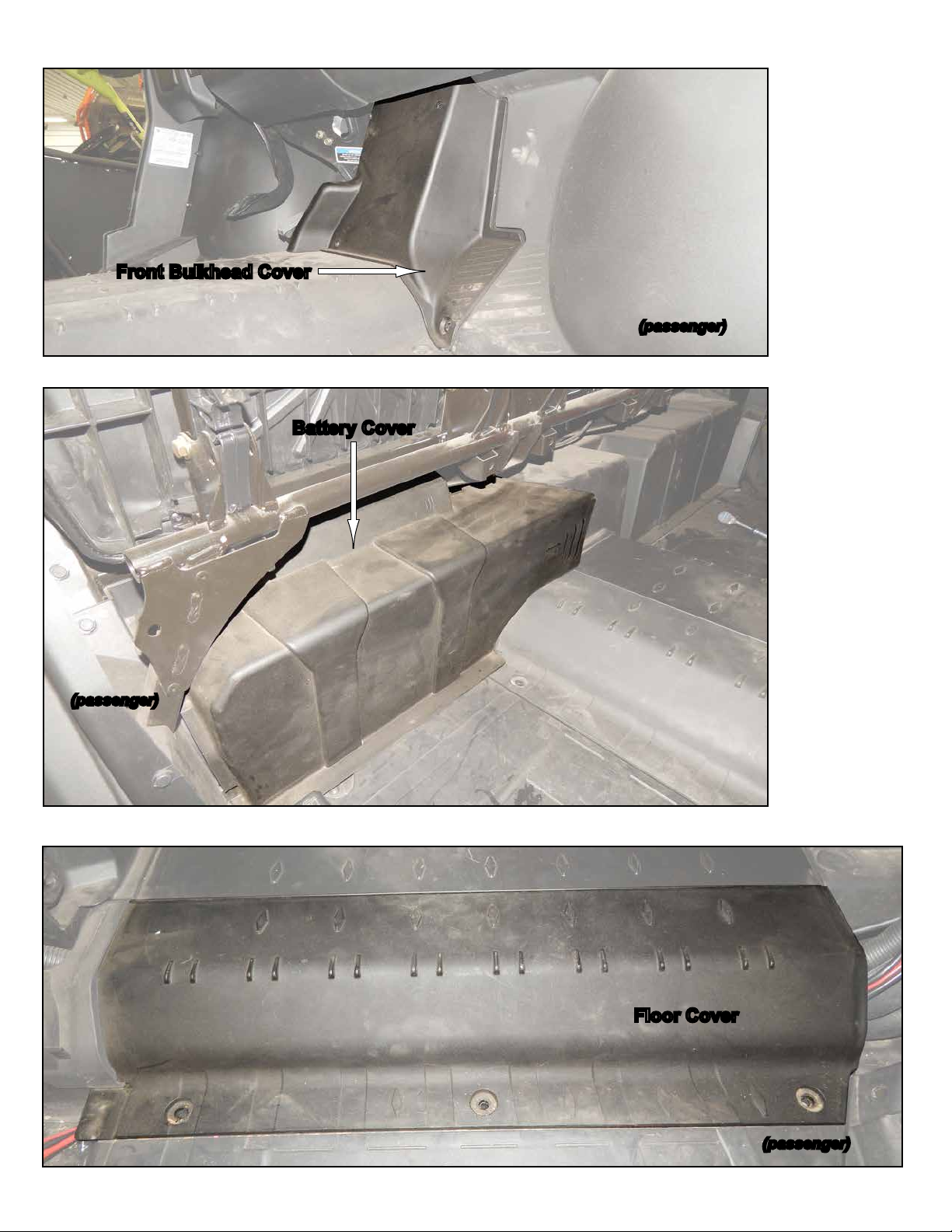

- Remove Front Bulkhead Cover.

- Remove Battery Cover.

Front Bulkhead Cover

Battery Cover

(passenger)

Floor Cover

- Remove Floor Cover.

(passenger)

IN-TSK-CA-DEF-004

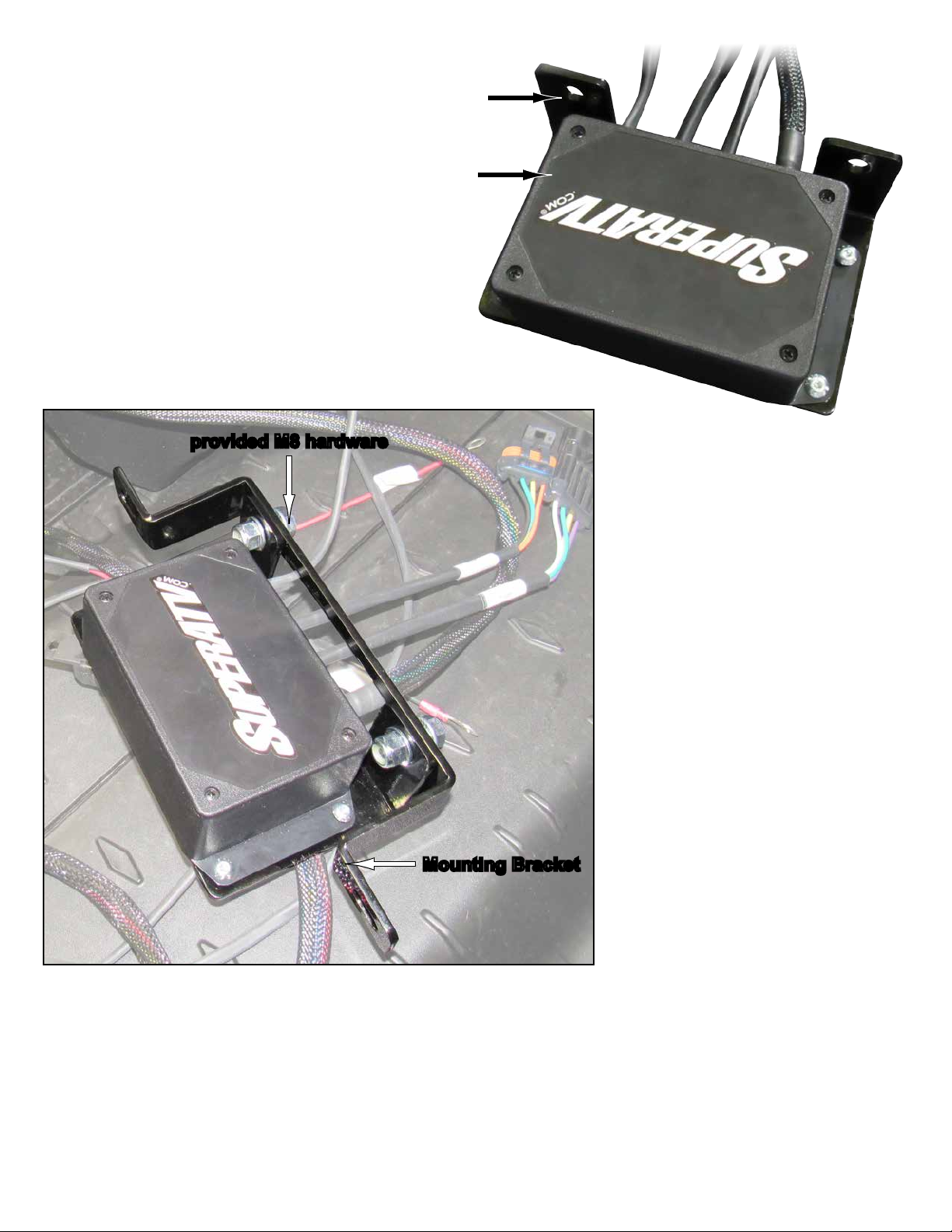

- Secure Control Box to Bracket with provided M5 hardware.

provided M8 hardware

Control Box Bracket

Mounting Bracket

Control Box

- Join Control Box Bracket and Mounting Bracket with

provided M8 hardware; do not tighten completely.

IN-TSK-CA-DEF-004

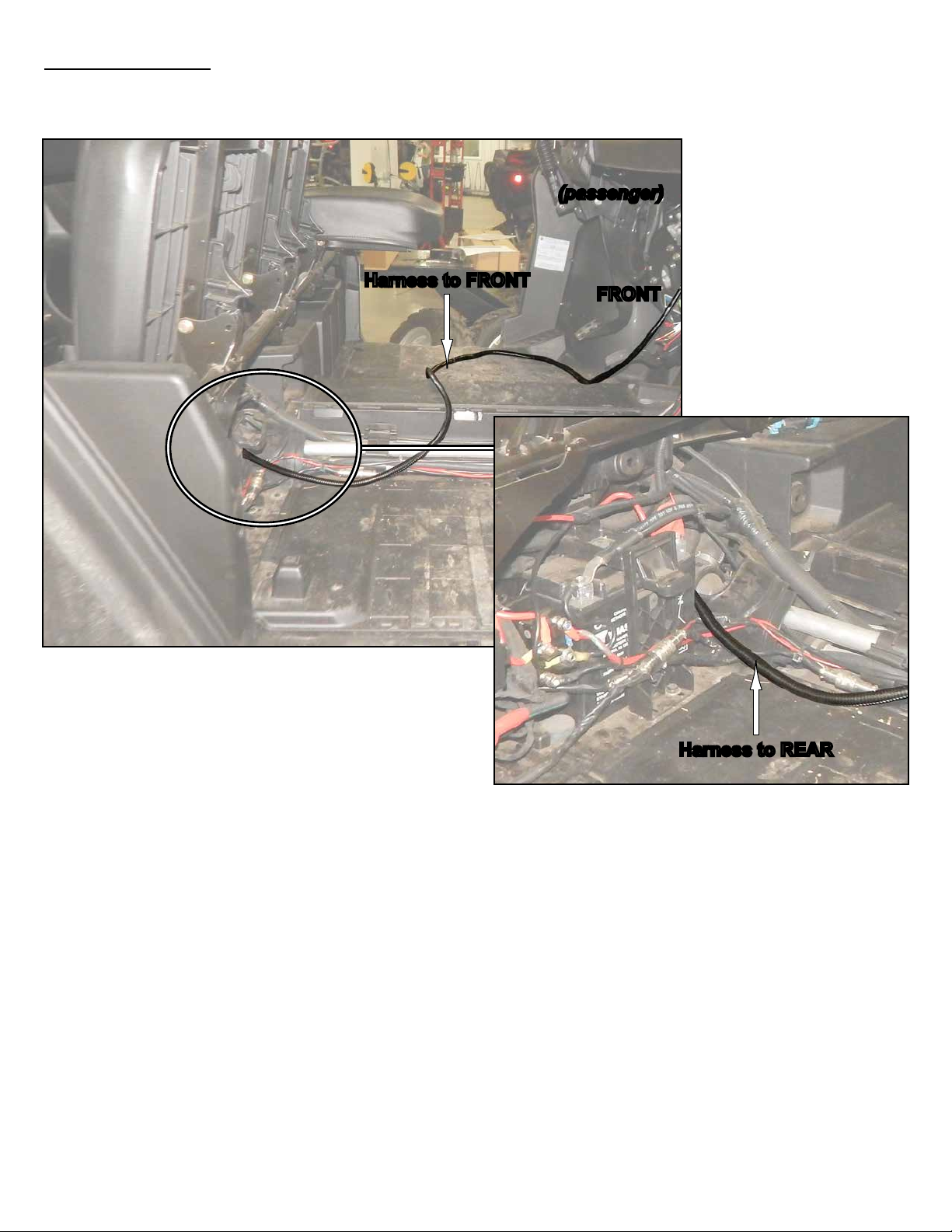

Wiring Harness:

- Route Harness to Front and Rear of vehicle.

(passenger)

Harness to FRONT FRONT

Harness to REAR

IN-TSK-CA-DEF-004

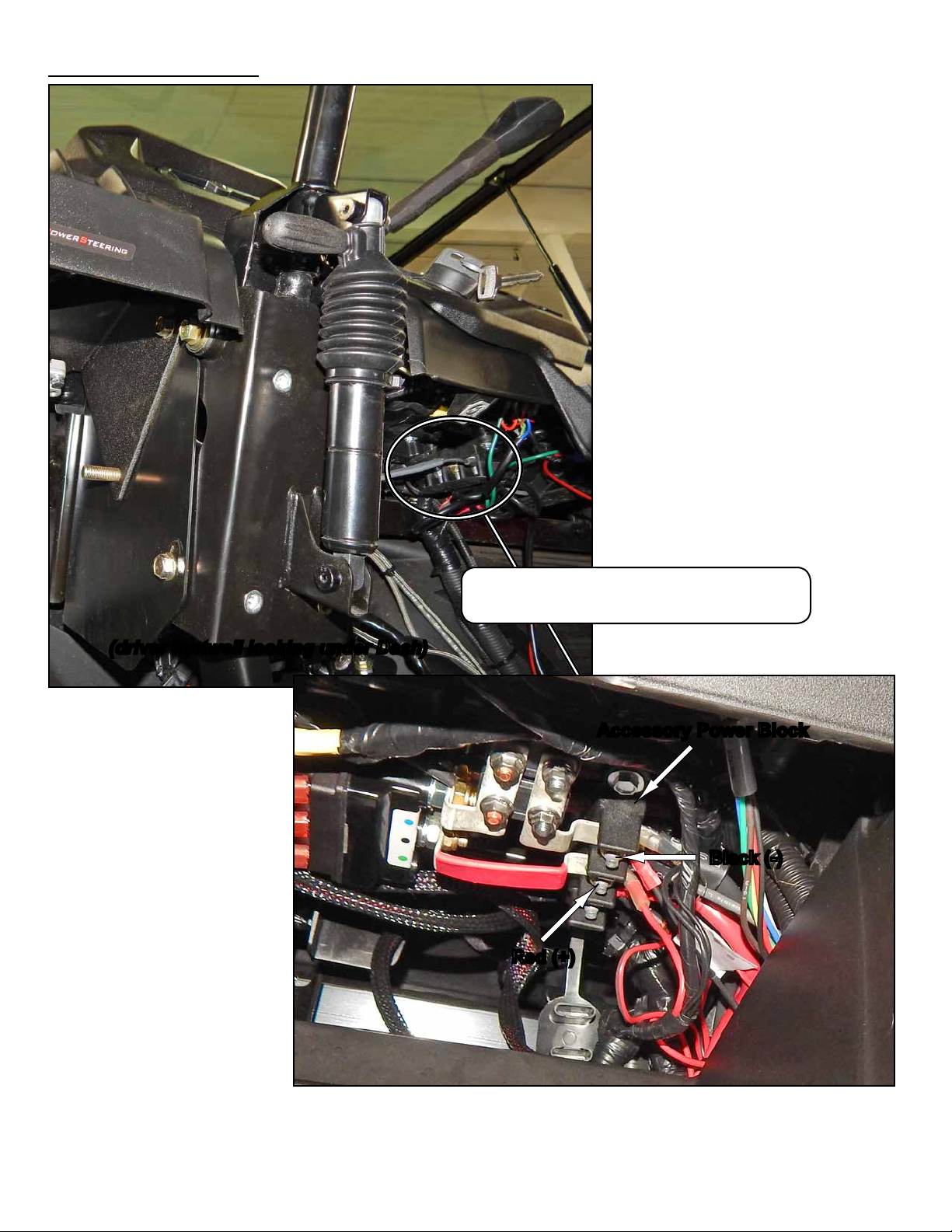

connect 12V and Ground wires from

Harness to Accessory Power Block

(driver footwell looking under Dash)

Power Connections:

Accessory Power Block

Red (+)

Black (-)

IN-TSK-CA-DEF-004

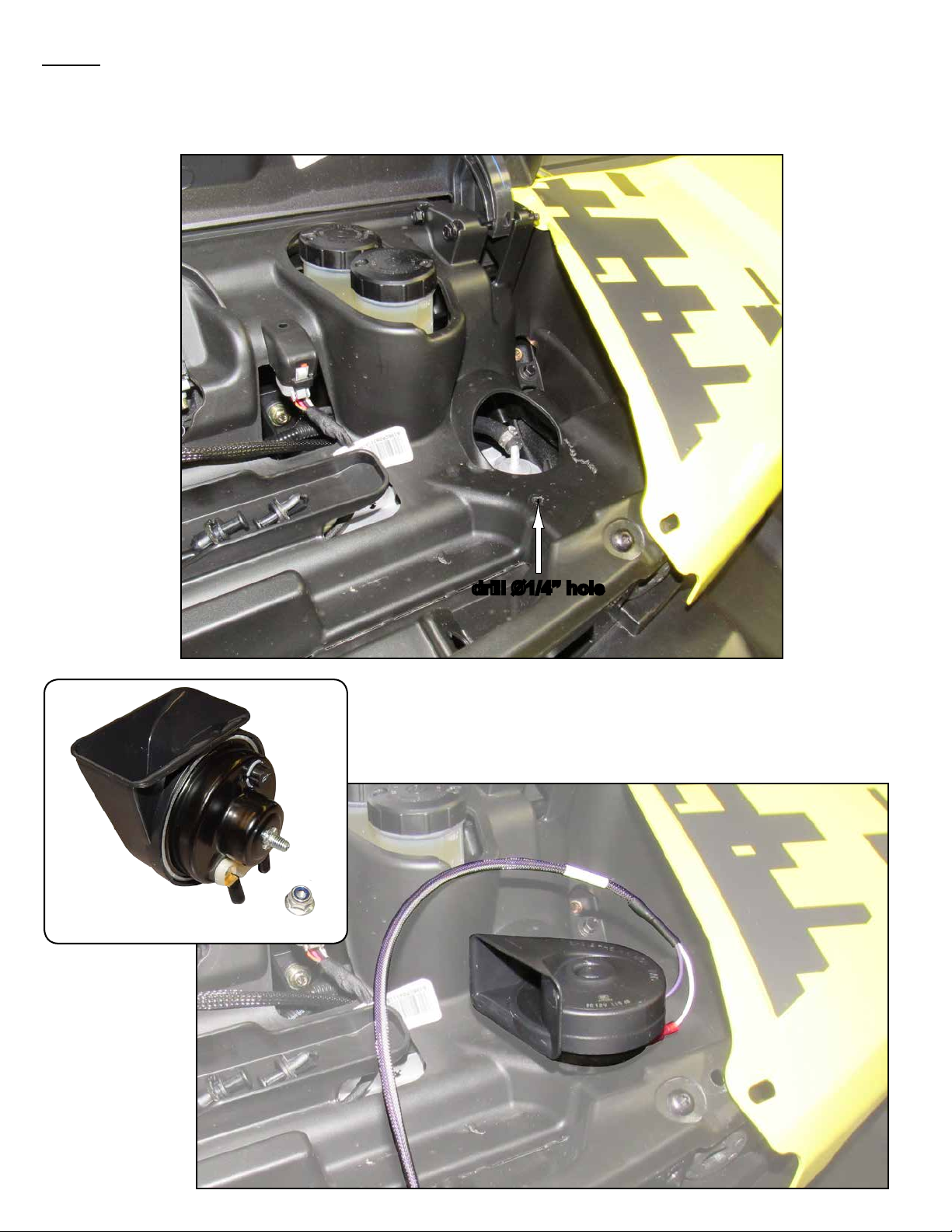

Horn:

- UsermayinstallHorninlocationdi󰀨erentthanshown.

- Location must be protected from mud, debris, and water.

- Illustration is SuperATV’s choice.

drill Ø1/4” hole

- Connect Harness and install Horn.

- Secure with Nut provided in Horn Kit.

Horn Kit

IN-TSK-CA-DEF-004

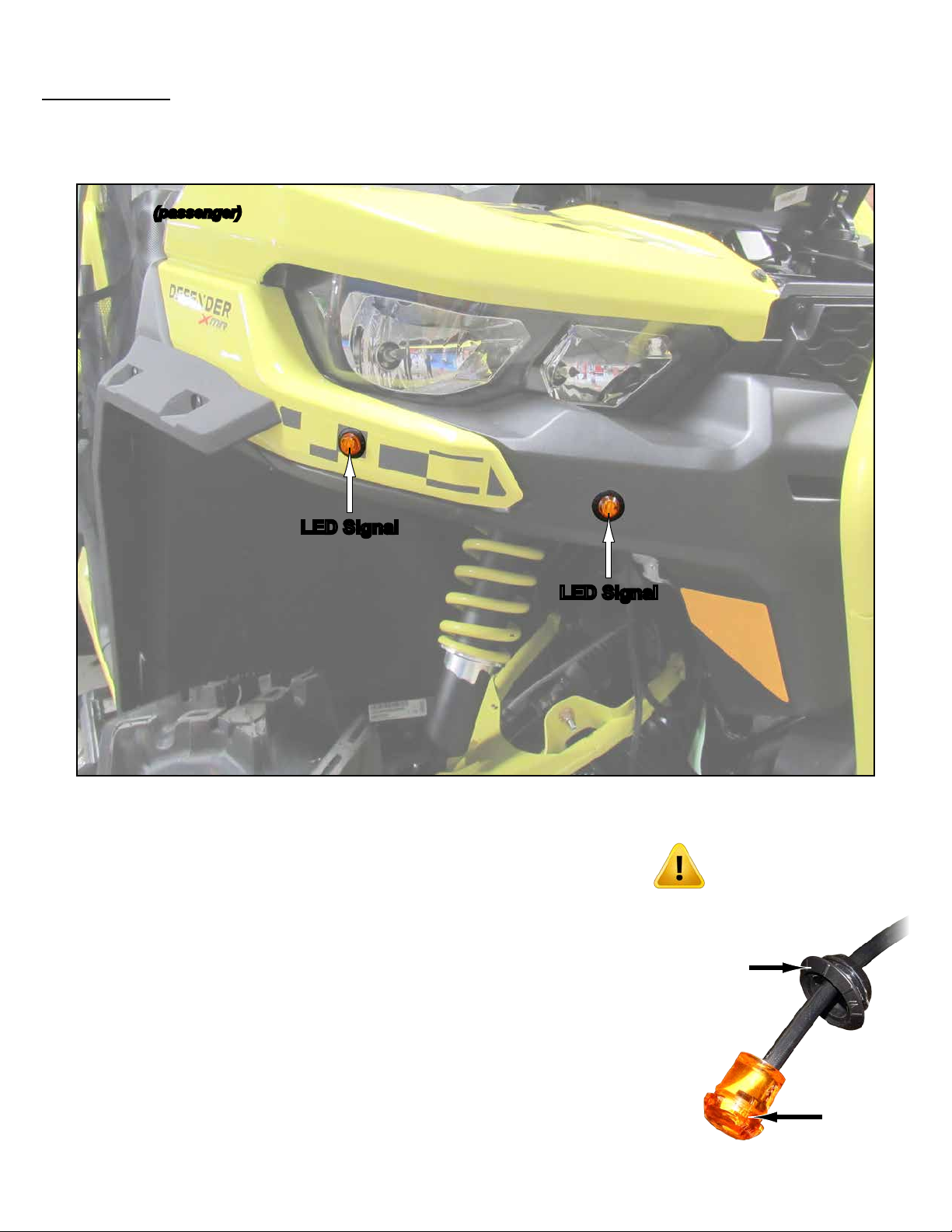

LED Signal:

- Drill a Ø3/4” hole in body and install LED Signal. Repeat for remaining LED Signals.

- Plug LED Signals into corresponding inputs on Front Harness.

- Secure all Wires as needed.

LED

Gasket

- Separate LED from Gasket.

- Install Gasket into hole.

- Install LED into Gasket.

If Light is hard to insert separate as shown.

(passenger)

LED Signal

Before drilling any holes, check behind area to be drilled for any interference.

LED Signal

IN-TSK-CA-DEF-004

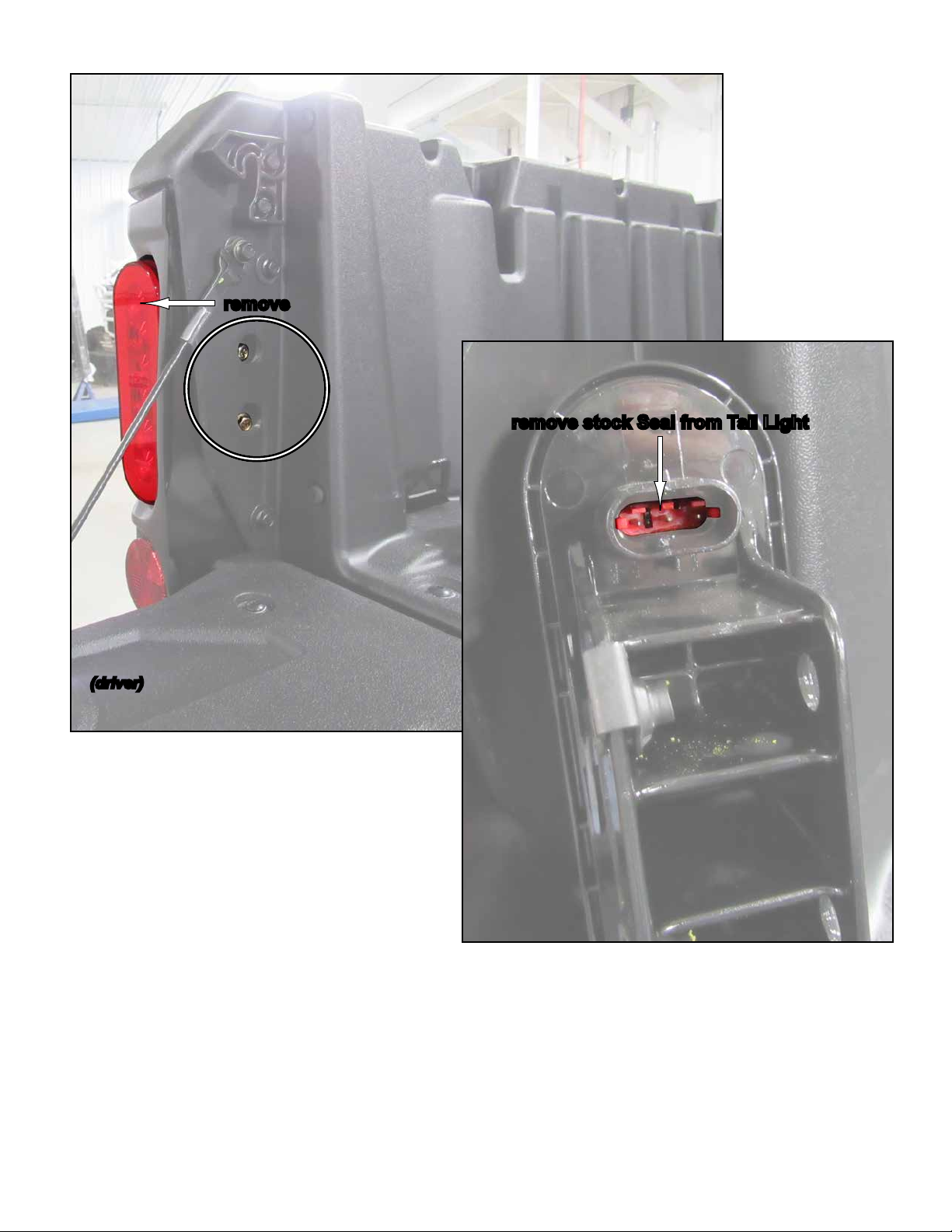

(driver)

remove

remove stock Seal from Tail Light

- Remove Tail Lights.

IN-TSK-CA-DEF-004

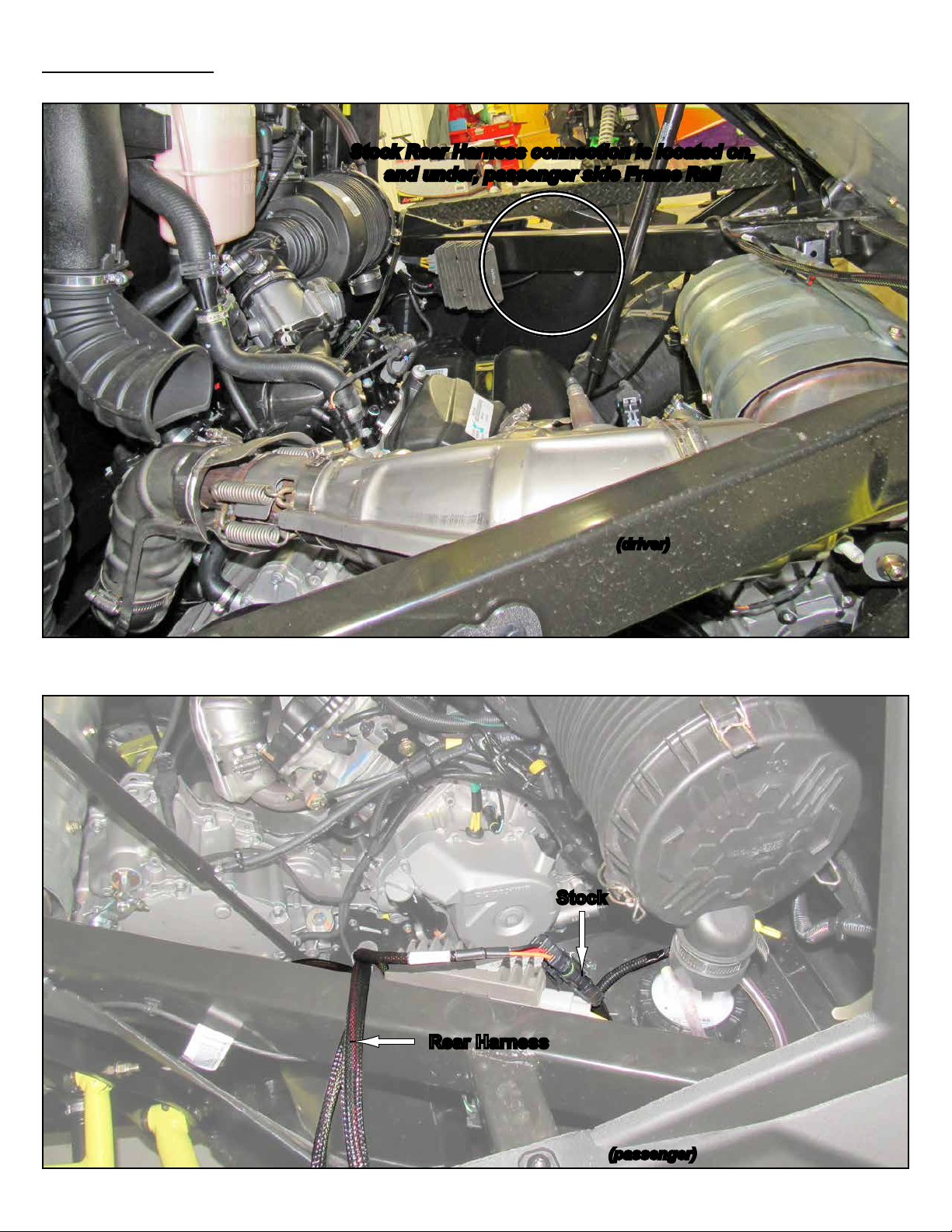

Rear Harnesses:

- Raise Cargo Bed and unplug stock harness in location shown.

(driver)

Stock Rear Harness connection is located on,

and under, passenger side Frame Rail

- Connect Rear Harness to stock Harness, as shown, and route to Tail Lights.

- Secure all Wires as needed.

(passenger)

Rear Harness

Stock
