20 TON Gas Powered Hydraulic Log Splitter
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
SKU# GUO077
1
INDEX
TECHNICAL SPECIFICATIONS ---------------------------------------------------------------------------------------------------------- 1
SAFETY DEFINITIONS ---------------------------------------------------------------------------------------------------------------------- 2
SAFETY SYMBOLS ----------------------------------------------------------------------------------------------------------------------- 2~3
SAFETY GUIDELINES ------------------------------------------------------------------------------------------------------------------- 4~5
FUEL SAFETY -------------------------------------------------------------------------------------------------------------------------------- 5
CONTROLS AND FEATURES ----------------------------------------------------------------------------------------------------------- 6
PARTS LIST ----------------------------------------------------------------------------------------------------------------------------------- 6
ASSEMBLY --------------------------------------------------------------------------------------------------------------------------------- 7~8
EXPANDED DRAWINGS ------------------------------------------------------------------------------------------------------------------ 9
OPERATION ----------------------------------------------------------------------------------------------------------------------------- 10~11
MAINTENANCE AND STORAGE ------------------------------------------------------------------------------------------------------ 11
TROUBLE SHOOTING -------------------------------------------------------------------------------------------------------------------- 11
TECHNICAL SPECIFICATIONS
Maximum Exerted Splitting Force
Engine Specifications
Starter Type
Cycle Time
Gear Pump
Control Valve
Max. Pressure
Hydraulic Cylinder
Hydraulic Cylinder Stroke Length
Max Log Length
Max Log Width
Hydraulic Fluid Type
Hydraulic Fluid Tank Capacity
Engine Oil Guide
Engine Oil Capacity
Fuel Type
Fuel Tank Capacity
Wheel Diameter
Net Weight
Overall Dimensions(L x W x H)
Low Oil Shut-off
Emissions
20 (US tons)
7.0HP / 209CC
Recoil Start
7.5 Seconds
11 GPM
Detent (auto-return)
3000 PSI（21Mpa）
3.5"
16"
20.5"
16"
AW32, AW46
1.6 Gallon (6L)
SAE 15W-40 is recommended for general use.
Other viscosities shown in the chart may be
used when the average temperature in your
area is within the indicated range.
0.145Gallon (0.55L)
87 octane gasoline with NO ethanol content
NOTE: If using an ethanol blended fuel, a fuel stabilizer, mixed to manufacturer
specifications recommended (See engine manual)
0.74 Gallon (approx. 2.8L)
10"
132LB
46.38" x 25.59" x 34.05"（Assembled）
Yes
EPA/CARB
22
SYMBOL MANING
Read Operator’s Manual in its entirety.To reduce the risk of injury, user must read
and understand operator’s manual before using this product.
Eye and Ear Protection. Always wear safety goggles or safety glasses with side
shields, and as necessary a full face-shield as well as full ear protection when
operating this product.
Footwear. Always wear safety shoes or work boots when operating the machine.
Sandals and slippers or open toe shoes or any type are strongly discouraged.
Gloves. Always wear nonslip, heavy-duty protective gloves when operating
this product.
Safety Alert. Precautions that involve your safety.
Risk of Fire. Fuel and its vapors are extremely flammable and explosive. Fire can cause
severe burns or death. Do not add fuel while the product is operating or still hot. Shut
down the unit and wait for unit to cool before refilling the fuel, oil, or hydraulic fluid tanks.
Skin Injection Hazard. Hydraulic oil under high pressure can penetrate your clothes
skin. Make sure all fittings are fully seated and tightly secured before applying pressure.
Relieve system pressure before servicing.
Always keep hands away from the wedge and the ram.
Moving parts can crush or cut.
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations,
deserve your careful attention and review. The safety warnings do not by themselves eliminate any danger. The instructions or
warnings they give are not substitutes for proper accident prevention measures and care while using the product.
SAFETY SYMBOLS
Some of the following symbols are used on this product. Please study them and learn their meanings. Proper interpretation of
these symbols will help you to operate the product in a safe and responsible manner.
3
SYMBOL MANING
Always keep feet away from the wedge and the ram. Moving parts can crush
or cut.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot
surface.
Open Flame alert. Fuel and its vapors are extremely flammable and explosive.
Keep fuel away from open flames, sparks, pilot lights, heat, and other potential
ignition sources.
Hold logs on sides when loading. Keep hands and feet away from cylinder,
wedge, and partially split logs.
Never place hands or any part of the body between a log and any part of the
log splitter.
Do not split logs against the grain. Split logs end to end in the direction of the
grain only.
Toxic Fumes. The engine exhaust from this product contains chemicals known
to the state of California to cause cancer and birth defects and other
reproductive harm.
Risk of Asphyxiation. This engine emits carbon monoxide, an odorless, colorless
poison gas. Breathing carbon monoxide can cause nausea, fainting or death.
Use only in a well ventilated area. DO NOT use indoors (garage or shed or any
enclosed area).
Clearance. Keep all objects including others at least 10 feet (3m) from this
machine.
Only one person should operate the log splitter and load the logs.
Never operate on an incline. Make sure the splitter is on a level surface. Block
tires and ensure support leg is secure to prevent unintended movement of the
log splitter during operation.
44
DANGER indicates a hazardous situation which, if not avoided,will result in serious injury and possibly death.
WARNING indicates a potential hazardous situation which, if not avoided, could result in serious injury or death.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to property
damaged).
SAFETY GUIDELINES
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Log splitter engine exhaust contains carbon monoxide, a colorless, odorless, poison gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death.
If you start to feel dizzy or weak, get to fresh air immediately.
Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon monoxide. This is a poison you
cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and windows are open.
ONLY use OUTSIDE and far away from windows, doors, and vents.
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions to protect your home and loved ones from possible harm.
Moving parts can entangle hands, feet, hair, clothing and/or accessories. Traumatic amputation or severe laceration can result.
Keep hands and feet clear moving parts. Tie up long hair and remove jewelry before operating the device. Operate equipment
only fully assembled and with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught.
Operation of this equipment may create sparks that can start fires around dry vegetation.
Spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire preven-
tion requirements.
Running engines produce heat. Severe burns can occur on contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible materials.
Crush Hazard
Wedge can cut through skin and break bones and in extreme cases amputate limbs and digits. Keep all limbs away from
wedge and endplate at all times.
Skin Injection Hazard. High pressure hydraulic oil can break skin and cause sever injury.
Make sure all fittings are seated firmly and tightly secured before applying pressure. Relieve system of pressure before
servicing.
5
Rapid retraction of the starter cord will pull hand and arm towards the engine faster than you can let go. Unintentional startup
can result in entanglement, traumatic amputation or laceration. Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback.
Parts of the hydraulic circuit (cylinder, pump, valve-body, hoses) can become very hot during operation.
This product IS NOT intended to to be towed behind a vehicle of any sort. The handle and wheels of the product are intended
for the sole purpose of easily moving the log splitter on your work site. Any modification or changes to allow moving of this
product by any other means other than by hand will render all warranties null and void.
Improper treatment or use of the log splitter can damage it, shorten its life and void your warranty.
Use the log splitter only for intended uses.
Operate only on level surfaces.
DO NOT expose log splitter to excessive moisture, dust, or dirt. Cover with a tarp or store in a shed when not in use.
DO NOT allow any material to block the cooling vents.
DO NOT use product if you observe engine if:
– Equipment sparks, smokes or flames from the motor
– Equipment vibrates excessively.
– Hydraulic Fluid is leaking from the unit
FUEL SAFETY
GASOLINE AND GASOLINE VAPORS ARE HIGHLY FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
When adding or removing gasoline:
Turn the engine off and let it cool for at least two minutes before removing the gasoline cap. Loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the engine at the gas station.
Use an approved container to transfer the fuel to the engine.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes while fueling.
When starting the engine:
DO NOT attempt to start a damaged engine.
Make certain that the gasoline cap, air filter, spark plug, fuel lines and exhaust system are properly in place.
Allow spilled gasoline to evaporate fully before attempting to start the engine.
Make certain that the log splitter is resting firmly on level ground.
When operating the log splitter:
DO NOT move or tip the log splitter during operation.
DO NOT tip the log splitter or allow fuel or oil to spill.
When transporting or servicing the log splitter:
Make certain that the fuel valve is in the OFF position, the gasoline tank is empty.
Disconnect the spark plug wire.
When storing the log splitter:
Store away from sparks, open flames, pilot lights, heat and other sources of ignition.
Do not store log splitter or gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic
ignitions.
NEVER use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged.
6
2
9
5
7
6
1
8
3
4
10
14
11
12
13
15 16
Engine Primary Beam Kit Bottom Plate Supporting Bar Wheels Control Valve
Handle
Hydraulic Cylinder Handle Oil Hose Hexagon Socket Head
Cap Screw M10x 35mm
Hexagon Flange
Bolt M8x20mm
Hexagon Flange
Bolt M8x40mm
Hose Clamp Flat Washer Cotter Pin Spring Washer Flange Nut Plug of Oil Dipstick
CONTROLS AND FEATURES
1. Handle
2. Splitting Wedge
3. Support Leg – Supports log splitter while operating.
4. Splitting Support Beam---DO NOT PUNCTURE The hydraulic tank is inside.
5. Hydraulic cylinder base.
6. 10" Wheels
7. Hydraulic Oil Dipstick – Add or check Hydraulic oil level.
8. Hydraulic Cylinder – Converts hydraulic pressure into linear force.
9. Control Valve Handle – Controls the movement of the thrust plate.
10. Engine 209cc 4-stroke, air cooled.
11. Hydraulic Oil Return (Low Pressure) Hose – returns hydraulic oil back into the hydraulic tank.
12. Suction Hose – Draws hydraulic oil from the tank into the pump.
13. Hydraulic Pump – Pumps hydraulic oil through the system.
14. Engine Oil Fill Cap / Dipstick – Add or check the motor oil level.
15. Hydraulic Oil Inlet (High Pressure) Hose – Feeds hydraulic oil into the hydraulic cylinder.
16. Fuel filler tank cap.
PARTS LIST
Recommended tools: Needle nose pliers
Recommended tools: Ratchet Wrench (12mm 13mm)
Recommended tools: Ratchet Wrench (12mm)
Recommended tools: Ratchet Wrench (12mm 13mm)
Recommended tools: Allen wrench (6mm)
ASSEMBLY
7
Recommended tools: Needle nose pliers
Recommended tools: Slotted screwdriver
Recommended tools: Wrench (27mm)
8
10
7
3
11
9
8
(4)
5
15
16
4
1
20
2
17
6
18
13
14
12
(1)
19
(9)
Part No.
1
2
3
4
5
6
7
8
9
10
Description
Cotter Pin
Flat Washer
10 " Wheel
Flange Nut
Hexagon Flange Bolt M8x40mm
Bottom Plate
Hexagon Flange Bolt M8x20mm
Oil Hose
Hose Clamp
Retaining Ring
Q’ty
3
2
2
6
4
1
4
1
2
1
Part No.
11
12
13
14
15
16
17
18
19
20
Description
Filter Screen
Plug Of Oil Dipstick
Hydraulic Cylinder Kit
Spring Washer
Hexagon Socket Head Cap Screw M10x35mm
Primary Beam Kit
Handle
Hexagon Flange Bolt M8x20mm
Supporting Bar
Engine
Q’ty
1
1
3
3
1
1
3
3
3
3

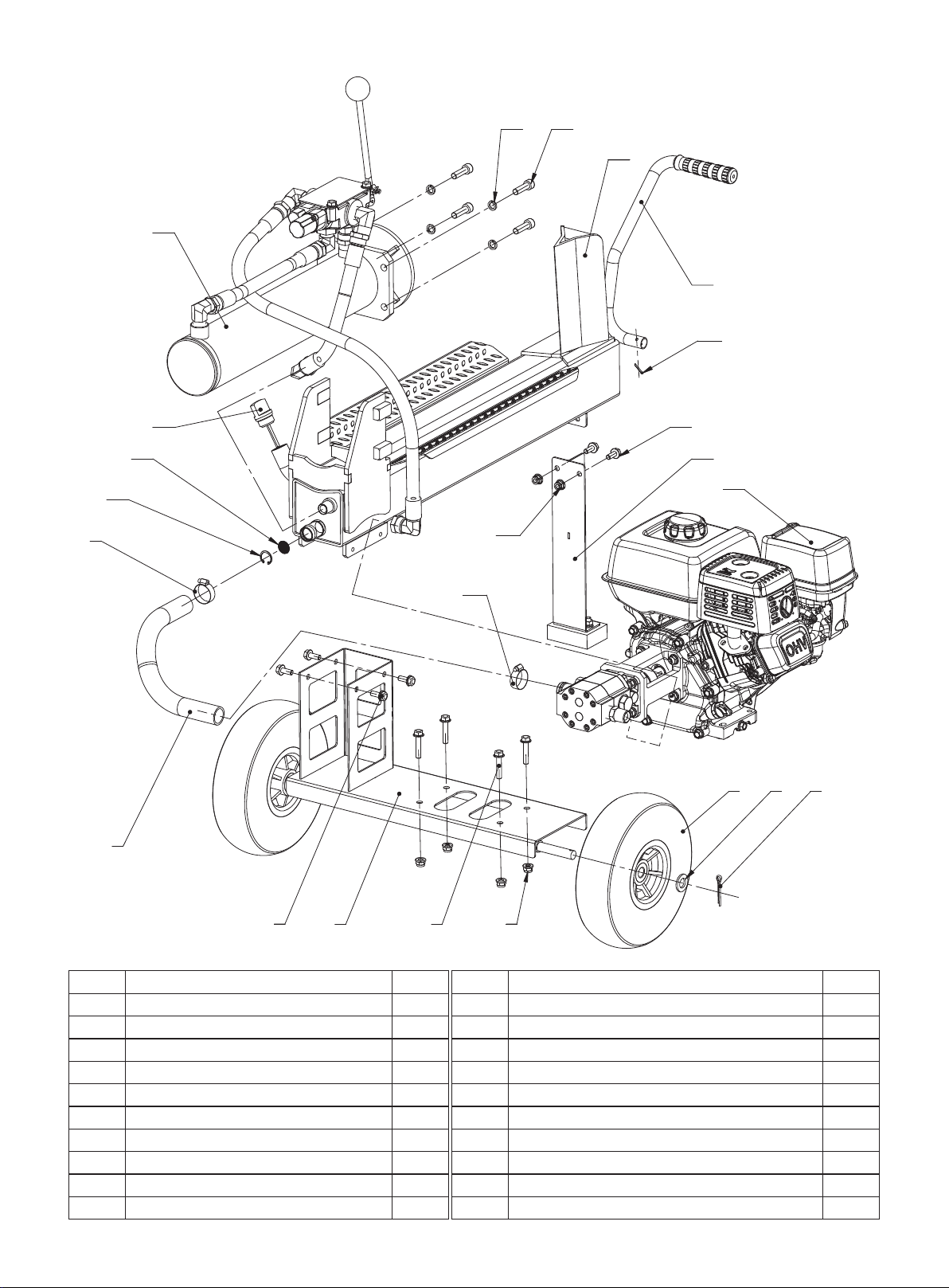

EXPANDED DRAWINGS
9
Table des matières
Autres manuels Super Handy fendeuse de bûches
Manuels fendeuse de bûches populaires d'autres marques
Scheppach
Scheppach OX 3-1000 Instructions de montage
Swisher
Swisher 21200 Manuel utilisateur
Elem Garden Technic
Elem Garden Technic FBHT65-22TCH Manuel utilisateur
Champion Power Equipment
Champion Power Equipment 90720 Manuel
Boss Industrial
Boss Industrial ES5T20 Manuel utilisateur
Villager
Villager LSP 12 T Manuel utilisateur
