WELCOME!
Please read this owner’s handbook carefully before using your
Super73-K1D in order to become thoroughly familiar with the
correct operation of your electric balance bike’s controls, its
features, capabilities, and limitations. This handbook includes safe
riding tips but does not contain any of the techniques and skills
necessary to ride an electric balance bike safely.
Join the Super Squad community of riders wherever you are!
This is just the beginning of your adventure with us! We look
forward to hearing about your experience and seeing you online
on our social networks:
Instagram.com/super73
Youtube.com/c/super73
Facebook.com/groups/Super73owners/
Tag us! @Super73 #Super73
CONTACT SUPER73
This handbook contains information on the Super73-K1D electric balance bike. Always store
this handbook with your electric balance bike and refer to it for information whenever
necessary.
The information contained in this handbook is based on the latest information available at
the time of printing.
Please note that all instructions and notices are subject to change and updates without
notice. Please visit support.super73.com for periodic tech updates.
This handbook is not to be reproduced in whole or in part without the written permission of
Super73, Inc. © 2023 Super73, Inc. All rights reserved. Updated 06/2023.
3
TABLE OF CONTENTS
2
5
6
8
8
9
10
13
14
15
17
18
19
20
22
26
Contact Information
General Information
Diagram of SUPER73-K1DTM
Legal Information
Intended Use
Getting Started
Assembly Instructions
Registration
Pre-ride Safety Check
Operating the Bike
General Warnings
For Parents and Guardians
Safety
Maintenance Schedule
Maintenance and Components
Warranty
4
MISSION STATEMENT
DATE:
8/30/2022
DRAWING:
TOP ASSEMBLY 23YM K1D (JAWA)
+ +
Super73 exists to create adventure and community.
We strive to bolster adventurous exploration through
innovation, create positive and forward-thinking
experiences with integrity, and cultivate enthusiastic
support and vision for the community.
5
WARNING!
Warnings, precautions, and potential risks associated with the use of your Super73.
Danger!
Potential dangers to safety if respective calls to action are ignored.
Tip!
Recommendation! Meaningful additional information.
Please perform a safety check before each use of the SUPER73-K1D, as described in
the “Pre-ride Safety Check” section on page 14 of this handbook.
Do not ride the SUPER73-K1D if it has been assembled incorrectly. Riding an
incorrectly assembled electric balance bike may put the rider’s own safety at risk as
well as the safety of others.
If you feel uncertain about the proper configuration after assembling the
SUPER73-K1D according to the provided assembly instructions, please contact the
retailer where you purchased the SUPER73-K1D directly.
TIP
!
If any of the instructions are beyond your skill set, we recommend taking the
SUPER73-K1D to a professional cycle mechanic for assembly.
This handbook includes details of maintenance work that must be carried out at
frequent intervals to maintain an operational and safe SUPER73-K1D. Never perform
work on your SUPER73-K1D beyond the instructions in this handbook.
This handbook is not intended as a comprehensive use, service, repair, or
maintenance handbook; maintenance beyond that which is set out in this handbook
should be handled by a SUPER73-K1D specialist or professional cycle mechanic.
GENERAL INFORMATION
Please note the following symbols:
DANGER!
Please read the handbook, including assembly instructions, in full before beginning to
build your SUPER73-K1D to ensure the proper functioning of it. Failure to do so would
give rise to a risk of injury, death and/or property damage.
!
6
DIAGRAM OF THE SUPER73-K1DTM
THROTTLE (RIGHT SIDE)
FRONT DROPOUT
BATTERY
FOOT PLATFORMS
BRAKE LEVER (LEFT SIDE)
7

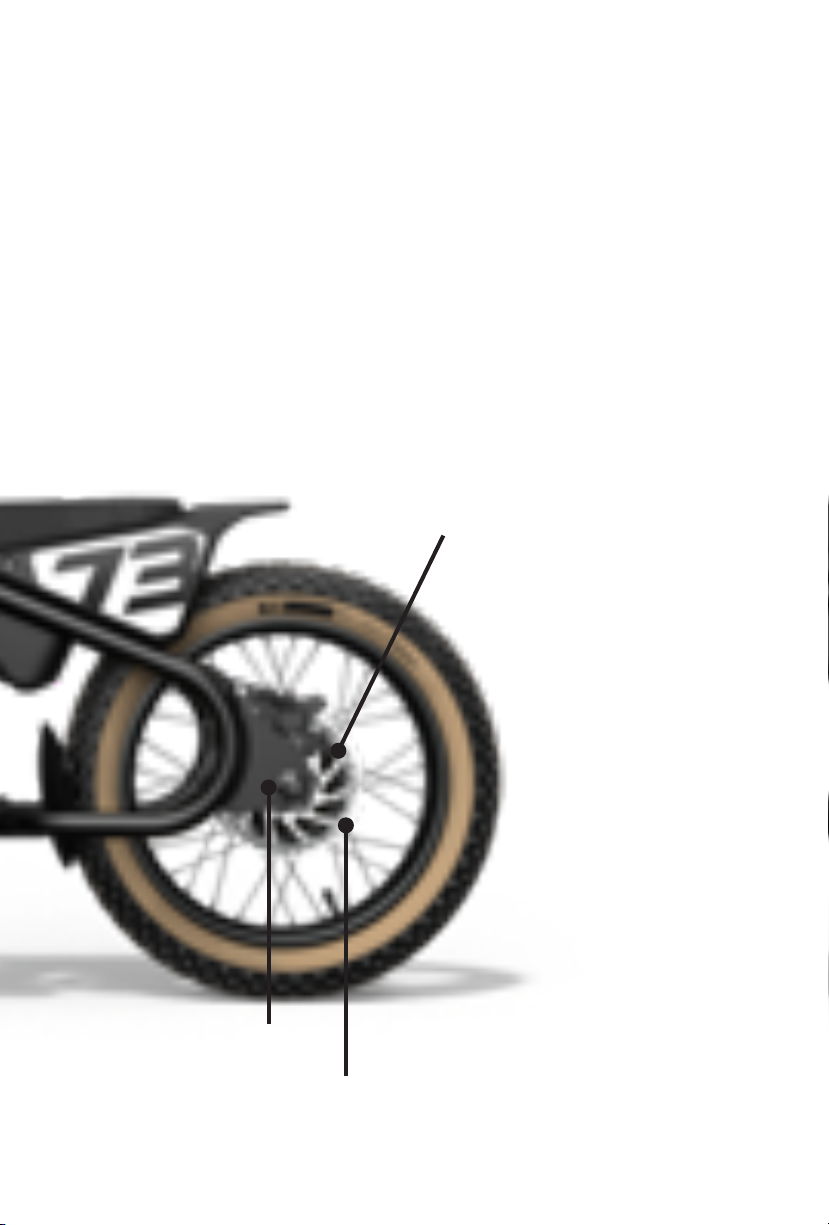

BRAKE ROTOR
REAR DROPOUT
REAR HUB MOTOR
8
Please check your country’s or state’s laws on electric balance bikes before riding.
There are variations in these laws and regulations regarding age limit, speed, motor
wattage, and road accessibility as pertaining to electric balance bikes. Visit this
website for more information:
https://super73.com/laws-and-policies-for-e-bikes.
No liability or warranty shall be accepted if the use of your SUPER73-K1D deviates from its
intended use (as set within this handbook), if safety instructions are not observed, in the
event of overloading, or if faults are not properly rectified. Similarly, no liability or warranty
shall be accepted in the event of assembly errors, intentional acts, accidents, and/or any
failure to follow care and maintenance specifications or to observe warnings set out in this
handbook or otherwise. Further, any modifications or alterations to the SUPER73-K1D’s
electrical system (tuning) voids all warranty and other claims. Please note that:
• Your SUPER73-K1D electric balance bike is designed for use on paved paths only.
You should therefore never ride on stairs, jump, or perform wheelies or similar
activities.
• The Super73-K1D is not approved for participation in competitions.
• Commercial use does not form part of the intended use.
• Operation parameters, maintenance, guidelines, and service instructions
referenced in this handbook are part of the intended use.
Please observe the permitted maximum rider weight of 75 lbs (34 kg).
LEGAL INFORMATION
INTENDED USE
For the latest information on assembly and maintenance, please visit
support.super73.com.
!
9
Please read all assembly instructions in full before beginning the build of your new
electric balance bike.
DANGER!
Please read the instructions entirely before assembly to ensure the proper functioning
of the Super73-K1DTM. Failure to do so could result in an accident, damage, serious
injury or death, and presents similar risks to those around the user or the electric
balance bike.
VIDEO
View our assembly video and follow the step-by-step instructions on our website at
support.super73.com.
GETTING STARTED
If any damage has occurred to your SUPER73-K1D during transit, please submit photos
IN THE PACKAGING
• 1 x LFP Battery
• 1 x 6 mm Hex Wrench
GOOD TO KNOW
• Bolts for the handlebars mount are M6x12 mm socket head cap screws.
• Tire inner tube size is 16”x2.4” with Schrader Valve.
10
1. HANDLEBAR INSTALLATION
A. Use the 6 mm hex wrench to remove the bolts from the handlebar clamp.
B. Once the clamp is open, place the lower crossbar of the handlebar in the
groove of the top crown.
C. Loosely tighten the handlebar clamp with the 6 mm hex wrench and adjust
the angle of the handlebar to rider’s comfort.
D. Cross-tighten the handlebar clamp from corner-to-corner making sure the
clamp is tight and handlebars do not move.
ASSEMBLY INSTRUCTIONS
