Sunstream FL6 HOVERCOVER Manuel utilisateur
FL6 HOVERCOVER
™
ASSEMBLY & INSTALLATION MANUAL
READ CAREFULLY.
KEEP INSTRUCTIONS
FORM NO.
PAGE 1 OF 17
REV.
690177
F
9/16"
3/8"
1/2"
9/16"
5/16"
3/8"
TABLE
OF CONTENTS
TOOLS RECOMMENDED..........................................................................
DISCLAIMER OF LIABILITY...................................................................
ASSEMBLY INSTRUCTIONS....................................................................
HEIGHT ADJUSTMENT.............................................................................
IMPORTANT SAFETY INSTRUCTIONS.................................................
MAINTENANCE...........................................................................................
STANDARD WARRANTY...........................................................................
TOOLS RECOMMENDED
DISCLAIMER OF LIABILITY
IF YOU ARE NOT AN AUTHORIZED SUNSTREAM DEALER AND ARE NOT A
REASONABLLY SKILLED MECHANIC, PLEASE CONTACT SUNSTREAM SO
WE CAN REFER YOU TO A LOCAL DEALER WHO CAN SKILLFULLY AND
SAFELY PERFORM THE ASSEMBLY AND INSTALLATION OF YOUR SUN-
STREAM PRODUCT. IT IS THE POTENTIAL INSTALLER AND/OR
ASSEMBLER'S RESPONSIBILITY TO DETERMINE WHETHER HE OR SHE
HAS THE NECESSARY SKILLS, KNOWLEDGE AND TOOLS TO PROPERLY
AND SAFELY ASSEMBLE AND/OR INSTALL THE SUNSTREAM PRODUCT
DESCRIBED HEREIN. IMPROPER ASSEMBLY AND/OR INSTALLATION
MAY CAUSE THE LIFT TO FUNCTION IMPROPERLY OR NOT TO FUNCTION.
IMPROPER ASSEMBLY AND/OR INSTALLATION MAY ADDITIONALLY
CAUSE A RISK TO PERSONAL SAFETY OR PROPERTY. IF THE ASSEMBLER
OR INSTALLER IS CONFUSED OR HAS QUESTIONS OR CONCERNS ABOUT
A PARTICULAR ASSEMBLY OR INSTALLATION, HE OR SHE SHOULD CON-
TACT SUNSTREAM BY TELEPHONE AT (253) 395-0500 OR (888) 786-5438 BE-
FORE PROCEEDING FURTHER. THE INFORMATION CONTAINED IN THESE
INSTRUCTIONS, EXCEPT THE STATED WARRANTY, DOES NOT CON-
STITUTE A GUARANTEE OF ANY KIND.
2
2
3-14
15
16
16
17
DO NOT OVER
TIGHTEN
TIGHTEN
FORM NO.
PAGE 2 OF 17
REV.
690177
F
GUIDE ON
WELDMENT
2X
BOLT, .375-16 X 3.00, HEX, SS
4X
11-061200-16
NUT, .375-16, NYLOCK, SS
12-060000-22
!CAUTION!
1
ONLY SKILLED INDIVIDUALS WITH PROPER TOOLS SHOULD ASSEMBLE THE HOVERCOVER. IMPROPER ASSEMBLY
MAY LEAD TO PRODUCT FAILURE, SUBSTANTIAL PROPERTY DAMAGE AND/OR PERSONAL INJURY AND VOID THE
WARRANTY.
FORM NO.
PAGE 3 OF 17
REV.
690177
F
9.50
4X
.187"
(3/16")
SELF DRILLING SCREW
#14-1, HEX WASH, SS
11-000401-93
16X
2
FORM NO.
PAGE 4 OF 17
REV.
690177
F

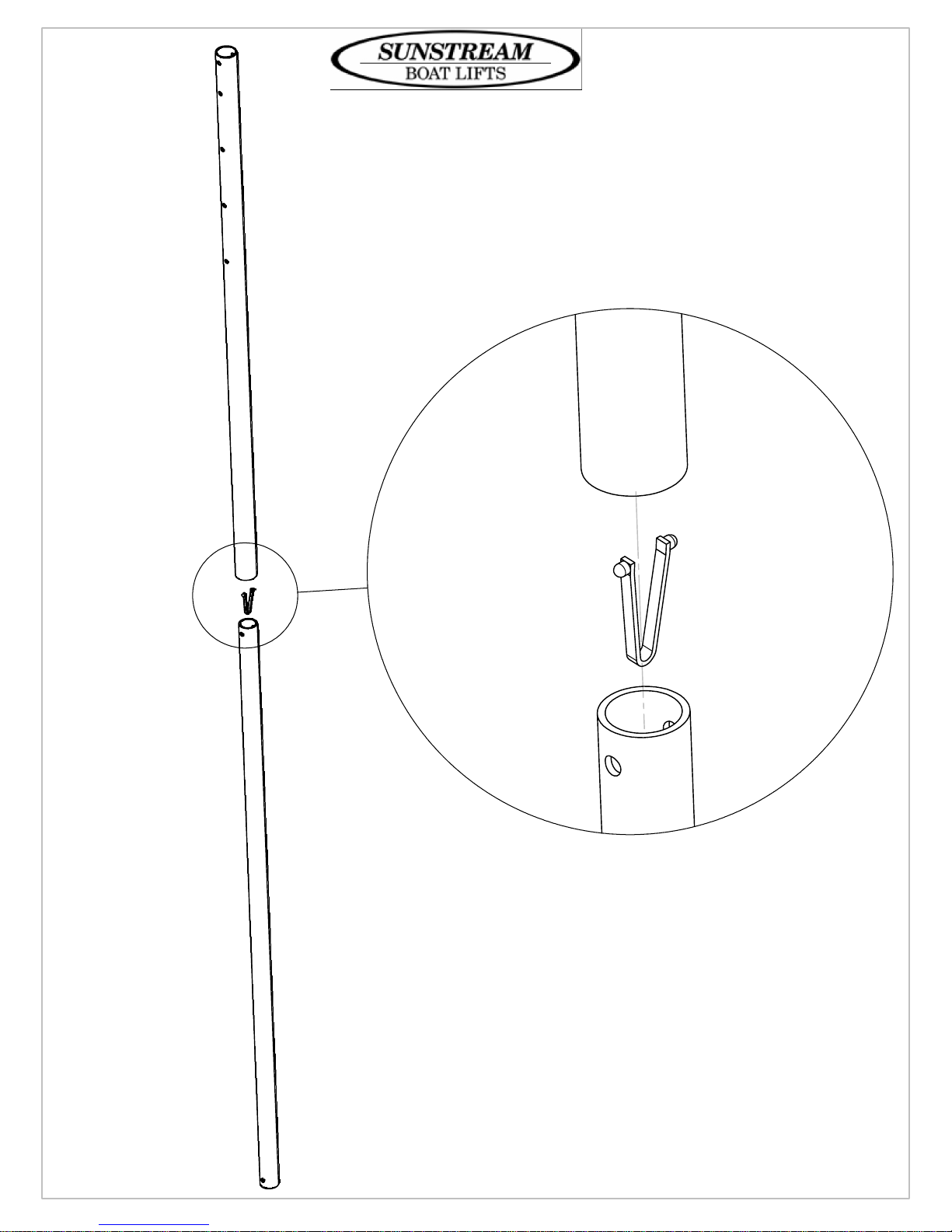

OUTER LINKAGE TUBE
INNER LINKAGE TUBE
44-000011-38
44-000011-37
15-000001-83
SNAP BUTTON
4X
3
FORM NO.
PAGE 5 OF 17
REV.
690177
F
PIPE, PVC, RBC OUTER GUIDE
44-000011-55
PIPE, PVC, RBC INNER GUIDE
44-000011-54
4
4X
FORM NO.
PAGE 6 OF 17
REV.
690177
F
FRAME BRACKET
RIGHT
FRAME BRACKET
LEFT
2X
2X
11-061200-16
BOLT, .375-16 X 3.00, HEX, SS
11-061200-16
BOLT, .375-16 X 3.00, HEX, SS
11-061001-92
BOLT, .375-16 X 2.50, HEX, SS
11-061001-92
BOLT, .375-16 X 2.50, HEX, SS
12-060000-22
8X
NUT, .375-16
NYLOCK SS
5
IMPORTANT:
ENSURE FRAME
BRACKET CAN PIVOT.
FORM NO.
PAGE 7 OF 17
REV.
690177
F
4X
BOLT, .375-16 X 2.75, HEX, SS
11-061100-15
NUT, .375-16, NYLOCK, SS
12-060000-22
6
FORM NO.
PAGE 8 OF 17
REV.
690177
F
5"
7"
5"
5"
7"
5"
5.00 7.00
11-051201-91
MACHINE SCREW, .3125-18 X 3, ROUND HEAD SLOTTED
VELCRO STRAP W/ GROMMET
69-000001-00
14X
MACHINE SCREW, 5/16 X 3.5, ROUND HEAD SLOTTED
11-051401-90
USE TO SECURE RAFTER STRAP
14X
NUT, 0.3125, NYLOCK, SS
12-050000-62
7
FORM NO.
PAGE 9 OF 17
REV.
690177
F
HOVERCOVER RAFTER
ASSEMBLY
94-000008-14
6X
12X
12X
VELCRO STRAP W/ GROMMET
69-000001-00
RECOMMENDED
USE Loctite 262
6X
SELF THREADING SCREW, #14-10 X 4", OVAL HEAD, SS
11-041602-40
8
FORM NO.
PAGE 10 OF 17
REV.
690177
F
