Sunred HS15 Manuel utilisateur
www.sunred.nl
Manual Wall-mounted Patio Heater (UK)
HandleidingElektrische Patio Heater (NL)
HandbuchElektrische Terrassenheizung (DE)
ManualAppareil de chauffage mural (FR)
HS15 - Electric Patio Heater
www.sunred.nl
Electric Patio Heater (HS15) UK
TECHNICAL INFORMATION
Wattage: 900-1800 W
Element type: Aluminum diecast
Expected Life span elements: 5000 hrs.
Weight: 5,2 kg
Ingress Protection Rating: IP55
Certificates: CE, GS, PAH, Rohs
Cable Cord: 1,8 Meters
Dimensions: H15 x W116 cm
Remarks: Remote control included
All measurements are approximate
User instructions - please keep for future references
www.sunred.nl
Unpack the heater to make sure that all the items are present and that there are
no components left in the box and that the heater head is free from any packing
material.
Using the detailed drawing follow the steps to assemble your heater.
Do not connect the heater to the electrical supply until all the assembly is
complete.
Do not connect the heater to the electrical supply if any of the components or the
power cord is damaged in any way.
If in doubt contact your supplier.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: This heater is not equipped with a device to control the room temperature. Do not use
this heater in small rooms when they are occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that
it has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
www.sunred.nl

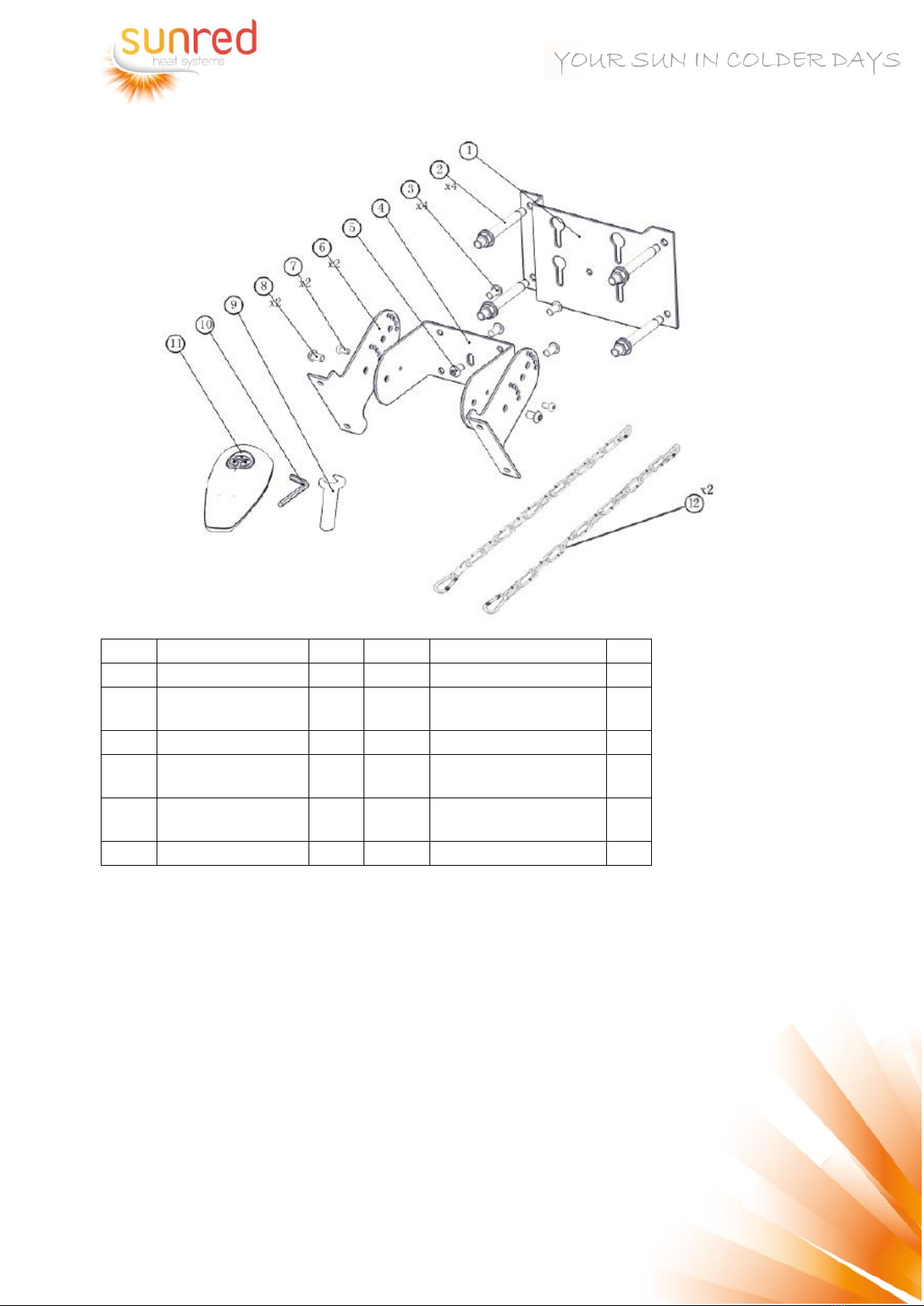

Accessories
REF.
Name
Qty
REF.
Name
Qty
1
Part 1
1
7
screws M4*8
2
2
Explosive bolt
M6*50
4
8
screws M6*10
2
3
screws M6*10
4
9
M6 spanner
1
4
Part 2
1
10
‘L' hexagonal
wrench
1
5
Security screw
M6*10
1
11
Remote control
1
6
part 3
2
12
chain
2
www.sunred.nl
Connection to 220-240 Volts Power Supply
It is important to ensure that the electricity supply is of adequate capacity for the electrical
load required by the appliance being installed.
These appliances must be earthed.
Installation
Heater HS15 is built with the best quality components in accordance to the prevailing legal
regulations and certified for safety in use. For best results from the appliance please ensure
that the installation is done by a qualified electrician in accordance with the following
instructions and taking full account of current regulations. When using the heater, please
carefully follow the instructions and recommendations below.
You could change the position of the M4*8 screws○,7 and the M6*10 screwsfor the
best Angle of heating. We have 6 positions for your choice. (near:0°，16°，32°；far: 0°，
16°，32°)
Installation to Wall
When fixing the heater to a wall, ensure hinges are in the underside so that the lid hands
down in the open position.
Minimum required distances:
a) 500mm from the side wall
b) 500 mm from the ceiling
c) Installation height above 1.8M
www.sunred.nl
The heater must be fixed to a wall with the bracket supplied to allow adequate ventilation.
Never fix or place heater near flammable or combustible materials.
Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from
combustible materials and glass walls. If installed in workshops or garages where
inflammable or combustible paints are used, the heaters must be installed at a distance
of at least 4.0m from the source of danger.
If the heaters are placed in areas where spray painting of any description is taking place,
they should not be used during the painting operations.
Never use the heater in particularly dusty and explosive areas.
Installation to Ceiling
Minimum required distances:
d) 250mm from the side wall
e) Minimum 500mm from the ceiling(range:500mm-750mm)
f) Installation height above 1.8M
The heater must be fixed to a wall with the bracket supplied to allow adequate ventilation.
Never fix or place heater near flammable or combustible materials.
Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from
combustible materials and glass walls. If installed in workshops or garages where
inflammable or combustible paints are used, the heaters must be installed at a distance
of at least 4.0m from the source of danger.
If the heaters are placed in areas where spray painting of any description is taking place,
they should not be used during the painting operations. Never use the heater in
particularly dusty and explosive areas.
www.sunred.nl
Assembling Process for wall mounted
Preparation stage:
Please remove the four M6*10 Screws on the heater, and use them for the Step 2
Step1: Assemble the bracket. (③,⑥,⑦,⑧)
Do not tighten the four M6*10screws ③, reserve 2-3mm of gap for step 4.
www.sunred.nl
Step 2:Install the bracket on the back of the heater.
Adjust the four sliders which inside the track to the middle of the heater .Fix the bracket
which you have assemble in the step 1 with four M6*10 screws○,3, tighten them with ‘L
‘hexagonal wrench○,9。
Step 3: Fix the part 1○,1on the wall, tighten the four nuts (a part of explosive bolt
M6*50)○,2 with M6 spanner○,9
Step 4: Put the heater on the wall, slide it into the part 1○,1.
www.sunred.nl
Step 5: Please tighten the M6*10securityscrew○,5toavoid accidents
Complete!
www.sunred.nl
Assembling Process for ceiling type
Preparation stage:
Please remove the four M6*10 Screws on the heater, and use them for the step1.
Step1:
Adjust the four sliders which inside the track. The distance between the sliders should be
between 600 mm to 788 mm. Fix the Brackets⑥with four M6*18 screws, tighten them with
‘L ‘hexagonal wrench.
Step2:
Let the carabineer at the end of the chains○,12 through the holes of the Brackets .The
length adjustment range of two Chains○,12 are between 500mm-750mm.
Complete!
