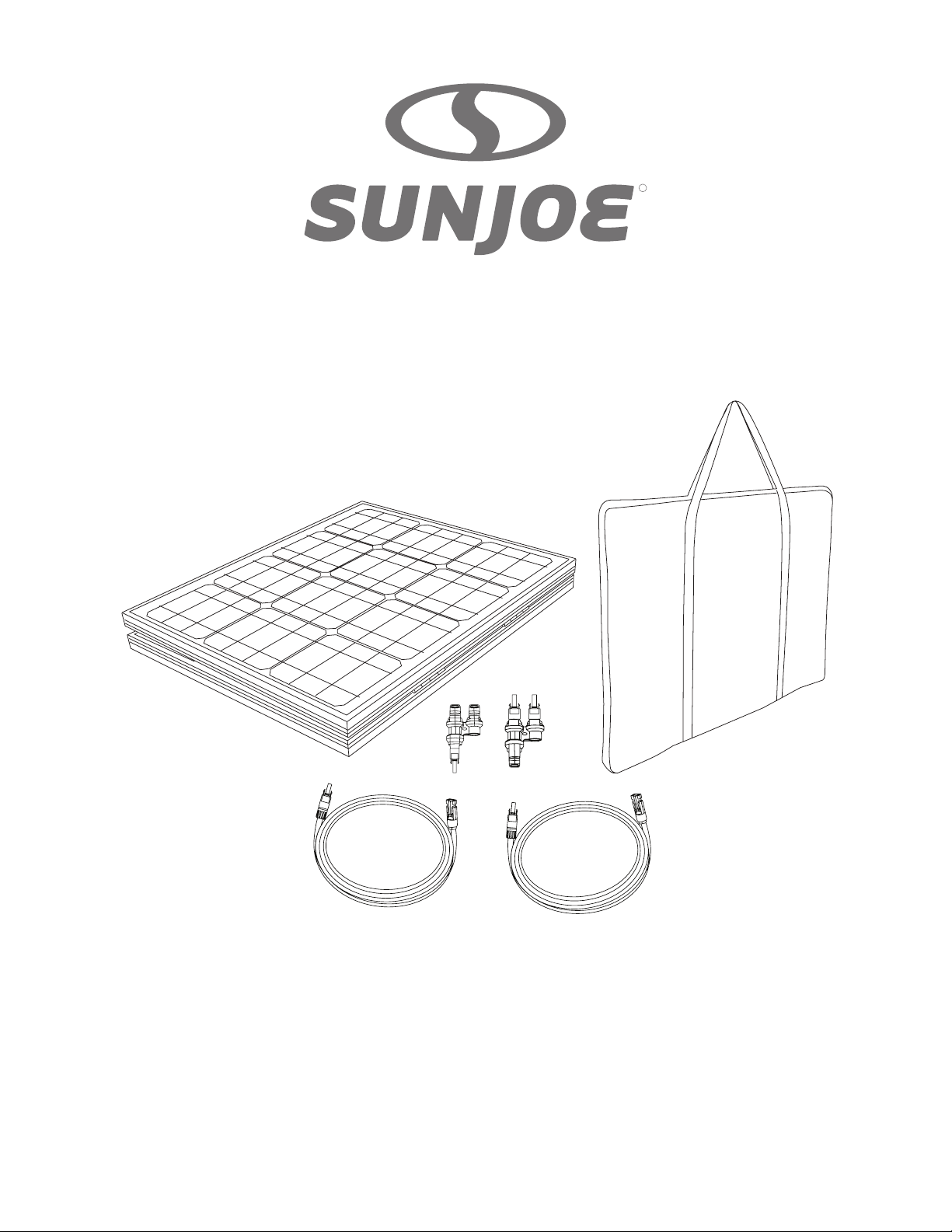

Sunjoe SJ1440SP-RM Manuel utilisateur

30-WATT FOLDABLE SOLAR PANELS

Form No.SJ-SJ1440SP-RM-M-V1

If you have any questions or comments,

please call the Snow Joe®+ Sun Joe®customer service department at:

1-866-SNOWJOE (1-866-766-9563)

Model SJ1440SP-RM

Form No.SJ-SJ1440SP-RM-M-V1

If you have any questions or comments,

please call the Snow Joe®+ Sun Joe®customer service department at:

1-866-SNOWJOE (1-866-766-9563)

30-WATT FOLDABLE SOLAR PANELS

Model SJ1440SP-RM

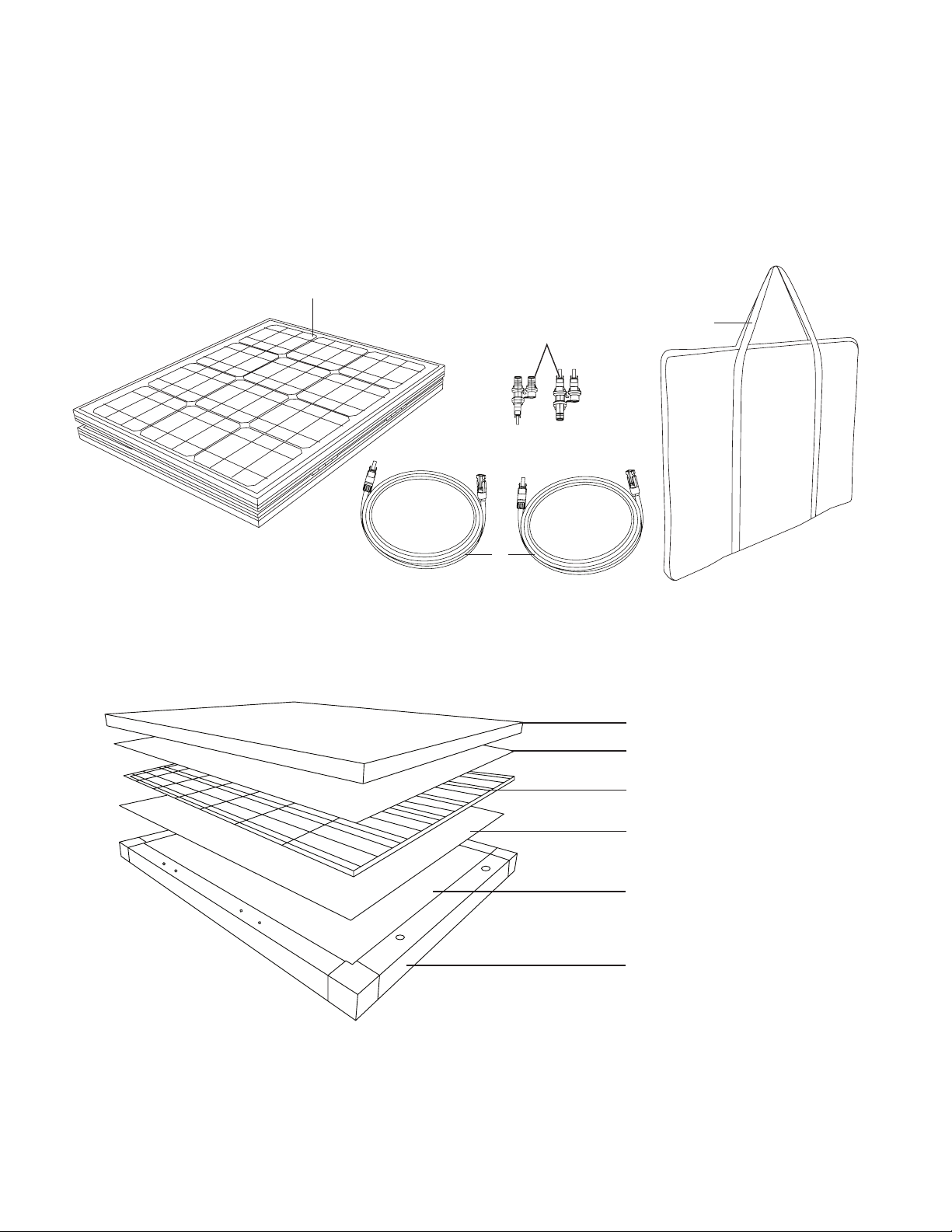

Know Your Foldable Solar Panels

1. Foldable solar panels

2. Branch connector (2)

3. Solar connector cables (2)

4. Carry bag

Components

Glass

Cell

Eva lm

Backsheet

Frame

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

mCAUTION! The solar panels are tested and approved to

be used with the Sun Joe®SJ1440SG portable generator. Do

not use the solar panels with any other appliance.

mWARNING! When using the solar panels with the

generator, basic safety precautions should always be followed

to reduce the risk of re, electric shock, and personal injury.

These include:

• Do not use the solar panels with any other products that

haven’t been approved by Snow Joe®+ Sun Joe®.

• Do not attempt to disassemble, service, or repair the solar

panels.

• If the solar panels require service or maintenance, please

call the Snow Joe®+ Sun Joe® customer service center at

1-866-SNOWJOE (1-866-766-9563).

Technical Data

Electrical Properties

Max Power (Pm)......................................... 60 W (2 x 30 W)

Max Power Voltage (Vmp)........................... 18.6 V

Max Power Current (Imp)............................. 3.23 A

Open Circuit Voltage (Voc).......................... 22.5 V

Short Circuit Current (Isc)........................... 3.5 A

Module Eciency ...................................... 16.9%

Cell Eciency............................................ 17.4%

Operating Temperature.............................. -40ºF – 185ºF

(-40°C – 85°C)

Maximum System Voltage (V).................... 600 V

Maximum Series Fuse Rating.................... 10 A

Power Tolerance (%) ................................. -0 + 5%

Mechanical Properties

Cells........................................................... 2 x 36

Cell Type.................................................... Polycrystalline

Cell Dimensions......................................... 6 in. x 1.2 in.

(156 mm x 31.2 mm)

# of Busbar................................................ 4BB

Connector Type ......................................... MC4 Compatible

Junction Box ............................................. IP-65

Glass ......................................................... High transmission

tempered glass

Frame ........................................................ Anodized aluminum

Solar Panel Cables Length.............. 32 in. (81.3 cm)

Solar Connector Cables Length ...... 25 ft (7.6 m)

Solar Panel Dimensions (Folded) .... 20.2 in. x 17.7 in. x 2.2 in.

(51.3 cm x 45 cm x 5.6 cm)

Solar Panel Dimensions (Open)....... 35.4 in. x 20 in. x 0.98 in.

(90 cm x 51 cm x 2.5 cm)

Weight ............................................. 12.5 lbs (5.7 kg)

Temperature Coecient

NOCT........................................................... 118.4ºF ± 35.6ºF

(Nominal Operating Cell Temperature) (48℃ ± 2℃)

Power Temp Coecient (Pmpp)..................... -0.42 ± 0.02%/ºC

Temp Coecient Open Circuit Voltage (Voc)

..................................................................... -0.34 ± 0.03%/ºC

Temp Coecient of Short Circuit Current (Isc)

..................................................................... +0.068 ± 0.015%/ºC

Unpacking

Carton Contents

• Foldable solar panels

• Solar panel cables (pre-assembled) (2)

• Solar connector cables (2)

• Branch connector (2)

• Carry bag

• Manuals with registration card

1. Carefully remove the solar panels and check to see that all

of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or

missing parts, DO NOT return the unit to the store. Please

call the Snow Joe®+ Sun Joe® customer service center at

1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging

material until you are ready to use your new foldable solar

panels. The packaging is made of recyclable materials.

Properly dispose of these materials in accordance with

local regulations.

IMPORTANT! The equipment and packaging material are

not toys. Do not let children play with plastic bags, foils,

or small parts. These items can be swallowed and pose a

suocation risk!

Operation

Charging with Sun Joe®Portable

Generator (Sold Separately)

The Sun Joe® portable generator is equipped with a solar

charging input and can be charged by 12 V DC solar panels

rated to produce a maximum of 20 A current, such as Sun

Joe® Foldable Solar Panels (SJ1440SP-RM).

To charge the generator by using Sun Joe®foldable solar

panels, follow these steps:

1. Unfold the solar panels (Fig. 1). There are 2 x 25 ft

(2 x 7.6 m) solar connector cables inside the package

(Fig. 1).

2. Plug the branch connectors into the solar panel cables

(Fig. 2). (One-way connectors ensure the polarity is

correct).

3. Connect the solar panel cables to the solar charging

inputs (Fig. 3).

4. Use 2 x 25 ft (2 x 7.6 m) solar connector cables if

necessary.

5. Align the branch connectors with solar connector cables,

insert male end and press rmly until the locking tabs

‘click’ together securely (Figs. 4 & 5).

Fig. 1

Branch connectors

Solar

panel

cables

Solar panels

Solar connector cables

Fig. 2

Branch

connectors

Solar

panel cables

Solar

panels

Fig. 3

Solar panel cables

Fig. 4

Branch

connectors

Solar connector cables

Solar

panel cables

6. Plug the other end of the solar charging output of the solar

panels. Positive branch connector to solar charging input

POSITIVE (+) terminal (Fig. 6).

7. Plug the negative branch connector to solar charging input

NEGATIVE (-) terminal (Fig. 7).

8. While the system is charging, the solar charging indicator

will be illuminated, the backlight will be illuminated for 5

seconds and the beeper will sound (Fig. 8).

9. While in charging-only mode, no output loads/devices

are connected, only input power, battery level and solar

charging indicators will be displayed (Fig. 8).

10. To read the battery current voltage, turn the unit on.

Push and hold the ON/OFF button for approximately

1.5 seconds and release the button when the unit beeps

(Fig. 9).

11. With direct sunlight, a typical 60 W solar panel may take

up to 60 hours to fully recharge the generator depending

on the intensity of the sunlight on the solar panel.

12. The battery indicator will display the battery level during

the charging stage.

13. To turn the unit o, press and hold the ON/OFF power

button for approximately 1.5 seconds, release when

the unit beeps. LCD display indicators will turn back to

charging-only mode.

14. To disconnect solar panels, depress locking tabs while

pulling connectors apart (Fig. 10).

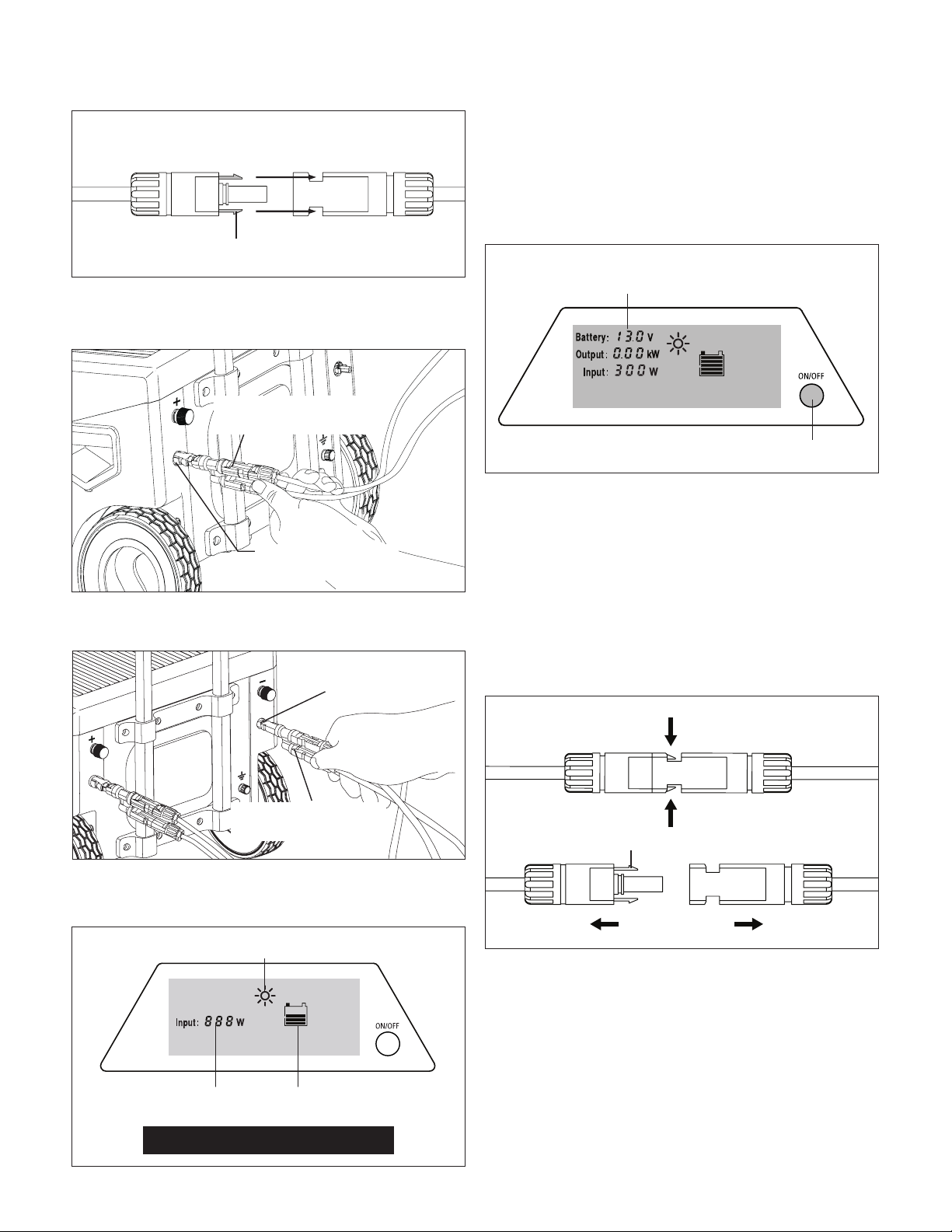

Fig. 5

Locking tabs

Fig. 6

Solar charging output

(+) branch connector

Solar charging input

(+) terminal

Fig. 7 Solar charging input

(-) terminal

Solar charging output

(-) branch connector

Fig. 8

Battery levelCharging

power

Solar charging

Solar Charging-Only Mode

Fig. 9 Battery current voltage

Press and hold 1.5 seconds

Fig. 10

Locking tabs

Solar Panel Angle (Fig. 11)

Solar panels must be pointed at the sun for maximum power

and it is best to move the panel from time to time during the

day to track the sun.

To get the most from solar panels, you need to point them in

the direction that captures the most sun

The energy from direct radiation collected by a solar panel

decreases with increasing angle of incidence, as indicated by

the width of the shaded areas. A panel tilted 90 degrees from

the direction of the sunlight cannot collect any of the direct

radiation.

Adding More Sun Joe®Foldable Solar

Panels (Optional - Sold Separately)

Connecting solar panels in parallel up to 240 W for a 12 V DC

system is recommended to shorten the charging time. The

maximum output current is limited to 20 A (Fig. 12).

NOTE: Solar input exceeding 20 A will trip the generator’s solar

charging fuse.

Care + Maintenance

Make certain that the solar panels are kept clean and stored

properly. DO NOT expose the unit to extreme conditions,

excessive dust, dirt, moisture or corrosive vapors.

mCAUTION! DO NOT use a garden hose to clean the

solar panels.

• Always check to ensure that the product is clean and in

good working condition with no visible defects or damage.

• Dirt and dust on the surface of the panel can reduce the

power output. The surface of the panel can be cleaned with

a damp cloth.

• Make sure that all solar panel cables and connector cables

are undamaged and in good working order.

• Make sure all connectors are clean and free of dust, debris

and/or rust.

• Ensure that the environment where the solar panels are

going to be placed has adequate ventilation.

• Take care not to drop the panels or submit them to large

impacts.

• Batteries can produce ammable gasses when being

charged. Avoid making sparks and make sure that the area

around the battery is well ventilated.

Service + Support

• Solar panel service must be performed only by qualied

repair personnel. Service or maintenance performed by

unqualied personnel may result in a risk of injury.

• When servicing solar panels, use only identical replacement

parts. Use of unauthorized parts or failure to follow

maintenance instructions may create a risk of shock or

injury.

• If your Sun Joe® foldable solar panels require service

or maintenance, please call the Snow Joe®+ Sun Joe®

customer service center at 1-866-SNOWJOE

(1-866-766-9563).

Model + Serial Numbers

When contacting the company or reordering parts, you will

need to provide the model and serial numbers of your product.

These are found on the decal axed to the housing of your

solar panels. Copy these numbers into the space provided

below.

Fig. 11

Solar Panel Angles

Fig. 12

12 V, I1, P1

I = I1+I2+......+In< 20 A

P = P1+P2+......Pn< 240 W

12 V, I2, P212 V, In, Pn

......

12 V

Parallel connected solar panels Record the following numbers from the housing of your new product:

Model #:

Serial #:

S J 1 4 4 0 S P - R M

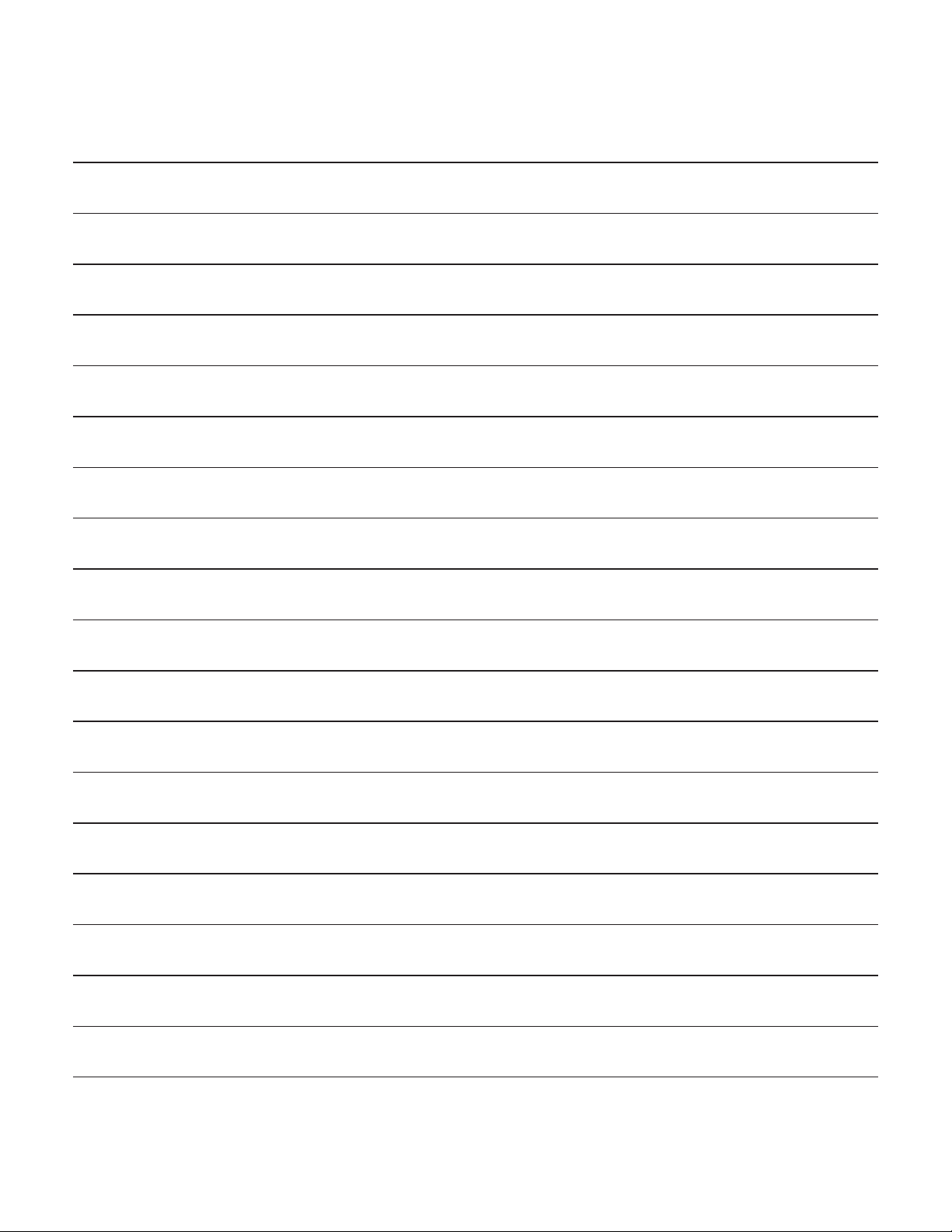

NOTES

Table des matières

Autres manuels sunjoe Panneau solaire

sunjoe

sunjoe SJ1440SP Manuel utilisateur

Manuels Panneau solaire populaires d'autres marques

Navitron

Navitron HFC-2 Manuel utilisateur

AXITEC

AXITEC 60-CELL Manuel utilisateur

thermital

thermital TSOL 20 N BLU Manuel utilisateur

AZO Digital

AZO Digital MPPT-3000 Manuel utilisateur

Clenergy

Clenergy PV-ezRack SolarTripod Manuel utilisateur

Beretta

Beretta SCF-20N Manuel utilisateur

moovo

moovo KSM001 Manuel du produit

solarwatt

solarwatt EasyIn 60M Series Manuel utilisateur

Solarland

Solarland Portable Series Manuel

Ubiquiti

Ubiquiti sunMAX Manuel utilisateur

Lippert

Lippert Furrion FSFP37MW-BL Manuel utilisateur

Sonnenkraft

Sonnenkraft GK5-HP Manuel utilisateur

REC

REC TwinPeak 2S Mono 72 Series Manuel utilisateur

Sunforce

Sunforce 50039 Manuel utilisateur

Flexsolar

Flexsolar C100 Mode d’emploi

Süd Solar

Süd Solar 03005 Manuel utilisateur

Kodak

Kodak SP21 Manuel utilisateur

Carmanah

Carmanah Go Power! Solar Flex GP-FLEX-30 Manuel utilisateur

sunjoe SJ1440SP-RM Manuel utilisateur

Manuels Panneau solaire populaires d'autres marques
