Sungrow PowCube 4.8 Guide d'installation

www.sungrowpower.com

PowCube 4.8 Overview & Installation

www.sungrowpower.com 2

01 PowCube 4.8

www.sungrowpower.com 3

www.sungrowpower.com 4

Hybrid inverter

Max. PV input power

6500 W

Nominal

AC output power 5000 W

EPS output

5000 W

EPS output

(with battery only) 3000 W

Max. efficiency

> 97.7 %

Weight

22 kg

Ingress protection rating

IP65

Battery

Battery type

Li-ion (NMC)

Energy capacity

4.8 kWh

Scalability

Up to 14.4 kWh

Depth of discharge (DOD)

>95%

Weight

48 kg

Ingress protection rating

IP55

Key Components

SBP4K8

SH5K

www.sungrowpower.com 5

Smart energy management

More solar energy is used with an optimised EMS, rather than selling back to the grid at a low price.

In the daytime In the evening At night (depleted battery)

www.sungrowpower.com 6

✓Set the battery usage time in peak or shoulder time.

For example: 08:00–10:00 & 14:00–20:00.

✓Different usage times can be set on weekdays and weekends.

✓Forced charge functions

Set the charge time range and target SOC

For example: 00:00-05:00, 50%

Customisable Battery Usage Time and Forced Charge

Prioritize local energy supply at high prices, and arbitrage with forced charge to reduce bills.

www.sungrowpower.com 7

High safety and prolonged battery lifetime

•Multi-protections, cell level and battery system level

• Smart hibernation technology to maintain the battery’s state of health

Smart hibernation

24/7 protection

Multi-level protection

cell Battery

system

www.sungrowpower.com 8

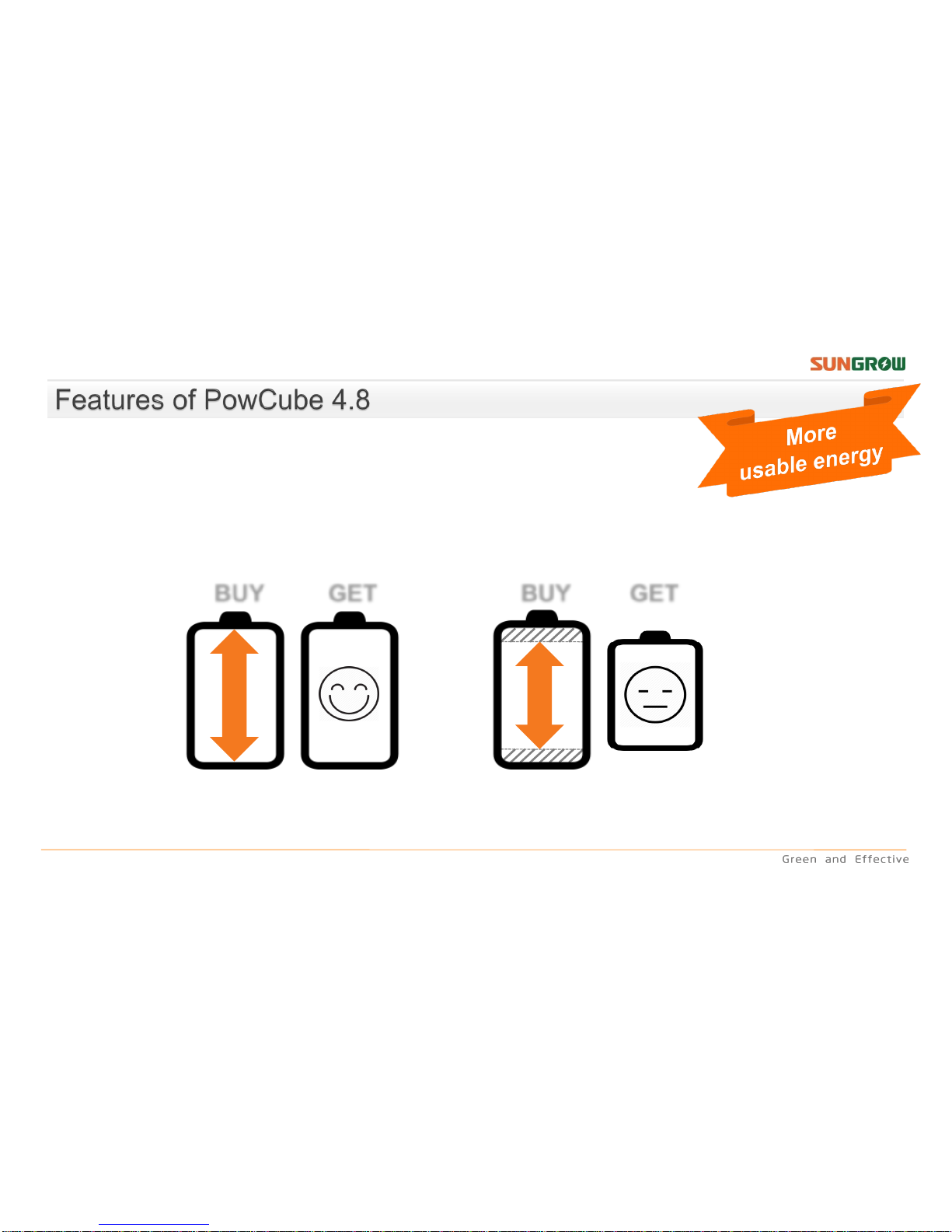

DOD > 95 %

•High reliability and safety with Samsung cells and Sungrow smart control

•Over 95 % depth of discharge to maximise the usable capacity

Sungrow battery

with a higher DOD

Usable

BUY GET

Usable

BUY GET

Some other batteries

with a lower DOD

www.sungrowpower.com 9

Flexible installation

•Modular design of the inverter and battery

•Suitable for both free-standing and wall-mountable installations

•Simple setup for multiple battery packs

Multiple battery packs

www.sungrowpower.com 10

One-click online system firmware update

•Onsite one-click system firmware update

•Remote system firmware update service

Onsite Update

Remote Update

Wi-Fi Ethernet

onsite

firmware

update UI
