Sundstrom SR 591 Manuel utilisateur

2020-05-07

OI06H-4318 SR 591 1

SR 591

Revision: 02

Operation instruction

Welding Shield

General information

Instructions for use for SR 591 should be read before use.

The Sundström SR 591 welding shields are intended for use individually or together with the Sundström

SR 900-system.

The welding shields are designed specifically for protection against radiation and spatter during welding,

flame-cutting and similar work

When selecting equipment for SR 591 some of the factors that should be considered are as follows:

• Type of pollutant

• Concentrations

• Work intensity

• Protection requirements in addition to respiratory protective advice.

Risk analysis should be carried by a person who has suitable training and experience in the area.

2020-05-07

OI06H-4318 SR 591 2

Unpacking SR 591

Packing list:

•Welding shield

•User instruction

•Cleaning tissue

2020-05-07

OI06H-4318 SR 591 3

1. Adjust the head harness

2020-05-07

OI06H-4318 SR 591 4

1.1 Height adjustment.

How high the welding shield

sits on the head.

1.2 How high the welding

shield sits on the head.

The angle against the shield.

1.3 Space adjustment

between shield and head

harness.

The space to the shield.

1.4 Width adjustment of the

head harness.

Adjustment of the width of the

head harness.

2. Putting the welding shield on

2020-05-07

OI06H-4318 SR 591 5

2.1 Raise the visor and put

the welding shield on.

Adjustment of the

circumference of the head

harness by means of the

knob at the rear of the head

harness.

2.2 Lower the visor

3. Change the welding filter

2020-05-07

OI06H-4318 SR 591 6

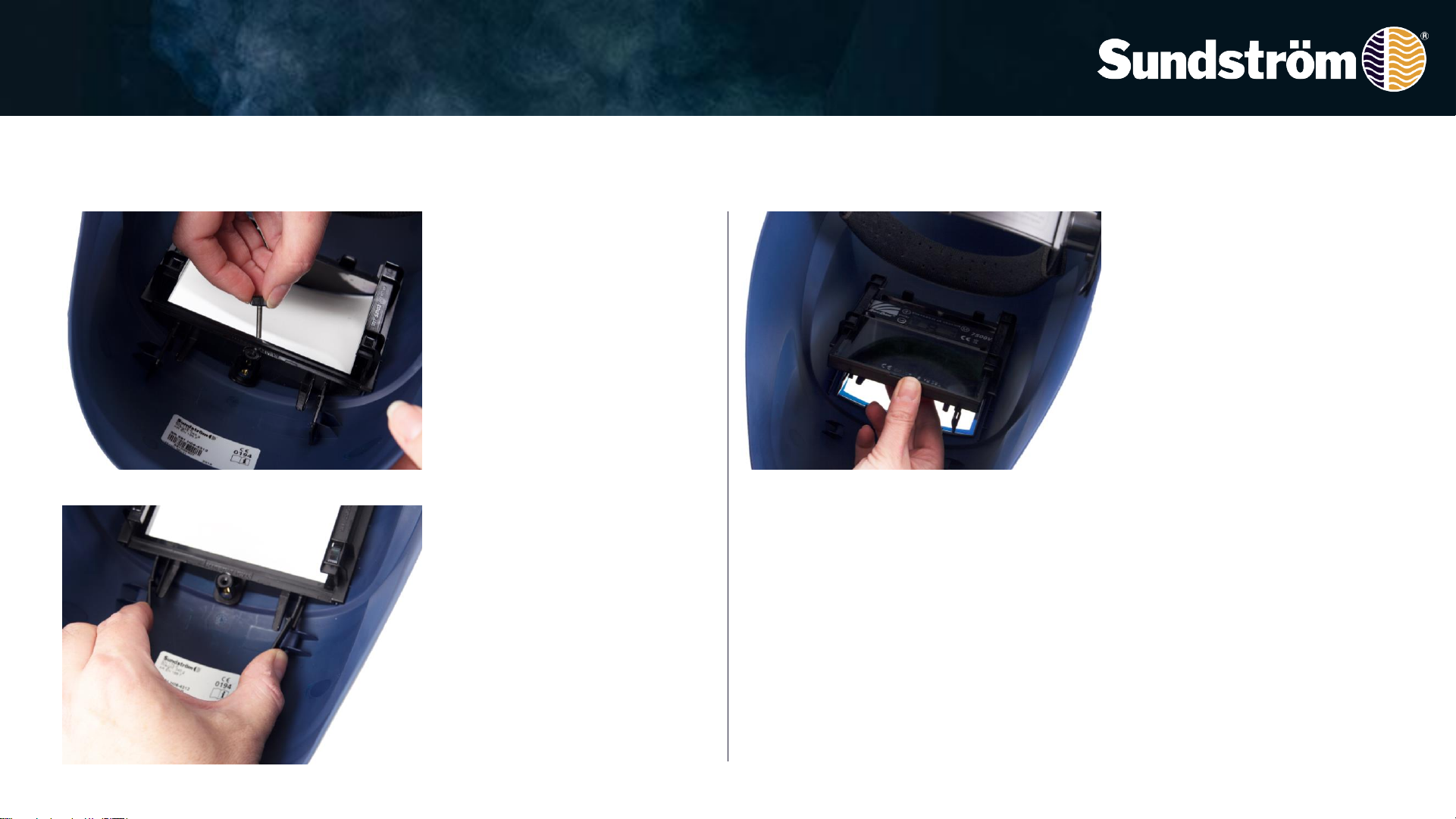

3.1 Loosen the screw in the

holder for the welding filter.

3.2 Release the holder for the

welding filter.

3.3 Fit the welding filter.

Fit the holder.

Tighten the screw

4. Change the inner protective lens

2020-05-07

OI06H-4318 SR 591 7

4.1 Loosen the screw in the

holder for the welding filter.

4.2 Release the holder for the

welding filter.

4.3 Fit the new inner

protective lens on the inside

of the welding filter.

4.4 Fit the protective lens.

Fit the holder.

Tighten the screw.

5. Change the correction lens

2020-05-07

OI06H-4318 SR 591 8

5.1 Loosen the screw in the

holder for the welding filter.

5.2 Release the holder for the

welding filter.

5.3 Fit the new correction

lens on the inside of the

welding filter.

5.4 Fit the correction lens.

Fit the holder.

Tighten the screw.

6. Change the outer protective lens

2020-05-07

OI06H-4318 SR 591 9

6.1 Loosen the screw in the

holder for the welding filter.

6.2 Release the holder for the

welding filter.

6.3 Release and remove the

outer protective lens

6.4 Fit the protective lens.

Fit the holder.

Tighten the screw.

7. Change the sweatband

2020-05-07

OI06H-4318 SR 591 10

7.1 Remove the sweatband

7.2 Fit the sweatband on the

head harness.

7.3

7.4
