Sunbeam EM5800 Manuel utilisateur

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 1 of 11

SERVICE MANUAL

EM5800

CAFE AROMATIC

PROGRAMMABLE

ESPRESSO

ISSUE: A

DATE: 16 January 2003

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 2 of 11

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam Part

No.

Base

Znc

Power cord cover

ABS707

Base Cover

PP AW564H

Drain Pan

Zn alloy

EM58114

Baffle

PP AW564H

Drip tray

Down float cover

PP AW564H

Assembly

Up float cover

PP AW564H

(Includes parts

Pan cover

Sus 430

4-8)

Front housing

Sus 430

Button Bracket

PA66+30%GH

Lamp Cover

PC244R

Button 1

ABS707

Button 2

ABS707

Button 3

ABS707

Back Knob

PA66+15%GF

EM58118 –

Steam knob

Front knob

ABS707

Front housing cover

PPAW654H+10%CaCO3

Up cover

Zn alloy

Micro Switch Bracket

PA66+15%GF

Direction Valve A

POM

Direction Valve B

PEI

Valve bracket

PA66+15%GF

Valve Housing

PEI

Shrapnel

Sus 301

Silicone

Direction spring

Sus 301

L tube A

PEI

Silicone O ring

Silicone

Press spring

Sus 301

Obturator shatter

Silicone

Spring Clip

Sus 301

Brass Socket

Brass

Socket silicone

Silicone

Direction valve silicone

Silicone

Micro switch

Handle

PF373J

EM58102B

Coffee Filter holder

Brass

Filter handle

Coffee Filter Baffle

PA66+15%GF

Assembly

Coffee Filter Spring

Sus 301

(Includes parts

Coffee Filter

Sus 301

37-41 + 130)

130

Screw

Upper heating plate

PA66

Coffee shower head O ring

Viton

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 3 of 11

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam Part

No.

Bottom heating plate

ADC-3

Water outlet silicone tube

Viton

O’Ring for steam tube

Viton

EM58109

Shower head

ADC-3

Support

SECC

Steam socket

Brass

Steam tube

Brass

EM58117

Silicone steam outlet tubing

Silicone

Brew head seal

Viton

EM48119

Steam filter

Sus304

Brew head collar

PA66+30%GF

EM58110

Brass connect

Brass

Connecting nut

Brass

Pump connector

Brass

Nut

Brass

Tank lid

ABS707

EM58101

Tank

Water tank

Bottom plate

assembly

Sealing silicone washer

Silicone Ko951

(Includes parts

Sealing spring

Sus304

59-64)

Valve

PP6331

Back housing cover

PPAW564H

PCB Cover

PC244R

Thermistor

Pump

EM58116

Rubber B

NBR

Rubber

NBR

Supporting

SECC

Rivet

Flow meter base

POM

Flow meter propeller

POM

Flow meter magnet

Magnet

Flow meter O ring

Silicone

Flow meter cover

POM

Hall effect IC

Hall effect IC support

POM

Solenoid

Solenoid Supporting bracket

Sus430

Teflon tube C

Teflon

Teflon tube D

Teflon

Teflon tube E

Teflon

Teflon tube F

Teflon

Teflon tube G

Teflon

Silicone tube A

Silicone

Silicone tube B

Silicone

Silicone tube H

Silicone

Water muffler box

PPAW654H

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 4 of 11

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam Part

No.

Water muffler box cover

PPAW654H

Tube spring

Sus 301

Knob spring

Sus 301

Touch pad PCB

EM58113

Main PCB

Back housing

SUS430

Fixing plate

SECC

Silicone feet

Washer

100

Washer

101

Washer

102

Spring washer

103

Spring washer

104

Tube clip

105

Thermal fuse bracket

SPCC

106

Strain pellet

107

Nut

108

Screw 5*25

109

Screw 3*10

110

Screw 3*22

111

Screw 3*7

112

Screw 3*8

113

Screw 4*15

114

Screw 4*12

115

Screw 2.3*10

116

Screw 3*6

117

Screw 3*15

118

Screw 5*20

119

Screw 4*10

120

Screw 5*7

121

Screw 4*6

122

Screw 4*10

123

Screw 5*30

131

Welded nut

132

Elbow connector

133

Sealing washer

Silicone

Coffee Spoon

EM48106

Filter 1 cup

EM58103

Filter 2 cup

EM58104

Cappuccino S/S coffee cup

EM58105

Cappuccino S/S saucer

EM58106

Instruction book

EM58107

Rear cover

EM58108

Shaker

EM58111

PCB incl power supply ass’y

EM58112

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 5 of 11

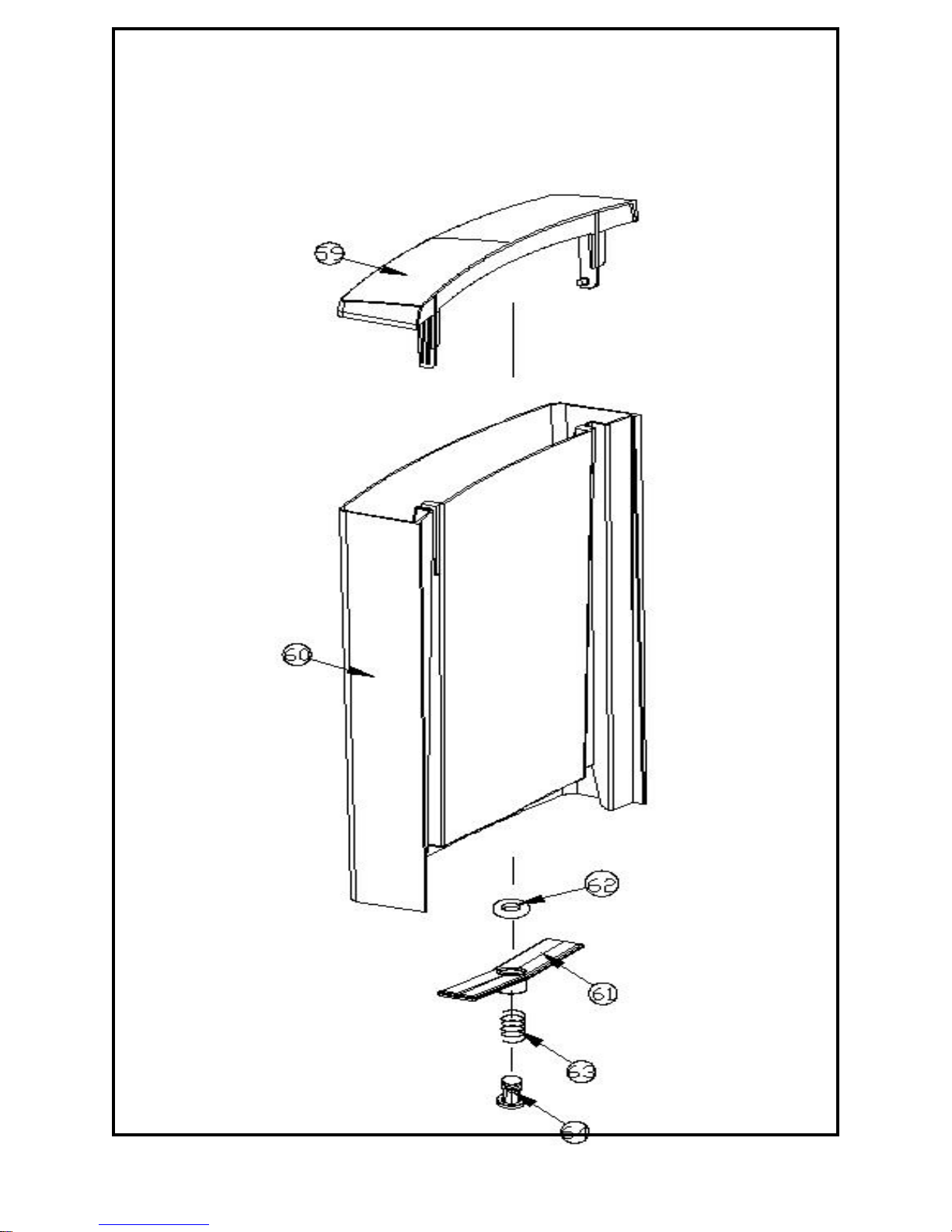

EXPLODED VIEW DRAWING

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 6 of 11

EXPLODED VIEW DRAWING

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 7 of 11

EXPLODED VIEW DRAWING

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 8 of 11

EXPLODED VIEW DRAWING

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 9 of 11

EXPLODED VIEW DRAWING

EM5800 - CAFE AROMATIC PROGRAMMABLE ESPRESSO Issue: A Page 10 of 11

CIRCUIT DIAGRAM
