Sun Oracle Netra X6270 Manuel utilisateur

This guide describes the minimum steps you must perform to power on Oracle’s Sun Netra X6270 M2 server

module for the first time.

Additional installation information is provided in the Sun Netra X6270 M2 Server Module Installation

Guide (821-0937) and in the installation guide for the modular system (chassis). This documentation is available

at the Sun documentation web site. See “Documentation for This Product” on page 5.

Note – Before installing this server module, read the latest Sun Netra X6270 M2 Server Module Product Notes

(820-2383) to find out if any late-breaking issues impact installation requirements.

▼Install Optional Components

♦Before installing the server into the modular system chassis, install any optional components that you

ordered with the server, such as storage drives, DIMMs, REMs, FEMs, and so on.

Refer to the online Sun Netra X6270 M2 Server Module Installation Guide.

▼Install the Server Module

You can insert the server module into a chassis that is either powered on or not powered on. For information

about powering on the modular system chassis, refer to the modular system documentation.

The following procedure assumes the chassis is powered on.

1. Verify that the system chassis is powered on.

When the chassis is powered on, the fans are operating and the OK LED illuminates a steady on green light.

2. From the front of the chassis, locate and remove the filler panel from the slot where you plan to insert the

server module.

Pull the lever out and eject the filler panel.

3. Position the server module vertically with the ejectors extended and oriented on the right.

4. Push the server module into the slot until the server module stops and is even with the chassis.

Sun Netra X6270 M2 Server Module

Getting Started Guide

5. Rotate the top ejector down and the bottom ejector up until both ejectors snap into place.

The server module is locked in place and standby power is applied to the server module service processor (SP).

6. Verify that the server module power state reaches standby mode.

The server module SP take several minutes to boot and the OK/Power LED on the server module displays the

following status:

■Slow blink (0.5 second on, 0.5 second off) – Server module SP is booting

■standby blink (0.1 second on, 2.9 seconds off) – SP is booted, and the server module host is in Standby mode.

▼Select a Method For Connecting to ILOM

You start, boot, and manage the server module using the Oracle Integrated Lights Out Manager (ILOM)

software. On Sun Netra 6000 modular systems, different versions of ILOM run on the modular system chassis

and on each modular server.

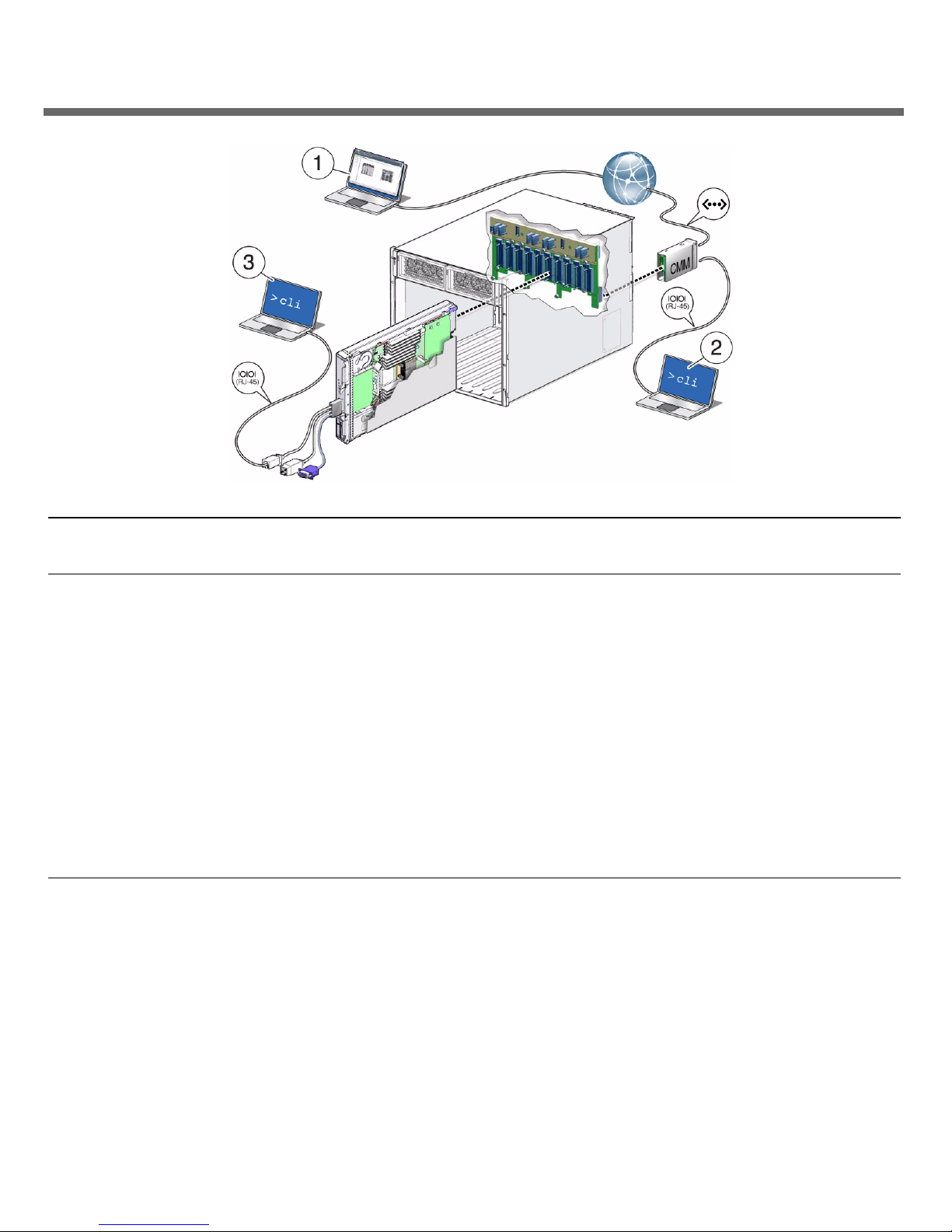

You can control the server module from ILOM running on the chassis monitoring module (CMM), or from

ILOM on the server module in different ways as described in the following figure and table.

Instructions in this guide use method 1. To use the other methods, refer to the Sun Netra X6270 M2 Server

Module Installation Guide and the Oracle Integrated Lights Out Manager (ILOM) 3.0 documentation collection.

▼Access ILOM on the Server Module SP

This procedure uses method 1 and uses SSH on the CMM to access the server module ILOM CLI. You must

know the CMM IP address to perform this procedure.

1. Ensure that the CMM NET MGT port is connected and configured to communicate on your network.

Refer to the Sun Netra 6000 modular system documentation for details.

(Connection Type)

Method From To Description

1(Ethernet)

CMM NET MGT

port

Your network

(Method used in this guide)

Ensure that the CMM NET MGT port is connected to your network.

From your network, log into ILOM on the CMM using the IP

address of the CMM. Use the ILOM proxy to navigate to the server

module SP ILOM interface. You can use the ILOM command-line

interface (as described in the remaining instructions in this guide),

or use the CMM ILOM web interface.

2 (Serial)

CMM SER MGT

port

Terminal device

Connect a terminal device to the CMM SER MGT RJ-45 port and use

ILOM to navigate to the server module SP ILOM interface. This

method only supports the ILOM CLI.

3 (Serial)

Server module SP

UCP port

(dongle required)

Terminal device

Connect a dongle cable to the server module. Connect a terminal

device to the RJ-45 connector on the dongle cable. Communicate

with ILOM on the server module SP using the ILOM CLI.

2. Log into the CMM with the SSH client.

In the following example, replace 10.3.212.24 with the IP address of your CMM.

Specify the password that is assigned to the CMM ILOM root account. The factory default ILOM root

password is changeme. Example:

You are now logged in to the CMM ILOM CLI.

3. Navigate to the server modules SP.

Replace nwith an integer that identifies the target server module (the slot for which the server module is

installed):

4. Start the server modules SP.

If you are prompted for a password, enter changeme (the factory default password for the root user on the

server module SP) .

You are now logged into ILOM on the server module SP.

▼Power On the Server Module Host

1. Power on the server module host.

The server module initializes. The server module might take several minutes to complete POST. If a boot

device installed with the Solaris OS is accessible locally, the server module boots. Otherwise, the system uses

the boot net command to seek a boot device on the network.

$ssh root@10.3.212.24

Password: cmm_ILOM_password

Oracle(TM) Integrated Lights Out Manager

Version 3.0

Warning: password is set to factory default.

-> cd /CH/BLn/SP/cli

-> start

Are you sure you want to start /CH/BL2/SP/cli (y/n)? y

start: Connecting to /CH/BL2/SP/cli as user root

-> start /SYS

Are you sure you want to start /SYS (y/n)? y

Starting /SYS . . .

2. Switch communication to the console.

You are now connected to the server module host.

The server module hardware installation is complete. The server module is ready to be configured to suit

your needs.

▼Set Up the OS and Check for the Latest Patches and Firmware

Later versions of OS, patches, and firmware are available for your server module. Some features can only be

enabled when certain patches or firmware are installed. Install the latest versions for the best performance,

security, and stability.

1. Review the Sun Netra X6270 M2 Server Module Product Notes at:

http://docs.sun.com/app/docs/prod/nt6270.m2.srvrmod?l=en#hic

The product notes provide a list of supported OSs, describes important product dependencies, and lists any

late breaking information.

Documentation for This Product

You can view and print Oracle’s documentation, including localized versions, at:

http://docs.sun.com/app/docs/prod/nt6270.m2.srvrmod?l=en#hic

-> start /SP/console

Are you sure you want to start /SP/console (y/n)? y

Serial console started. To stop, type #.

0:0:0>POST enabling CMP 0 threads: ffffffff.ffffffff

. . .

Task Document Type*

* For translated documents, go to http://www.sun.com and select your language.

Part Number

Review safety information. Safety and Compliance Manual 821-0938

Important Safety Information for Sun Hardware 821-1590

Review known issues and workarounds. Product Notes 821-0936

Install, power on, and configure the preinstalled OS. Installation Guide 821-0937

Customize BIOS and RAID settings. Remove and

replace components. Troubleshoot server problems.

Service Manual 821-0939

Install and configure the Oracle Solaris, Linux,

Windows OS, or install virtual machine software

such as Oracle VM or VMware.

Linux, Virtual Machine Software, and Oracle Solaris

OS Installation Guide

821-0940

Windows OS Installation Guide 821-0941

Manage server accounts, monitor alerts, set remote

access and redirection, and view component status.

Oracle ILOM 3.0 Documentation: http://

docs.sun.com/app/docs/coll/ilom3.0

Multiple

documents
