Sun Microsystems Sun Enterprise 6500 Manuel utilisateur

EMI foam gaskets are used only on the EMI doors of the Sun Enterprise

6500 system using the 464-MHz CPU/Memory module.

This kit contains 12 pieces of EMI foam gaskets, with labels A–G located

beneath the adhesive strips of each gasket:

■Three 16-inch gaskets, labeled A

■One 18-inch angled gasket, labeled B

■Three 1-inch gaskets, labeled C

■Two 4.5-inch angled gaskets, labeled D

■One 4.50-inch gasket, labeled E

■One 7.50-inch gasket, labeled F

■One 10.75-inch gasket, labeled G

Note – The 464-MHz 8-Mbyte CPU modules in Sun Enterprise 6500/5500

and rackmounted Sun Enterprise 4500 systems should not exceed

temperatures of 35°C between 0–6,000 foot altitude or exceed 32°C between

6,000–10,000 foot altitude. Standalone Sun Enterprise 4500 and 3500 systems

cannot exceed 40°C between 0–6,000 feet or exceed 37°C between

6,000–10,000 feet.

1. Open the front door and the EMI door.

2. Peel the adhesive from the back of the 16-inch gasket, labeled A, and

apply it along the top right side interior edge of the EMI door.

Repeat this step for the remaining two 16-inch gaskets labeled A.

3. Peel the adhesive from the back of the 18-inch angled gasket, labeled

B, and align the adhesive edge with the underside edge of the EMI

door.

The label B should be visible once the gasket is applied on the door.

4. Peel the adhesive from the back of the 1-inch gasket, labeled C, and

apply it to the top left interior edge of the EMI door.

Repeat this procedure for the other two 1-inch gaskets labeled C and

apply them to center and bottom edges.

5. Peel the adhesive from the back of the 4.5-inch gasket, labeled D, and

align the adhesive edge with the first cut-out edge of the EMI door

interior.

Repeat this step for the other 4.5-inch angled gasket labeled D and

apply it to the second cut-out further down the left edge of the EMI

door. The label D should be visible once the gasket is applied on the

door.

6. Peel the adhesive from the back of the remaining foam gaskets,

labeled E, F, and G, and apply them to the remaining left interior

edge of the EMI door.

7. Close the EMI door by depressing the EMI latch with one hand and

pushing the EMI door firmly with the other hand until it latches.

8. Close the front door.

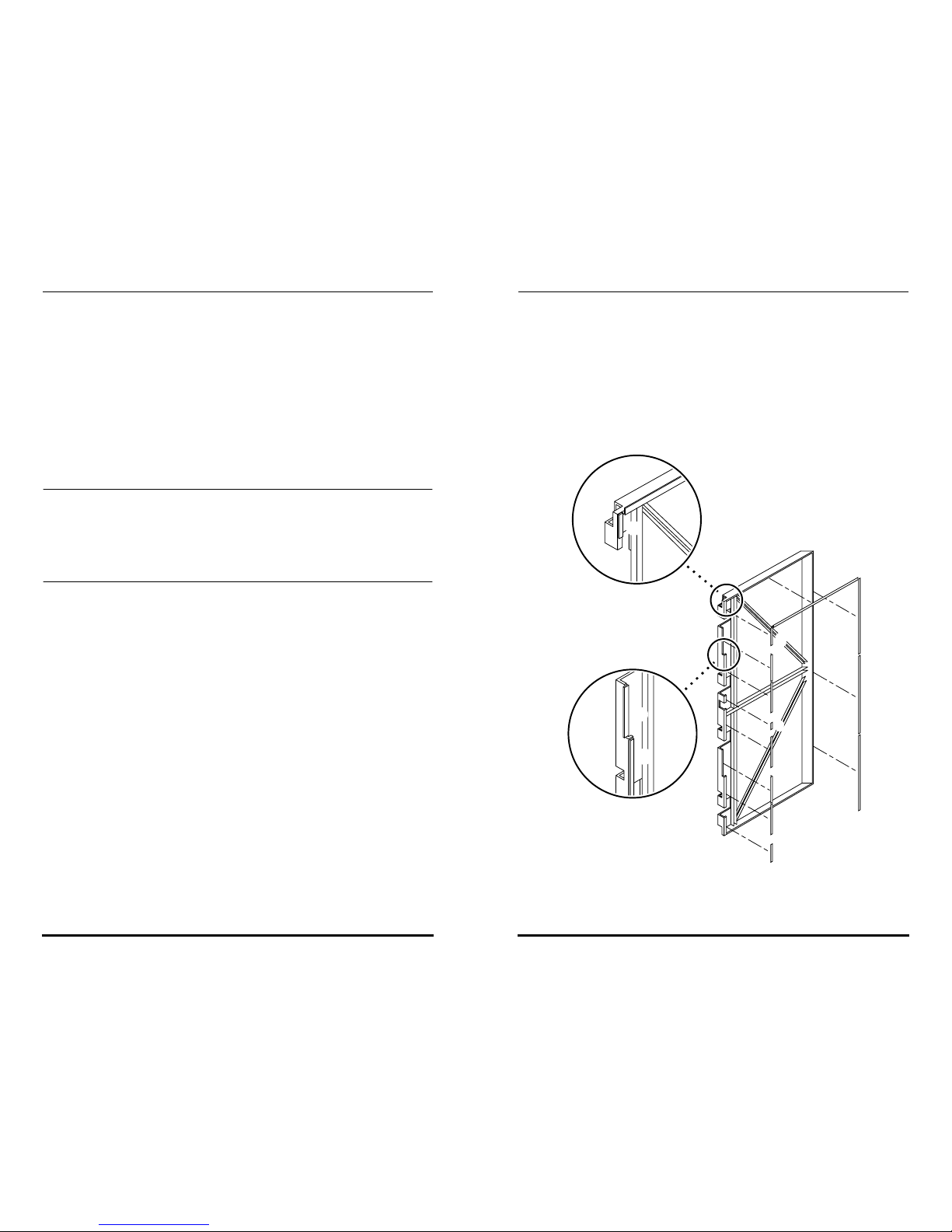

Placement of labeled EMI foam gaskets on EMI door interior

Please

Recycle

Accessing Sun Documentation Online

A broad selection of Sun system documentation is located at the following

web site:

http://www.sun.com/products-n-solutions/hardware/docs

To locate the most current documentation at this site, select a product

category. The documents at that location may include updated information

that did not ship with your product, such as product notes, release notes,

late-breaking news, or later revisions of manuals.

Ordering Sun Documentation

Fatbrain.com, an Internet professional bookstore, stocks select product

documentation from Sun Microsystems, Inc. For a list of documents and

how to order them, visit the Sun Documentation Center on Fatbrain.com

at:

http://www1.fatbrain.com/documentation/sun

Sun Welcomes Your Comments

Sun is interested in improving its documentation and welcomes your

comments and suggestions. You can email your comments to Sun at:

[email protected]

Please include the part number (816-1593-10) of the document in the

subject line of your email.

Sun Enterprise™6500 System

EMI Foam Gasket

Installation Guide

Part Number: 816-1593-10

June 2001, Revision A
