sumpple S631N Manuel utilisateur
Outdoor HD P2P Network Camera Pro.
(with H.264 image compression)
Model: S631N
Instruction Manual
2
CONTENTS
1. INTRODUCTION........................................................................................................................................................... 4
1.1 Features.............................................................................................................................................................5
1.2 Packing List....................................................................................................................................................... 5
1.3 Product Views................................................................................................................................................... 5
1.4 PC System Requirements.............................................................................................................................. 7
1.5 Hardware Installation....................................................................................................................................... 7
2. INSTALLATION AND SETTINGS............................................................................................................................... 9
2.1 Network Connection........................................................................................................................................... 9
2.2 Browser Settings (For IE only)........................................................................................................................ 10
2.3 UPnP Service.....................................................................................................................................................11
2.4 IPCam IP Address Search Tool (for IE browser only)................................................................................. 12
2.5 Install the OCX ActiveX (For IE only).............................................................................................................13
3. SOFTWARE OPERATION........................................................................................................................................ 15
3.3 Functions .......................................................................................................................................................... 17
3.4 For Live Video (for IE browser).......................................................................................................................18
4. SETTINGS................................................................................................................................................................... 25
4.1 Status----Device Info........................................................................................................................................ 25
4.2 Setup...................................................................................................................................................................25
4.2.2 Multi-Device Settings.................................................................................................................................... 26
4.2.3 Date & Time....................................................................................................................................................27
4.2.4 Audio Settings................................................................................................................................................ 27
4.3 Network Settings............................................................................................................................................... 28
4.3.1 IP...................................................................................................................................................................... 28
4.3.2 Upnp Settings.................................................................................................................................................28
4.3.3 DDNS Settings............................................................................................................................................... 29
4.3.4 P2P Settings...................................................................................................................................................29
4.3.5 FTP Settings...................................................................................................................................................29
4.3.6 E-mail(SMTP) Settings................................................................................................................................. 30
4.4 Video Info........................................................................................................................................................... 31
4.5 Alarm Settings................................................................................................................................................... 32
4.5.1 Motion Detection............................................................................................................................................ 32
4.5.2 Alarm Settings................................................................................................................................................ 33
4.6 Record................................................................................................................................................................ 34
4.6.2 SD Card info................................................................................................................................................... 35
4.7 System................................................................................................................................................................ 35
3
4.7.1 Log................................................................................................................................................................... 35
4.7.2 Auto Maintain..................................................................................................................................................36
4.7.3 System............................................................................................................................................................ 36
5. PLAYBACK for IE browser only................................................................................................................................ 38
6. FREQUENTLY ASKED QUESTIONS......................................................................................................................40
7. SPECIFICATIONS...................................................................................................................................................... 45
8. OBTAINING TECHNICAL SUPPORT......................................................................................................................46
4
1. INTRODUCTION
This user manual will show the details to set up your camera with your computer;
if you are viewing with a Smartphone, pls check Quick Start Guide, as it is very easy
to set up.
IMPORTANT NOTICE
The various screens throughout this owner’s manual will look different depending
on the browser you use. Full functionality is available when using Internet Explorer
(IE) with ActiveX (OCX) installed. Limited functionality is available with other
browsers, such as Safari, Chrome, and Firefox.
Please Read this manual carefully, according to the browser you are using.
This is an integrated IP Camera. It combines a high quality digital Video Camera with network
connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere
on your local network or over the Internet.
The main function of the camera is to transmit remote video over IP network. The high quality
video image can be transmitted with 30fps speed on the LAN/WAN by using H.264, MJPEG
compression technology.
It is based on the TCP/IP standard, build-in WEB server which supports Internet Explorer.
Therefore the management and maintenance of your camera becomes simple by using the
network to achieve the remote configuration, start-up and to upgrade firmware.
You can use your IP Camera to monitor your home or your office. Also, controlling and
managing images are simple by visiting the web site.
5
1.1 Features
☆Powerful high-speed video protocol processor
☆High-sensitivity 1/4’’ CMOS sensor
☆Picture total 1000K pixels (1megapixel)
☆Optimized H.264 MJPEG video compression for transmission
☆Multi-level user management and passwords definition
☆Embedded Web Server for users to visit by IE
☆Supports Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆Gives an alarm in case of motion detection
☆Supports image snapshot
☆Supports multiple protocols：TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP
ARP/RARP NFS RTSP RTP RTCP.
☆Supports WEP/WPA/WPA2 encryption
☆Supports IE, Firefox, Safari, and Google chrome browsers
1.2 Packing List
● IP Camera
● User Manual & Quick Setup Guide
● DC Power Supply
● CD
● Network Cable
● Mounting
1.3 Product Views
1.3.1 Rear View
6
Figure 1.1
Light Sensitive Hole: For light sensitive photocell.
Infrared LEDs: For night Vision.
LENS: CMOS sensor with fixed focus lens. (3.6mm).
Sliding Shell: For protection from sun and waterproofing.
Figure 1.2
Network Indicator LED: The green LED is on when connected to the network, the yellow LED
7
blinks when data is transferred.
RJ45 Port: RJ-45/10-100 base T, connect the network cable here.
Power Jack: DC 5V/2A power supply.
RESET BUTTON: Press and hold the RESET BUTTON for 10 Seconds to reset the camera
back to the factory default settings. (Please keep the power on when doing a RESET)
1.4 PC System Requirements
System configuration requirements:
CPU: 2.06 GHZ or above.
Memory: 256M or above.
Network Card: 10M or above.
Display Card: 64M or above memory.
Recommended Operating system: Windows XP, Windows Vista, Windows 7, Windows 8,
Mac OS
1.5 Hardware Installation
Follow the steps below to set up your camera hardware.
1. Plug the power adaptor into the camera and into an AC outlet.
2. Plug the network cable into the camera and router/switch.
3. It takes approx 30 seconds to boot up the camera, then you will find the IP address from “IP
Camera Tool” (Figure 2.1.5).
4. When the power is on and the network cable is connected, the green LED on the rear panel
will stay on.
The yellow LED will keep flashing, and the Indicator LED on the front of the camera will flash.
8
9
2. INSTALLATION AND SETTINGS
System Requirement:
Operating System: Windows 2000 / XP / Vista / 7/8/10/Mac OS
Network Protocol: TCP/IP
Network Structure: Applies to all network connections 10/100M LAN platform
Browser: Internet Explorer 6.0 or above. Firefox, Google, Safari, or Chrome.
2.1 Network Connection
Intranet and Extranet Connection Reference:
Extranet means public IP (i.e. The Internet), Intranet means private IP. If your IP belongs to the follow range,
then it’s a private IP :
Category A: 10.0.0.0 - 10.255.255.255
Category B: 172.16.0.0 - 172.31.255.255
Category C: 192.168.0.0 - 192.168.255.255

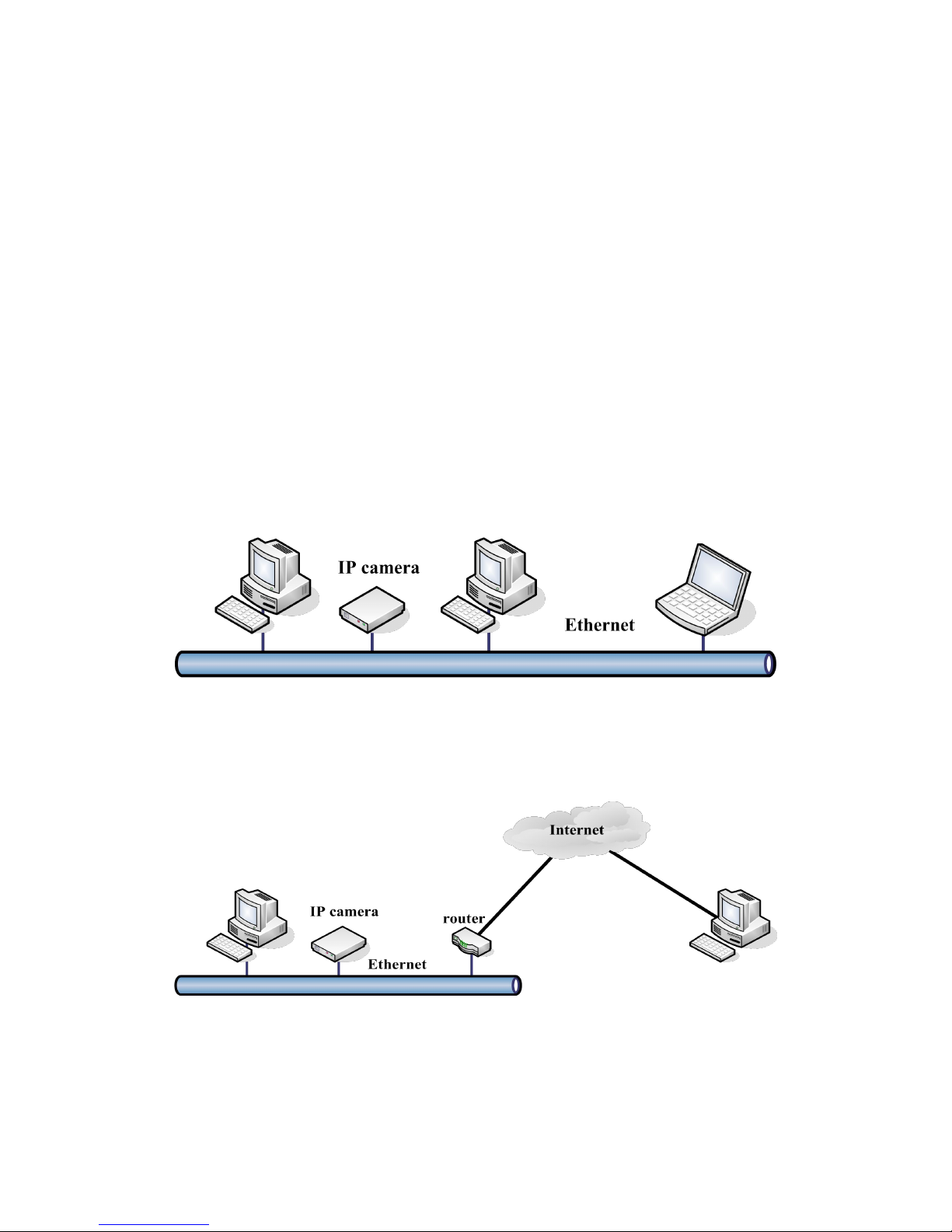

Intranet Connection: The IP camera and your computer (device) should be under the same network
environment, and both of the IPs should be under the same subnet, pictured as below:
Extranet Connection: there are 2 ways as below:
(1). IP camera connects to the Internet via a router, here camera’s IP is a private IP, client needs to connect
to the IP camera through a router, with port forwarding to be connected correctly, as below:
(2). IP camera connects to the Internet directly, if it’s a fixed IP provided by your ISP, just input it. If it’s a
floating IP, then input the account and password provided by your ISP to dial-up connection.
10
2.2 Browser Settings (For IE only)
OCX will be downloaded automatically when you login to the IP Camera, but you might have to set the IE
browser to enable the OCX to be downloaded automatically after signing in. Steps as below:
1. Close the firewall of your computer.
2. Change the ActiveX settings, “IE” browser > “Tool” > “Internet Options” > “Security”> “Custom Level” >
“ActiveX control and Plug-ins”, all the ActiveX options set to be “Enable”:
Especially:
Enable: Download unsigned ActiveX controls
Enable: Initialize and script ActiveX controls not marked as safe
Enable: Run ActiveX controls and plug-ins
