Sumake ST-5544H Manuel utilisateur

PNEUMATIC

TOOLS

1/2” Heavy Duty Impact Wrench

(Handle Exhaust)

ST-5544H

SPECI ICATION

Free Speed (rpm) 7000

Square Driver (inch) 1/2”

Std Bolt Size (inch) 5/8”

Air Consumption (cfm) 8

Max Torque(ft-ib) 400

Air Pressure (kg/cm³) 6 2

Air Inlet (inch) 1/4”

Overall Length (mm) 184

Net Weight (kgs) 2 7

Test results according to prEN 792-6

Vibration

ISO 8662-7

Noise

ISO 3744

Remark

No-Load:

1 2 m/s2

Sound pressure

level 84 dB Should wear an

approved ear -

protector and

gloves while

operating tool

Sound power level

96 dB

Instantaneous

sound pressure

99 dB

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

MIKE SU

EC DECLARATION O CON ORMITY OR

MACHINERY

Manufacturer: SUMAKE INDUSTRIAL CO ,LTD

Address: 3F2, NO 202, SEC 5, Nan-King East Road

TAIPEI, TAIWAN

herewith declares

that: ST-5544H

1/2” Heavy Duty Impact Wrench

(Handle Exhaust)

- is in conformity with the provisions of the Machinery Directive (Directive 89/392/EEC), as

amended, and with national implementing legislation:

-and have been tested according to: prEN 792 (relevant part)

Taipei,Taiwan Oct / 10 / 1997

Signature

Full name

2 / 6

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

Foreword

Sumake is a manufacturer and exporter of air tools since established. We have devote all our effort in

improving quality and tools life. As well as the noise and vibration of tools. Bring all of your working efficiency,

profits and en oy using the tool is our principle.

Operator's instruction

1.Main Applications

This aasemby tool is the perfect one to which the work of heavy truck, boat, construcion machine, steel belt

for excavator etc.

2.Cautions for Use

2-1 Air pressure

Maximum performance is displayed at the proper sanding speed, obtainable at a gauge pressure of

6.2 bar. Range-wise, this is an air pressure from 5 to 7 bar (70 to 100 psi)

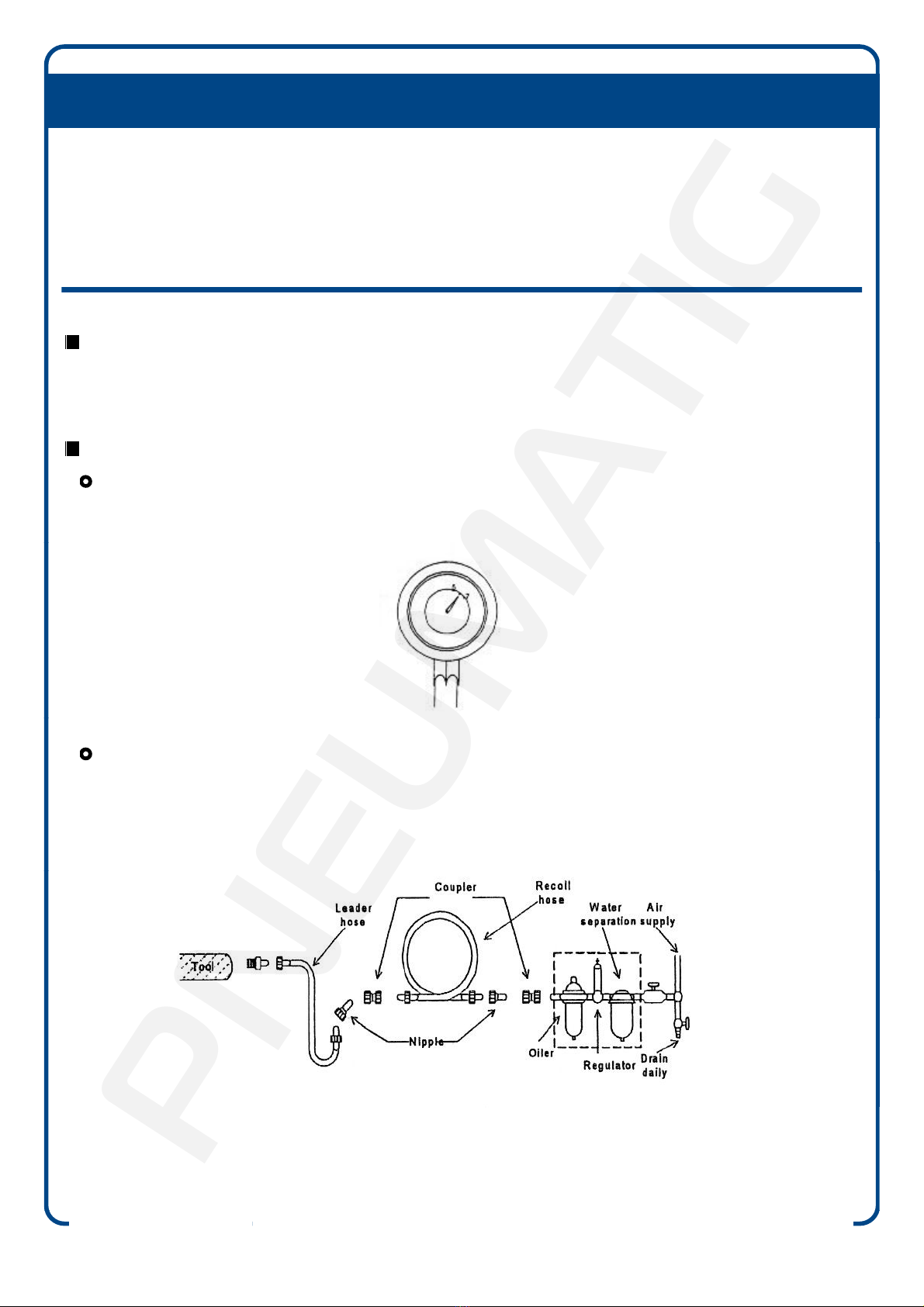

2-2 Air line

Use a 3/4" air hose between the compressor and the tool. Compressed air is cooled and its water content

separated, as soon as the air leaves the compressor. A portion of the water content, however, is

condensed in the piping, and can enter the tool mechanism, and may cause trouble. So, install an air filter

and on oiler between the compressor and the tool. Use a 3HP or larger compressor.

3 / 6

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

2-3 Air hose

Clean the hose with a blast of compressed air before connecting the hose to air tool. This will prevent

both moisture and dust within the hose from entering the tool and causing possible rust or malfunction.

To compensate for unusually long hose (over 25 ft), the line pressure should be increased accordingly.

2-4 Inserted tools

Use only the socket or adapter which are in good condition for use. The intended socket and adapter for

this air tool could are started as "Square Drive" on the specification list.

2-5 The approved eye protector, ear-muff, mouth-muffle, and gloves shall be worn when operate this

tool.

2-6 The working place shall be ventilative.

2-7 Release the on-off device in the case of energy supply failure.

3.Operation Method

3.1 On-off device

The on-off device is on the inner or outer contour of the grip. It is a "hold-to-run" type. This tool stops

rotation within few sec, after releasing the lever. For the sake of safety, place it on a level plate or on

hanger after it completely stops.

3.2 Torque Ad uster

You can ad ust the torque by rotating the knob which indicated by 1 to 6. "1" indicates the smallest

torque output and "6" indicts the largest torque output.

3.3 Rotating Direction

One shall make sure the direction of rotation before actuate this tool. The "F" indicts foreword and the "R"

indicts reverse. Forward is defined as clockwise direction seen from the operator's position.

4. Maintenance

4-1 Lubrication

Before connecting the hose, apply 4 or 5 drops of #60 spindle oil at the air inlet. Use of a thicker oil can

lead to reduced performance or malfunction. If a thicker oil is used by accident, wash it away

immediately. Also, every 3 or 4 hours of operation, oiling is necessary.

4-2 Storage

Avoid storing the tool in a location sub ect to high humidity. If the tool is left as it is used, the residual

moisture inside the tool can cause rust. Before storing and after operation, oil the tool at the air inlet with

spindle oil and run it for short time.

4-3 Disposal

If the tool is too seriously damaged to be used any more, drop it in a resource recycling can. Never drop

it into fire.

4-4 Ordering service Parts

For further operational and handling information or of replacement of parts and components, contact the

sale agent from whom you purchased the tool or the service division of our company.

* In ordering parts and components, give each part number, name and quantity.

4 / 6

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

Warning

1.The power toll shall not be used in potentially explosive atmospheres.

2.Disconnect the air hose before changing or ad usting any inserted tools.

3.Prevent long hair or loose clothing from drawing in while operate this tool.

4.Keep your body in well balanced position and always wear gloves to reduce the risk of crushing caused

by torque between handle and workpiece.

5.Unexpected direction of rotating could cause a hazardous situation.

6.Slip/Trip/Fall is a ma or reason of serious in ury or death. Beware of excess hose left on the walking or

work surface.

7.Wearing eye/face protector could reduce the danger to person from high speed splinters being emitted

from this tool in the case of inserted tool failure or emitted from workpiece

8.Wearing mouth-muff could avoid inhaling dust or handling debris from work process that can be

harmful to your health.

9.Excessive high air pressure and too much free rotation may speed the wear of this tool and might cause

danger situation.

5 / 6

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

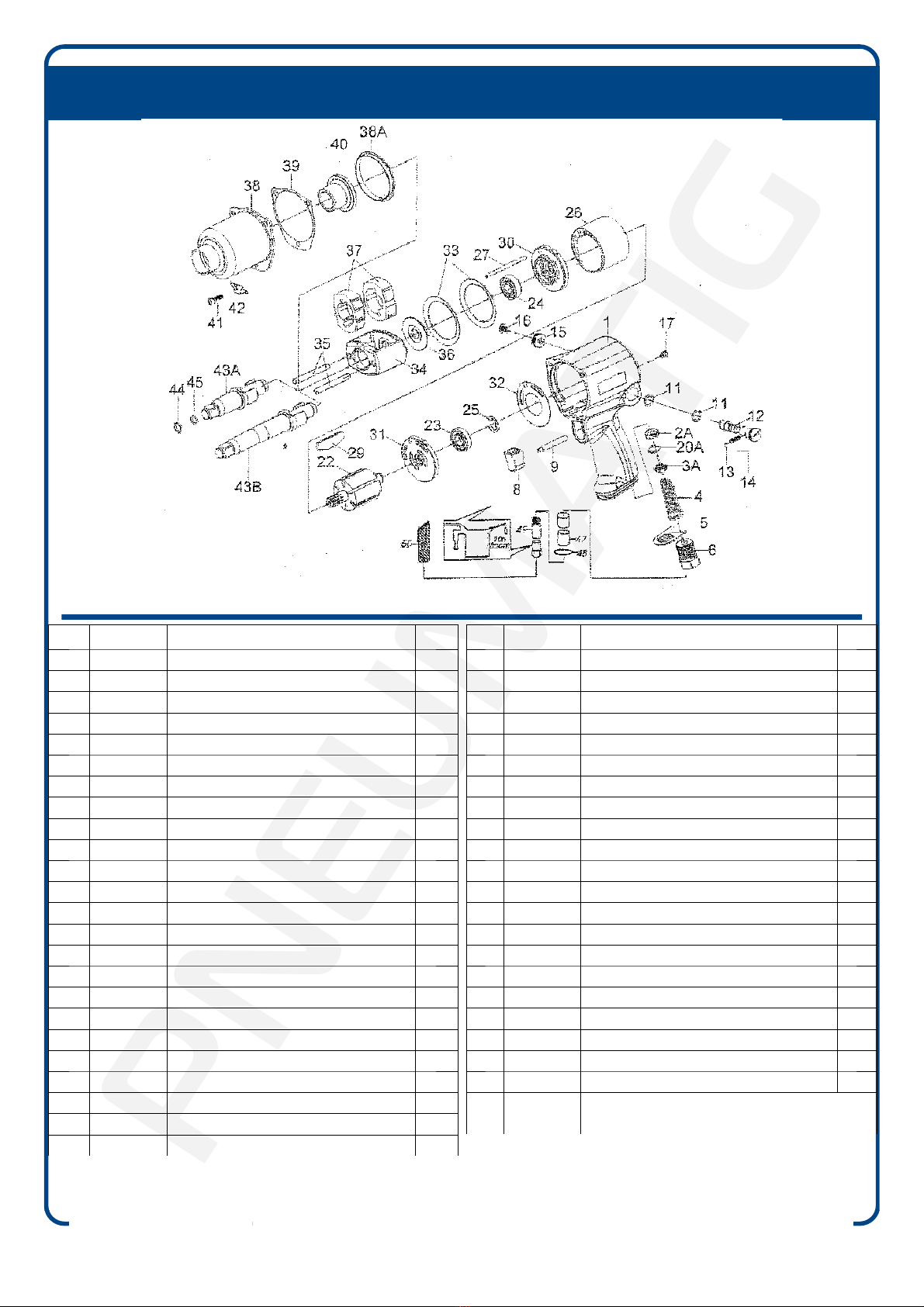

ST-5544H 1/2" HEAVY DUTY IMPA T WREN H (HANDLE EXHAUST)

PARTS LIST

No. Parts No. Description Q'ty

1 5544H-01 Motor Housing Assembly 1

2A 5544H-02A Throttle Valve 1

3A 5544H-03A Throttle Valve Assembly 1

4 5544H-04 Throttle Valve Spring 1

5 5544H-05 Exhaust Silcencer 1

6 5544H-06 Air Strainer 1

8 5544H-08 Trigger 1

9 5544H-09 Trigger Pin 1

11 5544H-11 Reverse Valve Bushing Seal 2

12 5544H-12 Reverse Valve 1

13 5544H-13 Reverse Valve Detent Ball 1

14 5544H-14 Reverse Valve Detent Spring 1

15 5544H-15 Reverse Valve Knob 1

16 5544H-16 Reverse Valve Knob Screw 1

17 5544H-17 Grease Fitting 1

20A 5544H-20A O-Ring 1

22 5544H-22 Rotor 1

23 5544H-23 Rear Rotor Bearing 1

24 5544H-24 Rear Rotor Bearing 1

25 5544H-25 Rear Rotor Bearing Retainer 1

26 5544H-26 Cylinder 1

27 5544H-27 Cylinder Dowel 1

29 5544H-29 Rotor Blade 6

30 5544H-30 Front End Plate 1

No. Parts No. Description Q'ty

31 5544H-31 Rear End Plate 1

32 5544H-32 End Plate Gasket 1

33 5544H-33 Motor Clamp Washer 2

34 5544H-34 Hammer Frame 1

35 5544H-35 Hammer Pin 2

36 5544H-36 Hammer Frame Rear Washer 1

37 5544H-37 Hammer 2

38 5544H-38 Hammer Case 1

38A 5544H-38A Hammer Case Pilot 1

39 5544H-39 Hammer Case Gasket 1

40 5544H-40 Hammer Case Bushing 1

41 5544H-41 Hammer Case Cap Screw 3

42 5544H-42 End Cap 1

43A 5544H-43A Standard Anvil 1

43B 5544H-43B 2" Extended Anvil 1

44 5544H-44 Socket Retainer 1

45 5544H-45 Retainer O-Ring 1

47 5544H-47 Exhaust Hose (For ST:5544HRE) 1

48 5544H-48 O-Ring (For ST-5544HRE) 1

49 5544H-49 Lead Hose (For ST-5544HRE) 1

50 5544H-50 Isolation Cover (For ST-5544HRE) 1

TK 5544H-TK Tune-Up Kit (Incl

2A,3A, 11 (2),20A,29(6),39,44,45)

6 / 6

PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -

)

58 622 49 22

PNEUMATIG
