Subaru H001SVA800 Manuel utilisateur

Sold by: Fuji Heavy Industries Ltd.

Smart Engine Start

INSTALLATION MANUAL

Genuine Part # : H001SVA800

Vehicle Model : WRX/STI

Rev 1.0

Tools Required

Phillips Screwdriver

Flat Blade Screwdriver

10mm, 12mm Socket Wrench

Torque Wrench

Torque Screwdriver

10mm Offset wrench

Pliers

Volt Meter (Or Circuit Tester)

Side Cutters

Scissors

Utility Knife

Masking Tape

Electrical Tape

Trim Removal Tool

Isopropyl Alcohol

Cleaning Towel

: Remove : Tighten Torque

: Install : Loosen

: Disconnect

: Discard

: Connect

: Location of Clip or Screw : Re-use

Meaning of Characters

Kit Contents

NOTE: Laws in some communities require that the

vehicle be within view of anyone using the Smart

Engine Start. In some areas, use of the Smart

Engine Start may violate state, provincial or local

laws. Before using the Smart Engine Start, check

your state, provincial and local laws

Service P/N: H001SVA810

Service P/N: H001SVA820

Service P/N: H001SVA830

SES ECU

Quantity: 1

Double-sided tape

Quantity: 1

Foam tape

Quantity: 1

Hood Switch

Quantity: 1

Switch Holder

Quantity: 1

Hood Switch Bracket

Quantity: 1

Bolt (M6x16)(Black)

Quantity: 1

Main Harness

Quantity: 1

Sub-Harness

Quantity: 1

Tie Wrap

Quantity: 10

Foam tape

Quantity: 4

M6 Nut

Quantity: 1

Bolt (M8x20)

Quantity: 1

Screw

Quantity: 1

Key Tag

Quantity: 1

Engine Room Label

Quantity: 1

Wiper Lever Tag

Quantity: 1

Key Ring Tag

Quantity: 1

Owner's Guide

Quantity: 1

Harness Clamp

Quantity: 1

Foam tape

Quantity: 3

Removal of Vehicle Components

Wiring Outline

1 PS Fender Cover

2 DS Dash Cover

3 Lower Dash Cover No.1

4 Lower Dash Cover No.2

5 DS Knee Airbag

6 Center Cluster Panel

7 Audio Unit

8 PS Dash Cover

9 Ornament Panel

10 Glove Box

11 Under Cover

12 Glove Box Inner Cover

A 24P White

B 1P White

C 1P White

F 8P White

G 2P White

Z SES ECU

WWhite Tape Marker

- 2 -

Vehicle Disassembly

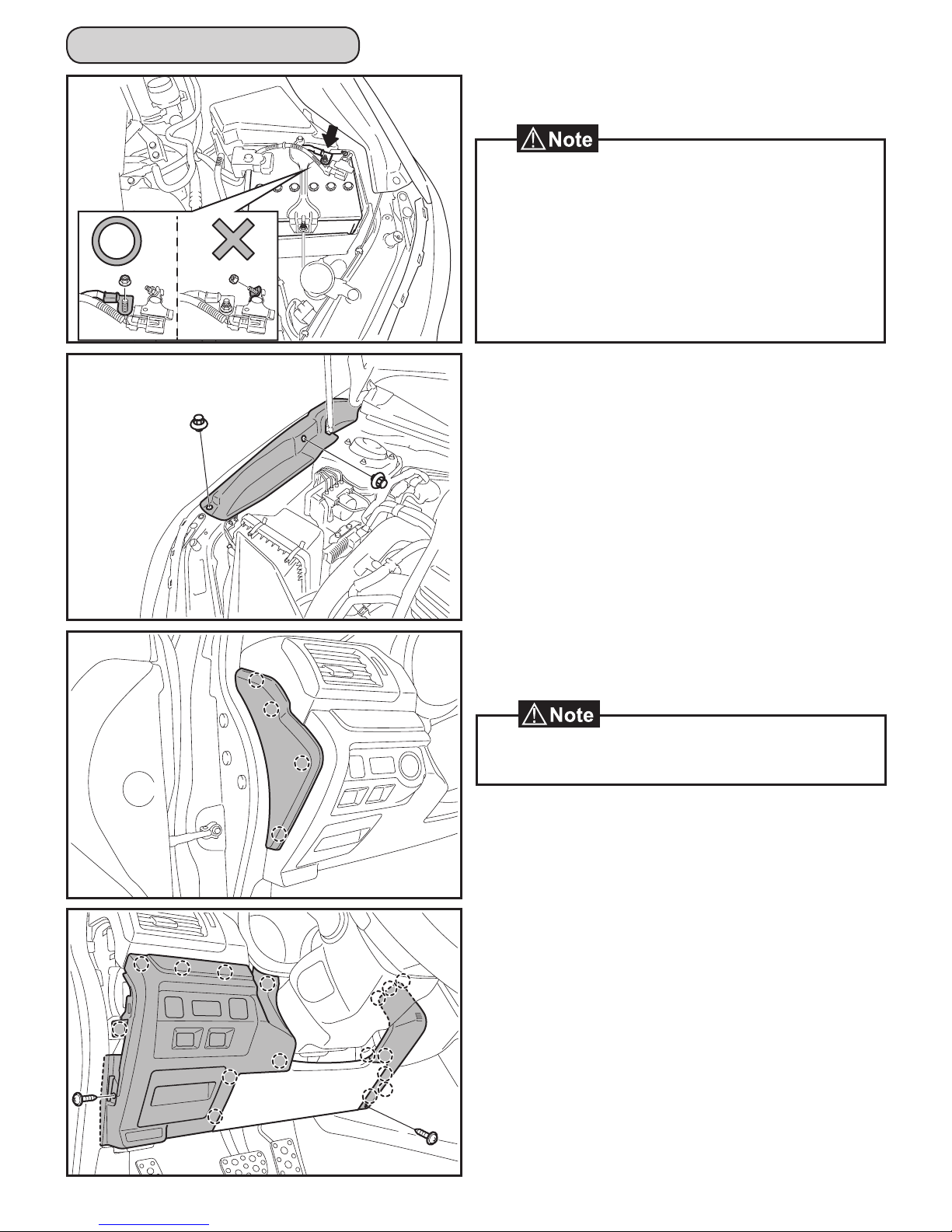

1. Place the Vehicle in Park with the Parking Brake set.

2. Disconnect the Negative Battery Terminal.

• Do not touch the Positive Battery Terminal with the

Negative Terminal.

• Note the Battery Cable Position as it will be reinstalled in

the same position.

• Wait at least 30 seconds after disconnecting the

Negative Battery Terminal before disconnecting the

Airbag Connector.

• After the work with battery disconnected, some vehicle

system should be reconfigured. See service manual.

3. Remove the Passenger's Side Fender Cover.

• Remove 2 Clips.

4. Remove the Driver’s Side Dash Cover.

• Disengage 4 Clips.

• Disengage and remove cover from the bottom first

and work upward.

5. Remove the Lower Dash Cover No.1.

• Remove 1 Screw.

• Disengage 8 Clips.

• Disconnect Vehicle connectors.

6. Remove the Lower Dash Cover No.2.

• Remove 1 Screw.

• Disengage 8 Clips by pulling both the top and

bottom of the panel simultaneously.

- 3 -

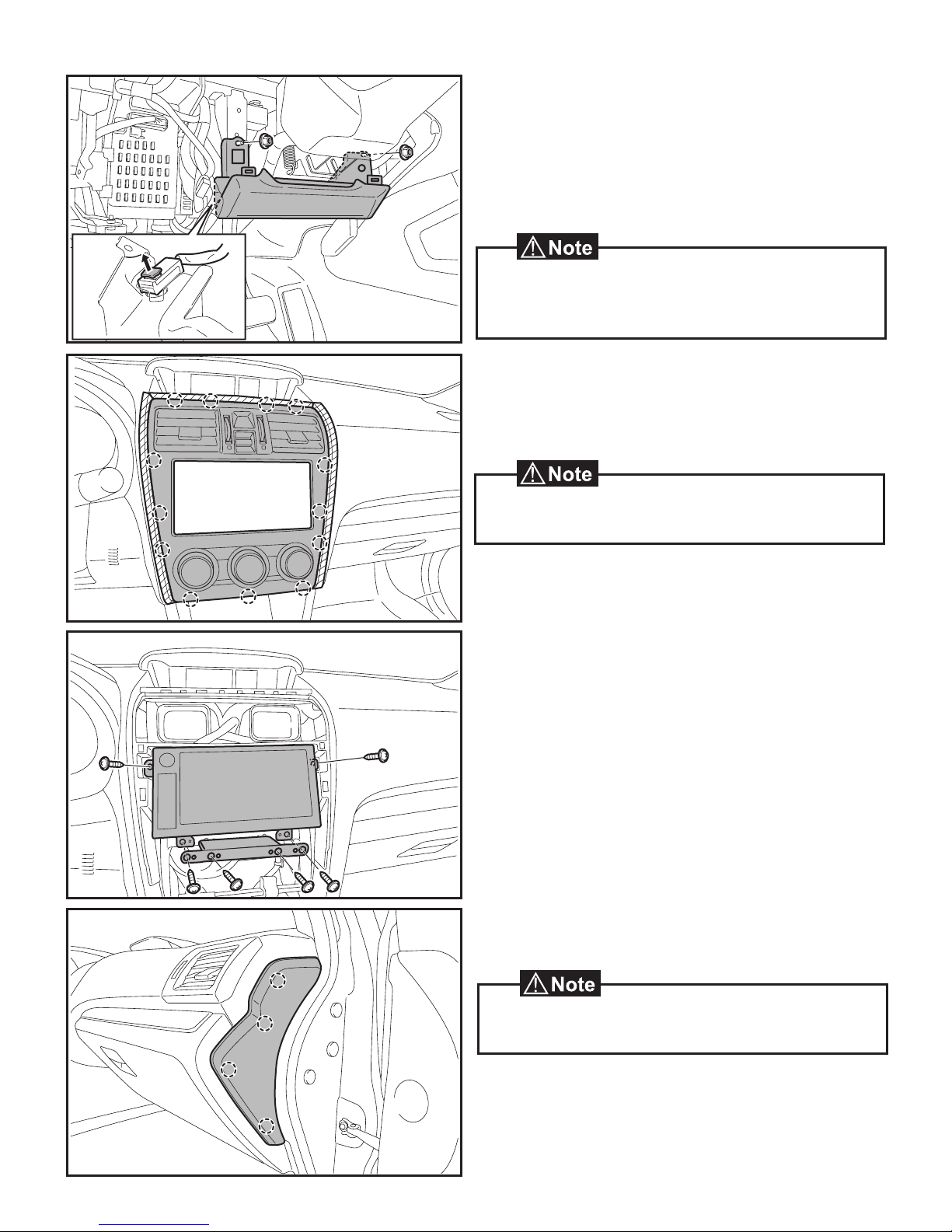

10. Remove the Passenger’s Side Dash Cover.

• Disengage 4 Clips.

9. Remove the Audio Unit.

• Remove 6 Screws.

• Disconnect Vehicle connectors.

8. Remove the Center Cluster Panel.

• Disengage 13 Clips.

• Disconnect Vehicle connectors.

7. Remove the Driver’s Side Knee Airbag carefully.

• Remove 2 Nuts.

• Hold Airbag as to prevent tension on the Harness.

• Disengage the Yellow Connector Lock by using a

pick tool to lift upward.

• Use a Panel removal tool to carefully lift upward to

unplug the Airbag Connector.

• Wait at least 30 seconds after disconnecting the

Negative Battery Terminal before disconnecting the

Airbag Connector.

• Disengage and remove cover from the bottom first

and work upward.

• Disengage and remove cover from the bottom first

and work upward.

- 4 -

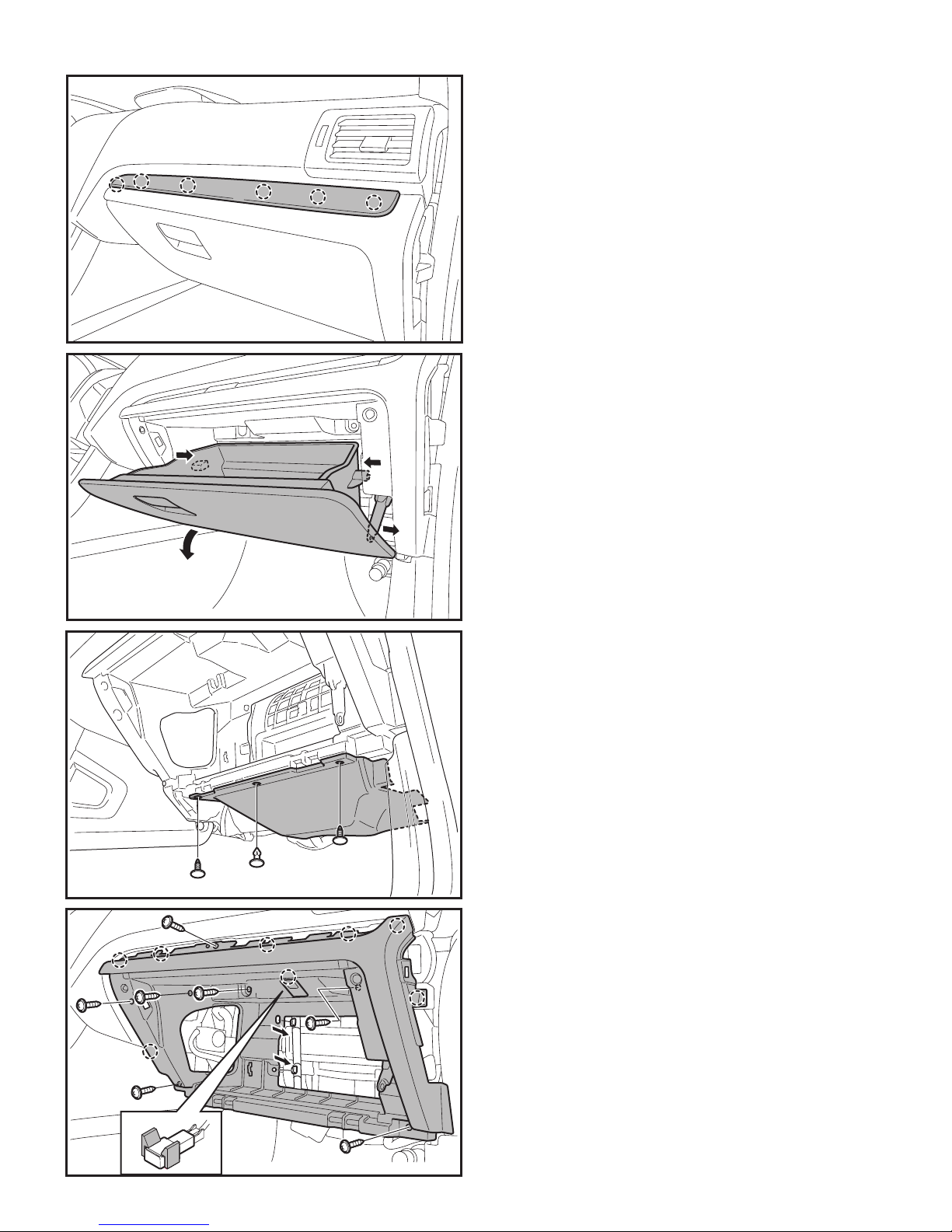

11. Remove the Ornament Panel.

• Disengage 6 Clips.

12. Open the Glove Box.

13. Dislodge the Glove Box.

15. Remove the Lamp Pocket Cover.

• Disengage 1 Clip.

16. Remove the Pocket Lamp from Lamp Pocket Cover.

• Disconnect Vehicle connectors.

17. Remove the Glove Box Inner Cover.

• Remove 7 Screws.

• Disengage 7 Clips.

• Disengage 2 vehicle harness Clips.

14. Remove the Under Cover.

• Remove 3 Clips.

- 5 -

Installation Procedure

SES ECU Preparation and Installation

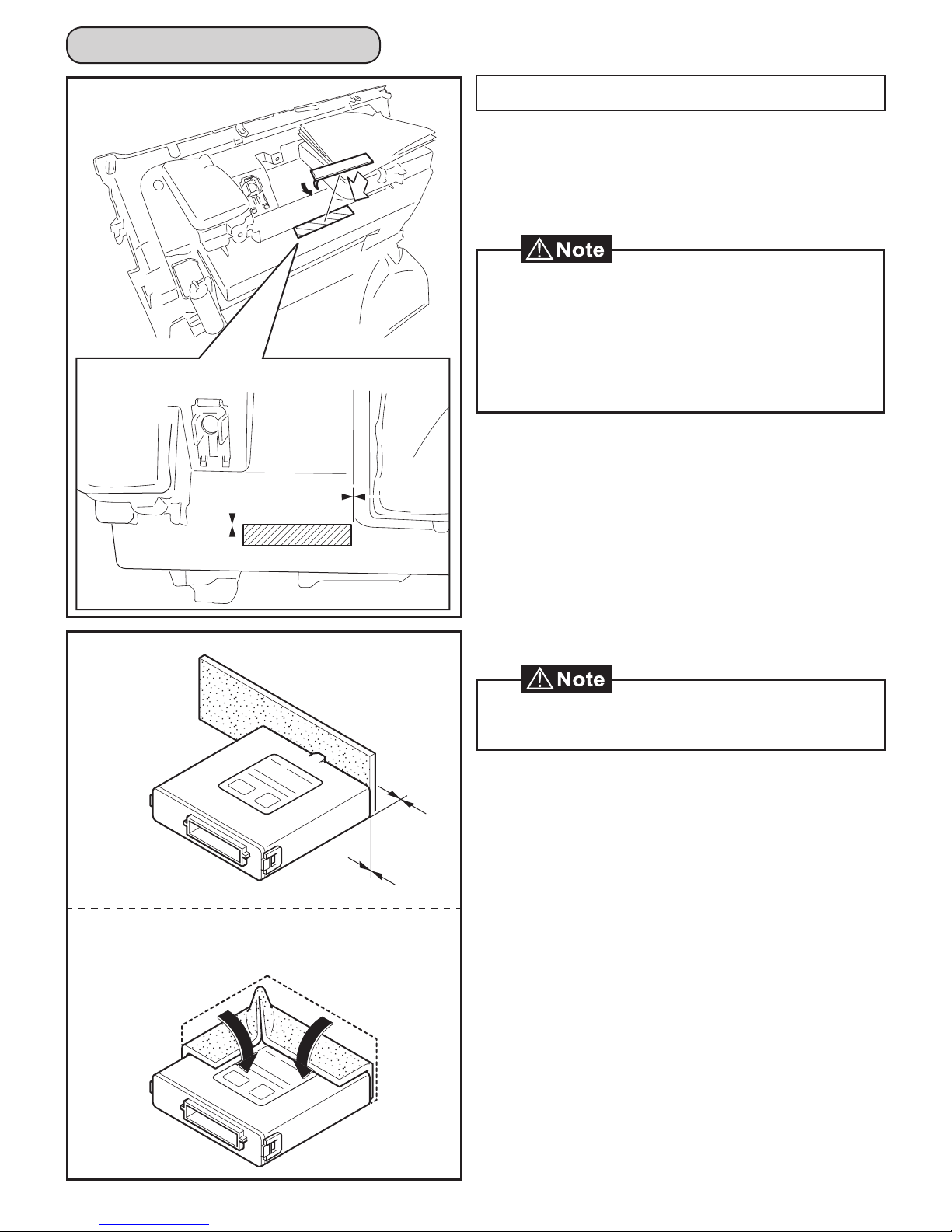

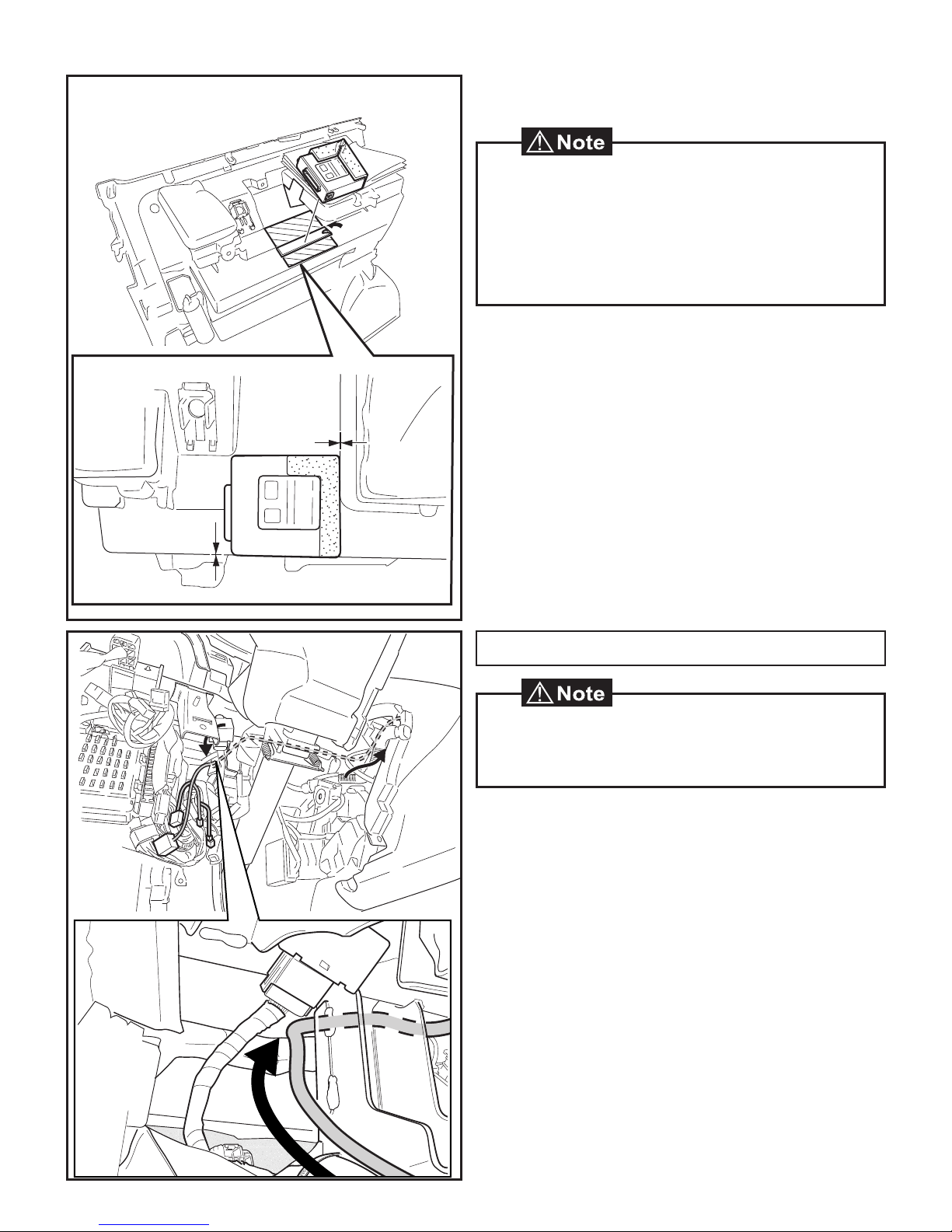

1. Clean the area indicated on the topside of the Glove

Box Inner Cover.

2. Attach the Double-Sided tape to the Glove Box

Inner Cover as shown.

• Clean attachment surface using isopropyl alcohol and

cleaning towel.

• To achieve maximum bond strength of Tape, the

attachment surface temperature must be between

68°F-110°F (20°C-43°C) upon application.

• Verify that the Double-sided tape is firmly attached.

3. Attach the Foam Tape to the SES ECU as shown.

0mm

• Clean attachment surface using isopropyl alcohol and

cleaning towel.

OO

- 6 -

4. Attach the SES ECU to the topside of the Glove Box

Inner Cover as shown.

• Clean attachment surface using isopropyl alcohol and

cleaning towel.

• To achieve maximum bond strength of Tape, the

attachment surface temperature must be between

68°F-110°F (20°C-43°C) upon application.

• Verify that the SES ECU is firmly attached.

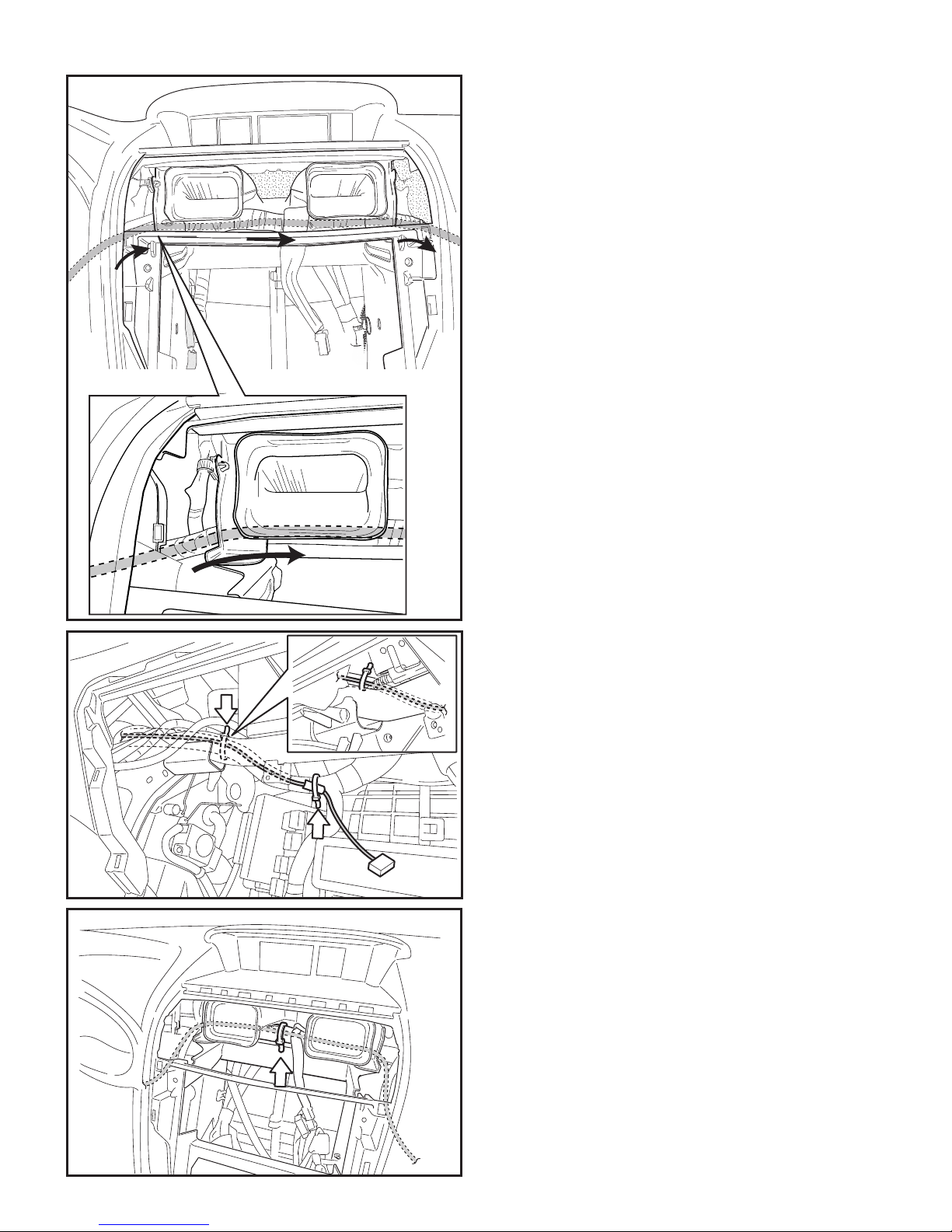

1. Route the Main Harness's 24P Connector toward

the Glove Box area.

2. Route the Main Harness's 8P and 2P Connectors

toward the J/B area.

Main Harness Installation

• Use caution when installing the Main Harness. Be

sure to route and attach harness away from sharp

metal surfaces.

OO

- 7 -

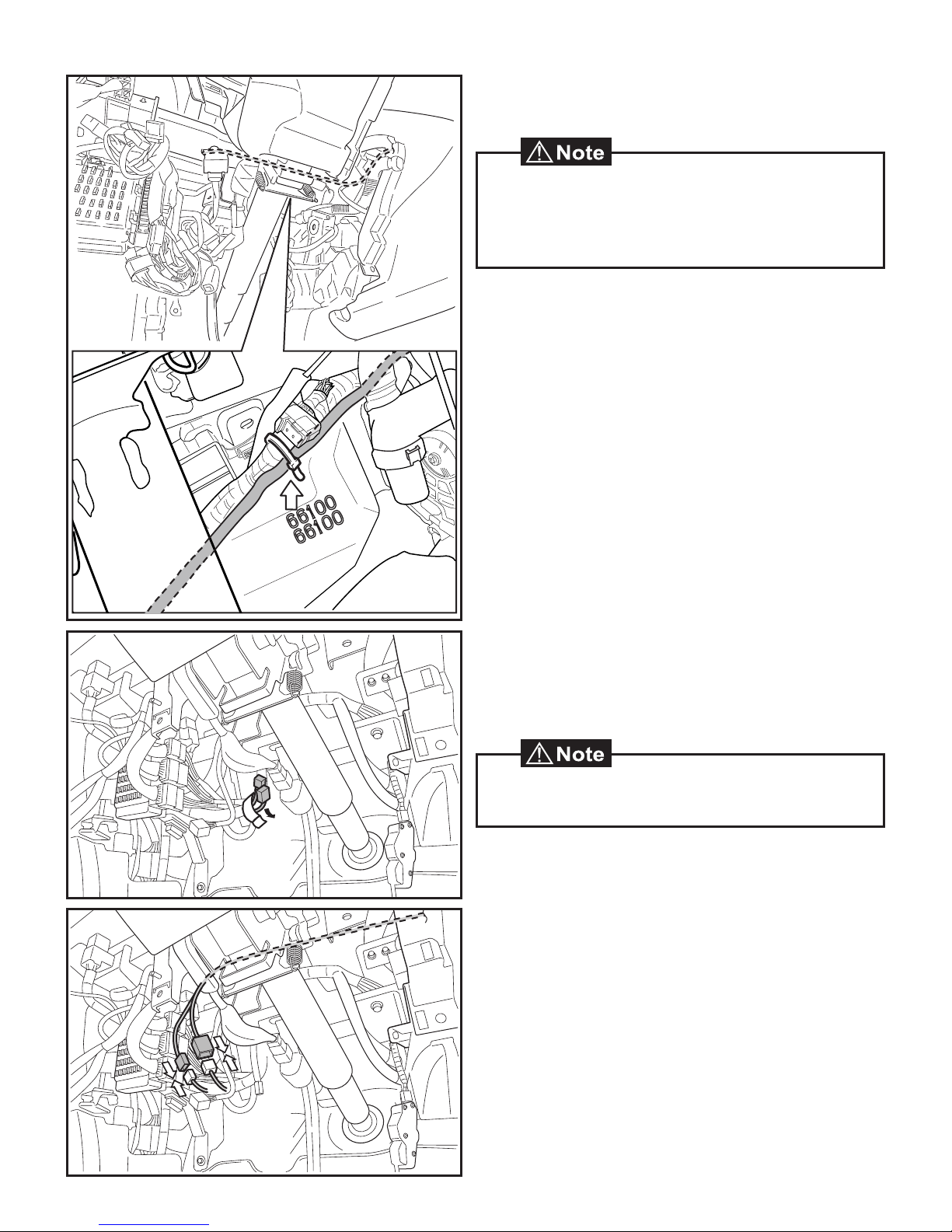

3. Route the Main Harness's 24P Connector along the

Vehicle Harness behind the Vehicle Bracket.

4. Route the Main Harness's 24P Connector toward

the Glove Box area.

5. Secure the Main Harness White Marker to the

Vehicle Harness using 1 Tie Wrap.

6. Secure the Main Harness to the Vehicle Harness

using 1 Tie Wrap.

7. Secure the Main Harness to the Vehicle Harness

using 1 Tie Wrap.

- 8 -

8. Secure the Main Harness to the Vehicle Harness

using 1 Tie Wrap.

9. Remove the Tape securing the Vehicle’s 8P and 2P

Pre-Connectors.

10. Disconnect the Wire Jumper connector from the

Vehicle's 2P Pre-Connector.

11. Connect the Main Harness's 8P Connector to the

Vehicle's 8P Pre-Connector.

12. Connect the Main Harness's 2P Connector to the

Vehicle's 2P Pre-Connector.

• Discard the Wire Jumper connector. (This is used for

the power window interrupt circuit.)

• Ensure routing of main harness does not interfere

with climate control mechanism. The main harness

must be secured to the vehicle harness with no slack

in this area.

- 9 -

13. Secure the Main Harness to the Vehicle Harness

using 2 Tie Wraps.

14. Secure the 8P and 2P Connector to the Vehicle

Harness using 1 Tie Wrap.

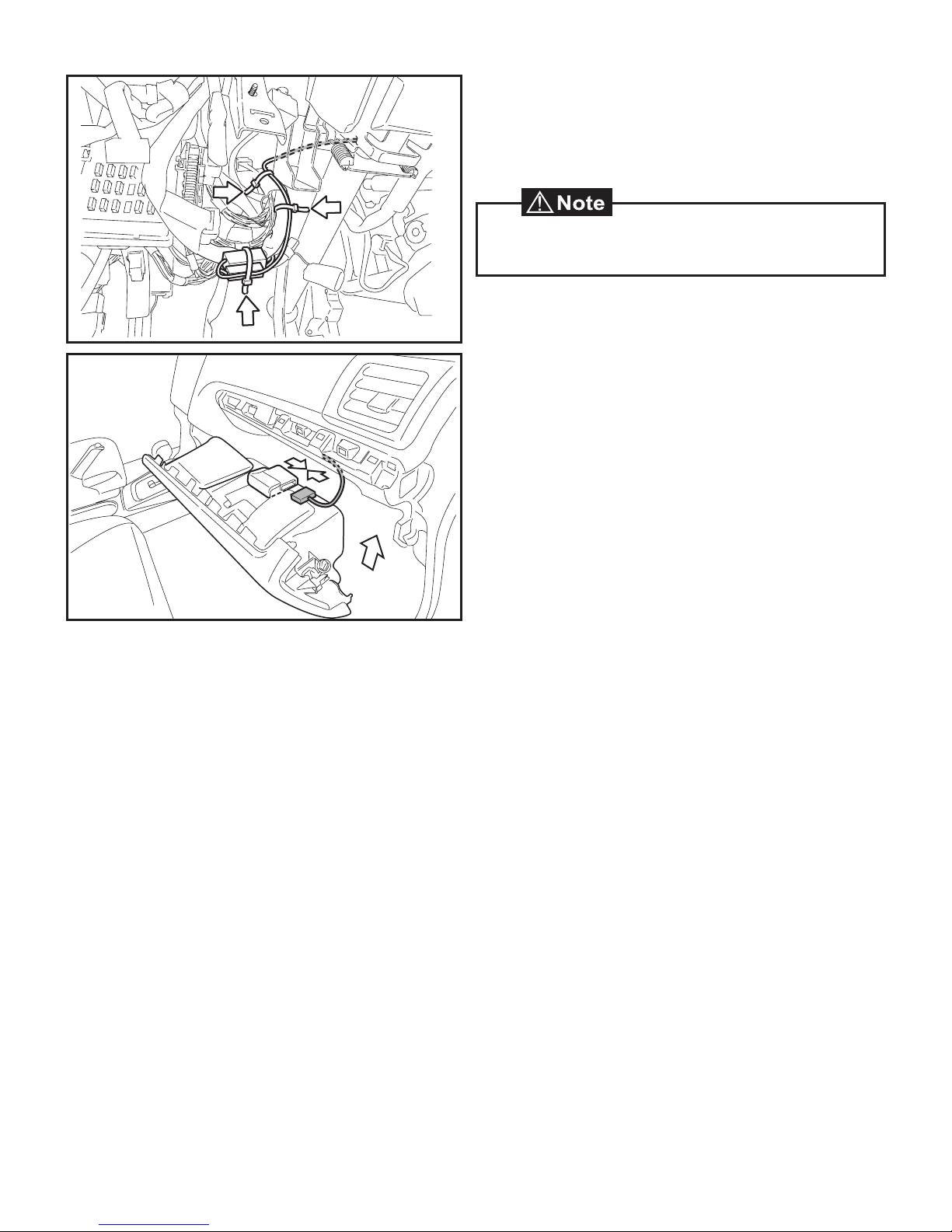

15. Connect the Main Harness’s 24P White Connector

to the SES ECU.

16. Reinstall the Glove Box Inner Cover.

FM5-RES052

• The Smart Engine Start ID must be registered first, so

do not secure the 1P Connectors yet.

- 10 -
