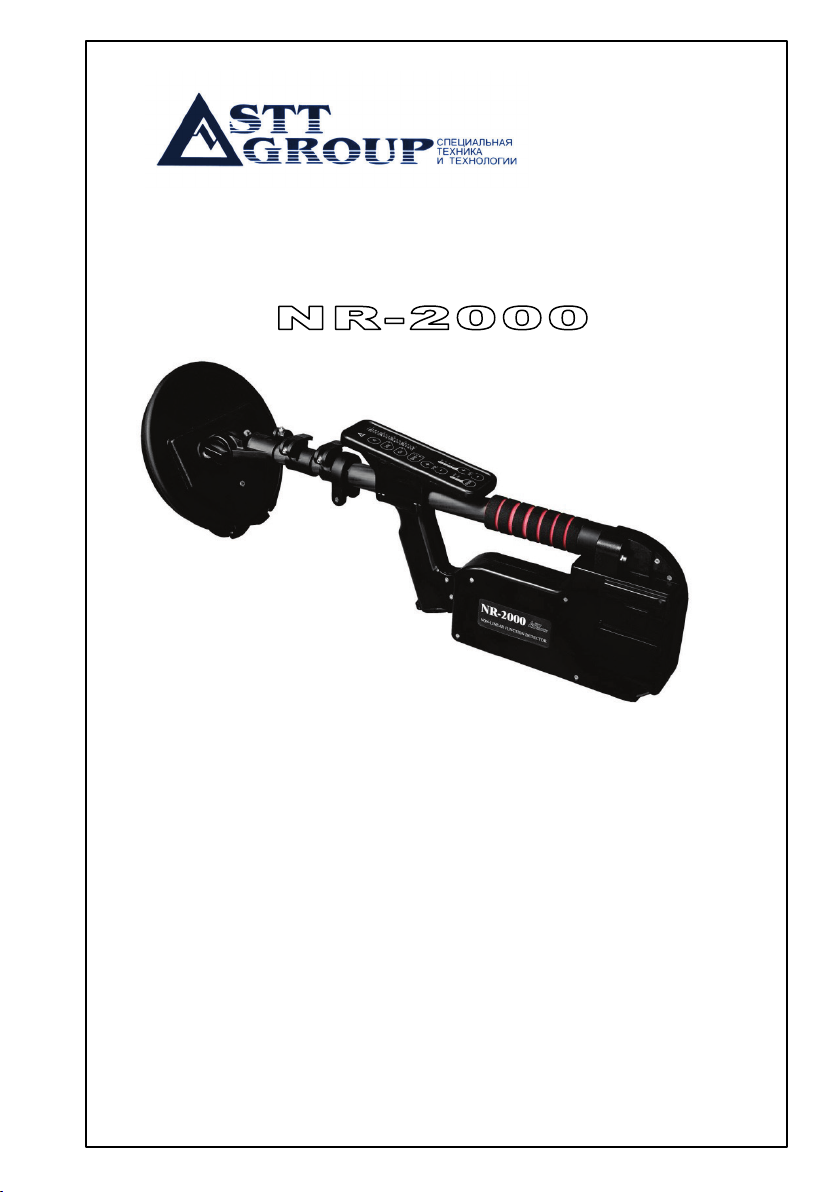

STT Group NR-2000 Manuel utilisateur
Non-linear Junction Detector
USER MANUAL
20 19
NR-2000 User Manual
1
CONTENTS
Application
2
Description
4
Technical data
6
Principle of operation
7
Design
8
Accessories
12
Packing
16
NR-2000 application condition
17
NR-2000 safety precaution
17
NR-2000 operation
18
Getting started
18
NR-2000 workability test
19
NR-2000 searching technique
20
Operation termination and packing
22
Battery charging
22
Maintenance
25
Shipping and storage
27
Certificate of acceptance
27
Warranty
28
This Manual is intended
for explanation
“NR-2000” Non-linear Junction Detector
design & principle of operation
as well as directions for its use.
For proper equipment use
study this Manual in depth.
NR-2000 User Manual
2
APPLICATION
NR-2000 Non-linear Junction Detector is intended for searching
concealed electronics like eavesdropping installations, Remote
Controlled Improvised Explosive Devices (RC IED) and etc. as well
as other items that contain semi-conductor elements.
NOTE: NR-2000 can detect typical targets in every
operational mode: active, stand-by or even switched-off.
NR-2000 typical targets:
-Radio-mikes
-Microphone amplifiers
-Wired mikes
-Video & audio recorders
-SIM cards
-Electronic timing devices
-Devices with infrared (IR) or ultrasonic data & control channel
-Remote Controlled Improvised Explosive Devices (RC IED)
Fig.1 NR-2000 Non-linear
Junction Detector
NR-2000 User Manual
3
NR-2000 possible application fields
-Crime scene investigation for hard evidence of explosive
terrorism that contains any electronic components and its remains:
triggers, communication facilities and etc.).
-Searching for Improvised Explosive Device (IED) that contains
electronic components in typical urban environment.
NOTE 1: In practice NR-2000 is immune to interfering signals typical
to urban conditions.
NOTE 2: The IED detection range is comparable with that of an ‘Eagle’
NLJD –Russian standard tool for field operations: 7-10 meters.
NOTE 3: Fortunate combination of significant detection range with low
radiation level and practical immunity to unban interference
guarantees NR-2000 operator from spontaneous IED triggering.
-Various premises investigation for mobile phones and SIM-cards
hidden in domestic articles.
NOTE: NR-2000 ensures mobile phones and SIM-cards detection in
moist environment and light construction materials up to the distance
of 1m and 0.5m respectively.
-Searching for eavesdropping devices concealed in light building
structures, furniture and various home appliances as well as their
reliable localization.
NOTE 1: NR-2000 can easily detect targets in building structures
behind their reinforcement elements (steel grid and etc.)
NOTE2: NR-2000 provides its operator with an opportunity to
discriminate between industrial electronic elements and metal-to-metal
contacts, so called ‘corrosion diodes’.
NR-2000 NLJD represents a
comprehensive multi-purpose tool
with mid-power output and an outstanding
searching ability and rate.
NR-2000 User Manual
4
DESCRIPTION Complete set
NR-2000 is supplied as a complete set (see fig. 2 and Table 1).
Fig. 2 NR-2000 complete set
1
2
3
4
5
6
7
8
9
10
11
13
14
12
NR-2000 User Manual
5
Table 1
1
Main Unit (transceiver)
with Antenna module and Control unit
1
2
Headphones receiver
1
3
AAA cells
3
4
Standard packing
1
5
Soshine 18650 rechargeable cells
5*
6
Soshine SC-S1 max charger
1
7
Headphones
1
8
AC power adapter
1
9
Car power adapter
1
10
Imitator (test unit)
1
11
Electric torch
1
12
Electric torch sheath
1
13
Forearm support
1
14
Shoulder belt
1
15
User Manual (not shown)
1
*- 2 x 2 cells set for NLJD + 1 for an electric torch.
NR-2000 User Manual
6
TECHNICAL DATA Table 2
Scale ‘2’ readings under following
conditions:
-standard test unit detection range -
1±0.05m
-probing signal min output &
minus 20dB received signal attenuation
4 LEDs are
glowing
(at least 10dB)
Probing signal output attenuation
2 steps 0 dB & -
6dB
Receiver input signal attenuation
5 steps:
0dB, -10dB,
-20dB, -30dB,
and -40dB
Indication
Audio &
LED display
Operational condition:
-operational temperature range
-relative humidity (under +25°C)
-20°C…+40°C
Not more 80%
Power supply
2x18650 Li-ion
rechargeable cells
Continuous operation time
-searching mode
-20K
Not less 4h*
Not less 1.5h*
Weight:
-Main unit (transceiver) with battery
-Complete set in carry bag
3.0 kg
10.0 kg
*- with 2800mAh cells
NR-2000 User Manual
7
PRINCIPLE OF OPERATION
NR-2000 detector represents a portable device that consists of antenna
system, probing signal transmitter and 2 receivers tuned to the double
& triple frequencies of the emitted signal.
Mono-harmonic probing signal emitted by transmitter is converted by
non-linear elements (industrial semi-conductor or corrosion
metaloxide-metal structure) to poly-harmonic one and re-radiated into
an ambient space.
The re-radiated 2-nd & 3-rd harmonic of the probing signal are received
and processed by above-mentioned receivers (see fig. 3).
The received signals levels are displayed by two bar-graph scales: ‘2’
(red) & ‘3’ (green) respectively.
Furthermore, at the same time tonal acoustic signal is reproduced bythe
headphones. The tonal signal level corresponds to that of the received
electric signals.
Volume control is adjusted by (+ VOL -) buttons of the Control unit.
At that a corresponding bar-graph scale is switched over for sound level
indication for one sec.
NR-2000 User Manual
8
The received signal level can be adjusted by Control unit with
appropriate LED confirmation.
20K-mode activated by Control unit is used for revealed target
identification. This auxiliary mode allows operator to evaluate probable
probing signal amplitude modulation.
DESIGN
NR-2000 Main unit consist of antenna module, probing signal
transmitter unit, two receivers, telescopic bar and control unit with LED
display (fig. 4). The unique ‘Bullpup’ design provides NR-2000
ergonomic advantages in any possible application.
1
2
3
4
5
6
7
8
9
Fig.4 NR-2000 Main unit design
1-
Antenna module
2-
Antenna module joint
3- Telescopic bar with level-locks
4-
Control unit with display
5-
Handle
6-
Headphone jack
7-
Forearm support mount
8-
Transceiver
9- Battery compartment
NR-2000 User Manual
9
UHF cables pass through the telescopic bar.They are permanently fixed
to the antenna module and transceiver unit.
NR-2000 Antenna module is fasten to the tip of 3-elbou telescopic bar
(fig. 5). Telescopicbarlength can be adjusted by means of 2 levellocks.
Telescopic bar
axis
Telescopic bar
axis
Antenna module
axis
Telescopic bar
level-lock
Telescopic bar
level-lock
Antenna
rotation
level-lock
Antenna elevation
holder screw
Fig.5 Antenna system adjustment
Fig.5a Antenna system adjustment
