OPERATION
To use your power booster as a 12V DC/DC power source:

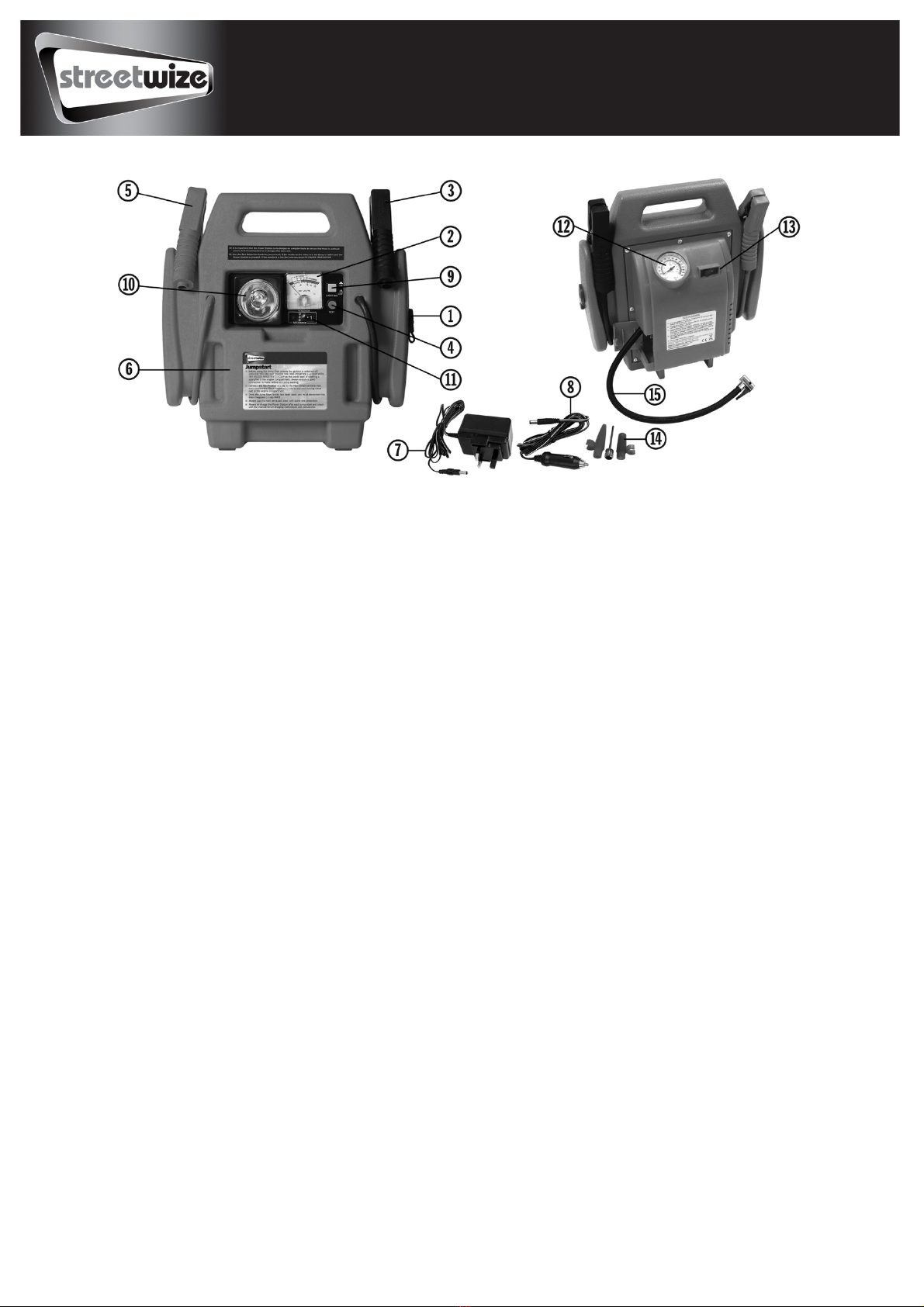

1. Lift up the cover of 12V DC cigarette lighter receptacle (see No.1 of figure 1).
2. Insert the 12V DC cigarette lighter plug from the appliance into the 12V DC cigarette lighter receptacle
on the side of your booster.
The following table will give you an idea of what operation time you can expect when starting from a fully
charged system.
Estimated power consumption
(in watts )
Estimated usage time
(in hours )
Fluorescent lights cell phones
Radios, fans ,depth finders
Camcorders ,VCR’s spotlights
Electric tools ,bilge pumps
Air compressors ,car vacuums
JUMP STARTING
For performance when using your power booster to jump start a vehicle or boat, please read and follow these
step by step instructions:
Negative Grounded Vehicle
Connect the red (+) crocodile clip to the red (+) positive battery terminal on the vehicle or boat.
Connect the black (-) crocodile clip to a non-moving metal part of the engine, NOT to the(-) negative battery
terminal.
Wait a minute or two
Switch the vehicle or boat engine ignition to “start” for no more than 5 to 6 seconds.
If the vehicle or boat engine does not start, wait at least 3-minutes before trying again.
Under no circumstances allow the red and black clamps to touch each other or a common contact
Once the engine is running, disconnect the black (-) clamp first and return this cable to its stored position on
the power booster.
Disconnect the red (+) clamp and return this cable to its stored position on the power booster.
As soon as possible connect your power booster system to one of the supplied chargers.
Compressor operation (SWPP9 ONLY): Air Compressor Caution, only run the air compressor for 10 mins
at a time, allow a cooling period of at least 10 mins in between uses.
Be sure main power switch on front face is in the “ON” position.
For tyre inflation use the universal adapter that is attached permanently to the air hose. Place this adapter
(see figure 2, 15) onto the tyre valve, press the adapter lever down to lock onto the tyre valve.
For inflation of leather balls, flotation devices, etc., use the applicable plastic nozzle.
Check pressure gauge (see figure 2, 12), determine the desired pressure.
Turn on power switch (see figure 2, 13)
When the desired pressure is reached turn the compressor switch (see figure 2, 13) off.
Remove the adaptor (see figure 2, 15) from tire or other item being inflated.
