Streamax M1-A04 Manuel utilisateur
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
1
User Manual
For
M1-A04 MDVR
Mobile Digital Video Recorder
Copyright 2013-2015, Streamax Technology Co., Ltd
All Rights Reserved
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
2
Notice
The information in this manual was current when published. The manufacturer reserves the right to
revise and improve its products. All specifications are therefore subject to change without any notice.
The purpose of this manual is to kindly aid the user for the operation for our MDVR (especially for GUI
setting). The user should have a basic understanding of computer operation and basic knowledge of
how to connect peripherals and make some settings.
Copyright
Under copyright laws, the content of this manual may not be copied, photocopied, reproduced,
translated or reduced to any electronic medium or machine- readable form, in whole or in part, without
prior written consent of Streamax Technology Co., Ltd. Copyright 2013-2015)
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
3
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy stress, violent vibration,
impact and water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the
equipment before the MDVR installation is finished.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified technicians and engineers.
We do not undertake any responsibility caused by unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from direct sunlight,
flammable or explosive substances, etc. Keep gaps not less than 3cm around the device to facilitate
ventilation for cooling.
6) Accessories
Make sure to use accessories from the manufacturer recommended in the attachment.
Insulate circuit ground and metal shell for all the peripherals.
Before installation, please open the package and ensure that all parts are included.
If there are any problems, please contact us as soon as possible.
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
4
CONTENTS
1. PRODUCT CHARACTERISTICS.......................................................................................................................5
1.1. OVERVIEW................................................................................................................................................. 5
1.2. FEATURES..................................................................................................................................................5
1.3. FUNCTIONS............................................................................................................................................... 5
1.4. SPECIFICATIONS......................................................................................................................................6
1.5. SYSTEM DIAGRAM.................................................................................................................................. 7
1.6. EXTERNAL INTERFACE.......................................................................................................................... 8
2. QUICK START GUIDE....................................................................................................................................... 10
2.1. USER LOG IN...........................................................................................................................................10
2.2. LOCAL VIDEO CHECK, PLAYBACK AND BACKUP........................................................................ 10
2.3. STORAGE DEVICE FORMAT............................................................................................................... 11
2.4. DUAL CARD RECORDING MODE.......................................................................................................11
2.5. EVENT SETTING..................................................................................................................................... 11
2.6. SYSTEM UPGRADE............................................................................................................................... 12
3. REFERENCE APPENDIX.................................................................................................................................. 13
3.1. STORAGE CAPACITY CALCULATION............................................................................................... 13
3.2. FREQUENTLY ASKED QUESTIONS...................................................................................................14
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
5
1. PRODUCT CHARACTERISTICS
1.1. OVERVIEW
M1-A04 is a cost-effective equipment designed for in-car video surveillance. It has a high-speed
processor and embedded operating system, combining with the the most advanced H.264 video
compression / decompression technology as well as GPS positioning technology. M1-A04 allows you to
use CIF, HD1 and D1 video formats to record, which can be used for data query and accident analysis.
M1-A04 is easy for installing and maintenance.
1.2. FEATURES
1) Supports for 360 degree installation.
2) Allows D1, HD1 and CIF formats.
3) With abnormal power protection, prevent video loss.
4) Supports DC8-36V wide voltage input and be suitable for 12V and 24V vehicles.
5) Watermarking technology: prevents data tampering and ensure the authenticity and legal
efficiency of the video
6) Dual video card: Support dual card loop recording or mirror backup recording.
1.3. FUNCTIONS
1) Local recording and playback functions: D1 / HD1 / CIF resolution optional.
2) Driving record: Supports speed, turning, brake, reverse, door opening and so on.
3) User Log: on-off status of the device, video loss, recording start time / end time, user log in /
log out, change device parameters, time, GPS status.
4) Export and import configuration files: thumb drive to import / export device parameters.
5) Device upgrade: Supports local upgrade.
6) Alarm linkage: supports linkage switch value output, image display, etc.
7) Storage formatting: formatting SD cards and external USB devices.
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
6
1.4. SPECIFICATIONS
Items Technical Index
Product Series M1-A04
Function Overview Live view recording, playback, network, GPS
location tracking
System OS Linux 2.6.24
Control Mode IR remote control
Video
Input 4 channels (Aviation-din X4)
Output 1 channel (Aviation-din X1)
Total Resource 400fps CIF @ PAL / 480fps CIF @ NTSC
Video Signal Standard Electrical level: 1Vpp; Impedance: 75Ω
NTSC/PAL Optional
Audio
Input 4 channels
Output 1 channel
Audio Signal Standard Electrical level: 2Vpp; Input impedance: 9.4Ω
Display
Display Split 1/4
OSD
GPS information, alarm, temperature, voltage,
device information, software version, MCU
version
Operation Interface Semi-transparent GUI
Recording
Video/Audio Compression H.264/ADPCM
Image Resolution
PAL: D1(704x576), HD1(704x288),
CIF(352x288)
NTSC: D1(704x480), HD1(704x240),
CIF(352x240)
Image Quality 1-8 levels adjustable (1 is the best)
Recording Mode Manual/Schedule/Alarm (sensor trigger, speed,
acceleration, video loss, temperature)
Post-recording 0-30minutes
Playback Playback Channel Supports 1 channel by local playback, 1 channel
by PC software, 4 channels playback
Search Mode Date/time, channel, event
Locating GPS Location tracking, speed detection and time sync
Storage SD card Compliance with SDXC specification
Interface
USB USB2.0 × 1
RS232 RS232 × 1
SD SD card x 2
Sensor 4 inputs, 2 outputs
Speed 1 channel pulse speed detection
Power Input DC8-36V
Output 500mA@12V
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
7

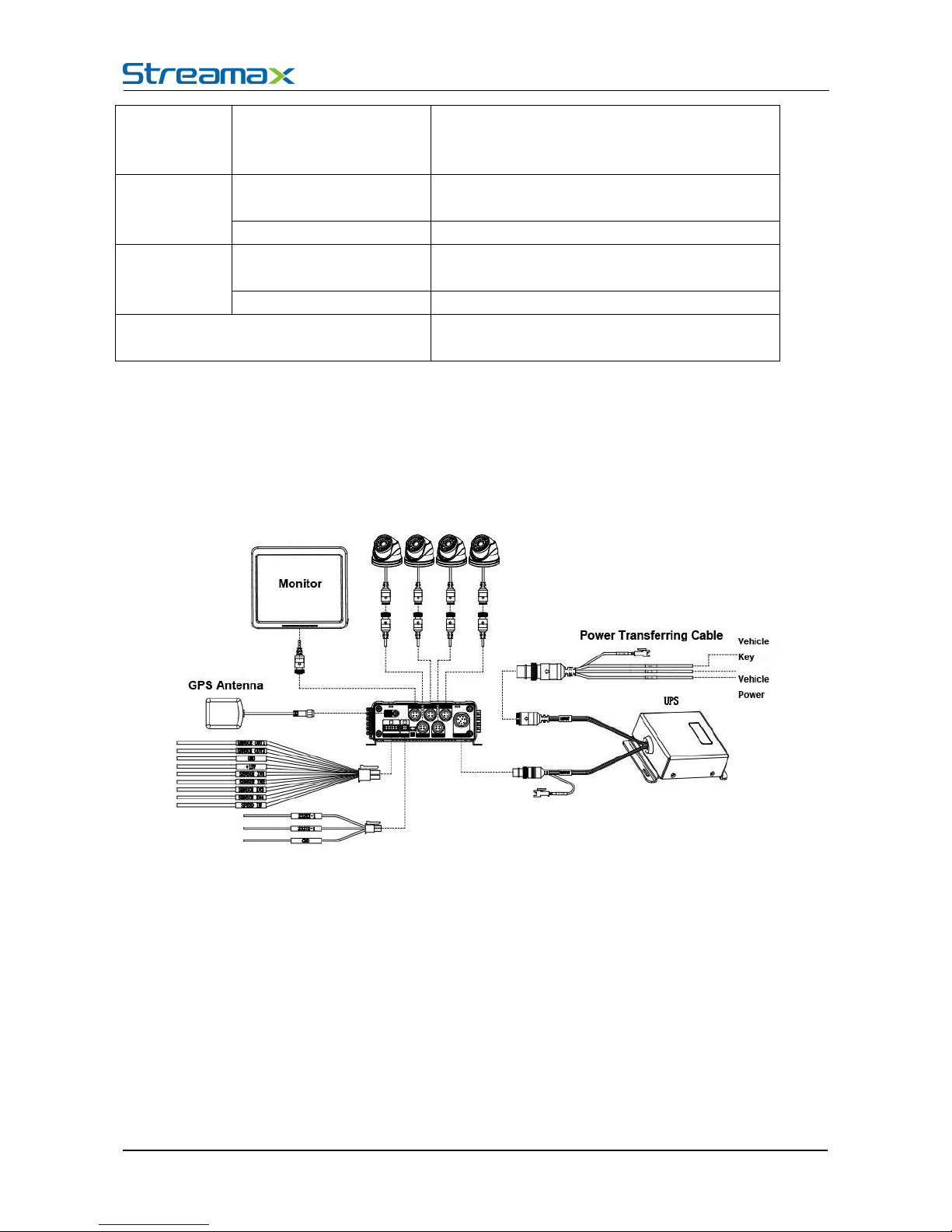

1.5. SYSTEM DIAGRAM
Current
Working current: input 13.5V@1.2A, 27V@0.5A
Standby current: 0A
Physical
Characteristic
Dimension
(L x W x H) 142*144.8*54.2mm
Weight 0.66 Kg
Operating
Environment Temperature -25℃- +60℃
Relative Humidity 8%-90%
Certificates CE，FCC，IOS7637-3
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
8

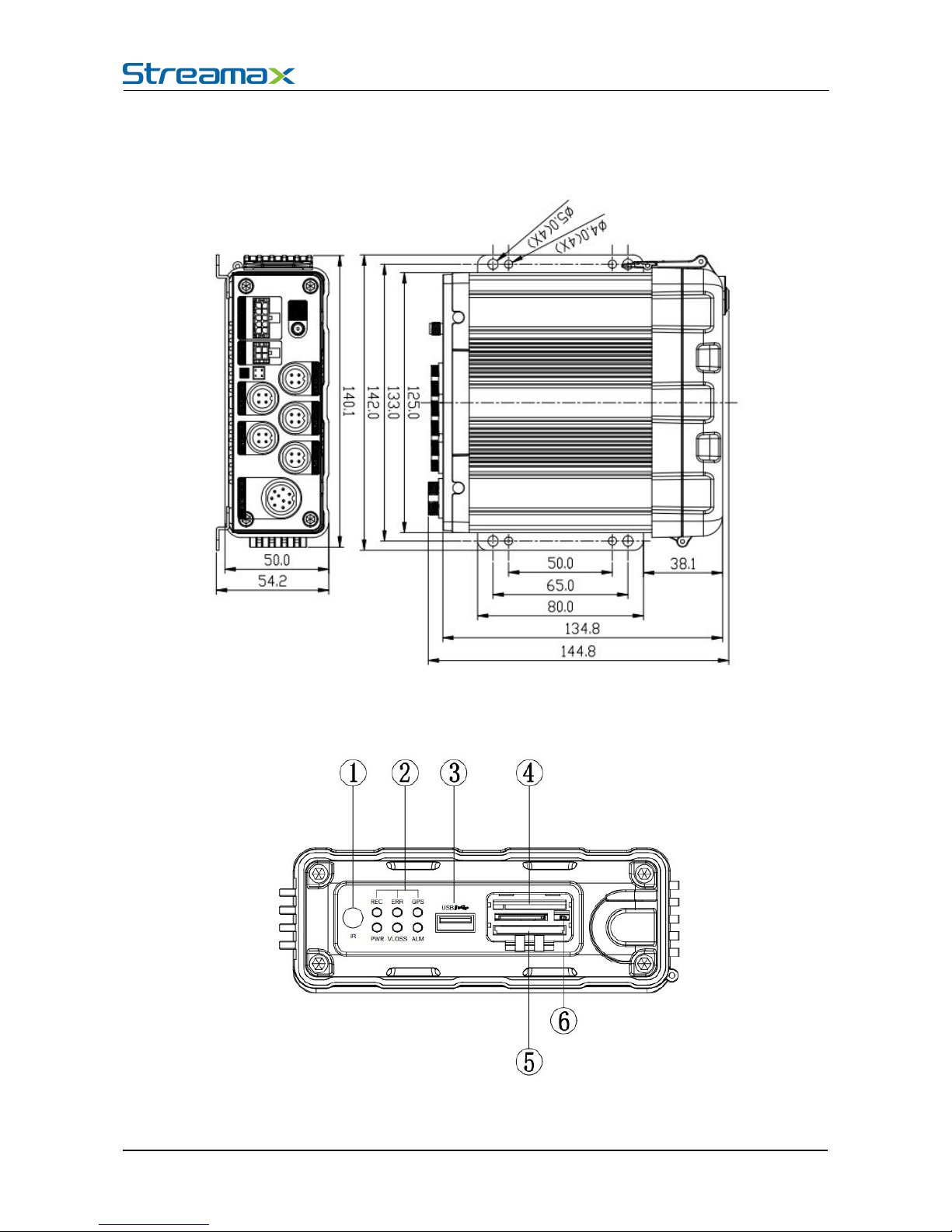

1.6. EXTERNAL INTERFACE
DIMENSION
FRONT PANEL
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
9
Serial No. Print Description
1 IR Remote control receiving
2
REC Recording indicator
ERR Error indicator
GPS GPS status indicator
PWR Power indicator
VLOSS Video loss indicator
ALM Alarming indicator
3 USB For upgrade, video export
4 Main card Record fireproof box information in
mirror recording
5 Vice card Record video in mirror recording
6 Front shell mechanical switch Shutdown for protection when the
cover is openned

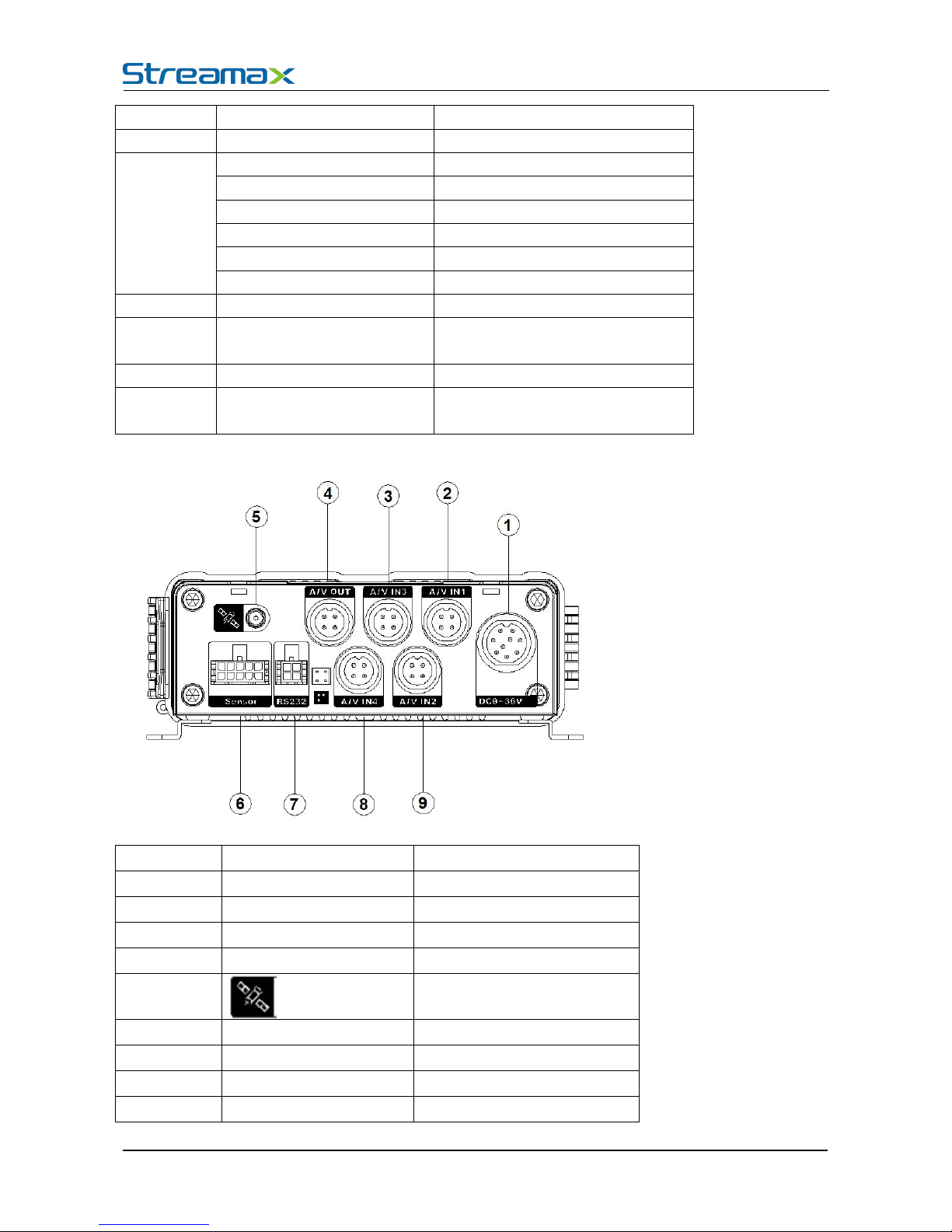

Rear Panel
Serial No. Print Description
1 DC8-36V DC IN Jack
2 AV IN1 Audio & Video Input 1
3 AV IN3 Audio & Video Input 3
4 A/V OUT For Monitor
5 For GPS Antenna
6 SENSOR Alarm port
7 RS232 RS232 PORT
8 AV IN4 Video/Audio input 4
AV IN2 Video/Audio input 2
User manual for M1-A04
For more information, please visit our website www.en.streamaxtech.com
10
2. QUICK START GUIDE

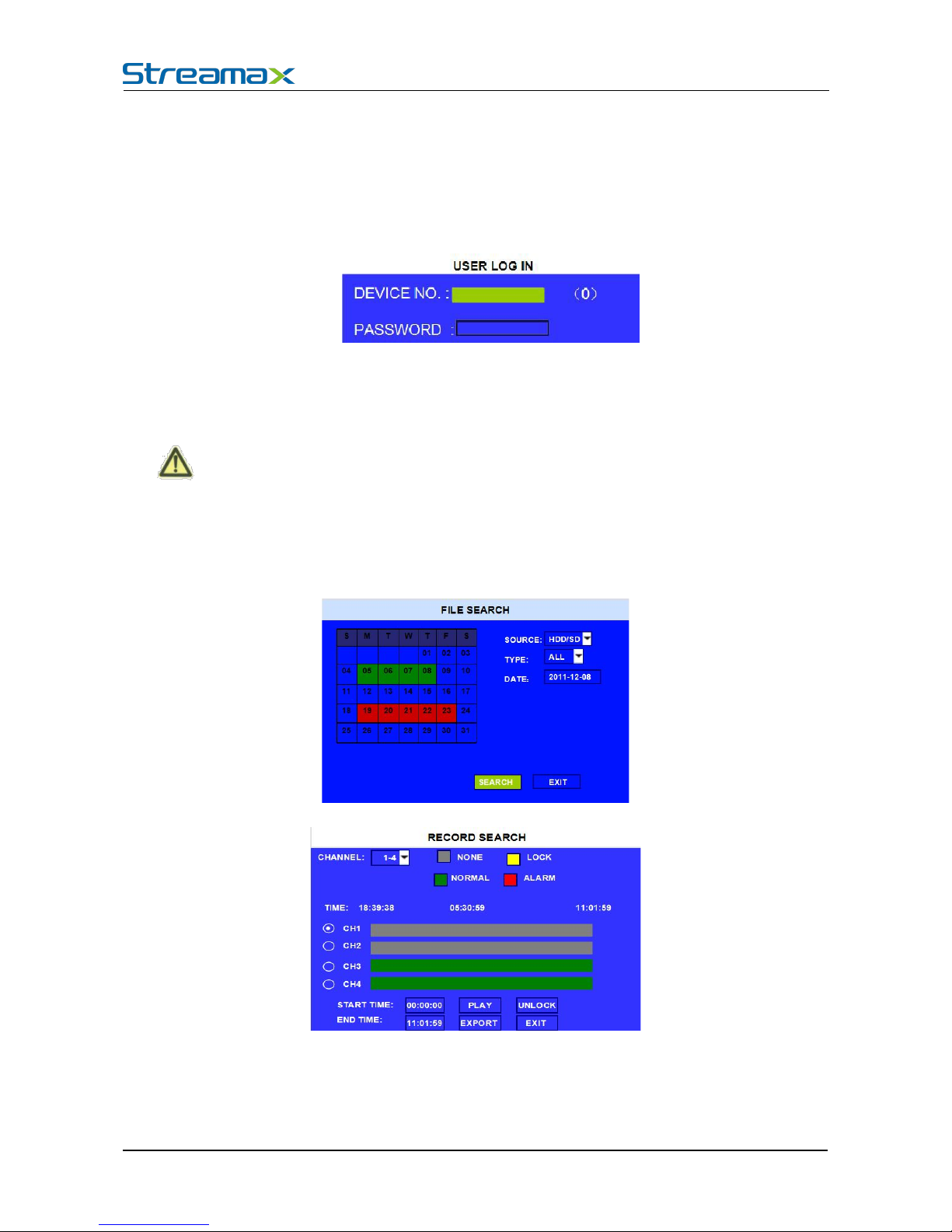

2.1. USER LOG IN
1) After the device boots up, press LOGIN/LOCK or SETUP to enter the GUI as follow.
2) ENTER DEVICE NO.: Input the number according to the number in the bracket.
3) ENTER PASSWORD: Video searching and information menu checking are available if you log in
with the user password while device parameters setting is possible with administrator password.
User default password is 22222222, and Admin password is 88888888.
2.2. LOCAL VIDEO CHECK, PLAYBACK AND BACKUP
1) VIDEO CHECK:The user can search the files according to file types, video channels, date/time and
start time. The file types include All and Alarm (Green module indicates general record while red
module points to alarm record.)
The search results will be shown as follows.
2) VIDEO PLAYBACK: Choose the channel and time, click ENTER to playback.
3) VIDEO DATA EXPORT: When there are videos available at the channel you choose, click the
button and you could export all the videos during the time to the storage device connected via USB.
