Streak 800Pro Manuel utilisateur
STREAK 800Pro HEXACOPTER
Instruction Manual
1
Contents
1. Safety Notes........................................................................................................................................................3
2. Equipment Required For Assembly....................................................................................................................4
3. Che k List............................................................................................................................................................5
4.1 Assembly Steps - Flight dire tion indi ator......................................................................................................8
4.2 Assembly Steps – Motor....................................................................................................................................9
4.3 Assembly Steps – Motor Mount .....................................................................................................................10
4.4 Soldering Job...................................................................................................................................................11
4.5 Assembly Steps – ESC and ESC board...........................................................................................................12
4.6 Assembly Steps – Motors & Propellers...........................................................................................................14
4.7 Assembly Steps – Bipod Landing Gear...........................................................................................................16
5. Qui k Collapsible Illustration...........................................................................................................................18
6. Gimbal Mounting..............................................................................................................................................20
7. Multi opter Controller Mounting Illustration...................................................................................................22
8. Spe ifi ation......................................................................................................................................................23
End Of Manual......................................................................................................................................................24
2
1. Safety Notes
Do fly only in safe areas and always away from other people! Do not operate RC aircraft within the
vicinity of homes or crowds of people. RC machine are prone to accidents, failures, and crashes due
to a variety of reasons including pilot error, radio interference, and lack of maintenance. Pilot are
responsible for their actions and damage or injury occuring during the operation of RC aircraft
machine.
hen flying the aicraft, the fast rotating props of Streak 800 may cause serious injuries with any
accident occurred. Therefore please keep in mind that safety at first during the flight.

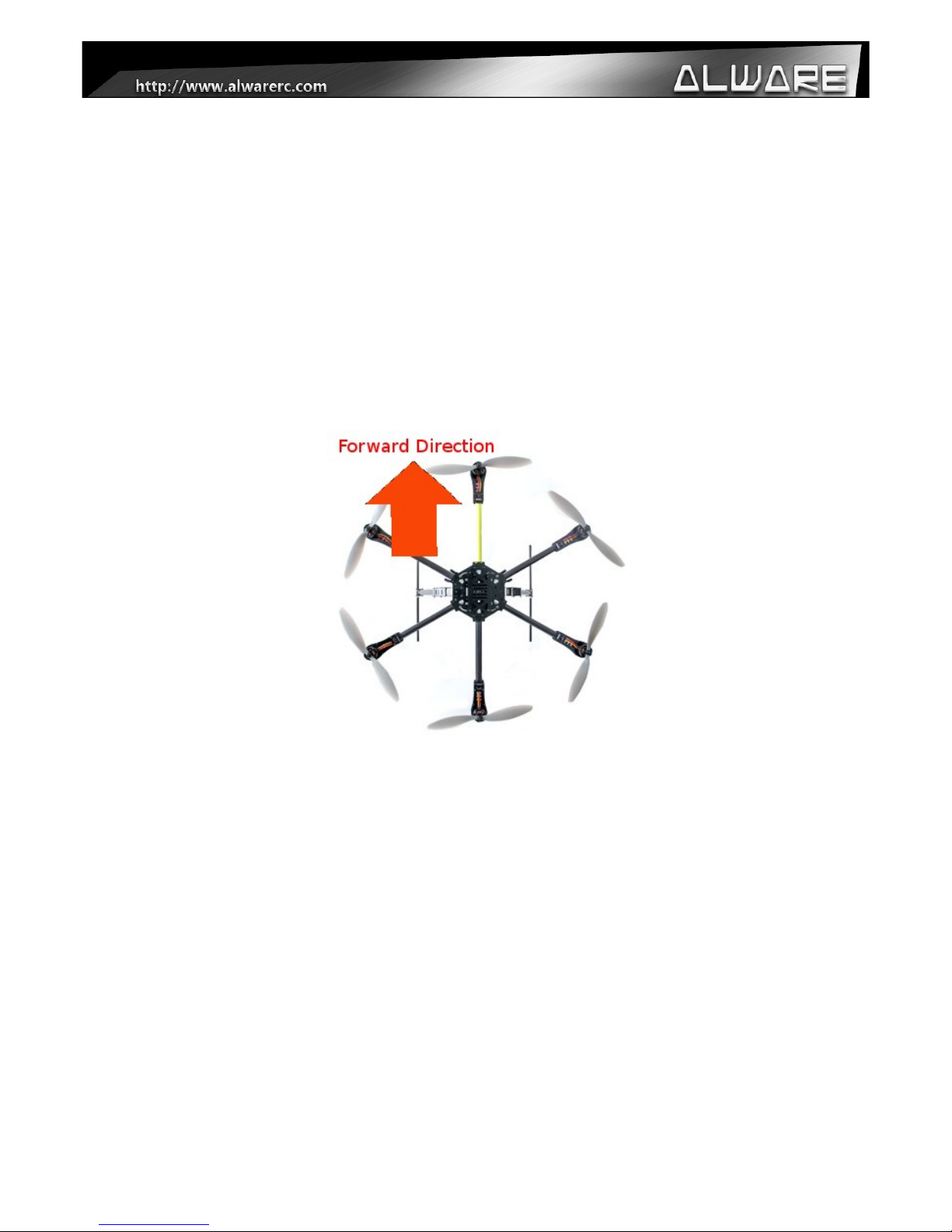

The ONLY Flying direction suitable for Streak 800
Make sure you have installed your own Hexacopter Controller and the Props in the correct direction
according to the factory's manual of the Controller.
3

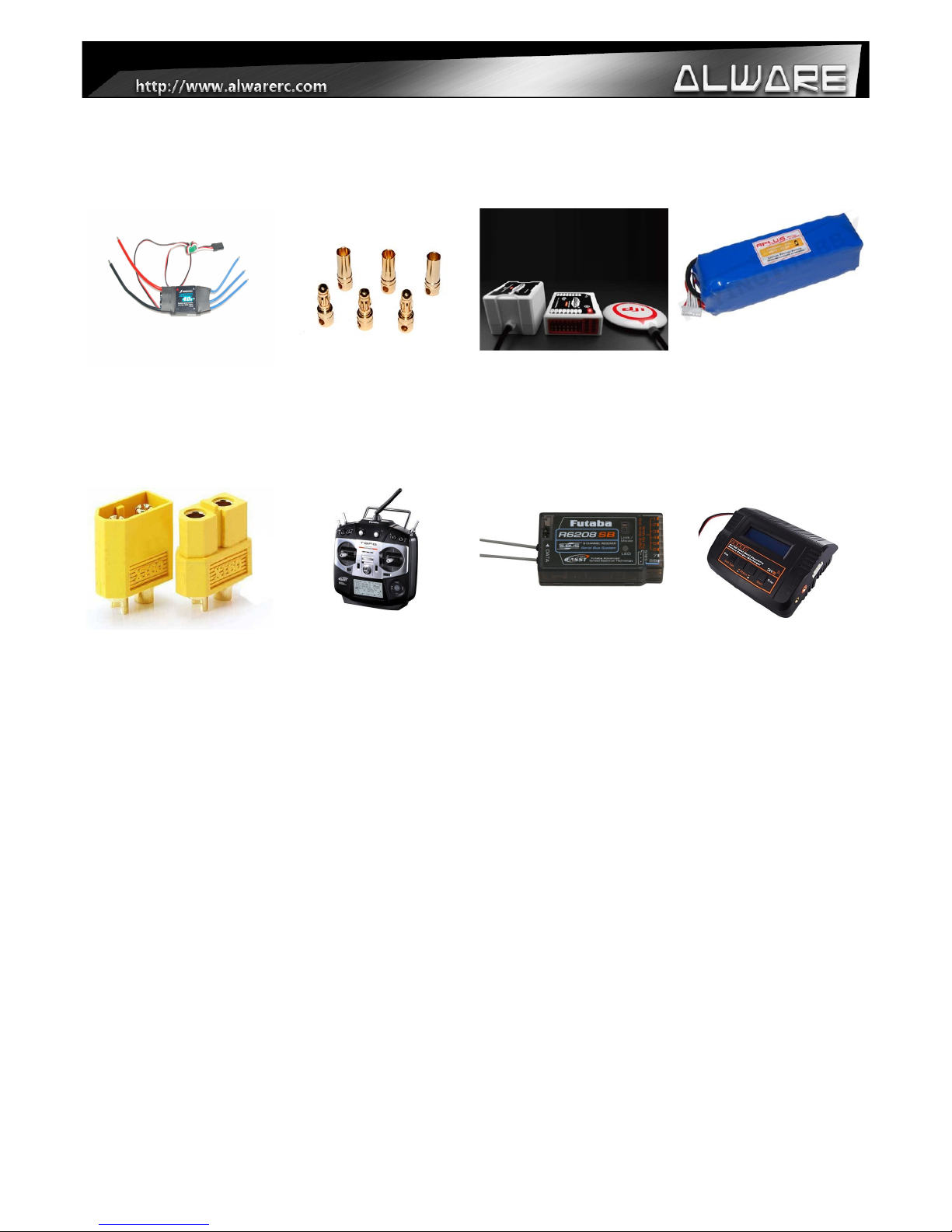

2. Equipment Required For Assembly
6pcs-- 40A ESC(6S
22.2V) (e.g. Hobby ing
FlyFun 40A ESC)
18pcs-- 3.5mm Bullet
Connector (Female) for
6pcs ESC
1pcs-- “+” Mode
Hexacopter Controller
(e.g. DJI K-M)
2pcs-- 6S LiPo Battery
3500-7500mAh 22.2V
( ill be connected in
Parallel)
2pair-- Connectors For
Batteries and Power
Board
1pcs-- Transmitter 1pcs-- Receiver 1pcs-- Lipo Charger &
the connector to fit the
Lipo Battery.
4
3. Check List
Please Check the Follow parts.
Alware Multicopter Brushless Motor
3515-15 KV400 (Not included unless otherwise
specified.) 6 Set
Screw set come with Motor.
6 Set
Apc Propeller 14x4.7SFP (C )
3 Pcs
Apc Propeller 14x4.7SFP (CC )
3 Pcs
Large Current Power/ESC Board (Black/
Blue color) with 2 pairs Battery Cable.
Servo Extension ire ( 15cm )
6 pcs
5
A G wire Black ( 33cm )
6 pcs
A G wire Red ( 33cm )
6 pcs
Frame parts.
Motor Mount
6 Pcs
Carbon Fiber Leading Gear Assembly
2 Pcs
Landing Gear Skid (420 mm)
2 Pcs
FPV & GPS Mounting Assembly 1Pcs (left)
Landing Gear Frame Assembly 1 Pcs (right)
6
Other parts
Spare Hex Cap Screw M2x6mm Spare Hex Cap Screw M3x8mm Spare Hex Cap Screw
M3x10mm
Spare Hex Cap Screw
M3x12mm
Spare Round Cap Screw 8pcs x Battery Support Damper
1pcs x Direction Indicating
Sticker
7
4.1 Assembly Steps - Flight direction indicator
Step 1.
Cut the Direction Indicating Sticker with a
width of around 100mm.
Step 2.
Tear the cover layer of the Sticker before
stick to the front Carbon Arm Boom.
Step 3.
Stick the Direction Indicating Sticker to the
Fixed Carbon Arm Boom as to indicate the
Forward Flying Direction.
Step 4.
Use three pieces of Adhesive Tape to secure
the Direction Indicating Sticker.
Step 5.
Prepare the FPV & GPS Mounting Assembly.
Step 6.
Insert the FPV & GPS Mounting Assembly
into the opposite boom of the Direction
Indicating Sticker.
8
4.2 Assembly Steps – Motor
Step 1.
You will received 6 motors in
ALS800-CB.
Step 2.
For new motors, Thread Lock must be
applied to the two M3 Set Screws which is
pre-inserted in the motor.
(This is a must for safety flying.)
Step 3.
Install the Porp Mount to the motor using
3pcs M3 Hex Cap Screw. (Apply little
amount of Thread Locker when assembly
metal to metal parts.)
Step 4.
Double check the prop mount which must be
installed to the motor securely.
9
4.3 Assembly Steps – Motor Mount
Step 1.
Loosen the two screws before insert the
motor mount to the Carbon Arm Boom.
Step 2.
Insert the Motor Mount to the carbon boom
and stop until the boom edge is around 5mm
to the Inner Motor Metal Mount surface.
Step 3.
Adjust the Motor Mount to parallel to the
Streak 800Pro body before tighten the
screws.
Step 4.
Secure the Motor Mount by tighten the
screws on the Metal Mount.
Repeat Step 1 to 4 to install other Motor Mounts to the Carbon Boom Arms.
10
