Strata ADVANCEMULTI205P Manuel utilisateur

OPERATING INSTRUCTIONS

ADVANCEMULTI205P

4-IN-1 MIG/MMA/AC TIG/DC TIG

WELDER

www.strata.co.nz

CORROSION

RESISTANT

SPIKE/

GENERATOR

SAFE

IGBT

INVERTER

TECHNOLOGY

INTELLIGENT

PROTECTION

SYSTEM

ALTERNATING/

DIRECT

CURRENT

230V 50HZ

SINGLE

PHASE

SPOOL

GUN

READY

PULSE

WELDING

OUTPUT

POWER

FACTOR

CORRECTION

START

TIG

LCD

COLOUR

SCREEN

Congratulations on your new Strata product!

The Strata range from Euroquip uses latest technology design and engineering to produce

welding products that combine market leading value and features with durability. Designed

for discerning operators who seek professional results and product quality without the price

tag of a full professional setup. Design emphasis is placed on simple, functional design

and operation. Strata product is subject to stringent quality control and designed and

manufactured to NZ & Australian standards.

Common use of Strata products include:

• Light Engineering

• Automotive

• Home / Hobby Engineering

• Farming

• Industrial Maintenance & Repairs

For industrial welding solutions, check out the Strata range from Euroquip:

www.strata.co.nz

Euroquip is a market leading provider of innovative power equipment solutions to a wide

range of industries across New Zealand and Australia. Key product categories are; welding

equipment, air compressors, power generators and cleaning equipment.

Euroquip’s slogan is ‘empowering industries’, find out more about the advantage Euroquip

brings at www.euroquip.co.nz.

Providing exceptional product support is a key component of Euroquip’s market leading

customer advantage focus. As part of this program, it is required for all products to be

registered with Euroquip to qualify for product support. Products not registered with Euroquip

are supported by a base 12 month warranty only. Spare parts and technical support will not

be available for an unregistered product outside of this base warranty period. If a Euroquip

dealer has not already registered your product, please register it online at www.euroquip.

co.nz. To request a physical registration form, please download one at www.euroquip.co.nz

under the ‘Contact Us’ tab.

www.strata.co.nz

ADVANCEMULTI205P

Contents

Spare Parts.........................................................5

Know Your Machine............................................6

Installation and Adjustment................................7

Overview.............................................................8

MIG Welding.....................................................10

MIG Welding Setup...........................................20

MIG Welding Parameters..................................24

MMA Welding...................................................25

MMA Welding Setup.........................................29

MMA Welding Parameters................................31

TIG Welding......................................................32

TIG Welding Setup............................................41

TIG Welding Parameters...................................45

Machine Settings Parameters...........................46

Welding Parameters.........................................48

Care and Maintenance......................................52

Troubleshooting...............................................53

Available Parts and Accessories.......................57

Safety................................................................61

Warranty...........................................................68

3www.strata.co.nz

ADVANCEMULTI205P

4www.strata.co.nz

ADVANCETIG 200AC/DC

CORROSION

RESISTANT

SPIKE/

GENERATOR

SAFE

IGBT

INVERTER

TECHNOLOGY

INTELLIGENT

PROTECTION

SYSTEM

ALTERNATING/

DIRECT

CURRENT

230V 50HZ

SINGLE

PHASE

SPOOL

GUN

READY

PULSE

WELDING

OUTPUT

POWER

FACTOR

CORRECTION

START

TIG

LCD

COLOUR

SCREEN

• ADVANCEMULTI205P •

4-IN-1 MIG/MMA/AC TIG/DC TIG

WELDER

Featuring the latest in welding technology the ADVANCEMULTI205P is one machine for every job. Capable of

AC TIG, DC TIG, MMA, MIG, and Pulse MIG functions this is the ultimate 4-in-1 machine. Designed tough for NZ

conditions the ADVANCEMULTI205P will become your new go-to welder.

* 36 Month Warranty only with online registration of product - www.strata.co.nz

ADVANCEMULTI205P

DIMENSIONS

(LxWxH)

WEIGHTINPUT POWER

SUPPLY

INPUT POWER

SUPPLY

TOLERANCE

MAXIMUM

INPUT CURRENT

GENERATOR

CAPACITY

MMA, AC/DC TIG

CURRENT

OUTPUT

MMA DUTY

CYCLE

675x220

x430mm

21kg 230V AC 15A

50/60Hz

90 - 275V AC 34A 10kVA10-200A

MIG CURRENT

OUTPUT

30A-200A

MOG O/C

VOLTAGE

10V-27V 75V200A@20%

130A@60%

100A@100%

200A@25%

130A@60%

100A@100%

200A@25%

130A@60%

100A@100%

AC/DC TIG DUTY

CYCLE

MMA O/C

VOLTAGE

MIG DUTY

CYCLE

TIGPULSE

FREQUENCY

0.5 - 999Hz

TIG PULSE

WIDTHRANGE

5 - 95%

STANDARDS WARRANTY

36 months*

with

registration

EN60974-1:

2012

INSULATION

CLASS

POWER

FACTOR

IP23 0.99

POWER

EFFICIENCY

80%

MMA

ROD SIZE

1.6- 5.0mm

TIGGAS POST

FLOW/PRE-FLOW

ADJUSTMENT

0-20s

AC TIG

WAVEFORM

Square wave

Sine wave

Triangular wave

Mix

FREQUENCY

ADJUSTMENT

50-250Hz

••

• One machine for every job with Advanced Multi Process Technology

- AC/DC TIG, MMA, MIG, Pulse MIG functions

• 5" Full Colour LCD Display

• Active PFC Technology, reduced power consumption

• Advanced TIG Functions Mix AC/DC Waveforms, Advanced Waveform

Control, Advanced Spot Welding and Synergic Smart TIG Operation.

• Lift TIG and HF Start

• 2T/4T Plus Smart 4T Programmability and Spot Trigger Modes

• Electronic HF Tig Arc Ignition System for low EMF interference

• Pulse MIG Function, Manual MIG Function, Smart Synergic MIG

Function and Spool Gun Connection

• Suitable for MIG brazing with bronze wires.

• Advanced MMA Features Pulse, AC or DC, Adjustable hot start and

arc force controls

• Multi Voltage Input, great for running off Generators and long

extension leads.

• Switchable Smart Cooling Fan Control

• Externally upgradeable software via USB Connection (input only)

• Accessories Include: Strata Professional PRO26 25ft TIG torch with

thumbwheel remote control, Strata Professional MT250-40ER MIG

Torch, 4m MMA lead with heavy duty twist lock electrode holder,

3m Earth Lead with heavy duty earth clamp, Strata 2 Stage Flowmeter

Argon Gas Regulator, Argon Regulator/CO2 Cylinder Adaptor, 4m Gas

Hose, MIG Wire Drive Roller 0.6/0.8mm 'v' groove, MIG Wire Drive

Roller 0.9/1.0mm 'v' groove , MIG Wire Drive Roller 0.8/0.9mm

knurled' groove.

5www.strata.co.nz

ADVANCEMULTI205P

DescriptionPart number

MT250-4E MB25 Mig Torch 4m (Euro)

MB25KIT MIG Consummables Starter Kit - MB25

MCN2571 Nozzle cylindrical (2 pk

MCN2570 Nozzle conical (2 pk)

MCN2572 Nozzle - Tapered (2 pk)

MMT2406 Mig tip 0.6mm (5 pk)

MMT2408 Mig tip 0.8mm/0.35 (5pk)

MMT2409 Mig tip 0.9mm/035 (5pk)

MMT2410 Contact Ti p 1.0mm/040 (5 pk)

MMT2410AL Contact Tip 1.0mm/040 ALI (5 pk)

MMT2412AL Contact Tip 1.2mm/045 ALI (5pk)

MTA2481 Tip Adaptor

MSS2557 Shroud spring (2 pk)

MSL1549 Steel liner 0.6 - 0.9mm 4m

MSL2442 Steel liner 1.0 - 1.2mm x 4m

MTL2442T Steel liner 1.0 - 1.2mm x 4m

MTL2442T Teflon liner 1.0 - 1.2mm x 4m

17374 TIG Torch Pro-Grip 26 X 25Ft, Tgc End (Large Dinse) M12,(needs correct plug to be ﬁtted )

SP240P Spool Gun MB24 8m 9 Pin Remote Plug C/W Carry Case

AAL3550 Arc Lead 25mm2 cable, 35-70mm plug, 4m 300A Twist-lock Electrode holder

AEL3550 Earth Lead 25mm2 cable, 35-70mm plug, 3m 300A Heavy duty earth clamp

GR101AR Argon Twin Gauge Regulator

GADC02 C02 Cylinder to Argon Regulator Ardaptor inc. nylon washer

MMA Consumables

Regulators

ADVANCEMULTI205P Related Parts

MIG Torch & Consumables

Drive Rollers

Liner

TIG Torch

Spool Gun

SW17831 30mm OD x 22mm ID Wire Feeder Drive Roller 0.6/0.8mm 'v' groove

SW17832 30mm OD x 22mm ID Wire Feeder Drive Roller 0.9/1.0mm 'v' groove

SW17833 30mm OD x 22mm ID Wire Feeder Drive Roller 0.8/0.9mm 'k' groove flux cored

SW17834 30mm OD x 22mm ID Wire Feeder Drive Roller 0.8/1.0mm 'u' groove

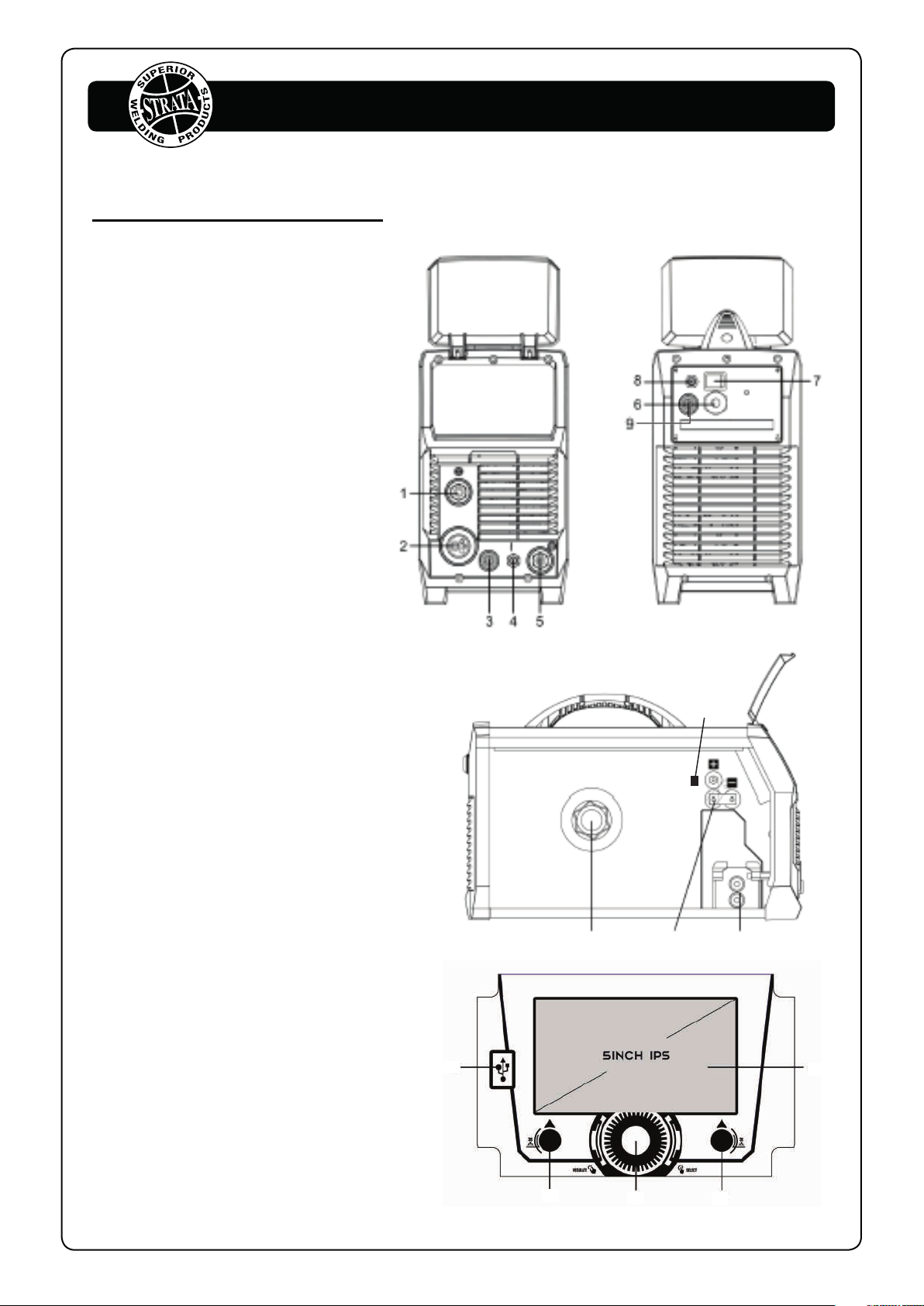

Know Your Machine

1. Positive (+) welding power

output connection socket.

2. MIG torch euro connector.

3. 12 pin remote connection socket.

4. TIG torch gas connector.

5. Negative (-) welding power output

connection socket

6. Input power cable.

7. Power switch.

8. Gas inlet connector.

9. 9 pin remote connection socket.

Wire Feeder of welding machine

10. Spool holder.

11. MIG Torch Polarity Change Power

Connection.

12. Wire feeder.

13. Spool gun switch.

Control Panel of welding machine

14. USB connector

15. Left button

16. Main knob

17. Right button

18. 5 INCH IPS screen

Front and rear layout of welding

machine

1110

15 16 17

www.strata.co.nz

ADVANCEMULTI205P

1 Installation and Adjustment

1.1 Parameters

Model

Parameters

ADVANCEMULTI205P

Input Voltage（V）1~220/230/240±10%

Input Current（A）28 MIG 32 MMA 22 TIG

Input Power（KW ）6.2 MIG 7.3 MMA 4.9 TIG

Welding Current（A）30-200 (MIG) 10~200(MMA/TIG)

Welding Voltage（V）10-27 (MIG)

No-load Voltage（V）67 (MIG) 14 (TIG/MMA)

Power Factor 0.99

Duty cycle（40℃）

25%200A

60%165A

100%130A

Diameter(mm)

Fe ：0.6,0.9,1.0 Ss: 0.8, 0.9, 1.0

Flux-Cored: 0.6, 0.8, 0.9, 1.0

Protection class IP23

Insulation class H

Cooling continuous/on demand

Dimensions（mm）675x220x430mm

Weight（Kg ）21KG

Note: The above parameters are subject to change with the improvement of machines.

7www.strata.co.nz

ADVANCEMULTI205P

2 Overview

2.1 Brief Introduction

The MIG series of welding machines

adopts the latest Pulse Width Modulation (PWM)

technology and the Insulated Gate Bipolar Transistor

(IGBT) power modules. It uses switching frequencies

in the 20KHz-50KHz range so as to replace the

traditional line-frequency transformer type welding

machines. These machines are characterized with

excellent dynamic response, portability, compact

size, light weight, low energy consumption, etc.

The MIG series of welding machines uses mixed gases

as shielding gas to achieve gas shielded welding, active

gas（Ar+O2, Ar+CO2）as shielded gas to realize MAG

welding and inactive gas(Ar)as shielded gas to realize

MIG welding.

MIG series of welding machines has built-in automatic

protection functions to protect the machines from over-

voltage, over-current and over-heat. If any one of the

above problems happens, the alarm lamp on the front

panel will be lit and output current will be shut off

automatically for the machine to protect itself and

prolong the equipment using life.

MIG series Features:

1. Digital control system, real-time display

the welding parameters.

2. High performance multifunction power

source (MIG/MAG, MMA &TIG ACDC).

3. Waveform control, stable welding arc.

4. IGBT technology, for low power

consumption.

5. Rated MIG Duty Cycle：

MIG series of welding machine is suitable for

all positions welding for various plates made

of stainless steel, carbon steel, alloyed steel,

copper, titanium, etc, which is also applied to

pipe instalment, mould mend, petrochemical,

architecture decoration, car repair, bicycle,

handicraft, and common manufacture.

MAG = Metal Active Gas Welding

MIG = Metal Inert Gas Welding

ADVANCEMULTI205P = 200A @25%(40°C)

www.strata.co.nz

ADVANCEMULTI205P

2.3 Characteristic Volt-Ampere

0 600 Io（A）

Uo（V）

Working point

Volt-ampere characteristic The relation between the rated loading

voltage and welding current

Current

2.2 Working Principle

The working principle of MIG SERIES arc

welding machine is shown as the following

figure. Single-phase 110V/220V work

frequency AC is rectified into DC, then is

converted to medium frequency AC by

inverter device (IGBT), after reducing voltage

by medium transformer (the main transformer)

and rectifying by medium frequency rectifier

(fast recovery diodes) and is outputted by

inductance filtering. The circuit adopts current

feedback control technology to insure current

output stably when MMA or TIG. And adopts v

oltage feedback control technology to insure

voltage output stably when MIG. Meanwhile,

the welding current parameter can be adjusted

continuously and infinitely to meet with the

requirements of welding craft.

MIG series welding machine has an excellent volt-

ampere characteristic, whose graph is shown as

the following figure.

The relation between the rated loading voltage U2

and welding current I2 is as follows:

U2=14+0.05I2(V)

9www.strata.co.nz

ADVANCEMULTI205P

2.3 MIG Welding

Definition of MIG Welding

MIG (metal inert gas) welding also known as

GMAW (gas metal arc welding) or MAG

(metal active gas welding), is a semi-automatic

or automatic arc welding process in which a

continuous and consumable wire electrode

and a shielding gas are fed through a welding

gun. A constant voltage, direct current power

source is most commonly used with MIG

welding. There are four primary methods of

metal transfer in MIG welding, called short

circuit (also known as dip transfer) globular

transfer, spray transfer and pulsed-spray,

each of which has distinct properties and

corresponding advantages and limitations.

To perform MIG welding, the basic

necessary equipment is a welding gun, a wire

feed unit, a welding power supply, an

electrode wire, and a shielding gas supply.

Short circuit transfer is the most common

used method whereby the wire electrode is fed

continuously down the welding torch through

to and exiting the contact tip.

The wire touches the work piece and

causes a short circuit the wire heats up

and begins to form a molten bead, the

bead separates from the end of the wire

and forms a droplet that is transferred

into the weld pool. This process is

repeated about 100 times per second,

making the arc appear constant to the

human eye.

www.strata.co.nz

ADVANCEMULTI205P

Table des matières

Autres manuels Strata Système de soudage

Strata

Strata EZIMIG185C Manuel utilisateur

Strata

Strata EZIMIG 205 Manuel utilisateur

Strata

Strata EZIMIG 200 Manuel utilisateur

Strata

Strata ADVANCEARC 160 Manuel utilisateur

Strata

Strata ADVANCECUT 45 Manuel utilisateur

Strata

Strata ADVANCEMIG 250 Manuel utilisateur

Strata

Strata ADVANCEMIG 350 Manuel utilisateur

Strata

Strata EZITIG 180 Manuel utilisateur

Strata

Strata EZITIG 205DC Manuel utilisateur

Strata

Strata ADVANCEMIG 200 Manuel utilisateur

Strata

Strata EZIARC 160 Manuel utilisateur

Strata

Strata ADVANCECUT 75 Manuel utilisateur

Strata

Strata ADVANCEMIG 255C Manuel utilisateur

Strata

Strata ADVANCEARC 400 Manuel utilisateur

Strata

Strata ADVANCEARC 165 Manuel utilisateur

Strata

Strata ADVANCETIG 200 Manuel utilisateur

Strata

Strata XM255PRO Manuel utilisateur

Strata

Strata ADVANCETIG 200AC/DC Manuel utilisateur

Strata

Strata EZIARC 165 Manuel utilisateur

Strata

Strata ADVANCETIG 320AC/DC Manuel utilisateur

Strata

Strata ADVANCECUT 65 Manuel utilisateur

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

ESAB

ESAB Buddy Arc 145 Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur
