Stoltzen PTZ3000 Manuel utilisateur

PTZ3000

User Manual

Version V1.0

（English）

CONTENT

CONTENT .......................................................................................................................1

SAFETY GUIDES..............................................................................................................2

PACKING LIST .................................................................................................................3

QUICK START..................................................................................................................3

PRODUCT HIGHLIGHTS ..................................................................................................4

CAMERA INTERFACE ......................................................................................................6

VISCA IN （RS232 PORT）...........................................................................................9

PELCO-D PROTOCOL COMMAND LIST.........................................................................17

PELCO-P PROTOCOL COMMAND LIST .........................................................................18

WEB SETTING...............................................................................................................23

USING VCL TO VIEW RTSP/RTMP VIDEO.....................................................................27

VISCA OVER IP .............................................................................................................28

SAFETY GUIDES

1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the

camera.

2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on.

3.The camera power voltage is 12VDC, rated currency is 2A. We suggest you use it with the original power supply adapter supplied

by the factory.

4.Please keep the power cable, video cable and control cable in a safe place. Protect all cables especially the connectors.

5.Operational environment: 0℃-50℃, humidity less than 90%.To avoid any danger, do not put anything inside the camera, and

keep away from the corrosive liquid.

6.Avoid stress, vibration and damp during transportation, storage and installation.

7.Do not detect the camera housing and cover. For any service, please contact authorized technicians.

8.Video cable and control cable should be individually shielded, and cannot be substituted with other cables. Do not direct the

camera lens towards strong light, such as the sun or the intensive light.

9.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent when there is need to clean. To avoid

damage on the camera lens, never use strong or abrasive cleaning agents on the camera housing.

10.Do not move the camera by holding the camera head. To avoid mechanical trouble, do not rotate the camera head by hand.

NEVER MOVE THE CAMERA MANUALLY WHEN IT IS WORKING.

11. Put the camera on fixed and smooth desk or platform, avoid leaned installation.

12. Power Supply Polarity (Drawing)

Note:

The video quality may be affected by the specific frequencies of electromagnetic field.

Never grasp the head of the camera, and never move the camera by hand when it is working, otherwise, mechanism maybe

destroyed.

PACKING LIST

Check all bellow items when open the package:

Camera ············································································································· 1

Power Adapter·································································································· 1

Power Cable······································································································ 1

RS232 Control Cable ························································································· 1

USB3.0 Cable ···································································································· 1

Remote Controller ···························································································· 1

User Manual ····································································································· 1

Double-sided Adhesive ····················································································· 1

QC certification································································································· 1

QUICK START

1. Check all cable connections before power on.

2. Dial Switch Setting (at the bottom of the camera):

Dial Switch（ARM）

SW-1

SW-2

Instruction

OFF

Updating mode

OFF

Debugging mode

OFF

Undefined

Working mode

Dial Switch （USB）

SW-5

SW-6

Instruction

OFF

Working mode

OFF

Updating mode

OFF

Undefined

Dial Switch

SW-3

SW-4

Instruction

OFF

reserve

OFF

reserve

OFF

reserve

PRODUCT HIGHLIGHTS

•Adopts most advanced ISP, 1/2.8-inch 5MP sensor, providing full HD video resolution and crystal clear image.

•High end 20x optical zoom lens with 60-degree field of view.

•IP, HDMI, 3G-SDI, USB video outputs interface, fit for different application

•White Balance, Exposure, Focus, Iris can be adjusted automatically or manually.

•Support POE: one single CAT5/6 to get video, control, power supply and highly efficient video encoder.

•Special Focusing Algorithm: fast and precise focusing performance when zooming or moving,

•Smooth PTZ mechanical design, accurate pan tilt motor control.

•128 presets supported.

•Standard Sony VISCA, VISCA over IP, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.

•Daisy chain supported, max 7 cameras connected in VISCA protocol.

•Image flip function, and support upside-down installation.

•Supplied with functional IR remote controller, can set IP address via OSD menu.

•Fast video format switch: less than 3 seconds

•Supported field upgrade for ISP, ARM, FPGA and USB

•USB3.0 port compatible with USB2.0 output.

•Support RS232/RS485/UVC control

•Standard UVC1.5 protocol, seamlessly compatible with major video conferencing software and platform

•Support IR transfer function, code of the third-party remote controller can be transferred to the host via VISCA IN port,

in case client’s development.

•OSD menu in English and Chinese supported. IP address, streaming resolution and size can be set in OSD menu.

Technical Spec

Video Format

HDMI

1920*1080P60/50/30/25

1920*1080I60/50

1280*720P60/50/30/25

SDI

1920*1080P60/50/30/25

1920*1080I60/50

1280*720P60/50/30/25

USB

1920*1080P60/50/30/25（USB3.0）

1280*720P60/50/30（USB3.0）

1280*720P25（USB3.0&USB2.0）

1024*576P30（USB3.0&USB2.0）

960*540P30（USB2.0）

640*360P30（USB2.0）

352*288P30（USB2.0）

RJ45

1920*1080@1~60 //1280*720@1~30（Main Stream）

1280*720@1~30 / 1027*576@1~30 / 640*360@1~30 （Sub

stream）

Video Interface HDMI,3G-SDI,RJ45, USB3.0

Sensor 1/2.8” 5MP CMOS sensor

Zoom F4.9～98mm(20X), F1.5 – 3.0, View Angle:60°(Far)-3.2°(Near)

Rotation Angle Pan: -170° ~ +170°; Tilt: -30° ~ +90°

Rotation Speed Pan: 0°~120°/s ; Tilt: 0°~80°/s

Preset: Remote controller: 10; RS232: 128; Accuracy: 0.1°

Control Port RS232、RS485(optional)、RJ45 (VISCA over IP)、USB3.0(UVC1.5)

Network Speed 1000M

Video encode H.264/H.265(default: H.264)

Bit Rate Control Variable Bit Rate, Constant Bit Rate

Video Bit Rate 1024Kbps~10240bps

IP Protocol T C P/ I P, H T T P, R T S P, RTMP, ONVIF, DHCP, VISCA over IP (UDP&TCP), HTML5

POE Supported

Daisy Chain Support RS232 serial daisy chain

Minimum Lux 0.1lux

White Balance Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Exposure Auto/Manual/Bright/Shutter/Iris

Focus Auto / Manual

Iris Auto / Manual

Electric Shutter Auto / Manual

Gamma Supported

WDR Supported

BLC Supported

2D Noise Reduction Supported

3D Noise Reduction Supported

Anti Flicker OFF/50Hz/60Hz

Pan/Tilt Flip Supported

Input Voltage DC12V/POE

Dimension 220mm×190mm×173mm

Net Weight 1.4KG（3.1LBS）

CAMERA INTERFACE

1.Camera Lens

2.Camera Base

3.IR Receiver Panel

4.Power Indicator Light

5.Dial Switch

6. Tripod Screw Hole

7. Installation Hole

8. RS232 control port (input)

9. RS232 control port(output)

10. HDMI port

11.3G-SDI port

12, USB port

13, RJ45 port

14. DC12V plug

CAMERA DIMENSION(MM)

IR REMOTE CONTROLLER

POWER

Under normal working mode, short press POWER key, to enter standby mode;

Press it again, the camera will do self-configuration, then go back to HOME position.

It will go to preset position if power on model has been set before.

FREEZE （Not Supported in USB）

Short press FREEZE key to freeze/ unfreeze the image.

IRT (IR Transfer/IR Pass)

Open / close the IR pass function. Once press the IRT key, the camera will receive and

Pass the IR remote control signal to the codec/terminal (via VISCA IN port).

SET 1~SET4 ADDRESS SETTING

Long press for 3seconds until the key light ON, to set camera address.

CAM1~CAM4（CAMERA SELECTING）

Short press to select the relative camera.

NUMBER KEY (1-9)

Set preset: long press (3 seconds) the number key to set preset.

Run preset: Short press the number key to run preset.

CLR PRE (CLEAR PRESET)

CLR PRE+ number key: to clear the relative preset.

Long press to clear all preset.

FOCUS KEY ( ON THE LEFT)

Manual focus, only valid under manual focus model.

ZOOM KEY( ON THE RIGHT SIDE)

Set the zoom rate

NAVIGATE KEY: UP/DOWN/LEFT/RIGHT

Under working mode, use navigate key to set the pan tilt, and select menu when enter

OSD.

OK /HOME KEY

Under working mode, short press OK to make the camera go back to HOME position;

and confirm the selection when enter OSD.

AF: Auto Focus

MF: Manual Focus

RESET: Press 3 seconds to reset camera

MENU: Enter OSD menu

LEARN+LIMIT L key: Set the pan tilt left limit position.

LEARN+LIMIT R key: Set the pan tilt right limit position.

LEARN+LMT CLR key: Clear the limit position.

BLC OFF/ BLC ON：Not Available

BRIGHT-/BRIGHT+: Set image brightness, only valid under bright priority exposure mode.

Video Format Keys:

Long press 3 seconds to select different video format output.

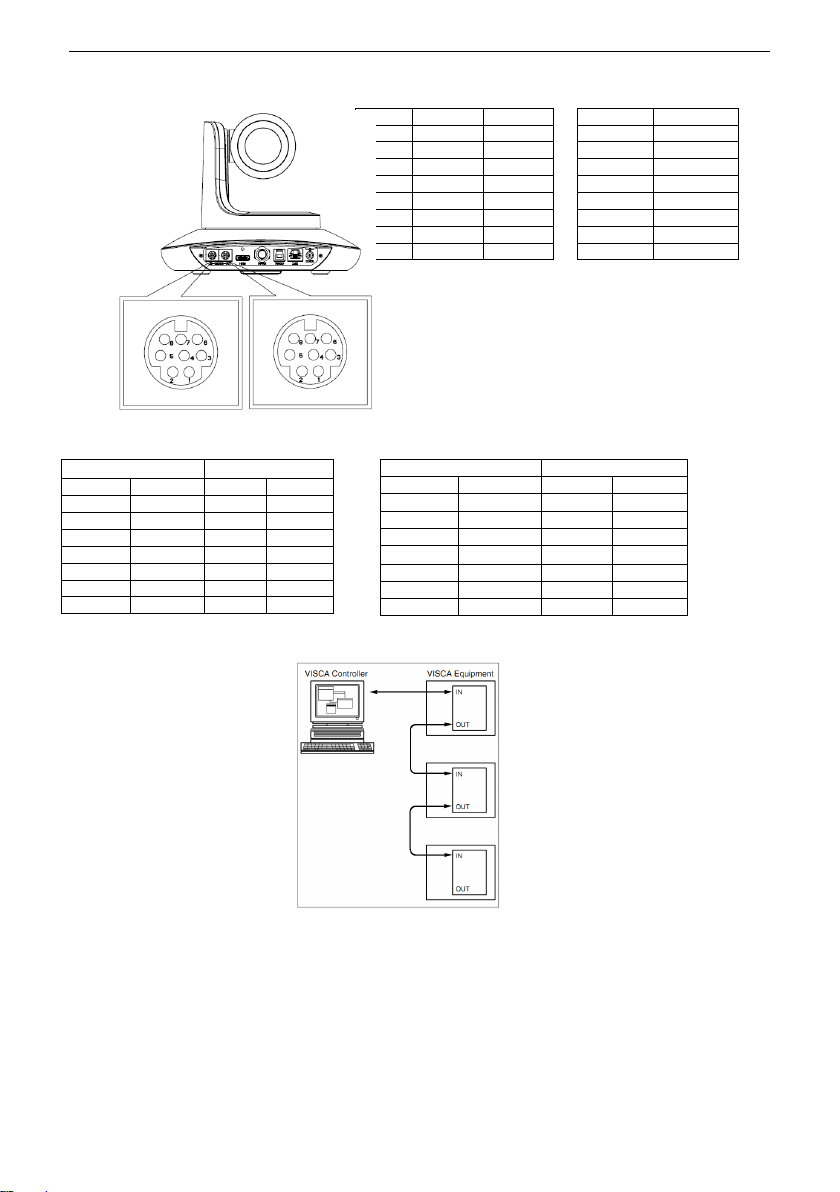

VISCA IN （RS232 PORT）

No.

V_IN

V_OUT

VISCA IN

RS485

DTR

DSR

TXD

GND

RXD

A(+)

IR OUT

B(-)

VISCA Network Construction:

VISCA IN &Mini DIN Connection

Camera VISCA IN

Mini DIN

DTR

DSR

DTR

TXD

RXD

GND

RXD

TXD

A(+)

IR OUT

B(-)

VISCA IN & DB9 Connection

Camera VISCA IN

Windows DB-9

DTR

DSR

DTR

TXD

RXD

GND

RXD

TXD

A(+)

IR OUT

B(-)
