Mobilisation - Assembly
IMPORTANT: To avoid assembly problems follow these instructions exactly.
Step 1 - Support the Ladder lying flat on its front face and prop open the frames as shown. (See illustration No. 1)
Step 2 - Using the M6 x 30mm Screws and Nyloc Nuts supplied, fit the Rubber Bump Stops on the inside face of the
Front Frame at A and B just below the bottom tread. (See illustration No. 2)
Step 3 - Remove the Screw and Nut at C and discard. Fix the Wheel Brackets to the inside of the rear frame as shown
using the M8 x 40mm Screws, M8 BODY Washers and Nyloc nuts supplied. Ensure the Washer is positioned
under the head of the Screw. Repeat for the other side.
(See illustration No. 3)
Step 4 -Fit a Washer to the M12 x 85 Hex Bolt. Place the Wheel Bearing inside the wheel and pass the bolt thru the
wheel and bearing. Place another Washer over the end of the Bolt and position on the bracket as shown. Fasten with the
Nyloc nuts supplied. (See illustration No. 4)
3
www.stockmastereurope.nl
Mobilisation - Assembly
Illustration 1 Illustration 2
Illustration 3 Illustration 4
A
B
M6 x 30
M8 x 40
M12 x 85
C
4
www.stockmastereurope.nl
Control Handle - Assembly
Illustration 5 Illustration 6
M6 x 16
D
E
IMPORTANT: To avoid assembly problems follow these instructions exactly.
Step 5 - Fix the Control Handle Brackets to the Control Handle. Pass the E Pin thru the hole in the Control Handle
and Bracket and secure with an E Clip. (Tip- The clip may be pushed into place with a coin or screwdriver blade) (See
illustration No. 5)
Step 6 - Fix the Control Handle Brackets to the underside of the 4th Tread up from the bottom of the front frame
using the M6 x 16 screws and M6 Spring Washers at D & E. Remove the prop from between the frames. (See illustration
No. 6)
5
www.stockmastereurope.nl
Safety Gate - Assembly
IMPORTANT: To avoid assembly problems follow these instructions exactly.
Step 7 - Turn the Ladder over and support the Ladder lying flat on its back, front facing upward. Lay the gate
assembly over the top of the ladder. (See illustration No. 7)
Step 8 - On the longer 8 x 40mm Shoulder bolt, place 1 Nylon washer sandwiched between 2 x M8 Steel Washers.
Place both shoulder bolts in the Tray F then position yourself at the top of the ladder as shown and suppoprt the gate
assembly. (See illustration No. 8)
Illustration 7 Illustration 8
F
Steel Washers
Nylon Washer
6
www.stockmastereurope.nl
IMPORTANT: To avoid assembly problems follow these instructions exactly.
Step 9 - Position the locating plunger G protruding from the inside face of the Nylon wear plate. In hole H on the
LHS rear safety bar side plate. (See illustration No. 9)
Step 10 - Insert the 8 x 30 Shoulder bolt (shorter bolt) thru hole I and screw into hole J on the RHS rear safety bar
side plate. Fasten with the supplied Nyloc Nut on the inside of the ladder stile. -
Finger tight only
.
(See illustration No. 10)
Step 11 - Insert the 8 x 40 Shoulder bolt with washer pack on the Nylon plate side. Fasten with the supplied Nyloc
Nut on the inside of the ladder stile then tighten this side fully first then the other. Release the Plunger K and rotate the
gate thru 70 deg. Ensure the Plunger ocates in both the open and closed travel positions. (See illustration No. 11)
Note: The Plunger K has a rest position. If you pull the plunger out and rotate it thru 90 deg it will stay in an open
position for ease of gate rotation.
Step 12 -
Using the M6 x 50mm Screw and Nyloc Nut supplied, fit the Rubber Bump Stop on the outside of the
gate arm as shown. (See illustration No. 12)
Safety Gate - Assembly
7
www.stockmastereurope.nl

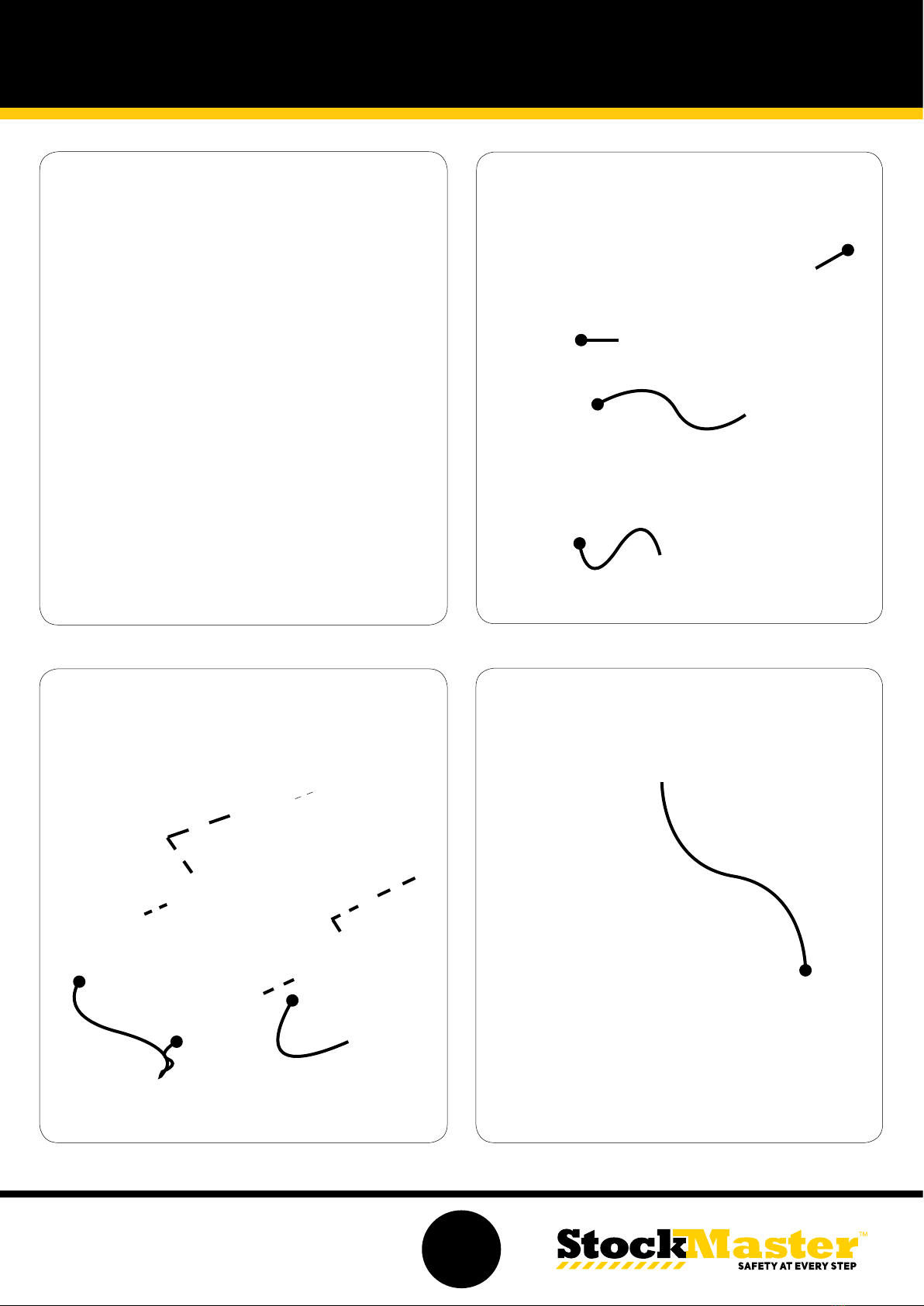

Illustration 9 Illustration 10
Illustration 11 Illustration 12
J
I
8 x 30 Shoulder Bolt
G
H
8 x 40 Shoulder Bolt
and Washer Pack M6 x 50
K
Rotate
Safety Gate - Assembly
8
www.stockmastereurope.nl
This completes the product assembly.
WARRANTY
Thank you for choosing Stockmaster.
Your safety is in good hands
Register your 2 year warranty online at
www.stockmastereurope.nl
USER INSTRUCTIONS
Before use see the User Instruction Manual at
www.stockmastereurope.nl
Use this manual to form part of your
Risk Assesment
