SG-3 BUGGY SEAT KIT FITTING INSTRUCTIONS
03 5924 6065 stingergolf.com.au info@stingergolf.com.au

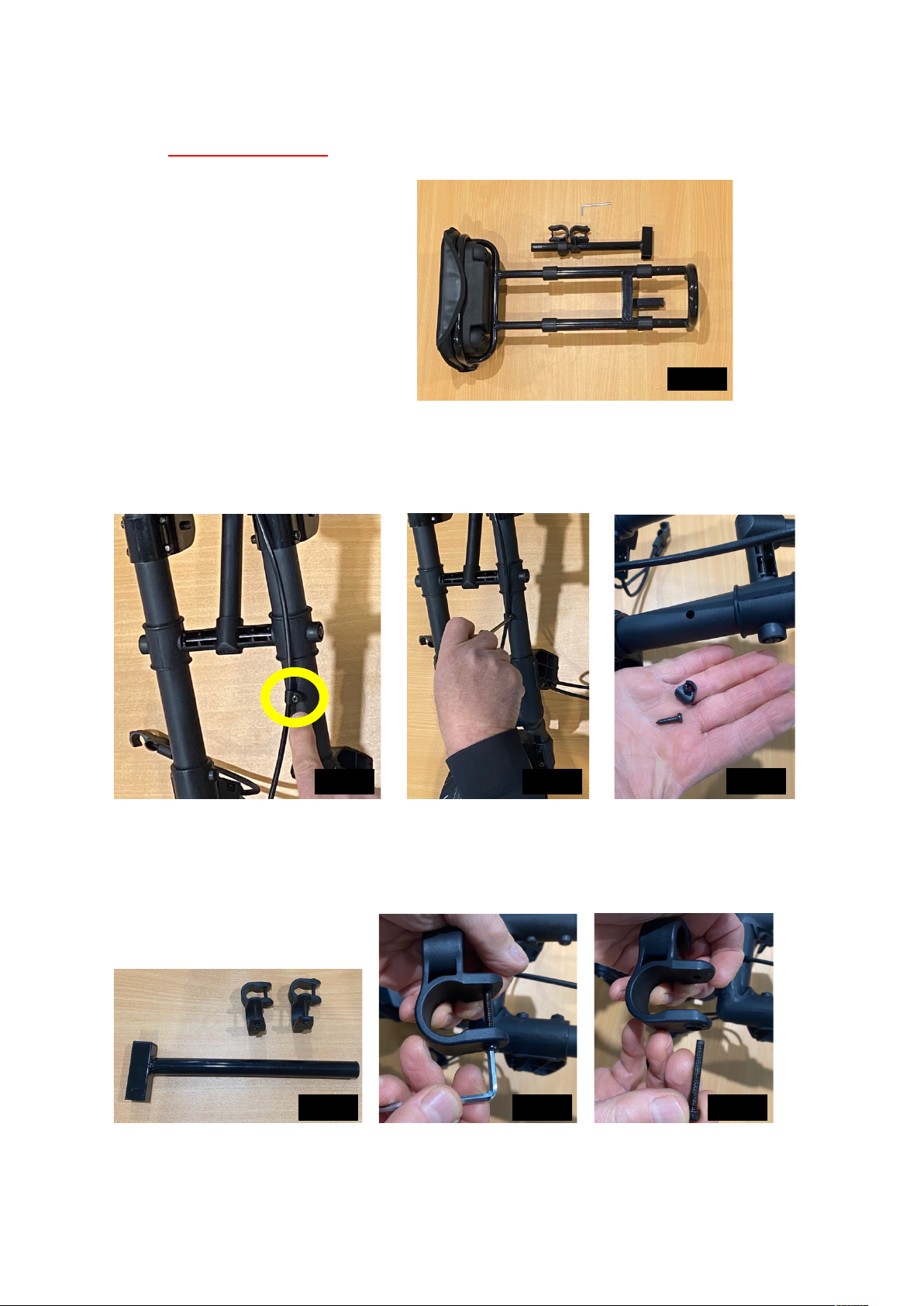

1. Unpack contents from packaging and check you have the below items.
Important reminder: Open the carton from the bottom.
• SG-3 Seat
• SG-3 Mount Bar with 2x Clamps
• 1x Allen Key
2. Turn the SG-3 upside down and using a Phillip screw driver, unscrew the cable
support clip as per images below. Keep screw and clip aside for future use.
3. Remove clamps from Seat Mount Bar and remove screws from both clamps as per
images below. Keep screws aside for future use.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
4. Place clamps on each side of the SG-3 Buggy main frame and screw into place lightly
as per images below. Please note: Do not fully tighten screws at this point in time.
5. Rotate both clamps 180 degrees as per image below. This should now look like figure
10 when in position.
6. Begin feeding the Seat Mount Bar through the clamps, ensuring the cable is beneath
the bar and the knurling is flush with both clamps as per images displayed below.
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
CABLE BENEATH
KNURLING
7. Please ensure the square section of the Mounting Tube slot is closest to the ground
as per image below. Please note: This is with the SG-3 buggy turned back to the
upright position.
8. Once Seat Mount Bar is in the correct position, please tighten all clamp screws as per
image below.
9. Place the SG-3 Seat on the mounting bar as per image below.
Figure 14
Figure 15
