Mounting instructions for merry-go-round „verso“

Item No. 51 4021 401

State: 15.05.2020 p. 1 ·

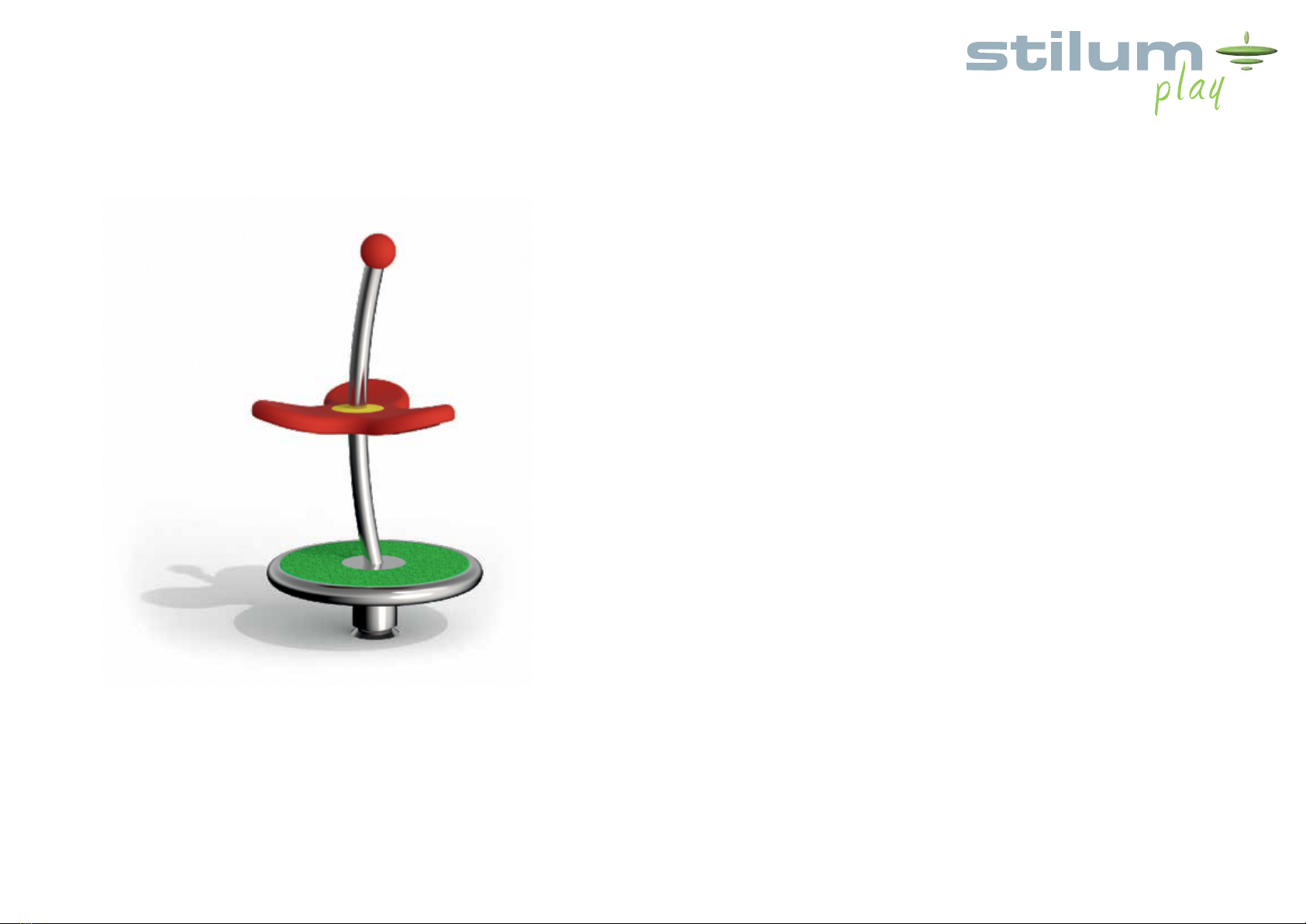

Diagram 1: Overall view of the play equipment

Mounting instructions for merry-go-round „verso“

Item No. 51 4021 401

State: 15.05.2020 p. 2 ·

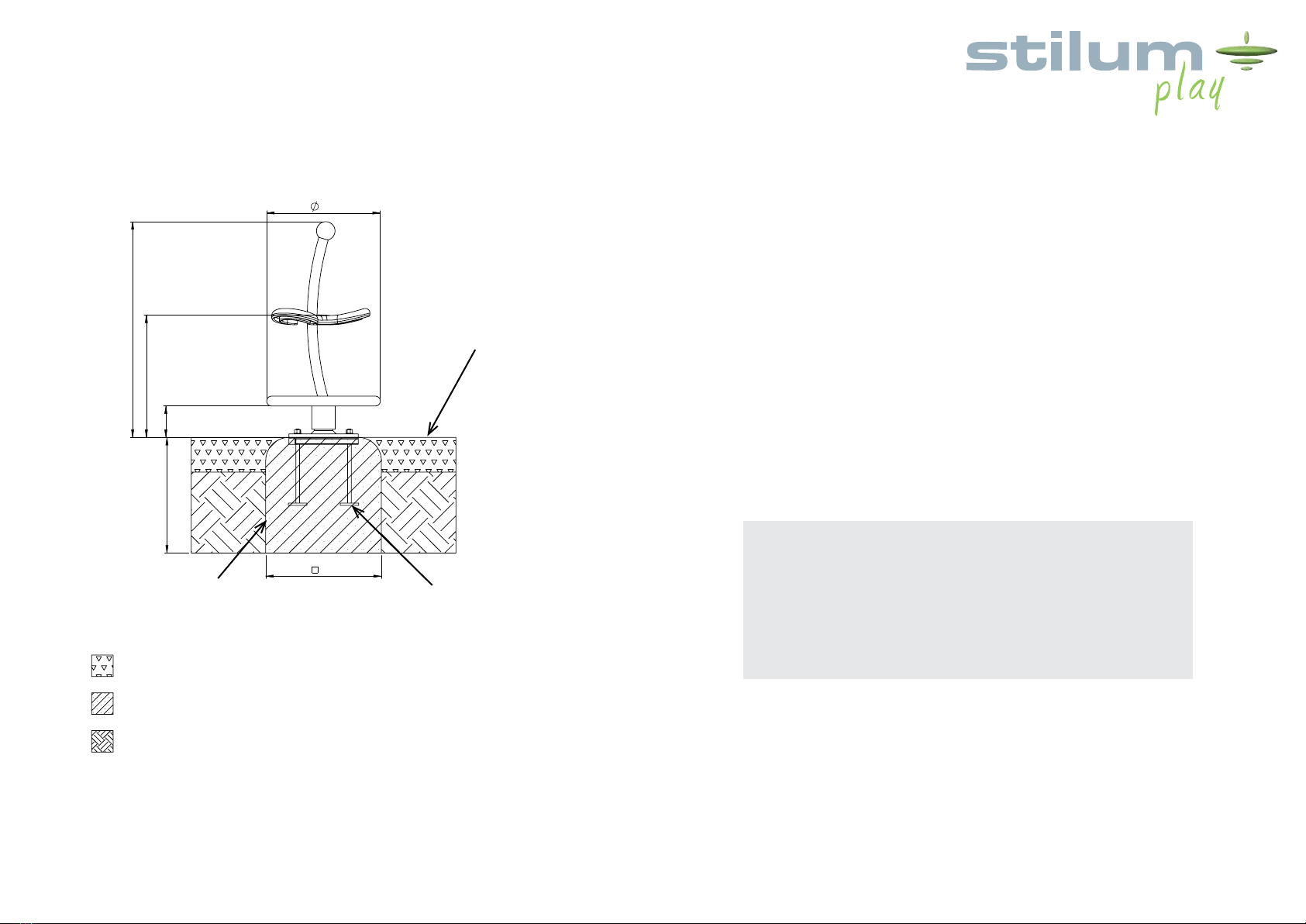

Diagram 2: Foundation plan

Foundation anchor

1. Select the location of the play equipment taking into account the required

minimum space (see diagram 3: Ø 3600 mm).

2. The impact area of a playground equipment with an enforced movement is

not allowed to overlap the impact area of other equipment.

According to DIN EN 1176-1, 4.2.8.5.2 shock-absorbing oors must be made

on the entire impact area of every equipment that cause forced movement.

3. Carry out excavation work for the foundation as shown in diagram 2. After

excavation compress the foundation oor.

Note: The roundabout is installed at play level.

4. Set up the concrete foundation according to diagram 2 with central, horizontal

reinforcement. Pour the supplied foundation anchor in the foundation so that

the upper angle frame is horizontal and ush with the foundation surface.

5. After a setting period of 10 – 14 days, depending on weather conditions and

foundation size, ll up and compress the holes between the foundation and

the foundation hole with excavation.

Reinforcement plan: Concrete foundation with reinforcement

Main foundation: BSt 500S

Stirrups Ø 8 mm lengthwise and cross

Concrete cover h´= 3 cm

Concrete quality class C 25/30

play level

Concrete foundation

492

500

933

529

136

500

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

verso

Benennung

Gepr.

Blatt

Datum

Projekt

Gez.

Zeichnungsnummer

1:10

Name

Fundamentplan

0202-00-00

Maßstab

Mattheis

10.01.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

concrete

gewachsenes Erdreich

natural ground

Legende

stoßdämpfender Boden

shock-absorbing floor

04.05.20

stoßdämpfender Boden

DatumÄnderungRev

492

500

933

529

136

500

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

verso

Benennung

Gepr.

Blatt

Datum

Projekt

Gez.

Zeichnungsnummer

1:10

Name

Fundamentplan

0202-00-00

Maßstab

Mattheis

10.01.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

concrete

gewachsenes Erdreich

natural ground

Legende

stoßdämpfender Boden

shock-absorbing floor

04.05.20

stoßdämpfender Boden

DatumÄnderungRev

Mounting instructions for merry-go-round „verso“

Item No. 51 4021 401

State: 15.05.2020 p. 3 ·

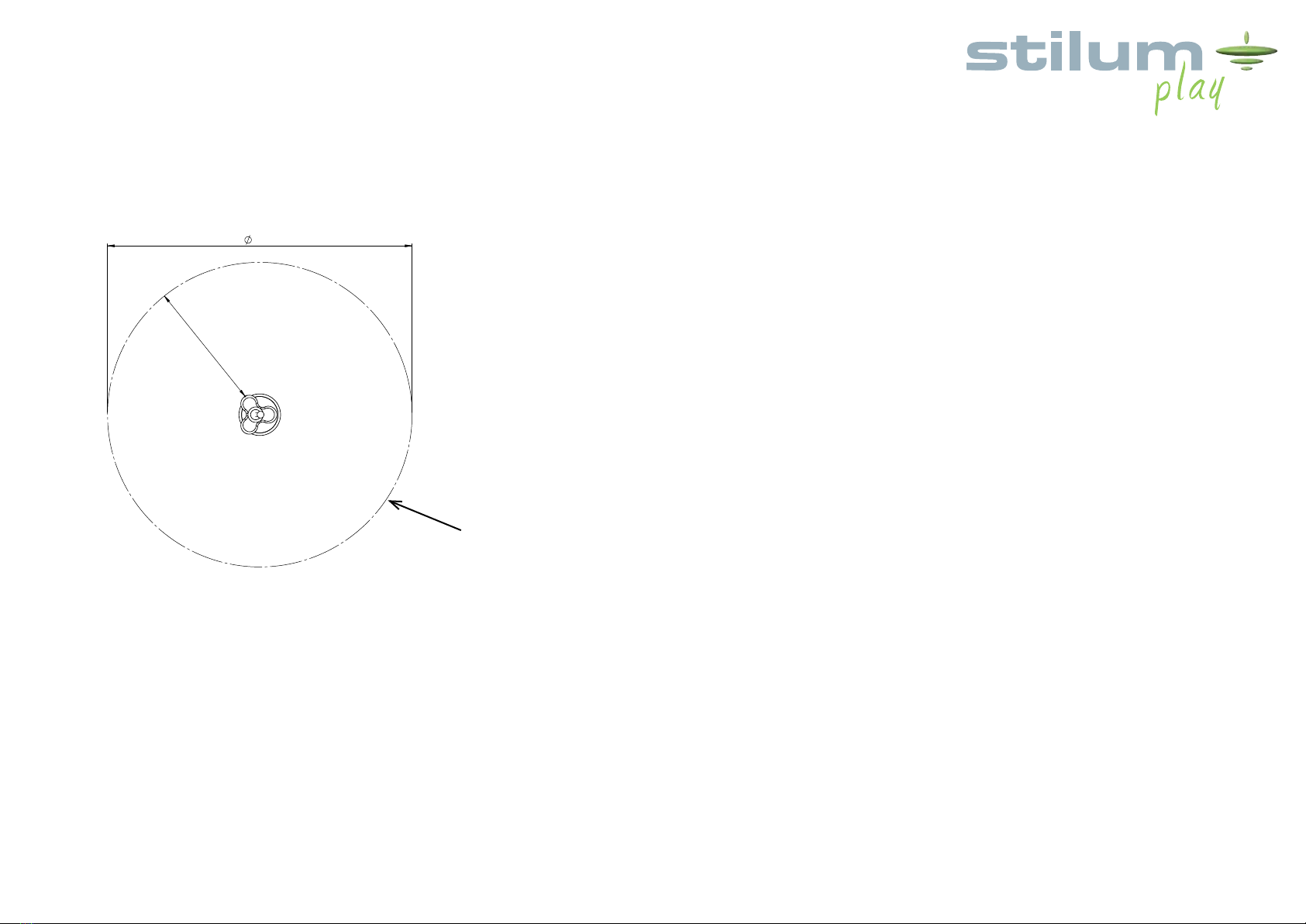

Diagram 3: Top view

6. Cover the entire impact area with fall protection according to the required

drop height in accordance with EN 1176-1.

Critical drop height: 530 mm

Recommended surface material: grass, sand, wood chip, gravel, synth. fall

protection.

7. Clean the foundation surface and place the play equipment on the foundation

anchor and screw it down.

8. Do not allow children to use the equipment before the installation has been

nished.

Attention: If the play equipment has been incompletely installed or partly dis-

mantled when carrying out maintenance and repair work, this may lead to par-

ticular risks of injury for the user. For this reason, make clearly visible that the

equipment shall not be used in such cases.

NOTE: Play equipment, which contain components made of stainless steel

should not come with „normal“ steel parts in contact. Those steel parts may rub

o󰀨 and leave small steel particles in combination with moisture brown rust stains.

If such corrosion occur on stainless steel parts, they are ne with an abrasive

(240 grit) to remove.

Please take care when transporting and setting up the fact that the components

are made of stainless steel with no „normal“ steel parts in contact.

Area of the

minimum space

3600

1522

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

verso

Benennung

Gepr.

Blatt

Datum

Projekt

Gez.

Zeichnungsnummer

Rev Änderung Datum

1:25

Name

Draufsicht

0202-00-00

Maßstab

Mattheis

10.01.17

Fallraum kleiner

08.01.19

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Mounting instructions for merry-go-round „verso“

Item No. 51 4021 401

State: 15.05.2020 p. 4 ·

In order to preserve a good visual appearance of your stilum playground equip-

ment over a long period one should take care of maintenance of the stainless

surface even despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently clea-

ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid cleaner

(e.g. on phosphoric acid) and rinse o󰀨 with clear water after a short application

time. During cleaning with mild abrasive components, only wipe over stainless

steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on

cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl

alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the sur-

face again.

Do not use any chlorid or hydrochloric containing cleaning products nor scouring

powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type

and degree of soiling as well as on demands made on optical characteristics.

Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the playground equipment at

intervals of three to six months.
