Mounting instructions for the dial „devo“

Item No. 51 5212 401

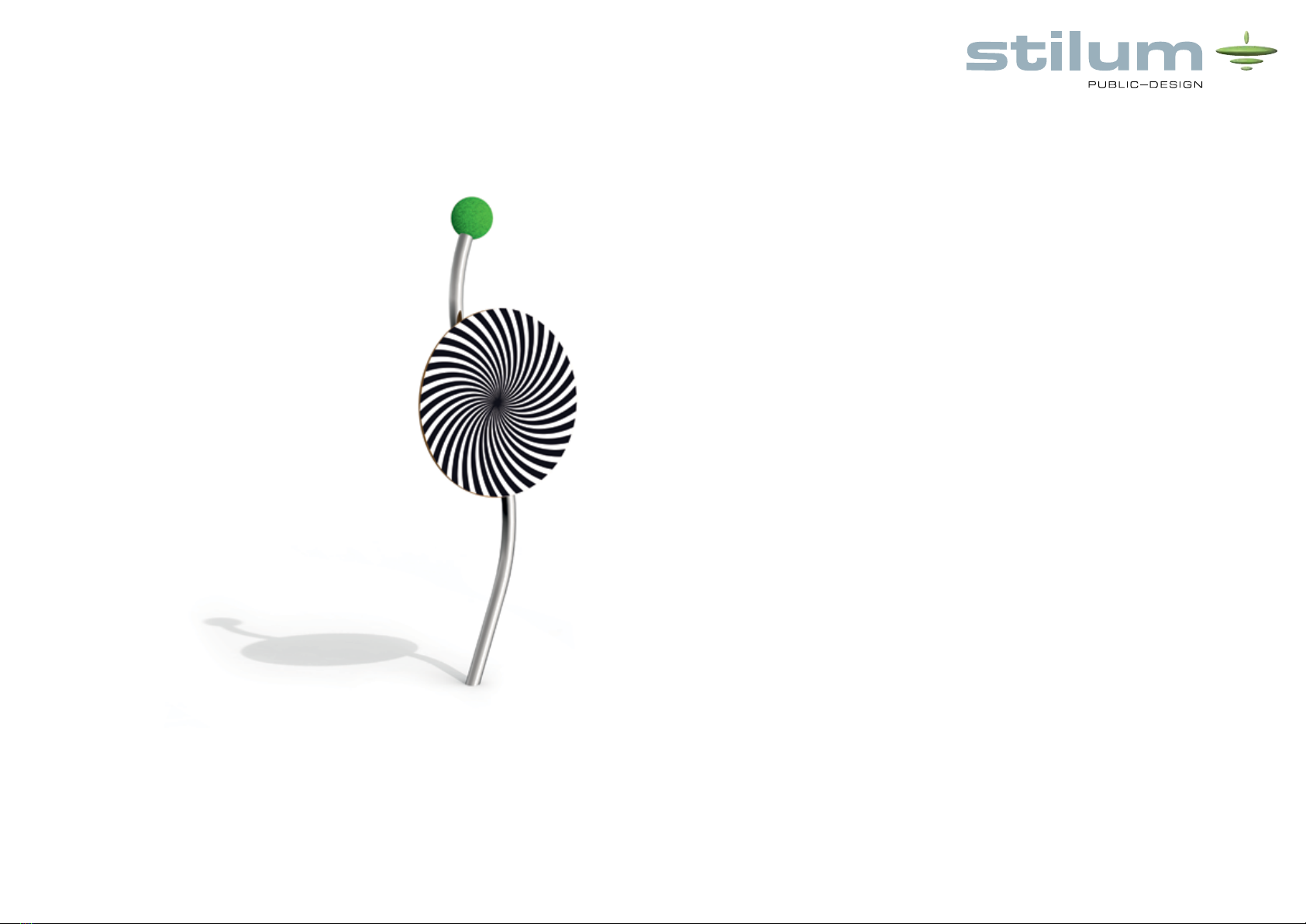

Diagram 1: Overall view of play equipment

Mounting instructions for the dial „devo“

Item No. 51 5212 401

1. Select the play equipment location in consideration of nal positions.

Note: Take care of a sufcent distance to the other playground eqipments.

2. Carry out excavation work for the foundation anchor as shown in Diagram 2.

After excavation, compress the foundation oor.

Note: The dial is built in on the play level. Pay attention to items marked

„game level“ of play equipment!

3. Set up the two concrete foundation acc. to the dimensions indicated (LxWxH

600 x 600 x 500mm) with central, horizontal reinforcement (BST 500 S) in the

quality class C 20/25.

4. After a setting period of 10 – 14 days, depending on weather conditions and

foundation size, clean the surface of the foundation, place the pre-mounted

play equipment onto it and screw the base plate of the play equipment onto

the foundation

5. Existing gaps between the foundation and foundation hole lled up with exca-

Reinforcement plan: Concrete foundation with reinforcement

Main foundation: BSt 500S

Ever 4 stirrups Ø 8 mm lengthwise and cross

Concrete cover h´= 3 cm

Concrete quality class C 20/25

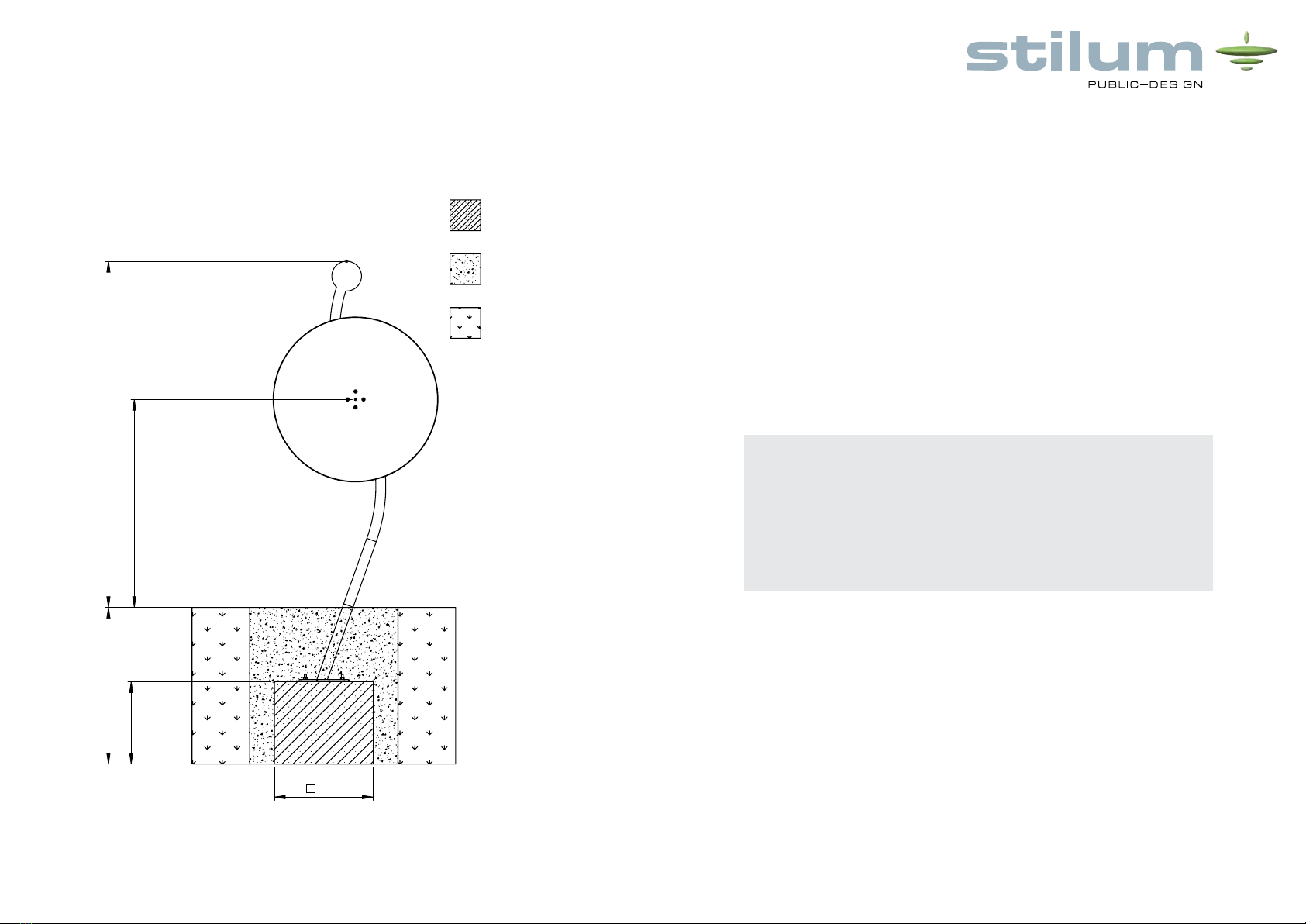

Diagram 2: Foundation plan with dimension details „devo“

500

600

950

2100

1262

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

Oberflächen nach

DIN ISO 1302

Reihe 2

Zul. Abweichung

DIN 2768 - mH

devo

Benennung

Gepr.

Werkstoff

Blatt

Datum

Projekt

Gez.

Zuschnitt

Zeichnungsnummer

Rev Änderung Datum

1:20

Gewicht

Name

Fundamentplan

1604-00-00

1445.3

Maßstab

Schramm 28.06.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

Concrete

Füllmaterial

Filling

Erde

Ground

Legende

500

600

950

2100

1262

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

Oberflächen nach

DIN ISO 1302

Reihe 2

Zul. Abweichung

DIN 2768 - mH

devo

Benennung

Gepr.

Werkstoff

Blatt

Datum

Projekt

Gez.

Zuschnitt

Zeichnungsnummer

Rev Änderung Datum

1:20

Gewicht

Name

Fundamentplan

1604-00-00

1445.3

Maßstab

Schramm 28.06.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

Concrete

Füllmaterial

Filling

Erde

Ground

Legende

Mounting instructions for the dial „devo“

Item No. 51 5212 401

vated soil and compact.

6. Seal the foundation with the safety cover required for the height of fall indica-

ted.

Critical drop height: 0 mm

Recommended surface material: optional

7. Do not allow children to use the equipment before the installation has been

nished.

Attention: If the play equipment has been incompletely installed or partly

dismantled when carrying out maintenance and repair work, this may lead to

particular risks of injury for the user. For this reason, make clearly visible that

the equipment shall not be used in such cases.

NOTE: Play equipment, which contain components made of stainless steel

should not come with „normal“ steel parts in contact. Those steel parts may

rub off and leave small steel particles in combination with moisture brown rust

stains.If such corrosion occur on stainless steel parts, they are ne with an

abrasive (240 grit) to remove.

Please take care when transporting and setting up the fact that the compo-

nents are made of stainless steel with no „normal“ steel parts in contact.

In order to preserve a good visual appearance of your stilum playground equip-

ment over a long period one should take care of maintenance of the stainless

surface even despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently clea-

ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid cleaner

(e.g. on phosphoric acid) and rinse off with clear water after a short application

time. During cleaning with mild abrasive components, only wipe over stainless

steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on

cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl

alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the sur-

face again.

Do not use any chlorid or hydrochloric containing cleaning products nor scouring

powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type

and degree of soiling as well as on demands made on optical characteristics.

Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the playground equipment at

intervals of 3 to six months.
