Mounting instructions for hypnotic wheel „devo“

Item No. 51 5212 401

play

Diagram 1: Overall view of the play equipment

Mounting instructions for hypnotic wheel „devo“

Item No. 51 5212 401

play

1. Select the location of the play equipment taking into account the play area.

Note: Please make sure that there is a minimum distance of 1.50 m to the

impact protection areas of other play equipments.

2. Carry out excavation work for the foundation as shown in diagram 2. After

excavation compress the foundation oor.

Note: The play equipment is installed at play level. Pay attention to items

marked „play level“ at play equipment!

3. Set up the concrete foundation acc. to diagram 2 with central, horizontal

reinforcement.

4. After a setting period of 10 - 14 days, depending on weather conditions and

foundation size, ll up and compress the holes beetween foundation and the

foundation hole with excavation.

5. Clean the surface of the foundation, place the play equipment on it and screw

the play equipment to the foundation using the included heavy-duty dowels.

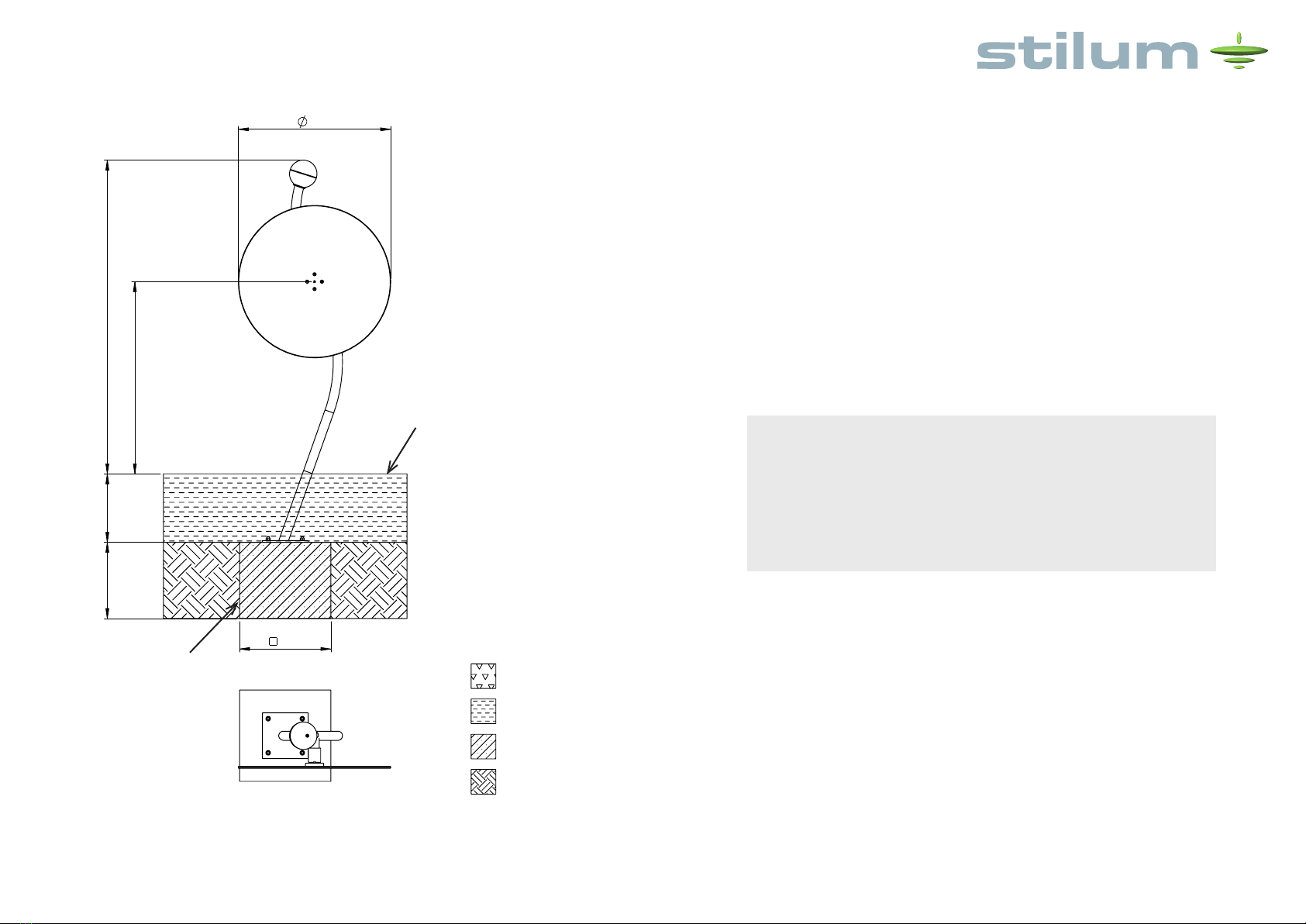

Diagram 2: Foundation plan

500

600

1000

450 2060

1262

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

devo

Benennung

Gepr.

Blatt

Datum

Projekt

Gez.

Zeichnungsnummer

1:20

Name

Fundamentplan

1604-00-00

Maßstab

Schramm 28.06.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

concrete

gewachsenes Erdreich

natural ground

Legende

stoßdämpfender Boden

shock-absorbing floor

04.11.20

beliebiger Boden

DatumÄnderungRev

beliebiger Boden

optional floor

500

600

1000

450 2060

1262

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

devo

Benennung

Gepr.

Blatt

Datum

Projekt

Gez.

Zeichnungsnummer

1:20

Name

Fundamentplan

1604-00-00

Maßstab

Schramm 28.06.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

concrete

gewachsenes Erdreich

natural ground

Legende

stoßdämpfender Boden

shock-absorbing floor

04.11.20

beliebiger Boden

DatumÄnderungRev

beliebiger Boden

optional floor

Reinforcement plan: Concrete foundation with reinforcement

Foundation: BSt 500S

Stirrups Ø 8 mm lengthwise and cross

Concrete cover h´= 3 cm

Concrete quality class C 20/25

Play level

Concrete

foundation

Mounting instructions for hypnotic wheel „devo“

Item No. 51 5212 401

play

6. Create topsoil over the play area.

Recommended surface material: optional

Note: The ground should be smooth and free of edges.

7. Do not allow children to use the equipment before the installation has been

nished.

Attention: If the play equipment has been incompletely installed or partly dis-

mantled when carrying out maintenance and repair work, this may lead to par-

ticular risks of injury for the user. For this reason, make clearly visible that the

equipment shall not be used in such cases.

NOTE: Play equipment, which contain components made of stainless steel

should not come with „normal“ steel parts in contact. Those steel parts may rub

o󰀨 and leave small steel particles in combination with moisture brown rust stains.

If such corrosion occur on stainless steel parts, they are ne with an abrasive

(240 grit) to remove.

Please take care when transporting and setting up the fact that the components

are made of stainless steel with no „normal“ steel parts in contact.

In order to preserve a good visual appearance of your stilum playground equip-

ment over a long period one should take care of maintenance of the stainless

surface even despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently clea-

ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid cleaner

(e.g. on phosphoric acid) and rinse o󰀨 with clear water after a short application

time. During cleaning with mild abrasive components, only wipe over stainless

steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on

cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl

alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the sur-

face again.

Do not use any chlorid or hydrochloric containing cleaning products nor scouring

powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type

and degree of soiling as well as on demands made on optical characteristics.

Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the playground equipment at

intervals of three to six months.
