Stiga Electric 33 Manuel utilisateur

DEUTSCH D

Electric 33

8211-0207-07

SVENSKA

SVENSKA S

3 = 40 mm

4 = 50 mm

2 = 30 mm

1 = 20 mm

∅130 mm

∅160 mm

SVENSKA

INFORMATION OM STRØMFORBRUG

Flere og flere maskiner, som f.eks. plæneklippere, højtryksrensere pumper

og kompostkværne bliver elektriske. Detgør de bl.a. fordidette som helhed

giver et bedre miljø; ingen udstødning, lavere støjniveau, lettere vedligehol-

delse, ingen startproblemer.

For at disse maskiner skal kunne have samme virkningsgrad som f.eks. ben-

zindrevne, bruger de flere watt end man normalt bruger når man anvender

elektriske husholdningsapparater, således finder man et wattforbrug fra 500

op til 2500 watt.

Det store wattforbrug betyder at der skal flere amp. til.

Således kan man regne med at der fra ca. 1300 watt skalbruges 10 amp. sik-

ringer og over ca. 2000 watt skal der bruges 16 amp.

Hvormangeamp.derskalbrugesafhængerafhvorstorenmotordersidder

på pågældende maskine, hvor mange watt (hk) maskinen bruger, hvor stor

en startstrøm og/eller brugsstrøm og hvilken ledning man bruger.

Jo flere watt maskinen skal have igennem enledning jo tykkere skal ledning-

en være, og ligeledes jo længere ledningen skal være jo tykkere skal den

også være. Har man problemer med for lidt strøm = for få amp. springer sik-

ringen

Fejlen kan være :

- For få amp. til den pågældende maskine.

- Har man 10 amp. kan gruppen være belastetafandreelektriskeapparater

og der er således ikke alle 10 amp. til rådighed.

- Ledningen er for tynd og/eller for lang.

Fejlen kan afhjælpes ved:

- at anvende en 16 amp. gruppe, man kan i dagtage 220volt16 amp. udaf

380 volt (dette kræver hjælp fra en elektriker)

- at anvende en 13 amp. sikring der sættes i hvor der nu er 10 amp.

- at sørge for at intet andet er tændt på gruppen når man skal køre maskinen.

- at bruge en tykkere Iedning vi anbefaler en 1,5mm2,enalmindelighusholdningslening

er ca. 0,5 - 0,7 mm2.

ENGLISH

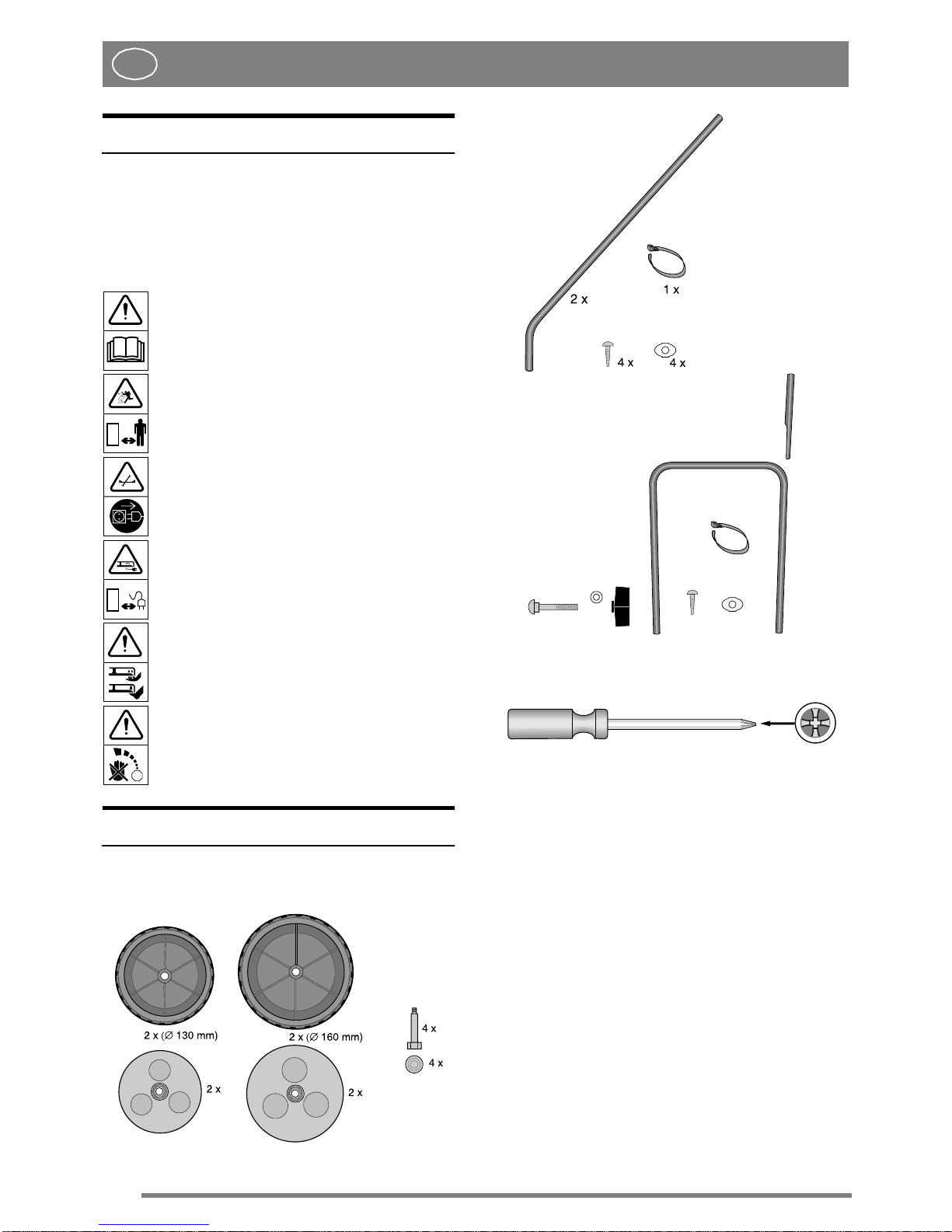

SYMBOLS

The following symbols are displayed on the ma-

chine in order to remind you about the safety pre-

cautions and attention necessary when using the

machine.

The symbols mean:

Warning! Read the Instruction Book and

Safety Manual before using the machine.

Warning! Keep spectators away. Beware of

objects being flung out.

Warning! Before starting any repair work,

disconnect the plug from the wall socket.

Warning! Keep the extension cord away

from the cutting deck.

Warning! Do not put hands or feet under the

cover of the machine when it is running.

Warning! The blades continue to rotate

even after the machine has been switched

off.

ASSEMBLING

PARTS TO ASSEMBLE

TOOLS FOR ASSEMBLEY

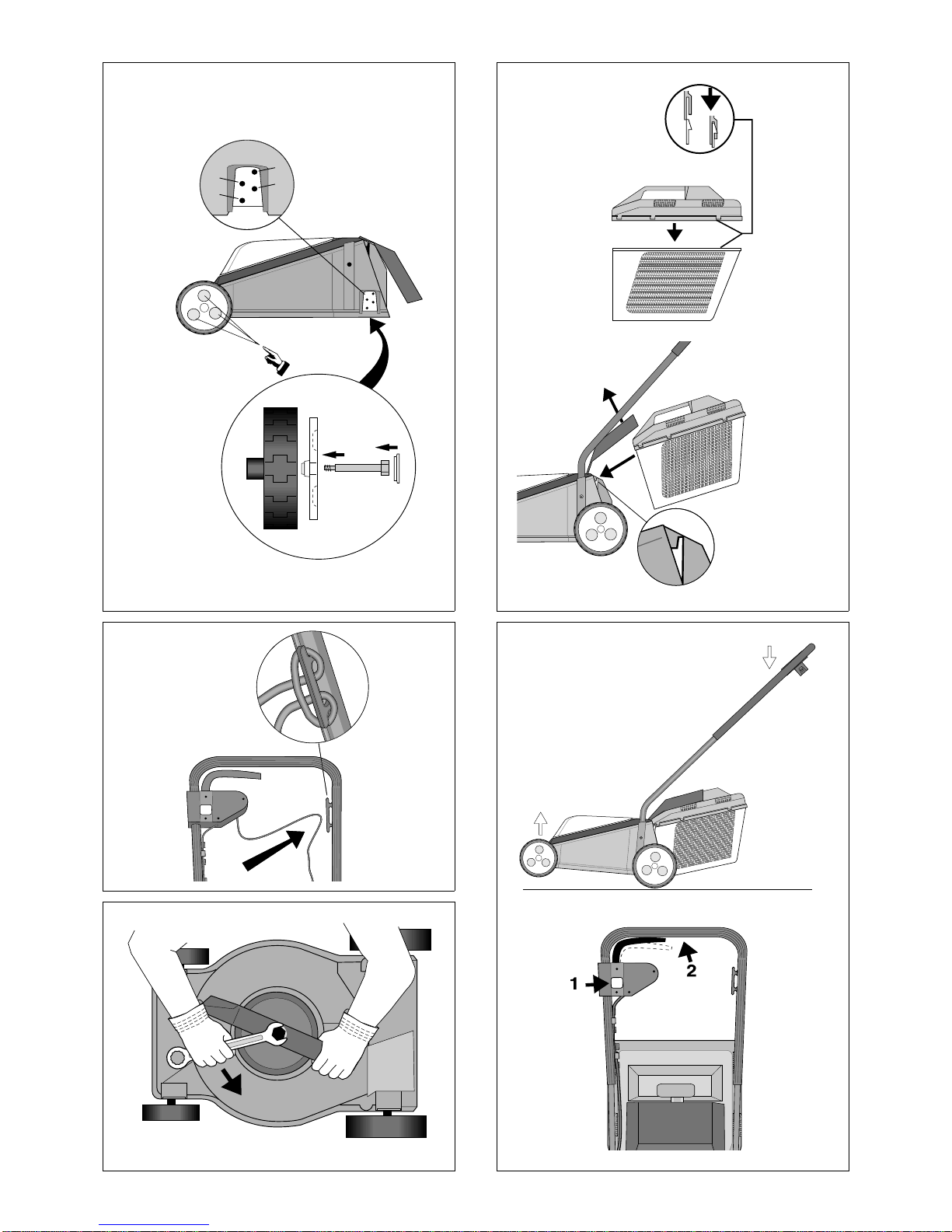

WHEELS/CUTTING HEIGHT (fig. 3)

1. Insert the wheel bolt A in the hub cap B.

2. Snap-on the centre cup C.

3. Fit the wheel in one of the fixing plate's four po-

sitions.

4. Tighten securely by hand using the finger-grip

holes in the hub cap.

NOTE! Thesame cuttingheight should be set on all

four wheels.

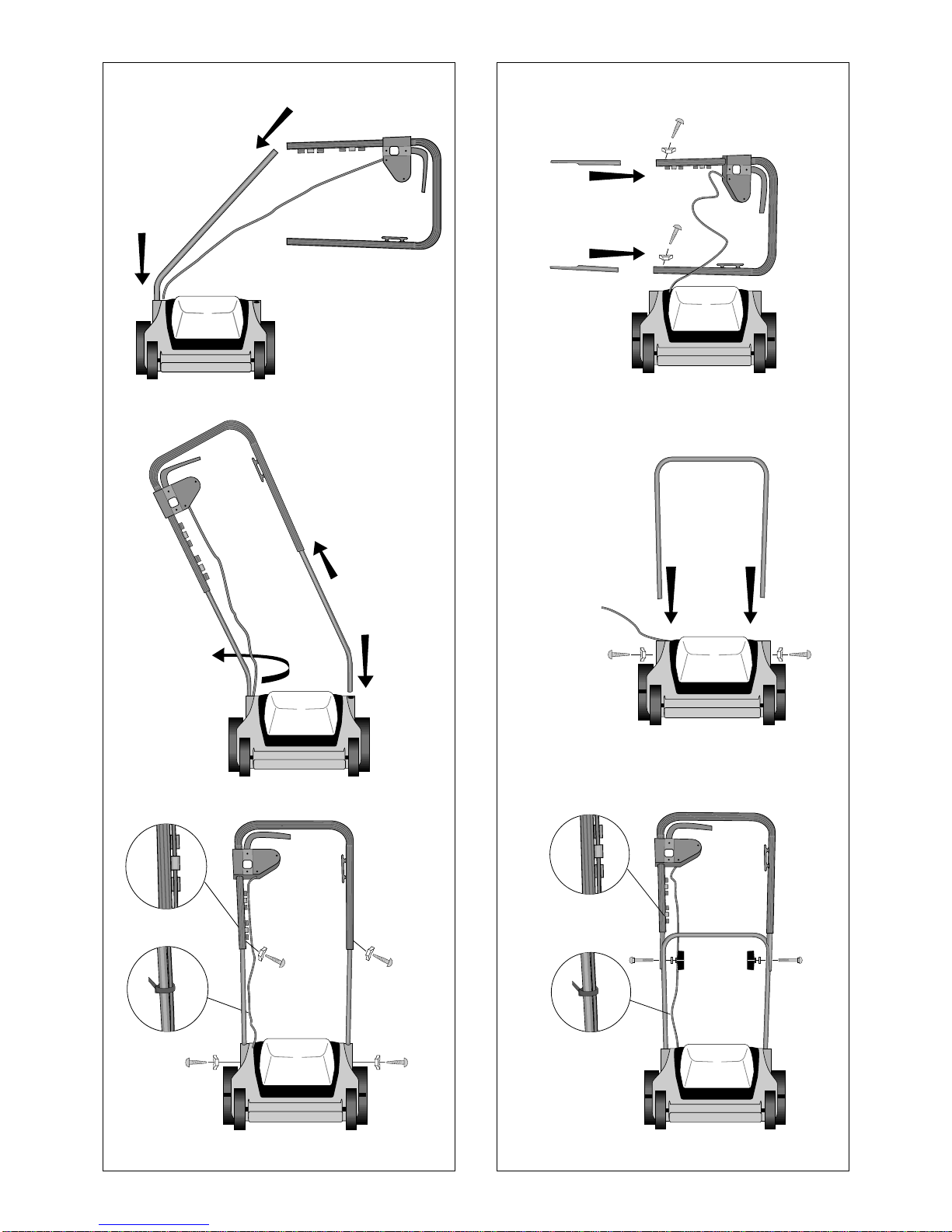

STEERING (fig. 1)

1. Insert a steering tube into the bracket on the left-

hand side as illustrated.

2. Slide in the steering's upper section.

3. Turn the entire steering in the opposite direction

as illustrated.

STOP

Wheel

Steering

2x 2x 4x

Collapsible steering

ENGLISH GB

4. Insert the other steering tube into the upper sec-

tion.

5. Insert the steering tube into the bracket on the

right-hand side.

6. Turn back the entire steering into the upright po-

sition.

7. Fit the screws. Tighten securely.

8. Secure the electrical cable into the cable holder.

9. Fix the electrical cable using a cable tie.

COLLAPSIBLE HANDLEBAR (fig. 2)

1 . Insert the steering shaft into the handlebar arch.

2. Fit the screws. Tighten securely.

3. Press the plugs into the steering sockets. Ensure

that the plugs are inserted inthe correct end.

4. Press the steering sockets into the holes in the

chassis.

5. Fit the screws. Tighten securely.

6. Attach the handlebar to the steering sockets us-

ing screws, washers and locking knobs. The han-

dlebar can be tilted forward by loosening the

locking knobs slightly. The mower will then take

up less space during transportation.

7. Secure the electrical cable into the cable holder.

8. Fix the electrical cable using a cable tie.

GRASS COLLECTOR (fig. 4)

Snap-together the grass collector's upper and lower

parts.

Open the cover on the machine and hook the grass

collector onto the chassis.

NOTE! The lawn mower can be used without the

grass collector. The grass will then collect in a bead

behind the machine.

USING THE MOWER

CONNECTION (fig. 5)

Only use an extension cable that is approved for

outdoor use with a maximum length of 50 m. It

should not be lighter than type 245 IEC 53

(H05RR-F) or 227 IEC 53 (H05VV-F). If you are

unsure of anything, please contact your dealer.

To increase safety the lawn mower should be con-

nected to an earth-fault breaker.

Supportthe extensioncable in thecable supporton

the steering.

START/STOP (fig. 6)

Start the mower on flat, solid ground. Do not start

in long grass. Press on the steering so that the front

wheels liftslightly from theground to reduce grass

resistance.

Starting the motor:

1. Press the button

2. Pull the handle towards the steering.

Stopping the motor: Release the handle.

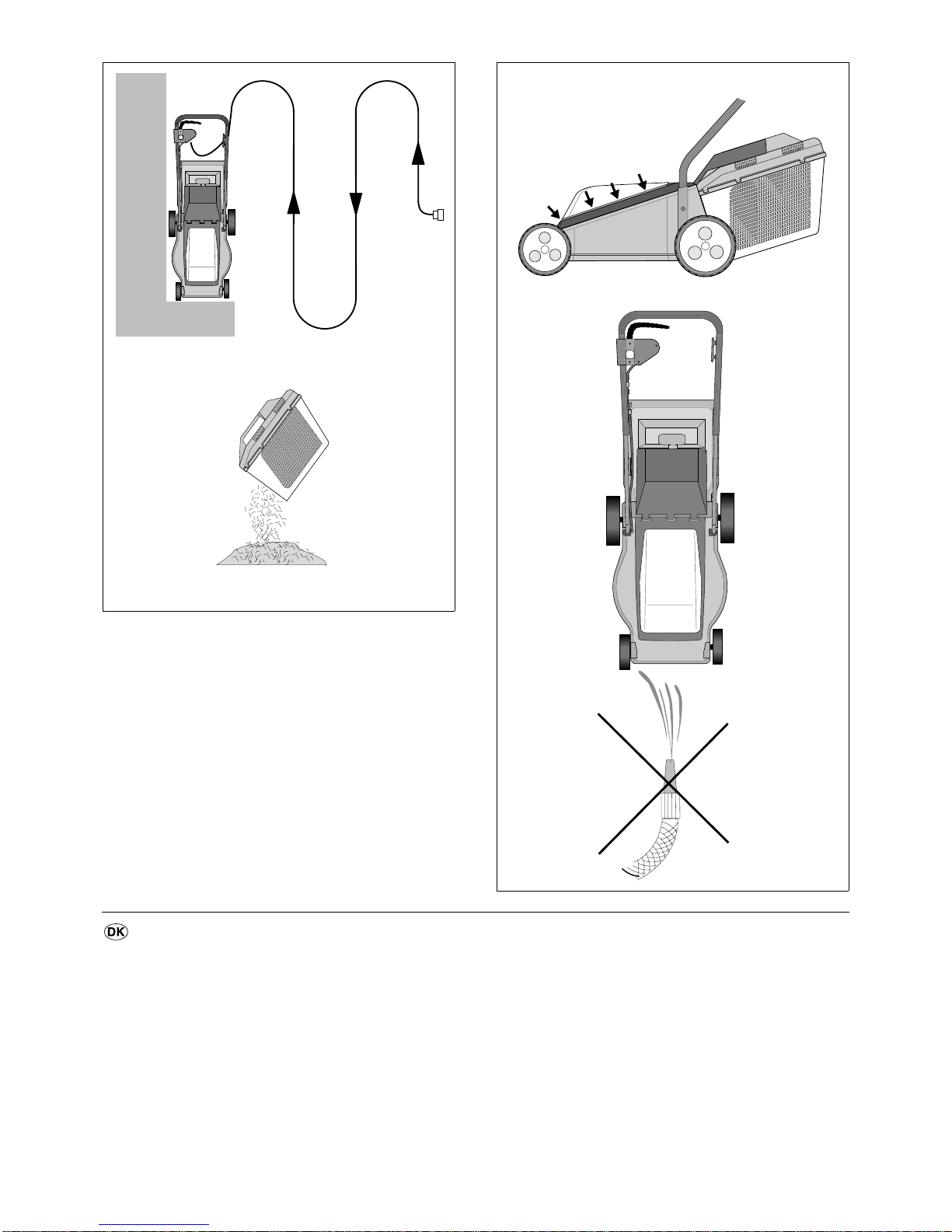

CUTTING (fig. 7)

Always cut away from the cable.

Empty the grass collector in good time so that the

grass deflector does not get blocked and reduce

grass collection capacity.

To avoid overloading the motor, do not push the

mower too quickly in long grass.

MAINTENANCE

CHANGING BLADES (fig. 8)

Always pull out the plug before carrying out main-

tenance, cleaning or other actions on the machine.

Wear protective gloves. Loosen the blade bolts us-

ing a 26 mm spanner. Fit a new blade. Tightening

torque 15 Nm.

Always use genuine spare parts.

CLEANING AND STORAGE (fig. 9)

Always wipe or brush off the mower after use.

The cold air intake around the motor casing should

always be kept free from grass and dirt so that the

motor does not overheat.

The underside of the chassis can be scraped clean.

Never rinse with water.

The mower should be stored in the dry.
