STIGA PARK

110 S

8211-3009-06

ENGLISH GB

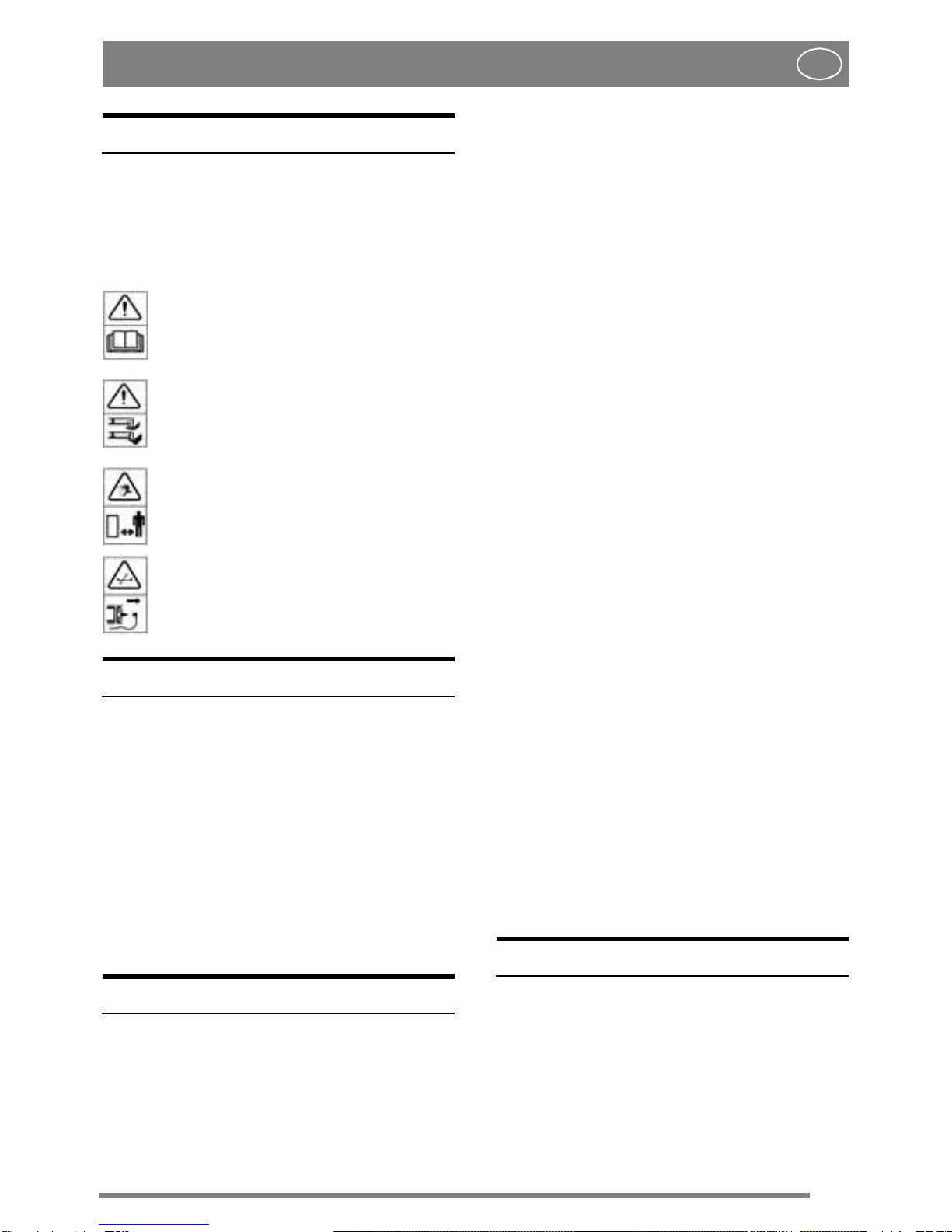

SYMBOLS

The following symbols are displayed on the ma-

chine in order to remind you about the safety pre-

cautions and attention necessary when using the

machine.

The symbols mean:

Warning!

Read the instruction book and safety man-

ual before using the machine.

Warning!

Do not put hands or feet under the cover of

the machine when it is running.

Warning!

Beware of objects being flung out. Keep

spectators away.

Beforestartinganyrepairwork, removethe

spark plug cable from the spark plug.

PREPARATION

If this clipping unit is used with the Park model,

the number of revolutions per minute should be re-

duced slightly in order to comply with the current

regulations for approved noise levels:

- Senator and President models: reduce to 3,000

rpm

- Royal, Pro 16, Pro 18 and Pro 20 models: re-

duce to 3,200 rpm

This adjustmenttorpm shouldonlybe madeby the

retaileroratanauthorisedworkshop,i.e.bypeople

who have the correct skills and equipment.

ASSEMBLY

MOWER DECK

1. Fit the support wheels and the deflector as show

in figure 1.

2. Fit the attachment brackets D on the front axle

studs by using the washers and locking clips (fig 2).

3. Slide in the attachment's fixing arms into the ma-

chine's attachment brackets.

4. Set the v-belt onthe machine's central belt pulley

F(fig3).

5. The tension roller G should rest on the left-hand

side of the v-belt, seen from the driver's seat (fig 3).

6. Now pull the mower deck forwards so that the

holes in the fixing arms correspond with the holes

on the attachment brackets.

7. Insert the screws and tighten.

8a. Park -1999:

Hook the tension roller spring H into the floor on

the right-hand side (fig 3).

8b. Park 2000-

Hook the tension roller spring H into the fastener,

just behind the front right wheel (fig 3).

9. Lift up the mower deck and hook the chain into

the attachment lifter.

Whenchangingthev-beltordismantlingthemower

deck follow the above procedures in the reverse or-

der.

SETTING

1. Check that the tyres have the correct air pressure.

Front: 0,6 bar (9 psi).

Rear: 0,4 bar (6 psi).

2. To obtain an even cut from the mower deck its

forward and rear edges must be parallel to the

ground.

- Check this by placing the machine on a flat sur-

face.

- If adjustment isrequired, adjust using the washers

I at the support wheels (fig 1).

Points 1 and 2 must be carried out for the mower

deck to mow evenly.

USE

MOWING HEIGHT

Themowerdeckhas17fixedmowingheights,from

30 mm to 80 mm.

N.B. The stated mowing heights apply when the

machine is standing on firm ground.

ENGLISH

MOWING HINTS

For the best effect follow this advice:

- mow regularly

- use full throttle on the engine.

- keep the underside of the mower deck clean.

- use sharp blades.

- do not mow wet grass.

MAINTENANCE

No service work to the engine or mower

deck is to be carried out unless the fol-

lowing action has been taken:

- the engine has been stopped.

- the ignition key has been removed.

- the ignition cable has been removed

from the spark plug.

- the parking brake is engaged.

- the mower deck has been disengaged.

CLEANING

Rinse off the underside of the mower deck casing

with a garden hose after using the mower.

If grass has dried onto the casing dismantle the

mower deck and scrape the underside clean.

If necessary, to improve the underside it can be

painted to prevent rust.

Do not spray with high pressure water

against the bearing housings on top of

the mower deck when the transmission

cover is removed. Otherwise water may

penetrate the bearings.

LUBRICATION

The attachment's support wheels are fitted with

two grease nipples J (fig 1). Lubricate using a uni-

versal grease periodically during the season.

Grease other moving parts too.

REPLACEMENT OF DRIVE BELT

CENTRAL BELT PULLEY - MOWER

DECK

1. Unhook the tension roller spring H.

2. Remove the mower deck from the machine.

3. Unscrew the screws K and remove the transmis-

sioncasing(fig4).

4. Slide in the unit towards the machine and pull

off the v-belt from the central belt pulley.

5. Change the damagedv-belt. Always use an orig-

inal v-belt. The tension roller G should rest to the

left of the v-belt as seen from the driver's seat

(fig 3).

6. Fit the screws K (fig 4).

7. Fit the mower deck in the machine's attachment

brackets.

8a. Park -1999:

Hook the tension roller spring H into the floor on

the right-hand side (fig 3).

8b. Park 2000-

Hook the tension roller spring H into the fastener,

just behind the front right wheel (fig 3).

REPLACEMENT OF THE DRIVE

BELT IN THE MOWER DECK

1. Remove the screws K and remove the transmis-

sion casing (fig 4).

2. Loosen the spring which holds the tension roller.

3. Change the v-belt and replace in the reverse or-

der. Always use original v-belts.

BLADES

Use protective gloves to prevent cuts

when changing blades/blade tips.

Make sure the blades are always sharp. This gives

the best cutting results.

SHARPENING

For safety reasons the blades must not be sharp-

ened on an emery wheel. Incorrect sharpening ( =

high temperature) can result in the blades becom-

ing brittle.

When the blades are due to be sharpened, the wet

grinding methodwith a waterstoneor grindstone is

to be used.

Following sharpening, the blades must

be balanced to avoid vibration damage.

CHANGING BLADES

Always use original spare parts when changing the

blades, blade attachments or bolts.

ENGLISH GB

Always use original spare parts. Using

non-original spare parts can result in

the risk of damage even if they fit in the

machine.

When changing the blades, the blades central bolt

should also be replaced. It is provided with a lock-

ing device. The blade bolts torque: 65 Nm.

SPARE PARTS

STIGA original spare parts and accessories are

constructed exclusively for STIGA machines.

Note that non original spare parts and accessories

have not been checked or approved by STIGA:

Usage of such parts and accessories can

influence the machines operability and

safety. STIGA cannot be held responsi-

ble for injuries caused by these prod-

ucts.

STIGA reserves the right to modify thee product without pri-

or notice.
