Stevens Aero Model SQuiRT-700 Manuel utilisateur
1
SQuiRT-700
A Speed 700 Primary Trainer
R1.01
Span 57” / Length 39” / Area 560 Sq.” / Flying Weight 40-48 oz.
© 2005 Stevens AeroModel all rights reserved.
2
WARRANTY
Stevens AeroModel guarantees this kit to be free from defects in both material and workmanship
at the date of purchase. This warranty does not cover any component parts damaged by use or
modification. In no case shall Stevens AeroModel’s liability exceed the original cost of the
purchased kit. Further, Stevens AeroModel reserves the right to change or modify this warranty
without notice.
In that Stevens AeroModel has no control over the final assembly or material used for final
assembly, no liability shall be assumed nor accepted for any damage resulting from the use by
the user of the final user-assembled product. By the act of using the user–assembled product,
the user accepts all resulting liability.
If the buyer is not prepared to accept the liability associated with the use of this product, the buyer
is advised to return this kit immediately in new and unused condition to the place of purchase.
© 2005 Stevens AeroModel all rights reserved.
3

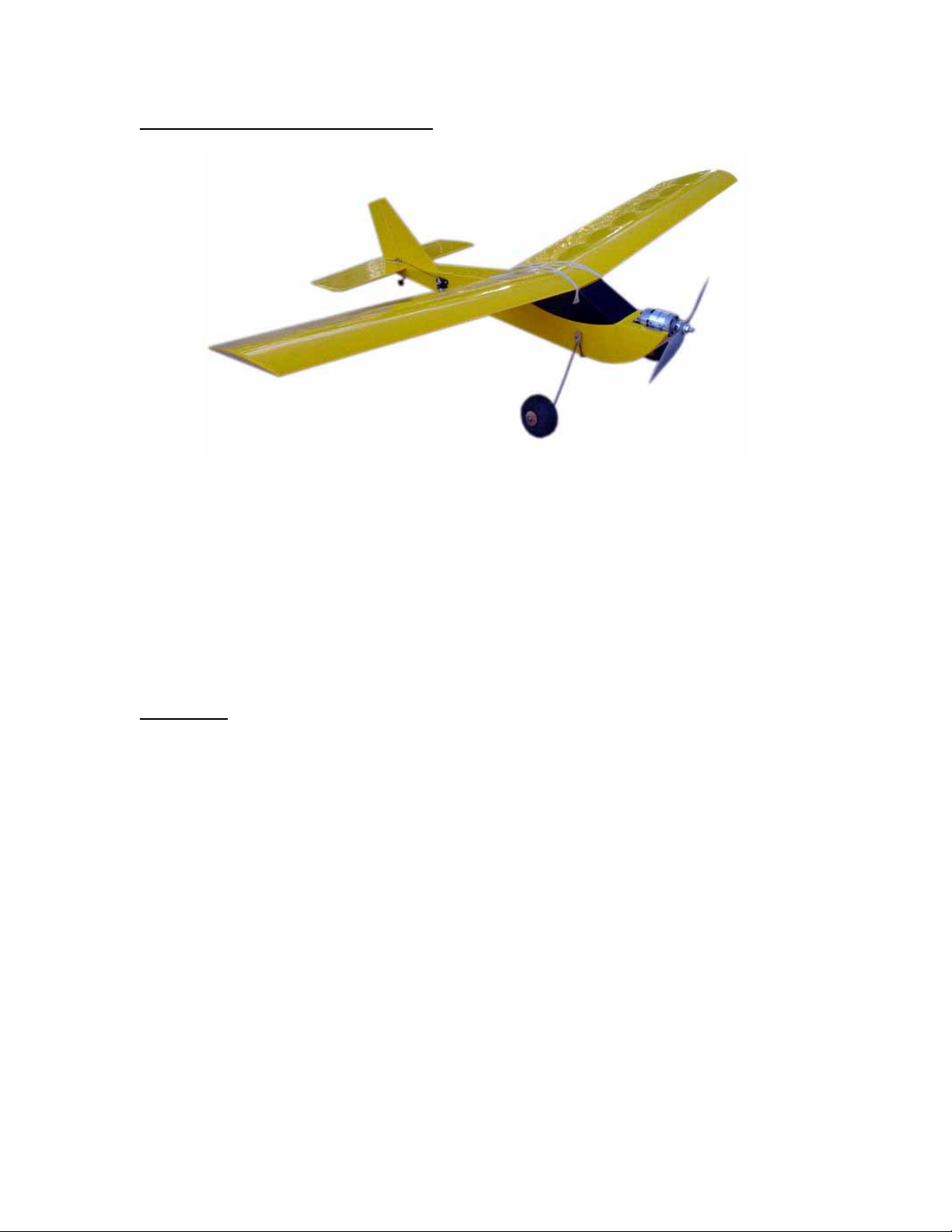

REQUIRED TO COMPLETE KIT:
Kit Contents:
1. Rolled Computer Drawn Plan Sheet
2. Illustrated Instruction Manual
3. Laser Cut Balsa and Hardwood Parts Sheets (See Cut Parts Inventory Sheet)
4. Included Hardware
•
•
•
•
•
•
•
•
•
•
•
•
•
2 - 3/16” x 4.5” hardwood dowel.
3 - 1/8” x 24” hardwood dowel.
1 - 1/4” x 4.5” hardwood dowel.
1 - Bag #64 Rubber Bands (10).
2 - 3/16” x 1/16” Neo. Magnet (for battery hatch closure)
2 - 1/8” Star Lock Washer
2 - 1/16” x 11” Push Rods.
1 - 1/16” x 11” Wire
1 - 1/8” Pre formed spring steel landing gear.
1 - Pair of 3” Foam Wheels
1 - Sullivan ¾” Tail Wheel
1 - Du-bro121 E-Z Connectors (2/Pkg.)
1 - Aluminum Tube 3/32” x 6”
Recommended Finishing Items:
•Two rolls of AeroFILM covering available from www.stevensaero.com
Suggested Electronics:
•Your SQuiRT 700 will operate well on a 3-4 Channel Transmitter.
•2 - Hitec HS-81 Servos (use of HS-81 servos will negate the need for two 6” servo extensions)
•2 - 6” Servo Extension (Only required if you do not use the suggested HS-81 Servos)
•1 - Receiver 3-4 Channel
•1 - 30A ESC we suggest the Castle Creations Pegasus 35P.
•1 - Speed 600 Clam Shell Motor Mount*
•1 - 5.0mm Prop Shaft Adapter*
•1 - APC 10x5 E Prop
•1 - Graupner Speed 700 Motor*
•1 - 9-10 NIMH or 3S1P 11.1v Apogee LiPo 2480mAh (or any other 11.1v lipo capable of 25A Continuous).
*Included with Squirt+PS kits. Available as a stand alone motor kit from Stevens AeroModel www.stevensaero.com
Brushless Motor Upgrades: NONE Suggested.
Items You May Need:
•Thin CA (super glue) or White Glue
•Plan/Table Protector (use the bag that this kit came in to protect your work surface from CA glue spills)
•Razor Blade(s)
•Med-Fine Grit Sand Paper and sanding block
•Clear Tape
•Balsa Wood Filler
© 2005 Stevens AeroModel all rights reserved.
9
GENERAL ASSEMBLY INSTRUCTIONS:
Thank you, for purchasing this Stevens Aeromodel SQuiRT 700 – A speed 700 primary trainer. This kit provides the
builder and pilot a refreshing change of pace from heavy “ARF” style plywood box airframe construction and blends stick
and tissue design methods of the past with state of the art CAD technology and precision interlocking laser cut parts; the
result is something you will find truly exceptional to build and fly. This kit is intended for a beginner-novice builder and
beginner pilot as a primary 3-channel trainer.
Best Regards,
Bill Stevens
Stevens AeroModel “Laser Engineered Kits™”
4550 Beaumont Rd.
Colorado Springs, CO 80916
Assembly Tips
•READ THE INSTRUCTIONS and the plan sheet prior to starting any work!
•Tape plans to work table. Cover with wax paper or plastic wrap.
•Join all joints with Thin CA unless otherwise specified.
•DO NOT REMOVE THE PARTS FROM THE BALSA SHEETS UNTIL REQUIRED!
•DO NOT FORCE THE FIT – when in doubt double check your parts - removal of material should not be
required. If you feel that you have a poor connection check first to see that the part is not upside down.
Reference each piece against the plan sheet.
•Making solid glue joints: Hold parts together on top of plan sheet using moderate pressure to fit parts - wick thin
CA into joint. (There is no need to pin parts to work table as all pieces interlock and self - jig.)
© 2005 Stevens AeroModel all rights reserved.
10

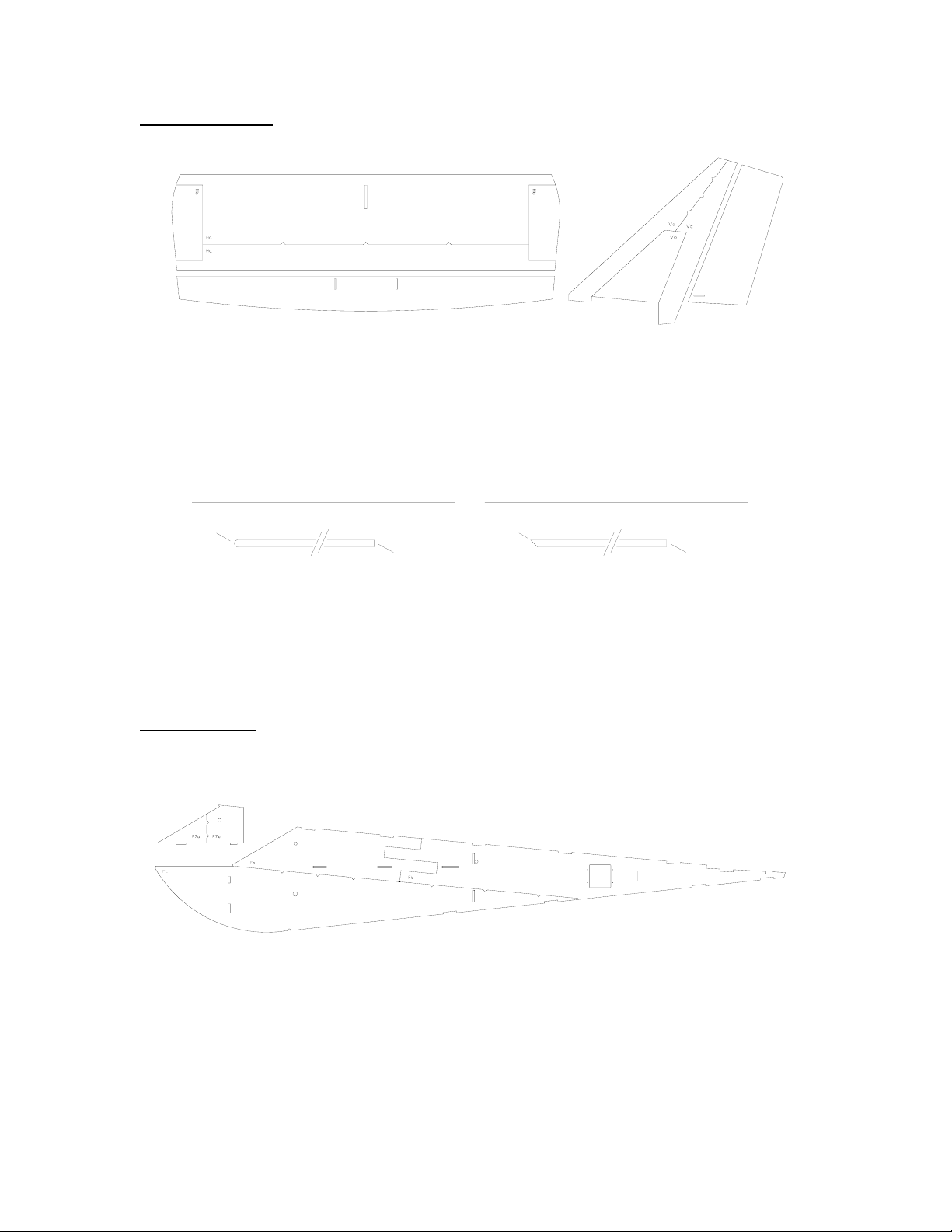

Empennage Assembly
1. Assembly of the empennage or “tail feathers” simply requires locating the parts that make up the H. Stab /
Elevator assembly and the V. Stab / Rudder assembly. The H. Stab parts are etched Ha, Hb, and Hc; remove
these from the 3/16” balsa stock and assemble over the plan sheet. The V. Stab parts are etched Va, Vb, and
Vc; remove these from the 3/16” balsa stock and assemble over the plan sheet.
2. Fill/Sand the joints of the completed H. and V. Stab assemblies to a smooth finish on both sides.
3. Sand the leading edge of the H. and V. Stab assemblies round leaving the trailing edge squared off.
Round Leading Edge
Leave Trailing Edge Square
Sanding Guide - H. and V. Stabilizer
45 Deg. Leading Edge
Leave Trailing Edge Square
Sanding Guide - Rudder / Elevator
4. Remove the Rudder and Elevator Parts and sand a 45 deg. bevel to the leading edge in preparation for tape
hinging. Again, leave the trailing edge square.
NOTE: These parts are cut from heavy 3/16” balsa and are solid. If you are running our suggested stock
S700 motor DO NOT attempt to lighten these components… doing so will limit your ability to balance the
model. Better to leave these heavy and strong then weaken the structure and add lead to the tail.
Fuselage Assembly

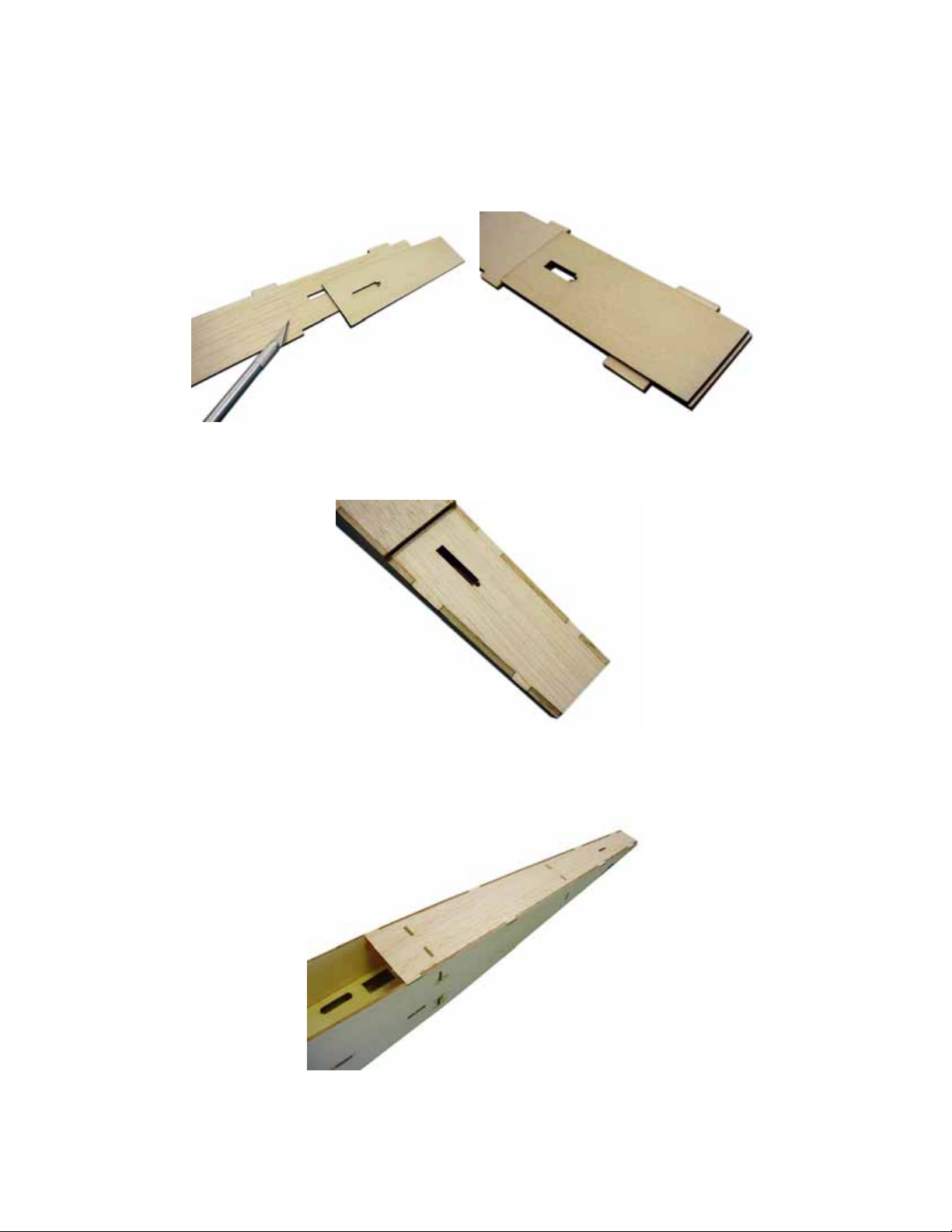

1. Assemble Fuselage Sides from 1/8” Balsa parts: Fa, Fb, and Fc. Use the following image as a guide. Fill/Sand
the joints to a smooth finish. Assemble fuselage cross grain components F7 from F7a and F7b.
© 2005 Stevens AeroModel all rights reserved.
11

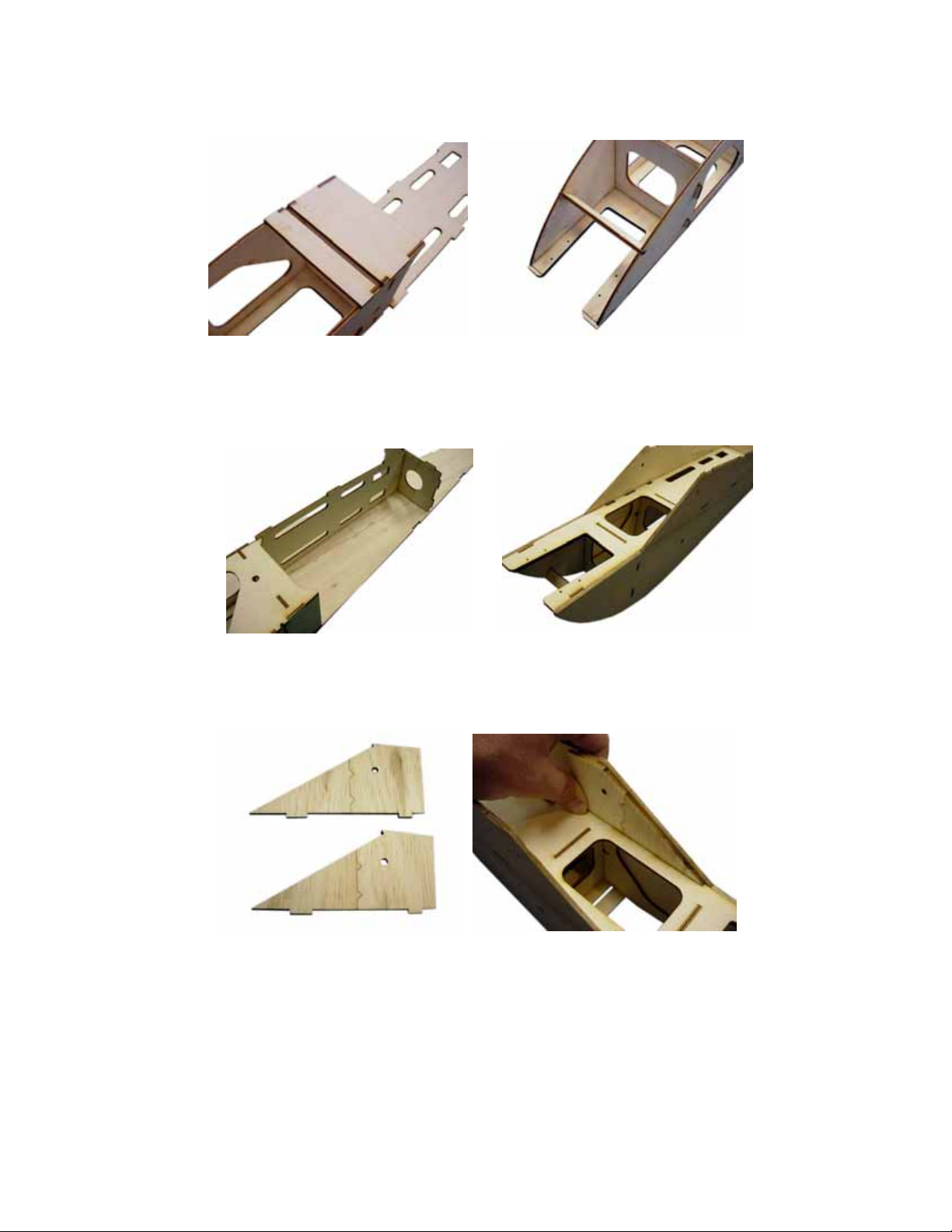

2. Lets begin construction by assembling the fuselage core. Locate the following 1/8” Lite Plywood parts marked
F2, F3a, F3b, and F4. Dry fit (no glue) the assembly together as indicated in the photo below. Please note that
F2 and F4 have forward designations these parts are etched with the word “FRONT” do make certain to
assemble these parts with “FRONT” facing the nose of the model. Tip! If a part does not fit properly check the
forward orientation.
3. Locate the 1/8” Lite Plywood part F1 and dry fit to the core as indicated in the photo below. Make certain that
the entire assembly fits together without any gaps; check for square then glue parts together by wicking thin CA
glue into adjoining surfaces.
4. Invert the core assembly and add the 1/16” plywood motor mount doubler F1a to the inside of the core
assembly as pictured below.
© 2005 Stevens AeroModel all rights reserved.
12
5. Next, install the 1/8” Lite Plywood Parts L1, L2, and F3c to the underside of the core as indicated in the
following photo.
6. Use the 1/8” balsa fuselage sides (assembled previously) and the 1/8” balsa former F5. Dry fit former F5 to the
rear of the core assembly and the fuselage sides as indicated in the photo below. Once satisfied with the fit,
glue the fuselage side to the core assembly. Repeat for the opposite side. Tip! you must fit F5 to the core prior
to joining the fuselage sides.
7. Now install the F7 cabin cross grain doublers (assembled previously). These parts key inside the fuselage as
indicated in the photo below.
© 2005 Stevens AeroModel all rights reserved.
13
8. Locate the 3/32” balsa part F8 and install to the front of the cabin spanning the fuselage sides and F7 as
indicated in the photo below. Tip! F7 is recessed to receive F8; align the top of F8 with the upper recess in F7.
Next add the second 1/16” ply motor mount doubler F1b atop F1.
9. Now locate the 3/32” balsa part F9 and the 1/8” balsa part F6. Dry fit F9 to the top of the fuselage, next fit the
former F6 to the fuselage and part F9. Invert the fuselage on your work surface, square, and retain parts with
thin CA glue.
10. Locate the 1/16” Plywood servo tray and glue inside the fuselage as indicated in the photos below. Next locate
the 3/32” balsa cross grain doubler for the rear wing dowel, marked F13, and install this directly behind former
F5 matching the 3/16” holes in the doubler with those in the fuselage side.
Receiver
4.5" Dowel (Gear Lug)
Install F13 cross-grain doubler behind
former F5 on the INSIDE of the fuselage
assembly. Match the 316" holes in F13 to
those in the fuselage side. Do this after
installing F9 but prior to installing F11.
© 2005 Stevens AeroModel all rights reserved.
14

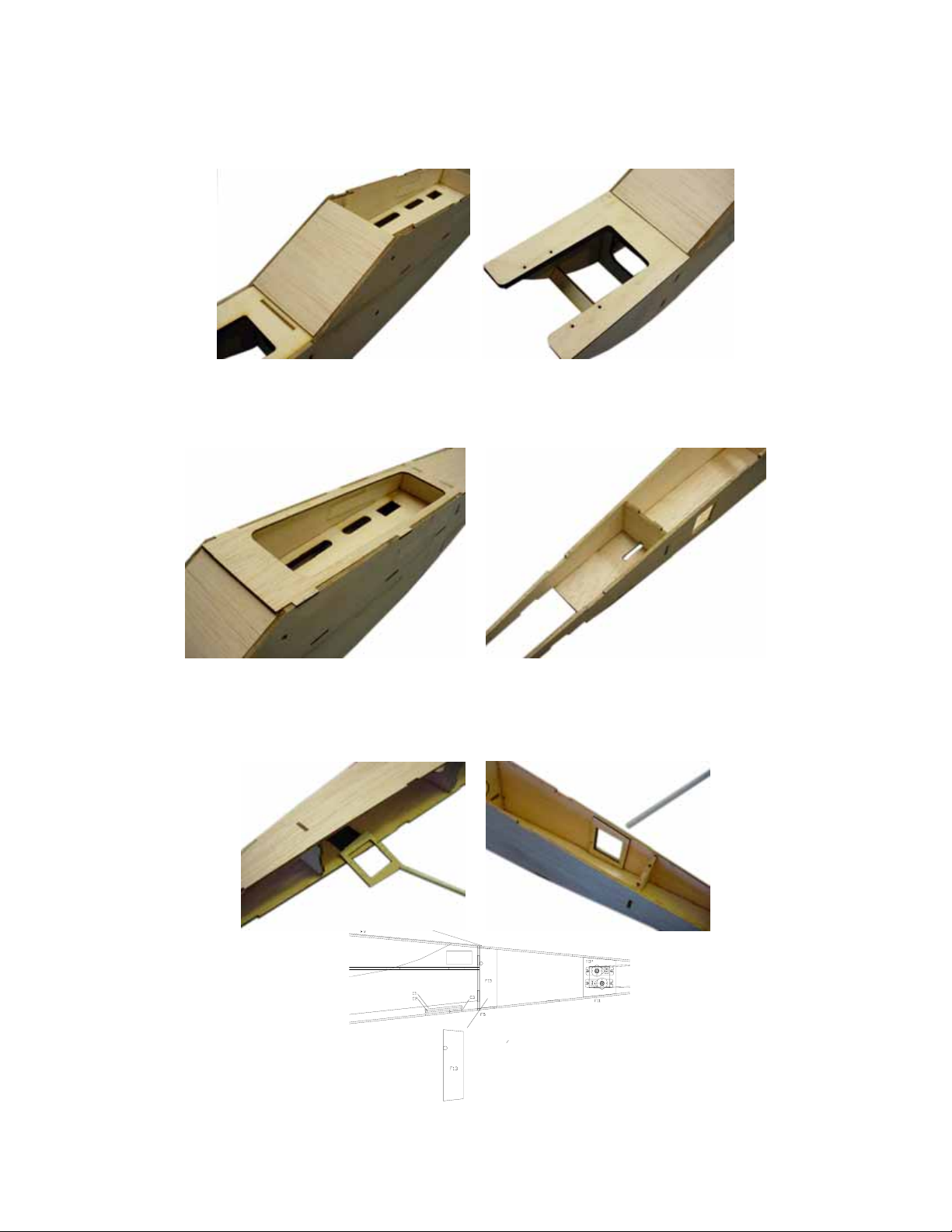

11. Locate the 3/32” balsa part F11 and note the etch mark illustrated in the photo below. We need to glue the
1/16” ply tail gear mount F14 atop F11. To do this align the leading edge of F14 to the etch mark in F11, center
the part F14 to F11 and glue into position. F14 will NOT extend all the way to the aft end of F11. Use the
photos below and the plan sheet as a reference. Should you choose not to make the steerable tail gear
assembly you may mount almost any tail gear to this ply re-enforced area of the SQuiRT fuselage.
12. Next, fit the 1/8” balsa part F10 to the aft end of the fuselage as indicated in the photo below.
13. Use the 3/32” balsa assembly of parts F11 and F14 from the previous step. Key to the fuselage as indicated in
the photo below with the ply doubler F14 on the INSIDE of the fuselage. Once satisfied with the fit, square the
assembly to your work table and secure with thin CA glue.
© 2005 Stevens AeroModel all rights reserved.
15

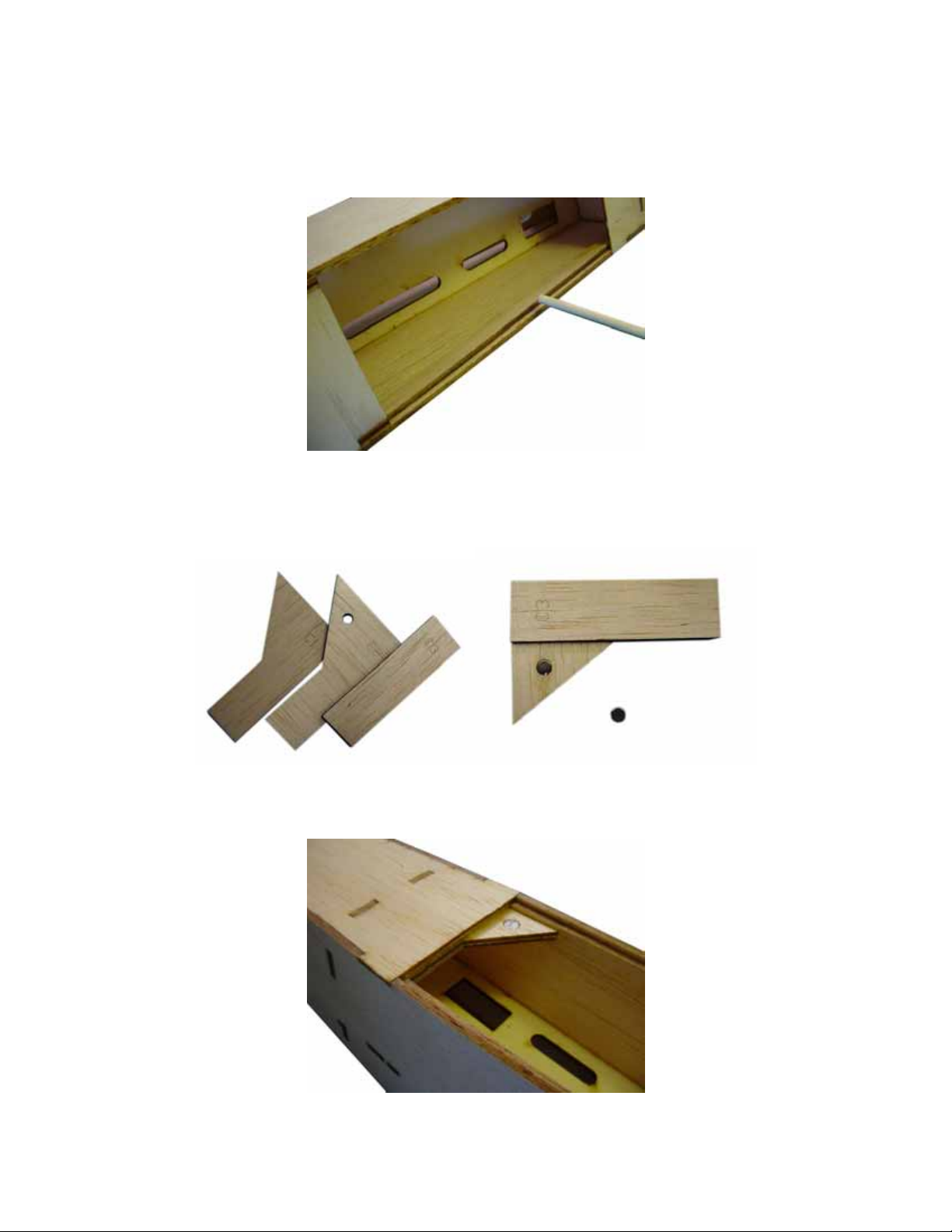

14. Locate the 1/8” balsa parts F12 and key within the underside of the fuselage as indicated in the photo below.
F12 doubles the fuselage battery access hatch and is shaped along it’s leading edge to fit snug against the
inside plywood structure. Tip! Make certain that F12 rests upon the F11 decking installed in the step prior.
15. Assemble the battery access hatch catch/cross brace from 3/32” balsa parts C1, C2, and C3 as indicated in the
photos below. With the catch/brace assembled install one 3/16” rare earth magnet in the circular cutout –
secure the magnet with thin CA glue.
16. Install the completed cross brace to the fuselage as indicated in the photo below. The leading edge of the
catch/brace should be flush with the leading edge of the deck part F11. Tip! Sand lightly if the fit is too snug (a
result of the C1,2,3 parts not being aligned properly when gluing) – don’t force the parts to fit.
© 2005 Stevens AeroModel all rights reserved.
