Vividimage®W 4K

OPERATION MANUAL

RLM65MG4K2 Vividimage® W 4K UHD Wall Display

RLM65MG4K3

2 of 18

Notice for Users

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment

not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the interference at

his own expense.

Declaration of Conformity

Vividimage®W 4K Wall Display RLM65MG4K2 and RLM65MG4K3:

These devices comply with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Compliant with UL 60601-1, of related European Standards, CSA /CSA C22.2 no. 60601-1 standard

Function, Intended Application and Mode of Operation:

The Vividimage®W 4K Wall Display is intended to be used in the displaying and viewing of video and

graphics for reference purposes only by trained medical practitioners. The mode of operation for this

device is continuous operation.

These devices are classified as Class A Equipment:

RLM65MG4K2 and RLM65MG4K3

For a complete list of current certifications, please refer to the Specifications page of this manual.

Part #:

Serial #:

IMPORTANT:

To aid in reporting in the case of loss or theft, or for

service maintenance purposes, please record the

monitor’s part number and serial number in the

space provided. The numbers are located on the

back of the monitor.

3 of 18

Model Number

Part Number

STERIS-RLM65MG4K2

STERIS-RLM65MG4K3

RLM65MG4K2

RLM65MG4K3

The LED monitor complies with the 93/42/EC, EN60601, U.S.A. Complies with

UL/cUL (UL 60950-1, CAN/CSA C22.2 No.60950-1), of related European

standards.

Refer to the operating manual or

booklet.

This points out especially

important operating instructions.

This points out instructions that

help you avoid dangerous

voltage.

This identifies equipment that

emits non-ionizing radiation.

This identifies a ground (earth)

terminal.

This identifies an AC Input.

This identifies the Main ON

Switch.

This identifies the Main OFF

Switch.

We hereby declare that the equipment specified above conforms to the

technical standards as specified in the FCC Rules (CFR47 part 15).

The CE marking certifies that this product has met European Union consumer

safety, health or environmental requirements; 93/42/EEC, ENC60601 EN60601-

2 of related European standards.

The LCD monitor complies with the China Compulsory Certification

(GB4943.1-2001, GB9254-2008, GB17625.1-2012

Authentication sign of Standard Inspection Bureau for U.S.A. Complies with

cTÜVus (ANSI/AAMI ES60601-1, CAN/CSA C22.2 No.60601-1)

We hereby declare that the equipment specified above conforms to the

technical standards as specified in the PSB.

The European Authorized Representative (AR) for this product on behalf of the

manufacturer is:

STERIS Ireland Limited

IDA Business and Technology Park

Tullamore

County Offaly

R35 X865

Ireland

Tel: +44(0)166 276 8636

24 Hr. Emergency No. +44(0)1895 622639

4 of 18

Table of Contents

NOTICE FOR USERS ......................................................................................................................................... 2

FCC Statement ....................................................................................................................... 2

Declaration of Conformity ....................................................................................................... 2

TIPS AND SAFETY PRECAUTIONS.................................................................................................. 5

Monitor and Accessory Checklist............................................................................................ 5

Mounting ................................................................................................................................. 5

Location................................................................................................................................... 5

Manual Scope......................................................................................................................... 5

SETTING UP THE DISPLAY................................................................................................................ 7

DISPLAY OVERVIEW........................................................................................................................... 8

Display Keypad....................................................................................................................... 8

Display I/O Ports..................................................................................................................... 9

RS-232 Specifications............................................................................................................. 9

OSD (ON SCREEN DISPLAY) MENU .............................................................................................. 11

Changing the Video Source.................................................................................................. 11

Setting the Display’s Options................................................................................................ 11

Main Menu ............................................................................................................................ 11

System Information............................................................................................................... 12

OSD Setting:......................................................................................................................... 12

Tools ..................................................................................................................................... 13

MONITOR CARE................................................................................................................................. 14

Cleaning the Monitor............................................................................................................. 14

How to Clean ........................................................................................................................ 14

Storage.................................................................................................................................. 14

TROUBLESHOOTING........................................................................................................................ 15

SPECIFICATIONS............................................................................................................................... 16

FEATURES.......................................................................................................................................... 17

DisplayPort............................................................................................................................ 17

HDMI..................................................................................................................................... 17

DFP (Digital Flat Panel)........................................................................................................ 17

P&D (Plug and Display)........................................................................................................ 17

Color Control Systems.......................................................................................................... 17

OSD (On-Screen Display) Controls...................................................................................... 17

Ergo Design Features........................................................................................................... 17

Intelligent Power Manager System....................................................................................... 17

Multiple Frequency Technology............................................................................................ 17

Full Screen Capability........................................................................................................... 17

Wide Viewing Angle Technology .......................................................................................... 17

Gamma ................................................................................................................................. 17

5 of 18

Tips and Safety Precautions

-Image persistence on LED monitors is caused

by the continuous display of static graphics on

the screen for extended periods of time. Do

not display a static image for more than eight

(8) hours. An afterimage may remain.

-To prevent image persistence,

power off the monitor when not in

use, especially at the end of the

day.

-It may be difficult to see the image if the

brightness is adjusted to the minimum setting.

-The quality of the video signal may influence

the quality of the displayed image.

-Do not open the monitor casing.

Monitor and Accessory Checklist

Part Number

RLM65MG4K2

RLM65MG4K3

-Included in the carton are the following items:

1 Vividimage®W 4K Wall Display

1 Power Cord

1 HDMI Cable

1 DisplayPort Cable

Notes:

-Retain the carton and packing material for

transporting the monitor.

Mounting

- Always follow mounting instructions to avoid

physical injury and/or damage to the monitor.

Location

-Use the monitor in a suitable environment.

See the operating temperature and storage

temperature in “Specifications” on page 16.

-Even though the monitor is classified as /

medical grade, use caution around liquids as

you would with any electrical appliance.

-Do not insert objects into the monitor.

-Do not place the monitor on unstable surfaces.

-In all cases, refer to the specifications in this

manual to ensure proper monitor performance.

Use of the monitor outside of operating

specifications will void the monitor warranty

and may cause permanent damage to the

monitor.

Manual Scope

This manual is written for use for RLM65MG4K2

and RLM65MG4K3. When describing a different

specification/function between the monitors, the

part number is given. When the part number is

not given, the description is true for all monitors.

For product appearance, illustrations of part

number RLM65MG4K2 are used in this manual.

6 of 18

•Read these instructions.

•Keep these instructions.

•Heed all warnings.

•Follow all instructions.

•Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

•Do not use this apparatus near water.

•The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such

as vases, shall be placed on the apparatus.

•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

•Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

•Use only attachments/accessories specified by the manufacturer.

•The main power plug is readily accessible for main power disconnection of the system.

•To remove power, unplug the device power cord from the outlet.

•WARNING! To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

moisture.

Storage & Installation

•Prior to installation, store in a dry location in temperatures between -4º Fahrenheit (F) and 140º F /

-20º Celsius (C) and 60º C.

•Always following installation instructions to avoid physical injury or damage to the device.

•Take care when lifting this device. Use proper safety precautions to protect against injury.

•The installation must be carried out in accordance with all applicable installation rules.

•Do not modify or tamper with AC line.

•Do not install this apparatus outdoors.

•Do not place on unstable surfaces.

•The equipment should not be used adjacent to or stacked with other equipment. If adjacent or

stacked use is necessary, the equipment should be observed to verify normal operation in the

configuration in which it will be used.

7 of 18

Setting Up the Display

Step 1: Unpack the monitor and other items from the carton

If any of the items are missing (see “Monitor and Accessory Checklist” on page 5), please call

Customer Support at 800-548-4873.

Step 2: Turn off the power of your computer

Step 3: At the PC, connect the HDMI or DisplayPort signal cable to the connector of the display card

in your system.

Step 4: Connect the HDMI or DisplayPort signal cable to the connector on the back of the monitor.

Incorrectly connecting the cables may result in irregular operation, damage to the display quality and

the components of LCD module, and a shorter module life.

Step 5: Connect one end of the power cord to the AC inlet on the back of the monitor and the other

end to the power outlet.

Please refer to “Tips and Safety Precautions” on page 5 for proper selection of your AC power cord.

Step 6: Make sure the Main Power Switch on the back side of the monitor is turned on, and then turn

on the monitor with the right-side power button.

The Main Power Switch is a real on/off switch. If this switch is on the off position, you cannot turn on

the monitor with the right-side power button.

Step 7: Turn on the computer.

For further adjustments, refer to “OSD (On Screen Display) Menu” on page 11. If you have any

questions, please refer to “Troubleshooting” on page 15.

8 of 18

Display Overview

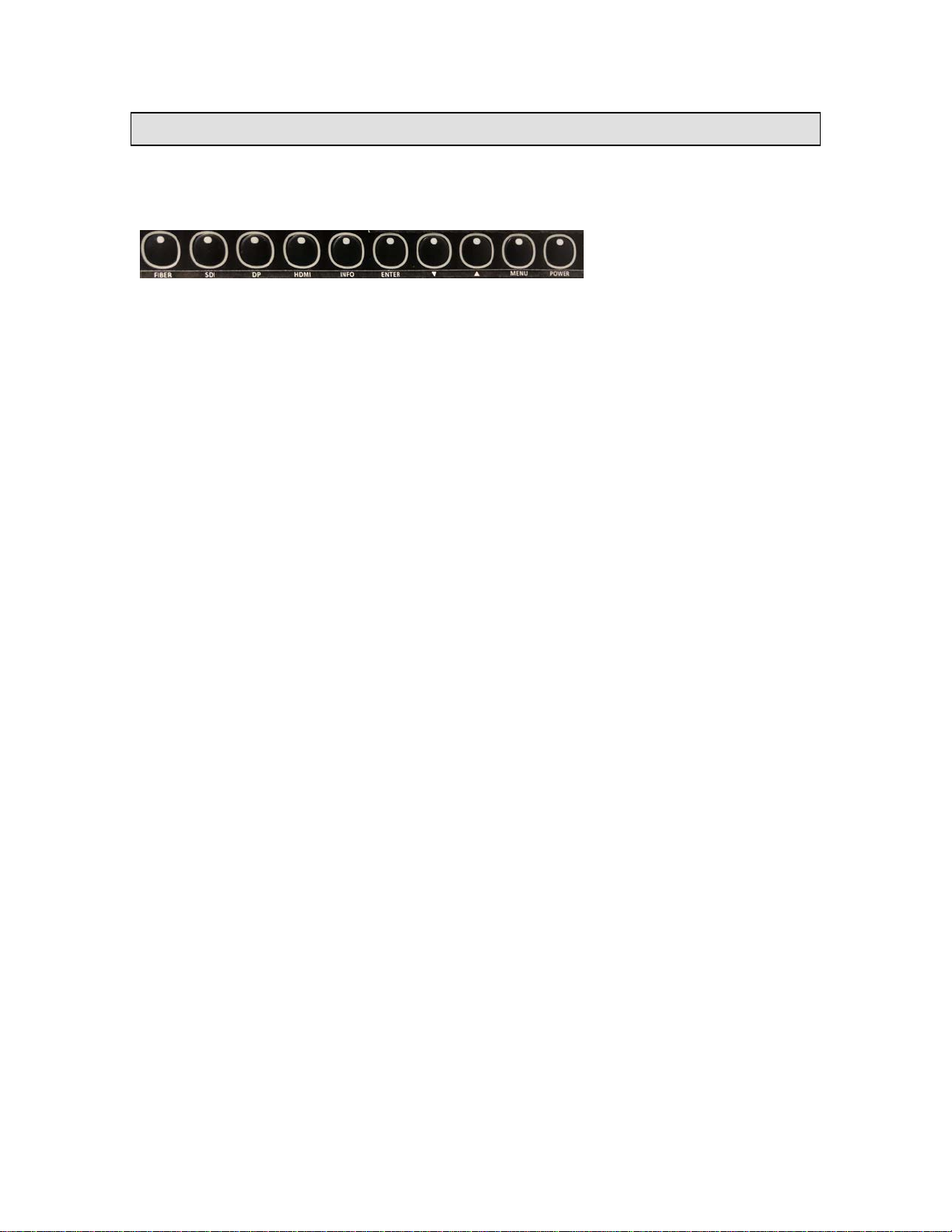

Display Keypad

The display’s keypad is located on the front, lower right of the display.

FIBER / SDI / DP / HDMI

Displays the input from the fiber, SDI, DisplayPort, or HDMI port. (The Fiber button is available only on

RLM65MG4K2)

INFO

Displays information about the display.

ENTER

Access and control the functions of the sub-menu when the OSD is shown.

Open Source Menu.

▼/ −

Moves down the list of menu items, or decreases a setting’s value after you’ve selected a setting in the OSD

menu.

▲/ +

Moves up the list of menu items, or increases a setting’s value after you’ve selected a setting in the OSD

menu.

Displays the OSD menu, If the OSD menu isn’t displayed.

Exits the OSD menu, if the OSD main menu is displayed.

Returns to the OSD main menu, if a submenu is displayed.

9 of 18

Display I/O Ports

The display’s ports are on the back of the display:

Number Name Connection Type Notes

Main Power Switch /

Power Cord Input

AC power input

For operation with AC power

DC12V

2.5mm DC Jack

Power output 12V/1A, it is designed

to be used with fiber modules.

SDI OUT

BNC

Digital Connection

SDI IN

BNC

Digital Connection

DC 5V

1.3mm DC Jack

Power output 5V/1A, it is designed

to be used with fiber modules.

DC 5V

1.3mm DC Jack

Power output 5V/1A, it is designed

to be used with fiber modules.

HDMI

HDMI 19pins

Digital Connection

DisplayPort

DisplayPort 20 pins

Digital Connection

RS 232

D-Sub 9pins

(Female)

Remote Control

FIBER

Fiber Connector

Fiber Module Connection

(available only on RLM65MG4K2)

Unused

The configuration of the connectors of the display may vary from product to product.

RS-232 Specifications

Here’s the cable pinout for the RS-232 port:

Monitor

Description

Wiring

Controller

Data Carrier Detect

No connection

Receive Data

Black

Transmit Data

Red

Data Terminal Ready

No connection

Signal Ground

Ground

Data Set Ready

No connection

Ready to Send

No connection

Clear to Send

No connection

Ring Indicator

No connection

10 of 18

Here are specifications for the RS232 port:

Specification

Value

Baud

115200

Data Bits

Parity

none

Stop Bits

Flow Control

none

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Steris Moniteur

Steris

Steris RLM26HD3NPWR Manuel utilisateur

Steris

Steris VividImage MON-STE19HD Manuel utilisateur

Steris

Steris MON-STE55HD-MD Manuel utilisateur

Steris

Steris VividImage MON-STE42SDI-MD Manuel utilisateur

Steris

Steris Vividimage RLM274K Manuel utilisateur

Steris

Steris RLM26HDTNPWR Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
