Steren 207-340 Manuel utilisateur
ENGLISH
ENGLISH-02
Before using your new Channel 3 Audio/Video to coaxial converter
read this instruction manual to prevent any damage. Put it away in
a safe place for future references.
IMPORTANT
Clean only with a soft, dry cloth.
Do not try to open the equipment, may cause malfunction and
warranty repeal.
Do not use or store the equipment near wet places. May cause
malfunction or shock hazard.

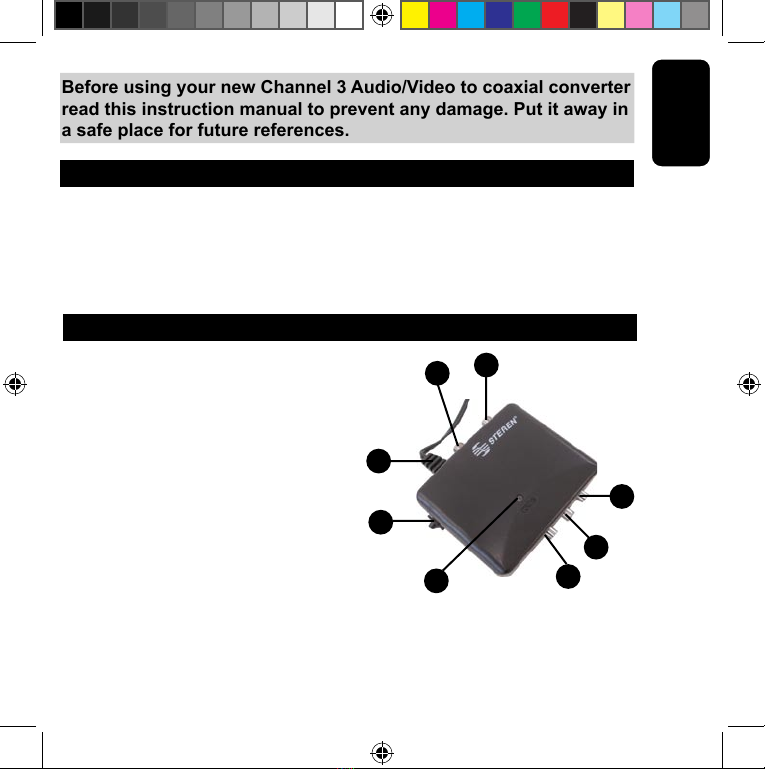

CONTROLS
1.- RF OUT
Output for TV with coaxial cable
2.- ANT IN. antenna input.
3.- Power cord.
4.- Switch on/off
5.- LED indicator
6.- Audio input left.
7.- Audio input right.
8.- Video input
•
•
•
1
2
3
4
56
7
8
ENGLISH
ENGLISH-03
REQUIRED EQUIPMENT (NOT INCLUDED IN THE PACKAGE)
- If the AV equipment have stereo outputs, one audio / video cable with
3 RCA connectors in each end
- If the AV equipment have mono outputs, one audio / video cable with 2
RCA connectors in each end
CONNECTING RCA CABLE
If video source is in stereo:
1.- Locate the RCA connectors into the converter, then insert one AV
cable on them.
2.- Plug the other end into AV device output jacks.
Make sure the colors match on both equipments.
If video source is in mono:
1.- Locate the RCA connectors into the converter, then insert one AV
cable on them. For audio connections, use one of the connector and
insert it in L or R input jack.
2.- Plug the other end into AV device output jacks.
Make sure the colors match on both equipments.
CONNECTING F CABLE
If you have a device connected to F connector on TV set (such as VCR
or Cable) unplug the coaxial cable from the TV set and plug into the
ANT IN connector in the modulator.
ENGLISH
ENGLISH-04
Then, plug other coaxial cable from RF OUT output jack on the
converter to F connector on TV set.
If you don’t have any device connected to F connector on TV, just plug a
coaxial cable from TO TV output to F connector on TV.
In case your TV set have 300ohm connector (screws) instead of F
connector, you must use a matching device from 75 to 300ohm, to
install the modulator as we seen before.
VIDEO
AUDIO
ANT IN RF OUT
ENGLISH
ENGLISH-05
HOW TO USE THE CONVERTER
Once you have made the right connections, follow these steps to start to
use the equipment:
1.- Turn the TV set on and choose channel 3 (usually, you need to
choose the channel without signal).
2.- Turn the AV converter on.
3.- If the equipment is in use, an indicator will light.
4.- Turn on the A/V player and begin playing Audio / Video, TV appears
imegen and hear the audio.
SPECIFICATIONS
Input: 110V~ 60 Hz 1,5 W
Video output: 69dB uV
RF output channels: 3
RF output impedance: 75ohm
Video input impedance: 75ohm to 1kohm
Audio input impedance: -20dB, 25kohm
Weight: 228kg
Dimensions: 100x96x43mm
Product design and specications are subject to change without
previous notice.
WARRANTY
This Steren product is warranted under normal usage against defects in workmanship and
materials to the original purchaser for one year from the date of purchase.
CONDITIONS
1.- This warranty card with all the required information, invoice or purchase ticket, product
box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accesories to costumer, as well as
warranty service, at any of the addresses mentioned later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,
failure to follow enclosed instructions, improper repair by unauthorized personnel, improper
safe keeping, among others.
a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.
Product: Channel 3 Audio/Video to coaxial converter
Part number: 207-340
Brand: Steren
RETAILER INFORMATION
Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
In case your product fails or have questions, please contact your nearest dealer. If
you are in Mexico, please give a call to our Call Center.
Call Center
01 800 500 9000
Antes de utilizar su nuevo Convertidor de A/V a coaxial para canal
3. lea este instructivo para evitar cualquier mal funcionamiento.
Guárdelo para futuras referencias.
IMPORTANTE
Siempre utilice un paño suave, limpio y seco para limpiar el equipo.
No intente abrir el equipo, puede ocasionar malfuncionamiento y
anulación de la garantía.
No use ni almacene este equipo en lugares donde existan goteras
o salpicaduras de agua.
CONTROLES
1.- RF OUT
Salida para TV por cable coaxial
2.- ANT IN. Entrada de antena aerea.
3.- Cable de corriente eléctrica
4.- Interruptor de encendido/apagado
5.- LED indicador de encendido
6.- Entrada de Audio RCA izquierdo.
7.- Entrada de audio RCA derecho.
8.- Entrada de video RCA
•
•
•
ESPAÑOL-02
ESPAÑOL
1
2
3
4
56
7
8
EQUIPO REQUERIDO NO INCLUIDO EN EL EMPAQUE
- Un cable de audio / vídeo con 3 conectores tipo RCA en cada punta, si
el equipo de AV es estéreo
- Un cable de audio / vídeo con 2 conectores tipo RCA en cada punta, si
el equipo de AV es mono
CONEXIÓN DE LOS CABLES RCA
Si la fuente de vídeo es estéreo:
1.- Localice los conectores RCA en el convertidor e inserte un cable de
audio / vídeo en ellos.
2.- El otro extremo de los conectores insértelos en el equipo de A/V .
Asegúrese de que los colores de los conectores coincidan en
ambos equipos.
Si la fuente de vídeo es mono:
1.- Localice los conectores RCA en el convertidor e inserte un cable de
audio / vídeo en ellos. En el caso de las entradas de audio, utilice uno
de los conectores e insértelo en la entrada L o R.
2.- El otro extremo de los conectores insértelos en el equipo de A/V.
Asegúrese de que los colores de los conectores coincidan en
ambos equipos.
CONEXIÓN DE LOS CABLES TIPO F
Si el conector tipo F de su televisor está conectado a otro equipo como
un reproductor de vídeo o televisión por cable, desconecte el cable e
insértelo en el convertidor, en la entrada denominada ANT IN.
ESPAÑOL-03
ESPAÑOL
