Before using your new Wireless USB adapter, please read

this instruction manual to prevent any damage. Put it away

in a safe place for future references.

IMPORTANT

The Wireless USB Adapter gives you the ﬂexibility to install your

PC or notebook PC in the most convenient location available,

without the cost of running network cables.

The adapter’s auto-sensing capability allows high packet transfer

of up to 108Mbps for maximum throughput, or dynamic range

shifting to lower speeds due to distance or operating limitations

in an environment with a lot of electromagnetic interference.

It can also interoperate with all 11Mbps wireless (802.11b)

products.

Your wireless communications are protected by up to 152-bit

WEP and WPA encryption for high security.

It adopts 108M Super G WLAN Transmission Technology, which

offers the highest throughput performance available on the

market today, link rates of up to 108Mbps. In dynamic 108M

mode, the device can attach 802.11b, 802.11g and 108Mbps

Super G devices at the same time in an integrated environment.

FEATURES

Complies with IEEE802.11g, IEEE802.11b standards

Adopts 108M Super G wireless LAN transmission

technology and eXtended Range 2x and 3x

Supports WPA / WPA2 data security, IEEE802.1x

authentication, TKIP/AES encryption,

64/128/152-bit WEP encryption

Supports 108/54/48/36/24/18/12/9/6/11/5.5/2/1Mbps wireless

LAN data transfer rates or 11/5.5/3/2/1Mbps

Provides USB interface

Supports Ad-Hoc and Infrastructure modes

Supports roaming between access points when conﬁgured in

Infrastructure mode

Ease to conﬁgure and provides monitoring information

Supports Windows 98SE, ME, 2000, XP

Internal Antenna

•

ENGLISH

ENGLISH-2

Before usin

our new Wireless USB adapter, please read

his instruction manual to prevent an

dama

e. Put it awa

n a safe

lace for future references

LED STATUS

HARDWARE INSTALLATION

1. Connect one end of the USB cable to the Adapter.

2. Connect the other end of the USB cable to the USB port on

your computer. The LED should light up when the Adapter is

plugged in and the PC is on.

SOFTWARE INSTALLATION

The Adapter’s Setup Wizard will guide you through the

installation procedure for Windows 98SE, ME, 2000, XP. The

Setup Wizard will install the Wireless Drivers & Utility and

drivers.

When you install the hardware before the software, the system

will prompt “Found New Hardware Wizard”, click Cancel, and run

the Setup Wizard program on the CD-ROM. The Setup steps for

Windows 2000 and Windows XP are very similar. The following

setup steps are for Windows 2000.

1. Insert the Resource CD into your CD-ROM drive, click Start

and choose Run. In the ﬁeld that appears, enter F:\XXX\Setup.

exe (if “F” is the letter of your CD-ROM drive; XXX is the setup

program path, which is labeled on the Resource CD), ﬁgure 1

should then appear.

2. You can click Cancel to end the installation on the Preparing

Setup screen, ﬁgure1. Otherwise, the Setup Wizard will display a

screen similar to that shown in ﬁgure 2 after a moment.

ENGLISH

ENGLISH-3

LED Indications Status Workin

Status

Green Intermittently

The adapter is in an

electricity saving status or

the adapter is already

connected but is not

transmitting or receiving

data.

Green Lit The adapter is on wake up

status.

Green Flashing The adapter is transmitting

and receiving data.

ENGLISH

ENGLISH-4

3. To continue, click Next on the screen. Click Cancel to end the

Installation.

4. The Setup Wizard will ask you to choose a Setup type (Fig. 3)

It is recommended that you select Install Client Utilities and

Driver. Select Install Driver Only to install driver only, select Make

Driver Installation Diskette(s) to make the diskette(s) as the

Fig 1

Fig 2

installation driver. Select Install Client Utilities and Driver and

Next to continue the Installation. Click Back to return to the

previous page, or click Cancel to end the Installation.

5. Figure 4 should appear. Click Yes to continue the

Installation, or click No to end the Installation.

ENGLISH

ENGLISH-5

Fig 3

Fig 4

6. Click Browse to change the Destination Location of the

software in ﬁgure 5. Click Next to continue the Installation. Click

Back to return to the previous page, or click Cancel to end the

Installation.

7. The Setup Wizard will ask you to create a new folder or select

one from the Existing Folders list shown in ﬁgure 6. It is

recommended that you keep the default value. Click Next to

continue the Installation. Click Back to return to the previous

page, or click Cancel to end the Installation.

Fig 5

Fig 6

ENGLISH

ENGLISH-6

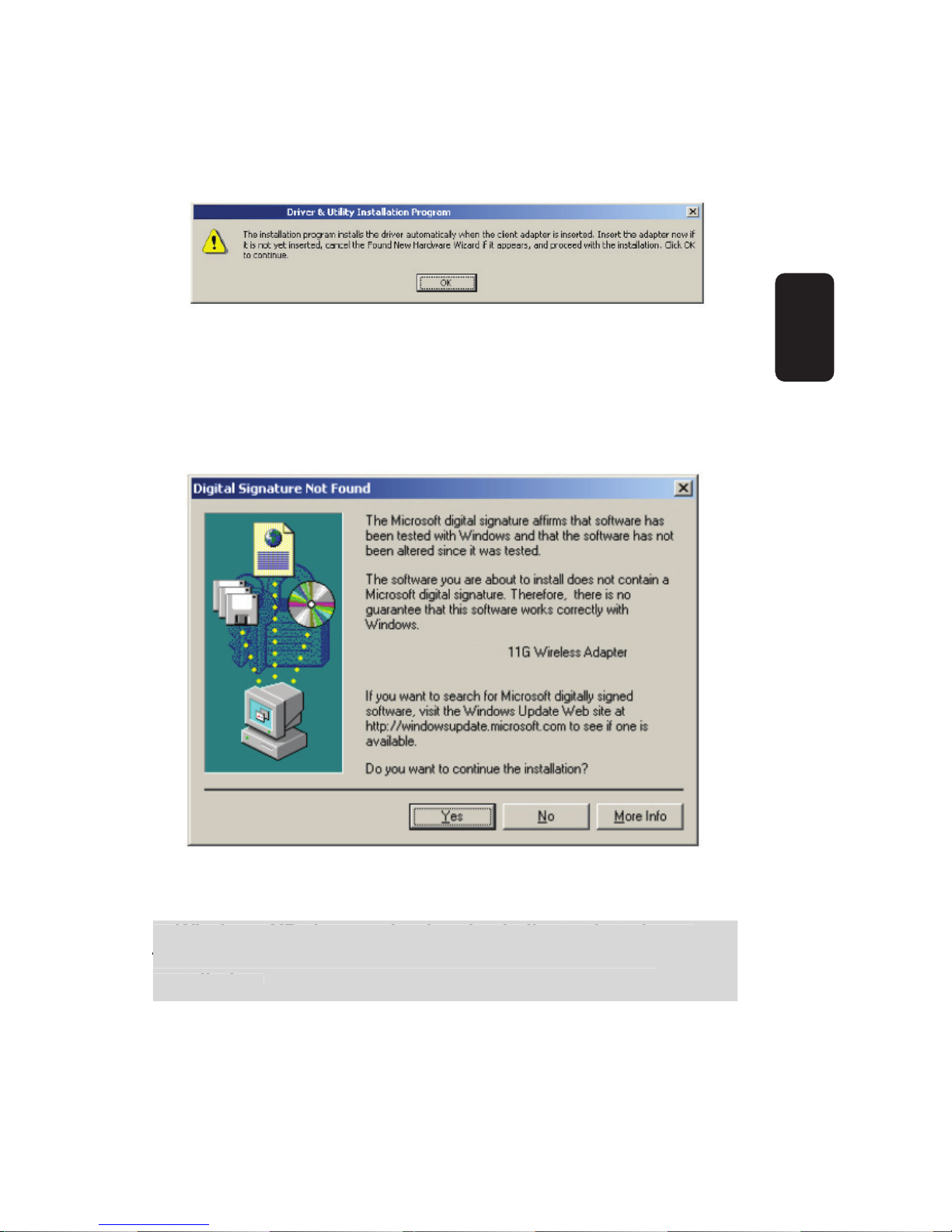

8. The Setup Wizard will notify you of how to proceed with the

installation, shown in ﬁgure 7. Click OK to continue the

Installation.

9. While ﬁles are copying, you will see a warning box, shown in

ﬁgure 8. Please select YES to continue installation. Our

drivers have been tested thoroughly, and are able to work with

the operating system.

In Windows XP, the warning box is similar to that shown

ﬁgure 9, Please select Continue Anyway to continue

installation.

n Windows XP, the warnin

box is similar to that shown

ﬁ

ure 9, Please select Continue An

to continue

nsta

Fig 7

Fig 8

ENGLISH

ENGLISH-7

10. After the ﬁles have been successfully copied, the next screen

will appear.

Click OK to reboot the system.

Fig 9

Fig 10

ENGLISH

ENGLISH-8

CONFIGURATION

After installing the Adapter, the Adapter’s tray icon will

appear in your system tray. It appears at the bottom of the

screen, and shows the signal strength using color and the

received signal strength indication (RSSI).

If the icon is gray, there is no connection.

If the icon is red, there is poor signal strength and the

RSSI is less than 5dB.

If the icon is yellow, there is poor signal strength and the

RSSI is between 5dB and 10dB.

If the icon is green, there is good signal strength and the

RSSI is between 10dB and 20dB.

If the icon is green, there is excellent signal strength and

the RSSI is more than 20dB.

Double-click the icon and the Current Status screen of

Wireless Client Utility will appear. From this screen, you can view

the strength of the Adapter’s signal and the quality of its

connection. You can also click Advanced to view additional

status information about the current wireless connection. To Edit

or add a conﬁguration proﬁle, click the Proﬁle Management tab.

To display current diagnostics information, click the Diagnostics

tab.

The Wireless client Utility provides a complete and easy to use

set of tools to:

Display current status information

Edit and add conﬁguration proﬁles

Display current diagnostics information

•

ENGLISH

ENGLISH-9

CURRENT STATUS

The Current Status tab contains general information about the

program and its operations. The Current Status tab does not

require any conﬁguration.

The following table describes the items found on the Current

Status screen.

Proﬁle Name - The name of current selected conﬁguration

proﬁle. Set up the conﬁguration name on the General tab of

Proﬁle Management.

Link Status - Shows whether the station is associated to the

wireless network.

Wireless Mode - Displays the wireless mode. Conﬁgure the

wireless mode on the Advanced tab of Proﬁle Management.

Network Type - The type of network the station is currently

connected with. The options include:

• Infrastructure (access point)

• Ad Hoc

Conﬁgure the network type on the Advanced tab of

Proﬁle Management.

IP Address - Displays the computer’s IP address.

Current Channel - Shows the currently connected channel.

Data Encryption - Displays the encryption type that the

driver is using. Conﬁgure the encryption type on the Security

tab of Proﬁle Management.

•

Fig 11

ENGLISH

ENGLISH-10
