PLCS 600
INSTALLATION
GUIDE
April 2023
Revision 3
2
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
Table of Contents
Contents
Table of Contents.........................................................................2
Installation Personnel ...........................................................3
WARNING................................................................................3
AVERTISSEMENT ...................................................................4
Limitation of Liability ............................................................5
FCC Statement.........................................................................6
Hardware Overview ..................................................................7
Mounting the Enclosure ...........................................................8
Location.................................................................................8
Distance Limitations ..............................................................8
Enclosure Penetrations .........................................................8
Wiring to External Connections ............................................10
Control Power.......................................................................10
Revenue Grade Meter.........................................................11
Current Transformer and Voltage Reference
Installation ........................................................................12
Weather Sensor Installation ..............................................15
Reference Cell and Back of Module Temperature
Mounting............................................................................15
Ambient Temperature Sensor Mounting ......................16
Weather Sensor Wiring...................................................17
3
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
Modbus Communication Wiring ........................................18
RS485 for Modbus RTU Communication ......................18
CAT5e Ethernet for Modbus TCP Communication ......20
AlsoEnergy Modbus Address Standard ............................20
Connecting to the Internet ................................................22
Optional Cellular Modem.................................................22
Building or Site Internet –No Modem..........................23
Installation Personnel
Installation and maintenance of the communications enclosure should
only be performed by qualified, competent personnel who have
appropriate training and experience with high voltage and current
devices. The communications enclosure must be installed in accordance
with all Local and National Electrical Safety Codes.
WARNING
Failure to observe the following may result in severe injury or death:
•Keep these instructions.
•There are no user serviceable parts inside. Refer service
to an authorized service person.
•During normal operation of this device, hazardous voltages
are present on the input terminals of the devices and
throughout the connected power lines. With their primary
circuit energized, current transformers (CTs) may generate
high voltage when their secondary windings are open.
Follow standard safety precautions while performing any
installation or service work (i.e. remove line/ PT fuses,
short CT secondaries, etc.).
4
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
•This product must be used in accordance with the
instructions in this manual, otherwise the product may not
perform as expected or cause hazards to the user.
AVERTISSEMENT
Le manque d'observer le suivant peut avoir comme conséquence des
dommages ou la mort graves:
•Il n'y a aucune pièce utile d'utilisateur à l'intérieur, se
réfèrent le service à une personne autorisée de service.
•Pendant le fonctionnement normal de ce dispositif, les
tensions dangereuses sont présentes sur les bandes
terminales d'entrée du dispositif et dans toutes les lignes
électriques reliées. Leur circuit primaire étant activé, les
transformateurs de courant (CTs) peuvent produire de la
tension quand leurs enroulements secondaires sont
ouverts. Suivez les mesures de sécurité standard tout en
effectuant n'importe quelle installation ou travail de service
(c.-à-d. enlevez la ligne fusibles de pinte, secondaries
courts de CT, etc.).
•Gardez ces instructions.
•Ce produit doit être employé selon les instructions en ce
manuel, autrement le produit peut exécuter comme prévu
ou ne pas causer des risques à l'utilisateur.
5
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
Danger
Line voltages up to 600 VRMS are present on the
input terminals of the device and throughout the
connected line circuits during normal operation.
These voltages may cause severe injury or death.
Installation and servicing should be performed only
by qualified, properly trained personnel. This is a Class III measurement
device.
Danger
Tensions secteur jusqu'à 600 VRMS sont présent sur
les bornes d'entrée du dispositif et dans toute la
ligne reliée circuits pendant l'opération normale.
Ces tensions peuvent causer des dommages ou la
mort graves. L'installation et l'entretien devraient
être assurés seulement par le personnel qualifié et
correctement qualifié. C'est un dispositif de mesure
de la classe III.
Limitation of Liability
AlsoEnergy™Inc. (“AE”) reserves the right to make changes to its
products and/or their specifications without notice. Obtain the latest
version of the device specifications to assure the most current
information is available to the customer.
AE assumes no liability for applications assistance, customer’s system
design, or infringement of patents or copyrights of third parties by/or
arising from the use of AE’s devices.
AE SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES SUSTAINED
IN CONNECTION WITH AE PRODUCTS, EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW. FURTHERMORE, AE NEITHER ALLOWS
6
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY SUCH
OBLIGATION OR LIABILITY.
Although the information contained in this document is believed to be
accurate, AE assumes no CSA - C22 Statement
This product meets the requirements of Can/CSA-C22.2 no. 61010-1,
second edition, including Amendment 1, or a later version of the same
standard incorporating the same level of testing requirements.
FCC Statement
This device is classified as a Class A digital device.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operations.
7
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide

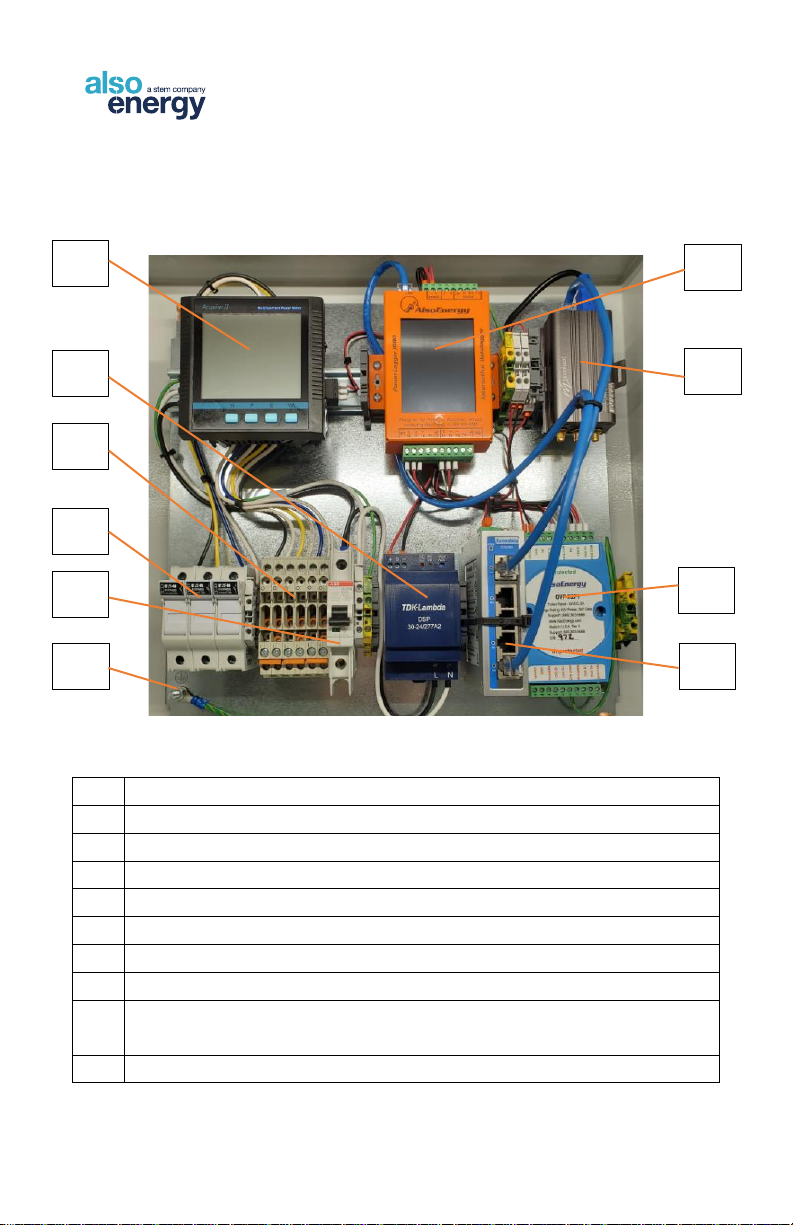

Hardware Overview
1
Revenue Grade Meter
2
DC Power Supply
3
Current Transformer Terminal Blocks
4
Voltage Reference Fused Disconnect
5
Control Power Input Terminals and Breaker
6
Grounding Stud
7
Data Logger
8
Cellular Modem (Optional)
9
RS485 and 24 VDC Surge Suppressor for External Device
Connection
10
Ethernet Switch
1
2
4
3
5
6
7
8
9
10
8
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
Mounting the Enclosure
Location
•The unit should be placed in a secure location, away from
any potential tampering.
•Mount to an indoor or outdoor wall using four M8 or 5/16”
bolts through the holes in the mounting flanges.
•Allow space beneath the
enclosure for conduit runs for all
input and output wires.
•Allow sufficient working space in front of and beside the
unit to allow the front door to open fully.
Distance Limitations
•Maximum 100m (328 feet) from an internet connected
network port if not using an internal cellular modem.
•No further than 2m (6 feet) from earth ground.
•Maximum 1200m (4,000 feet) between communications
enclosure and last RS-485 device
Enclosure Penetrations
•All conduits and wires must enter from the bottom of the
enclosure. Do not penetrate the top or sides of the
enclosure.
9
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
•All entry points must be sealed using weatherproof
connecters.
•Warranty will be voided if there are entry points on the top
or sides of the enclosure.
•All penetrations must be liquid tight. Use outdoor rated
conduit connections for all outdoor installation.
•AlsoEnergy provides a desiccant packet within all
enclosures to reduce the internal humidity of the enclosure.
Replace the desiccant packet when the humidity indicator
card shows 40% relative humidity or higher.
•AC power, voltage reference, and current transformer wire
must not be run through conduit carrying RS485, CAT5e,
or analog sensor wires. Penetrate the enclosure for the two
separate conduits as shown.
10
AlsoEnergy.com | 886-303-5666 | United States, Germany, Japan, India
PLCS 600 Installation Guide
Wiring to External Connections
Control Power
•The power supply in the AlsoEnergy PLCS 600 requires
100-277VAC at 0.2A-0.4A, 50-60 Hz, and is auto-ranging.
A neutral wire is required for power, do not use two “hot”
phases to power the enclosure.
•The monitoring system should be protected by a main
circuit breaker rated up to 20 amps.
•Power may be provided from a dedicated circuit. Providing
power from the line side of the voltage reference is not
permitted in all areas. Consult NEC and local regulations if
not powering the enclosure from a dedicated breaker.
Check that power is off at the main breaker and that the
breaker inside the PLCS 600 is off before starting any work.
Complete all other enclosure connections before
energizing the enclosure.

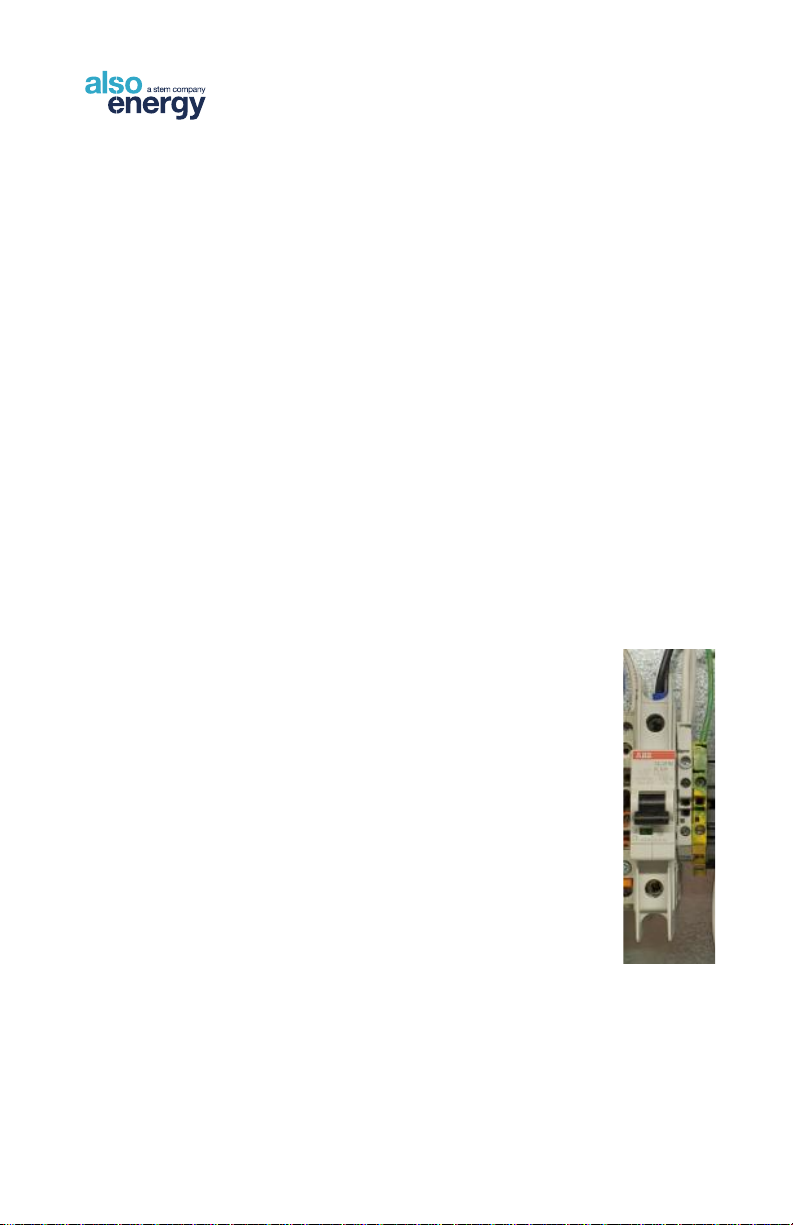

Connect the AC input power with 12-14AWG as
follows.
(1) Circuit Breaker - AC line 100-277VAC
(black)
(2) Terminal Block –AC neutral (white)
(3) Green/Yellow Terminal Block –EGC
(green, green/yellow, or bare copper)
