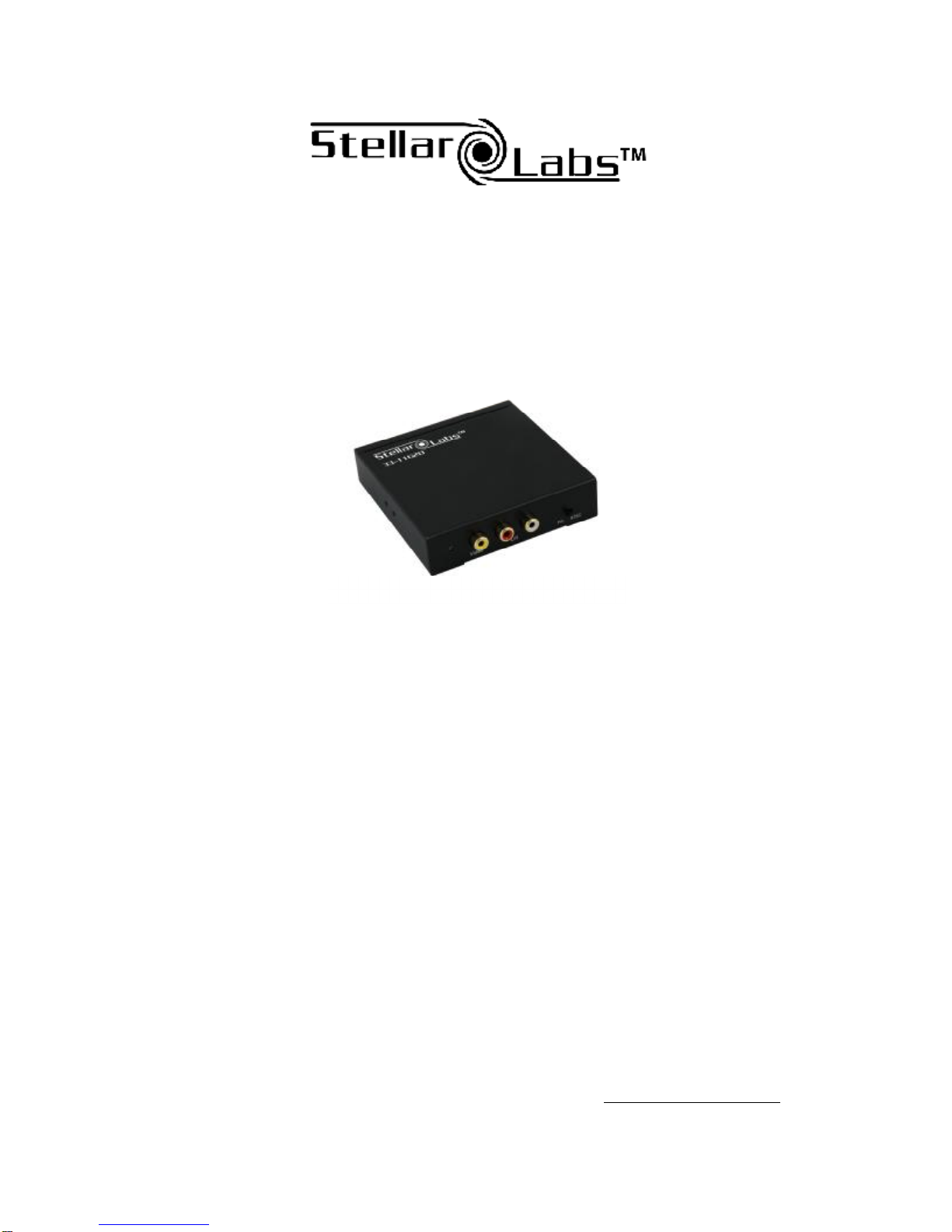

HDMItoA/VConverterModel #33-11620
2
HDMItoAV Converter
Dearcustomer
Thankyoufor purchasingthis product.For optimumperformanceandsafety,
pleasereadtheseinstructionscarefullybefore connecting,operatingor
adjustingthis product. Pleasekeepthis manual for future reference.
1.0INTRODUCTION

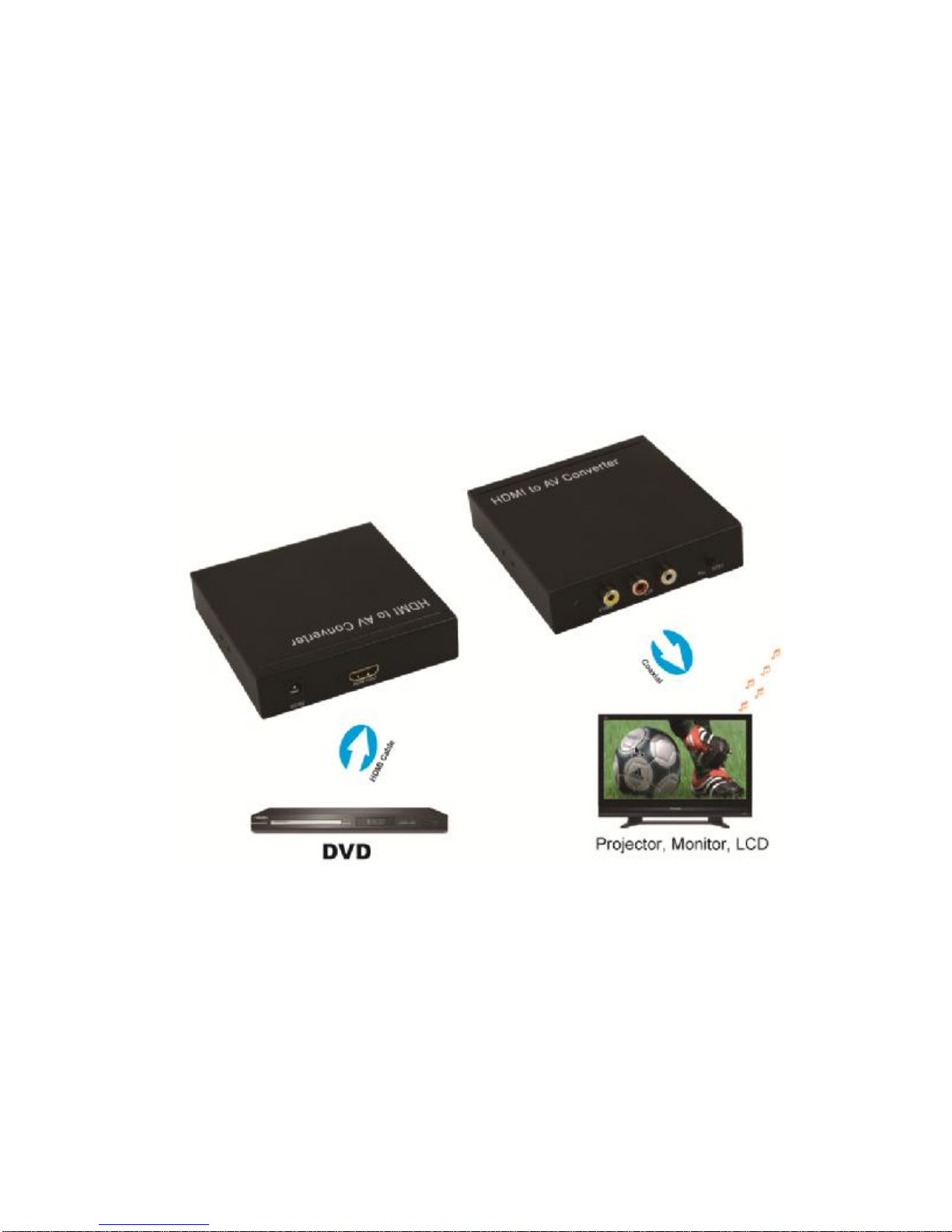

This deviceconvertsdigitalHDMIsignalintoanalogcompositevideo and L/R
unbalancedlinelevelaudiosignal. It allowsuserstoutilizehigh definition
sourcesontraditionalAV monitorsorprojectors. It is alsousefulindistributed
audioapplicationswherethestereo audiosignalmust be extracted froman
HDMIsource.
1.1FEATURES
This HDMIconverter hasmanyfeaturesthatenableittoperforminasuperior
manner. Theseinclude:
lInstalls inseconds, nosetupneeded.
lSupports HDMIresolutionmaxup to1080p
lSupports AnalogcompositeVideooutput uptoNTSC/480i or PAL/576i
lSupportsuncompressed L/R audiooutput
2.0SPECIFICATIONS
Signal Inputs/Output
InputVideoSignal 0.5-1.0volts p-p
InputDDC Signal 5volts p-p (TTL)
Inputconnection HDMI Afemale(19pin)
Output connection (3) RCA–red/ white/ yellow
HDMIvideo input format 480p/576p/720p/1080i/1080p
Compositevideooutputformat NTSC/480ior PAL/576i
Audiooutputformat 2channelLPCM
OperatingFrequency
Vertical FrequencyRange 50/60Hz
Mechanical
Size(mm)102(L) x 100 (W)x 25(H)
Weight(Net) 615g
Warranty
Limited Warranty 1YearParts andLabor
Environmental
Operating Temperature 0 to+70
Operating Humidity 10%to85%RH (nocondensation)
StorageTemperature -10 to+80
StorageHumidity 5%to95%RH(no condensation)
