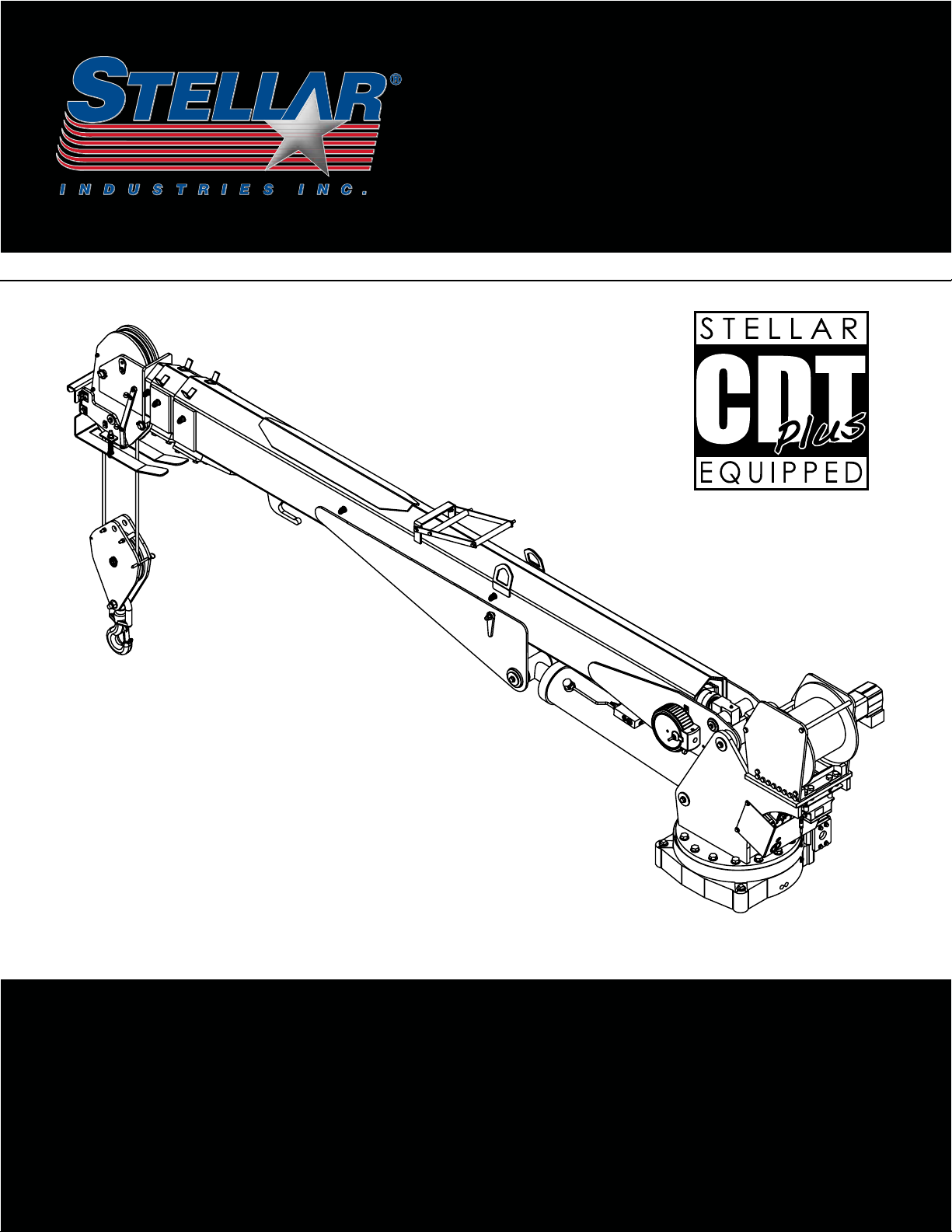

Stellar labs 14530 Manuel utilisateur

Model 14530

Telescopic Crane

Owner’s Manual

Stellar Industries, Inc.

190 State Street

PO Box 169

Garner, IA 50438

800-321-3741

Fax: 641-923-2811

www.stellarindustries.com

Subject to Change without Notication.

Installation • Assembly Drawings • Parts

Notice: A copy of this manual must remain with the equipment at all times.

For a printable download copy, please visit: www.stellarindustries.com

Plus

Page ii | Stellar®14530 Telescopic Crane Owner’s Manual

Model 14530 Manual Revisions

MODELNO.SERIAL NO.

DATE

MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.

PNC5942

PATENTINFORMATION

http://www.stellarindustries.com/ip

MODEL NO.SERIAL NO.

DATE

MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.

PN C5942

PATENT INFORMATION

http://www.stellarindustries.com/ip

Serial Tag

Location

Date of Revsion Section Revised Description of Revision

Stellar®14530 Telescopic Crane Owner’s Manual | Page iii

Table of Contents

Introduction ........................................................................................ iv

Chapter 1 - Specications.....................................................................1

Model 14530 Specications ...............................................................1

Capacity Chart - Decal PN 71873 ....................................................2

Dimensional Drawing 1 .......................................................................3

Dimensional Drawing 2 .......................................................................4

Chapter 2 - Installation ..........................................................................5

General Installation .............................................................................5

Installer Notice ...................................................................................5

Torque Data Chart ............................................................................6

Installation Overview ........................................................................7

Control Kit - PN 74985 .........................................................................8

Electrical Circuit Grounding ...............................................................9

Hydraulic Kit - PN 57573 ....................................................................10

Valve Bank - PN 57572 ......................................................................11

Hydraulic Installation.........................................................................12

Winch Case Drain Installation ..........................................................13

Hydraulic System ...............................................................................14

Face Seal/O-Ring Size Chart ...........................................................15

Stability Procedure ............................................................................16

Crane Load Level Indicator .............................................................17

Decal Kit - PN 71871 ..........................................................................18

Chapter 3 - Assembly Drawings .........................................................19

Base Assembly - PN 26205 ................................................................19

Mast Assembly - PN 74653 ................................................................20

Main Boom Assembly - PN 74654 ....................................................21

Extension Boom Assembly - PN 75099 .............................................22

Main Cylinder Assembly - PN 74655 ................................................23

Extension Cylinder Assembly - PN 72940 .........................................24

Cable & Hook Assembly - PN 56274 ...............................................25

Page iv | Stellar®14530 Telescopic Crane Owner’s Manual

Introduction

A copy of this manual is provided with every crane and can be found in the hard plastic

manual case that is installed on the chassis. A copy of this manual shall remain with the

crane at all times.

Throughout the manual, three signal words will be used to bring attention to important

items:

A NOTICE signal word indicates a practice not related to physical injury.

A WARNING signal word indicates a hazardous situation which, if not

avoided, could result in death or serious injury.

A DANGER signal word indicates a hazardous situation which, if not

avoided, will result in death or serious injury.

Information contained within this manual does not cover operation, maintenance, or

troubleshooting. Please refer to the General Light Duty Crane Manual for details on these

items.

This manual is not binding. Stellar Industries, Inc. reserves the right to change, at any

time, any or all of the items, components, and parts deemed necessary for product

improvement or commercial/production purposes. This right is kept with no requirement or

obligation for immediate mandatory updating of this manual.

In closing:

If more information is required or technical assistance is needed, or if you feel that any

part of this manual is unclear or incorrect, please contact the Stellar Customer Service

Department by phone at 800-321-3741 or email at [email protected].

WARNING

NOTICE

DANGER

For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at

800-321-3741

Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST

Or email at the following addresses:

Technical Questions, and Information [email protected]

Order Parts [email protected]

Warranty Information [email protected]

Stellar®14530 Telescopic Crane Owner’s Manual | Page 1

Model 14530 Crane

Specifications Sheet

Page: 1 of

Crane

Rating*:

82,600

ft-lbs (11.42 TM)

Standard Boom Length:

13' 4" (4.06 m) from CL of Crane

Boom Extension:

Hydraulic 100" (254 cm)

Maximum Horizontal Reach:

30' (9.14 m) from CL of Crane

Maximum

Vertical Lift:

31' 9" (9.68 m) from Crane Base

Stowed Height (Crane Only):

43" (109.2 cm)

Required Mounting Space:

25" x 22" (63.5 cm x 55.9 cm)

Approximate Crane Weight:

Controls:

Radio control standard for all functions.

Wire Rope:

1/2" (1.27 cm) 6X25 IWRC-DGXIP X 120' (36.58 m)

Boom Elevation:

-10º to +80º

Line Pull Speed:

ft/min (18.29 m/min)

Max. Single Part Line:

7,000 lbs (3,175 kg)

Max. Double Part Line:

14,000 lbs (6,350 kg)

Rotation (Worm Gear):

400º Power

Lifting Capacity**:

14,000 lbs @ 5'10" (6,350 kg @ 1.78 m)

2,750

lbs @ 30' (1,247 kg @ 9.14 m)

Power Supply:

3,200 lbs (1,452 kg)

14530 Standard

1st Stage:

2nd Stage:

PTO & Pump:

12 gpm @ 2,600 psi

(45.4

lpm @ 180 bar)

Winch Specifications

*Crane rating in Boost Mode. Normal crane rating is 70,000 ft-lbs (9.68 TM).

**Maximum capacities in Boost Mode.

Chapter 1 - Specications

Model 14530 Specications

Page 2 | Stellar®14530 Telescopic Crane Owner’s Manual

Model 14530 Crane

Specifications Sheet

Page: 2 of 4

Crane Rating*:

Standard Boom Length:

Boom Extension:

Maximum Horizontal Reach:

Maximum Vertical Lift:

Stowed Height (Crane Only):

Required Mounting Space:

Approximate Crane Weight:

Controls:

Wire Rope:

Boom Elevation:

Line Pull Speed:

Max. Single Part Line:

Max. Double Part Line:

Rotation (Worm Gear):

Lifting Capacity**:

Power Supply:

1st Stage:

2nd Stage:

Winch Specifications

PN 71873 - Rev A

0’

2.4 m1.8 m1.2 m0.6 m

2’ 4’ 6’ 8’

3.1 m

10’

3.7 m

12’

4.3 m

14’

4.9 m

16’

5.5 m

18’

6.1 m

20’

6.7 m

22’

7.3 m

24’

7.9 m

26’

8.5 m

28’

13’4”

4.06 m

21’8”

6.60 m

30’

9.14 m

-10º

80º

0º

15º

30º

45º

60º

2.4 m

1.8 m

6’

8’

3.1 m

10’

3.7 m

12’

4.3 m

14’

4.9 m

16’

5.5 m

18’

6.1 m

20’

6.7 m

22’

7.3 m

24’

7.9 m

26’

8.5 m

28’

9.8 m

32’

10.4 m

34’

9.1 m

30’

14000 lbs

6350 kg

14000 lbs

6350 kg

10500 lbs

4760 kg

7425 lbs

3365 kg

6060 lbs

2745 kg

5250 lbs

2380 kg

3230 lbs

1465 kg

2330 lbs

1055 kg

4665 lbs

2115 kg

3295 lbs

1490 kg

2690 lbs

1220 kg

2415 lbs

1095 kg

3340 lbs

1515 kg

3730 lbs

1690 kg

4565 lbs

2070 kg

6460 lbs

2930 kg

13435 lbs

6090 kg

14000 lbs

6350 kg

12390 lbs

5620 kg

8760 lbs

3970 kg

7155 lbs

3245 kg

6195 lbs

2810 kg

5330 lbs

2420 kg

6290 lbs

2855 kg

3280 lbs

1490 kg

3870 lbs

1755 kg

2365 lbs

1070 kg

2795 lbs

1270 kg

3810 lbs

1725 kg

2750 lbs

1245 kg

3945 lbs

1785 kg

2850 lbs

1290 kg

4400 lbs

1995 kg

3175 lbs

1440 kg

5390 lbs

2440 kg

3890 lbs

1760 kg

7620 lbs

3455 kg

5505 lbs

2495 kg

5435 lbs

2465 kg

6415 lbs

2905 kg

Weight of load handling devices are

part of the load lifted and must be

deducted from the capacity.

Maximum 1 - part line capacity is

7000 lbs (3175 kg). For greater

loads, use 2 - part line.

Boost

(If Equipped)

Standard

Capacity Chart - Decal PN 71873

Stellar®14530 Telescopic Crane Owner’s Manual | Page 3

Model 14530 Crane

Specifications Sheet

Page: 3 of 4

Crane Rating*:

Standard Boom Length:

Boom Extension:

Maximum Horizontal Reach:

Maximum Vertical Lift:

Stowed Height (Crane Only):

Required Mounting Space:

Approximate Crane Weight:

Controls:

Wire Rope:

Boom Elevation:

Line Pull Speed:

Max. Single Part Line:

Max. Double Part Line:

Rotation (Worm Gear):

Lifting Capacity**:

Power Supply:

1st Stage:

2nd Stage:

Winch Specifications

13'3"

4.04m 21'7"

6.58m 29'11"

9.12m

3'7"

1.09m

23'9"

7.25m

32'0"

9.75m

6'7"

2.01m

5'1"

1.55m

4.75m

15'7"

0.36m

1'2"

1'11"

0.58m

Dimensional Drawing 1

Page 4 | Stellar®14530 Telescopic Crane Owner’s Manual

Model 14530 Crane

Specifications Sheet

Page: 4 of 4

Crane Rating*:

Standard Boom Length:

Boom Extension:

Maximum Horizontal Reach:

Maximum Vertical Lift:

Stowed Height (Crane Only):

Required Mounting Space:

Approximate Crane Weight:

Controls:

Wire Rope:

Boom Elevation:

Line Pull Speed:

Max. Single Part Line:

Max. Double Part Line:

Rotation (Worm Gear):

Lifting Capacity**:

Power Supply:

1st Stage:

2nd Stage:

Winch Specifications

1'1"

0.33m

13'3"

4.04m

4'6"

1.38m

1'10"

0.57m

4'2"

1.27m

3'7"

1.09m

15'3"

4.64m

2'4"

0.72m

Dimensional Drawing 2

Stellar®14530 Telescopic Crane Owner’s Manual | Page 5

Installer Notice

According to Federal Law (49 cfr part 571), each nal-stage manufacturer shall complete

the vehicle in such a manner that it conforms to the standards in effect on the date of

manufacture of the incomplete vehicle, the date of nal completion, or a date between

those two dates. This requirement shall, however, be superseded by any conicting

provisions of a standard that applies by its terms to vehicles manufactured in two or more

stages.

Therefore, the installer of Stellar®Cranes and Bodies is considered one of the manufacturers

of the vehicle. As such a manufacturer, the installer is responsible for compliance with all

applicable federal and state regulations. They are required to certify that the vehicle is in

compliance with the Federal Motor Vehicle Safety Standards and other regulations issued

under the National Trafc and Motor Vehicle Safety Act.

Please reference the Code of Federal Regulations, title 49 - Transportation, Volume 5 (400-

999), for further information, or visit http://www.gpoaccess.gov/nara/index.html for the full

text of Code of Federal Regulations.

Chapter 2 - Installation

General Installation

This chapter is designed to serve as a general guide for the installation of a Stellar 14530

Crane on a Stellar Service Body. Each installation is considered unique so certain portions

of this chapter may or may not apply to your direct application. If a question should arise

during the installation process, please contact Stellar Customer Service at (800) 321 3741.

This crane is designed for use with a Stellar Service Body installed on a vehicle that meets

the minimum chassis requirements of the crane. It is the installer’s responsibility to assure

that the crane is mounted on a platform that will support the maximum crane rating of this

crane.

Do not install this crane on a body not capable of handling the loads

imposed on it. Failure to do so may result in serious injury or death.

When installing welder units to the service bodies, it is highly

recommended that a surge protector is installed on the chassis batteries to protect the

crane radio receiver, wiring and other electronic devices from an unexpected electrical

spike or surge. Failure to do so could result in extensive damage to the service body and

crane electrical circuit.

WARNING

NOTICE

Page 6 | Stellar®14530 Telescopic Crane Owner’s Manual

When using the torque data in the

chart, the following rules should be

observed:

• Bolt manufacturer’s particular

specications should be consulted

when provided.

• Flat washers of equal strength

must be used.

• All torque measurements are

given in foot-pounds. To convert

to inch-pounds, multiply by 12.

• Torque values specied are for

bolts with residual oils or no special

lubricants applied. If special

lubricants of high stress ability,

such as Never-Seez compound

graphite and oil, molybdenum

disulphite, colloidal copper or white lead are applied, multiply the torque values in the

charts by the factor .90. The use of Loctite does not affect the torque values listed above.

• Torque values for socket-head capscrews are the same as for Grade 8 capscrews.

• Do not use these values if a different torque value or tightening procedure is given for

a specic application. Torque values listed are for general use only. Check tightness of

fasteners periodically.

• Shear bolts are designed to fail under predetermined loads. Always replace shear bolts

with identical grade.

• Fasteners should be replaced with the same or higher grade. If higher grade fasteners

are used, these should only be tightened to the strength of the original.

• Tighten plastic insert or crimped steel-type lock nuts to approximately 110 percent of the

dry torque values shown in the chart below, applied to the nut, not to the bolt head.

Tighten toothed or serrated-type lock nuts to the full torque value. Note: “Lubricated”

means coated with a lubricant such as engine oil, or fasteners with phosphate and oil

coatings. “Dry” means plain or zinc plated without lubrication. Tighten lubricated bolts

to approximately 80% of dry bolts.

Size Bolt DIA Plain Plated Plain Plated Plated

(DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb)

5/16-18 0.3125 17 13 25 18 22

3/8-16 0.3750 31 23 44 33 39

7/16-14 0.4375 49 37 70 52 63

1/2-13 0.5000 75 57 105 80 96

9/16-12 0.5625 110 82 155 115 139

5/8-11 0.6250 150 115 220 160 192

3/4-10 0.7500 265 200 375 280 340

7/8-9 0.8750 395 295 605 455 549

1-8 1.000 590 445 910 680 823

1 1/8-7 1.1250 795 595 1290 965 1167

1 1/4-7 1.2500 1120 840 1815 1360 1646

1 3/8-6 1.3750 1470 1100 2380 1780 2158

1 1/2-6 1.500 1950 1460 3160 2370 2865

GRADE 5 GRADE 8 GRADE 9

Torque Data Chart

Autres manuels pour 14530

Table des matières

Autres manuels stellar labs Matériel de construction

stellar labs

stellar labs Model 10621 Manuel utilisateur

stellar labs

stellar labs 7621 Manuel utilisateur

stellar labs

stellar labs TC13-2H Manuel utilisateur

stellar labs

stellar labs TireMan Package 6116 Manuel utilisateur

stellar labs

stellar labs 9000 Manuel utilisateur

stellar labs

stellar labs 14528 Manuel utilisateur

stellar labs

stellar labs EC Series Guide de configuration

stellar labs

stellar labs TireMan 28 Manuel utilisateur

stellar labs

stellar labs STUD KING MD25 Manuel utilisateur

stellar labs

stellar labs Model 5521 Manuel utilisateur

stellar labs

stellar labs 10628 Manuel utilisateur

stellar labs

stellar labs CDT Plus 7621 Manuel utilisateur

stellar labs

stellar labs Model 12621 Manuel utilisateur

stellar labs

stellar labs Model 7621 Manuel utilisateur

stellar labs

stellar labs 3315 Manuel utilisateur

stellar labs

stellar labs 13500 Manuel utilisateur

stellar labs

stellar labs 3200 Manuel utilisateur

stellar labs

stellar labs 9621 Manuel utilisateur

stellar labs

stellar labs TC23 Manuel utilisateur

stellar labs

stellar labs 9621 Manuel utilisateur

stellar labs

stellar labs TC33 Manuel utilisateur

stellar labs

stellar labs 4420 Manuel utilisateur

stellar labs

stellar labs 5521 Manuel utilisateur

stellar labs

stellar labs EC2000 Manuel utilisateur

Manuels Matériel de construction populaires d'autres marques

SASFORKS

SASFORKS EXTREME Manuel utilisateur

Hailo

Hailo H-50 Manuel utilisateur

Graco

Graco LineLazer ES 1000 Manuel d'utilisation et d'entretien

Greenlee

Greenlee 555RSC Manuel utilisateur

Manitowoc

Manitowoc Grove CD3340B Manuel utilisateur

Lux Tools

Lux Tools A-FMR-20 Set Manuel utilisateur

SIP

SIP 03683 Manuel utilisateur

Volvo

Volvo L30G Manuel utilisateur

Grizzly

Grizzly G8712 Manuel utilisateur

Modulift

Modulift CMOD 12 Manuel utilisateur

Case

Case DV201 Manuel utilisateur

Sealey

Sealey SC10.V2 Manuel utilisateur

Wacker Neuson

Wacker Neuson DT05 Manuel utilisateur

HYVA

HYVA AMCO VEBA 81 Series Manuel utilisateur

Atlas Copco

Atlas Copco Dynapac V5100TV Manuel utilisateur

Toro

Toro 323 Manuel utilisateur

Manitowoc

Manitowoc National Crane 1400A Manuel utilisateur

SGS

SGS EC1500 Manuel utilisateur

stellar labs 14530 Manuel utilisateur

Manuels Matériel de construction populaires d'autres marques
