STELLAPRO reflex Manuel utilisateur
User Manual
stellaprolights.com
Table of Contents
Section 1
Reex Light
Section 2
Battery Handle
Section 3
Connecting the light to battery
handle and powering on
Section 4
Operation basics
Section 5
OLED display
Section 6
Menu overview
Section 7
Light settings for operation with
wireless transmitters
Section 8
Firmware Updates
Section 9
Notes on use
Section 10
Additional Information
Umbrella Mount
Speedring Mount
REFLEX LIGHT
Direct mount

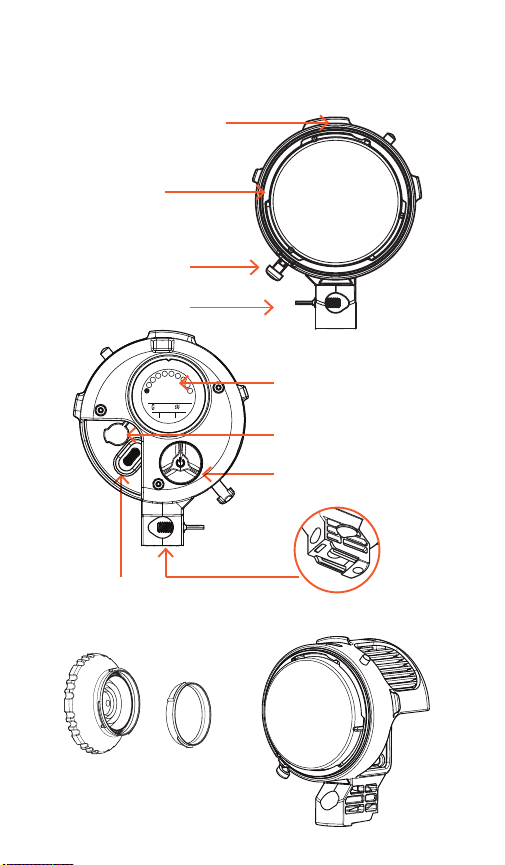

Section 1
DIRECT MOUNT
Medium
Spot Optic
Flat Port
Cover*
USB-C Port
3.5 mm port
External Trigger
OLED Display
Control Dial
Mounting Point
100
1/4”-20 Mounting Point
*Always install a cover or optic over the
exposed LED to protect against dust or
moisture
Pwr
USB-C Port Cover
Section 2
Professional Light Stand Sold
Seperately
BATTERY HANDLE
MOUNTING BATTERY
HANDLE TO LIGHT STAND
Handstrap /
Pole Strap
Pole Mounting Feature
MOUNTING ON POLE
Power Button
Mounting Latch
State of Charge (SOC) LEDs
(25%, 50%, 75%, 100%)
BATTERY INDICATOR LED
to indicate battery state
Charging (Green)
Discharging (Red)
Allen bolt
secures
connection

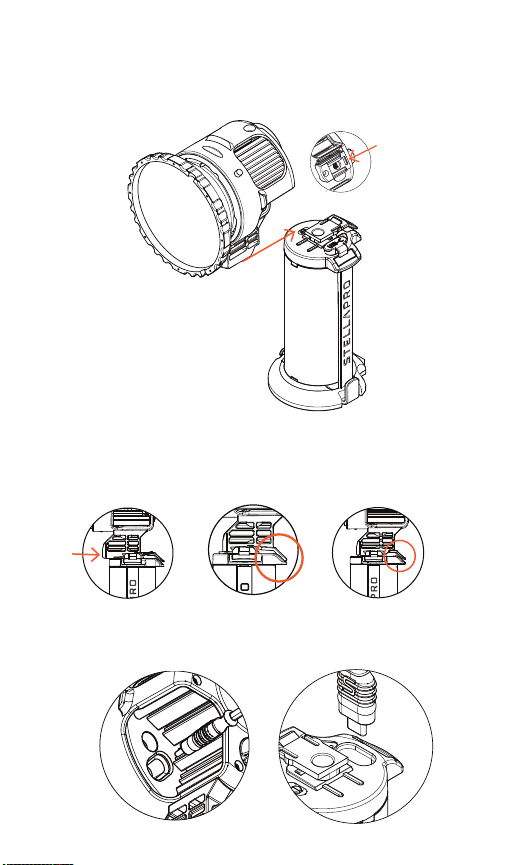

Section 3
Unlatched Secured
Connect USB-C cord to Reex light and battery USB-C ports
CONNECTING LIGHT TO BATTERY
Push light onto battery until it “clicks”
Tip: Push from the front top of the optic
Connector tab
should no longer
be compressed
Section 4
OPERATION BASICS
Connect short USB-C to the light and
battery. Press the white power button on
the battery. Battery Indicator will turn red.
Check connection and charge if indicator
light does not turn red. The OLED display
will turn on if connections are ok.
•
•
•
•
•
A Short press (1 sec switches between
Continuous and Digital Burst*(Or advance
through menu)
A Medium press (2 sec enters and exits the the
Reflex menu
Long press (4 sec to enter power o (Unplug
when putting in storage or traveling)
Rotate Clockwise to increase output (Or change
menu setting)
Rotate Counter-clockwise to decrease output
(Or change menu setting)
USING THE CONTROL DIAL
*ransmitter is required for burst operation
Power Button
Section 5
OLED DISPLAY
Section 6
MENU OVERVIEW
L
B
Lm
Stops
S
LED Overheating
(Turn o to cool down)
Battery Overheating
(Turn o to cool down)
Sensor Fault
(Return for service)
100-6000 Lumens
1.0-4.4 Stops*
1/160-1/2500 Second
!
4000
Group Channel
Burst Modes
Wireless Modes
Godox,
Elinchrom,
Bluetooth,
-Radio O
Battery Level
Continuous/Burst Power
To navigate the menu short press
dial to advance the sub-menu. Ro-
tate dial to change the setting.
•
POWER DURATION
3.0Stops
•EPwr
E
•
Control the lumen
output with a set
burst duration of 5
milliseconds
Control the burst
duration with a set lu-
men output of 12000 lu-
mens
Power Level Indicators
*With 100W Power Supply lumens to 9000 and Digital Burst to 5-stops
∝2
Pwr
Pwr
Burst Modes
5ms Burst
Adjustable Power
Adjustable Duration (0.4ms - 6ms)
12000 Lumens***
POWER
DURATION **
Use this mode to:
• Shoot at any shutter speed (including HSS)
• Freeze action with the shutter
• Maximize the amount of light on subject
**Duration Mode only available on the Reflex S
***18000 Lumens when using 100W USB-C PD
Use this mode to:
• Shoot at the camera’s X-Sync shutter
speed or longer (not HSS)
• Freeze action with light
• Best used in low light situations
∝1Burst power matches continuous power
Optimize your settings in constant mode and, with Link
set to ∝1, Digital Burst will duplicate Continuous
Power level.
∝2Burst power delivers one stop more light
than set continuous power setting
Preset your camera to anticipate one more stop of light
by underexposing one stop of light.
∝Link Mode
Only exact at shutter speeds faster than 1/200
Pwr
Section 7
CHANGING LIGHT SETTINGS
Enter and exit the menu by pressing
the control dial for 2 seconds
Menu selection: Short press to
advance through sub-menus
mode
Burst Mode - Rotate dial to select
burst mode: Power or Duration
Group & Channel - Rotate dial to
select group and channel
E(1-4)(1-20)
G(A-F)
(1-32) P(A-
C) (1-8)
group
rotation
Rotation - Rotate dial to
change display orientation
(4 directions) - for mounting
Reex horizontal or upside
down.
Proportional (∝)Link - Rotate
dial to cycle through link modes.
Whenactive Reex will strobe n
times brighter than current
continuous light.
∝link
∝2
-∝1
∝2
Pwr
Pwr
Wireless - Rotate dial to select
transmitter type (Elinchrom,
Godox, Profoto, Bluetooth,
Wireless OFF)
Set Wireless mode to Bluetooth
to perform rmware updates.
Make sure you have exited the
menu.
Elinchrom
Godox
Bluetooth
Profoto
- wireless off
wireless
Section 8
UPDATING REFLEX FIRMWARE
1. Download the StellaPro Imaging
Control Application
2. Set Reex Wireless Mode to Bluetooth
3. Exit Reex Menu
4. In the app scan for Devices
5. Select a Device to connect
6. Enter Serial Number
7. Select a Device to start update
G
