STEINEL DualTech DALI-2 Manuel utilisateur

STL-11104-20_BDAL_L 585 S_148x210mm 2.indd 1 15.04.20 07:37

IR Micro Oce DALI-2

Application Controller

STL-11104-20_BDAL_L 585 S_148x210mm 2.indd 1 15.04.20 07:37

IR Micro Oce DALI-2

Application Controller

Index

1. About this document 44

2. General safety precautions 44

3. System description 45

4. Electrical connection 54

5. Installation 56

6. Function 70

7. Cleaningandmaintenance 78

8. Disposal 79

9. Conformity 79

10. Manufacturer’s warranty 80

11. Technicalspecications 81

12. Troubleshooting 82

– 44 – Index

1. About this document

– Under copyright. Reproduction either in whole or in part

only with our consent.

– Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

Warning of hazards from water!

2. General safety precautions

!Failure to observe these operating instructions

presents hazards!

These instructions contain important information on the

safe use of this product. Particular attention is drawn to

potential hazards. Failure to observe this information may

lead to death or serious injuries.

• Read instructions carefully.

• Follow safety advice.

• Keep instructions within easy reach.

– Working with electrical current may produce hazardous

situations. Touching live parts can result in electrical

shock, burns or death.

– Work on mains voltage must only be performed by

qualied, skilled personnel.

– National wiring regulations and electrical operating

conditions must be observed (e.g. DE: VDE0100,

AT:ÖVE-ÖNORM E8001-1, CH:SEV1000).

– Only use genuine replacement parts.

– Repairs must only be carried out by companies qualied

to do so.

– 45 – Index

3. System description

Proper use

– Sensor for indoor ceiling mounting.

Operating principle

– The integrated infrared sensor detects the heat radiated

from moving objects (e.g. people, animals). The heat

detected in this way is converted electronically into a

signal that switches the LED oodlight ON automatically.

– The most reliable way of detecting motion is to install

the unit with the sensor aimed across the direction in

which a person would walk.

– Motion detection reach is restricted when the unit is

approached head on.

– Obstacles (such as trees, walls or panes of glass) may

restrict or prevent the detection of movement.

– Sudden uctuations in temperature as a result of

changes in weather are not distinguished from sources

of heat.

Certication:

This product is certied according to IEC 62386-103 as

asingle-master application controller. Its DALI 2 certica-

tion therefore only covers applications in which only DALI

electronic ballasts (control gear) are connected to the DALI

bus.

IR Micro Oce DALI-2 APC AP: Surface-mounted variant

IR Micro Oce DALI-2 APC UP: Concealed variant

IR Micro Oce DALI-2 APC DE: Variant for ceiling instal-

lation

– 46 – Index

Scopeofdelivery–IRMicroOceDALI-2APCAP

3.1

1× 1×

2× 1×

1× 1×

1×2×

– 1 ceiling bracket

– 1 frame

– 1 sensor module

– 1 cover

– 2 small screws

– 2 shrouds

– 1 safety data sheet

– 1 quick-start guide

– 47 – Index

Scopeofdelivery–IRMicroOceDALI-2APCUP

3.2

1× 1×

1×1×

2×

– 1 sensor module

– 1 cover

– 2 shrouds

– 1 safety data sheet

– 1 quick-start guide

– 48 – Index

Scopeofdelivery–IRMicroOceDALI-2APCDE

3.3

1×

1×2×

– 1 sensor module

– 1 cover

– 2 shrouds

– 1 safety data sheet

– 1 quick-start guide

– 49 – Index

Productdimensions–IRMicroOceDALI-2APCAP

3.4

106mm

45mm

Productdimensions–IRMicroOceDALI-2APCUP

3.5

85mm

50mm

37mm

– 50 – Index

Productdimensions–IRMicroOceDALI-2APCDE

3.6

85mm

54mm

69mm

65mm

– 51 – Index

Deviceoverview–IRMicroOceDALI-2APCAP

3.7

A Ceiling bracket

B Frame

C DALI-2 connection

D Sensor module

E Electrical connection

F Abdteckung

Autres manuels pour DualTech DALI-2

Table des matières

Langues :

Autres manuels STEINEL Contrôleurs

STEINEL

STEINEL NightMatic 5000-3 Manuel du propriétaire

STEINEL

STEINEL NightMatic 5000-2 Manuel utilisateur

STEINEL

STEINEL NightMatic 3000 Vario Manuel utilisateur

STEINEL

STEINEL NightmatIQ Manuel utilisateur

STEINEL

STEINEL NightMatic 5000-3 Manuel du propriétaire

STEINEL

STEINEL PRESENCE CONTROL PRO Manuel utilisateur

STEINEL

STEINEL professional Series Manuel utilisateur

STEINEL

STEINEL Hallway DALI-2 APC Manuel utilisateur

STEINEL

STEINEL NightMatic 3000 Vario Manuel utilisateur

STEINEL

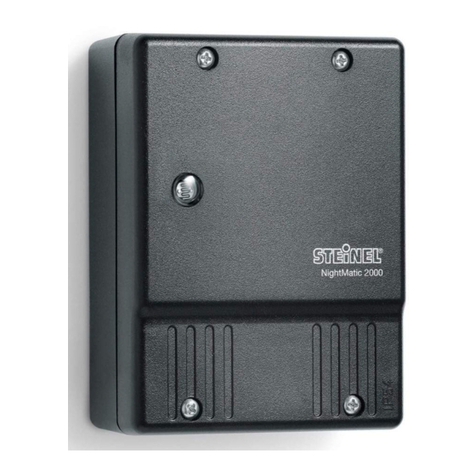

STEINEL NightMatic 2000 Manuel du propriétaire
