SteelSeries ARCTIS NOVA PRO WIRELESS Manuel d'installation et d'exploitation

ARCTIS NOVA PRO

PRODUCT INFORMATION GUIDE

TABLE OF CONTENTS

General .................................................. 3

Product Overview ......................................... 4

Setup ................................................... 6

GameDAC Operation ....................................... 7

Audio Options ............................................. 8

Audio Output Settings ...................................... 9

Microphone .............................................. 10

Perfect Fit ............................................... 11

Speaker Plates ............................................ 12

Translations .............................................. 13

Deutsch ................................................... 13

Español .................................................... 15

Français ................................................... 17

Italiano .................................................... 19

Polski ..................................................... 21

Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Русский  25

日本語 .................................................... 27

简体中文 .................................................. 29

繁體中文 .................................................. 31

󽋋󺫜󼌣33

Regulatory ............................................... 35

GENERAL

PACKAGE CONTENTS

Arctis Nova Pro Headset

GameDAC

Main Audio Cable

2x USB-C to USB-A Cable

Microphone Pop Filter

Product Information Guide

SYSTEM COMPATIBILITY

PlayStation 5

PlayStation 4

Nintendo Switch

Android

SOFTWARE

Use Engine inside SteelSeries GG to set custom equalizer settings and

control your mic.

GG also has other amazing apps like Sonar, a breakthrough in gaming

sound, that allows you to hear what matters most, through cutting-edge

audio tools.

DOWNLOAD NOW

steelseri.es/gg

Home

Moments

Engine

ARCTIS NOVA PRO

PRODUCT OVERVIEW

HEADSET

1 Elastic Headband

2 Premium Leatherette Ear Cushions*

3 Retractable ClearCast Microphone

4 Volume Wheel

5 Microphone Mute Button

6 3.5mm Audio Jack

7 Removable Speaker Plates*

ACCESSORIES*

8 USB-C to USB-A Cable (×2)

9 Main Audio Cable

10 Microphone Pop Filter

108

PRODUCT OVERVIEW

HEADSET

1 Elastic Headband

2 Premium Leatherette Ear Cushions*

3 Retractable ClearCast Microphone

4 Volume Wheel

5 Microphone Mute Button

6 3.5mm Audio Jack

7 Removable Speaker Plates*

ACCESSORIES*

8 USB-C to USB-A Cable (×2)

9 Main Audio Cable

10 Microphone Pop Filter

108

GAMEDAC

11 OLED Screen

12 Secondary Button

13 Control Wheel

14 USB-1 Jack

15 USB-2 Jack

16 Line Out Jack

17 Line-In Jack

18 Headset Jack

11 1312

14 1715 16

*Find accessories and replacement parts at

steelseries.com/gaming-accessories

SETUP

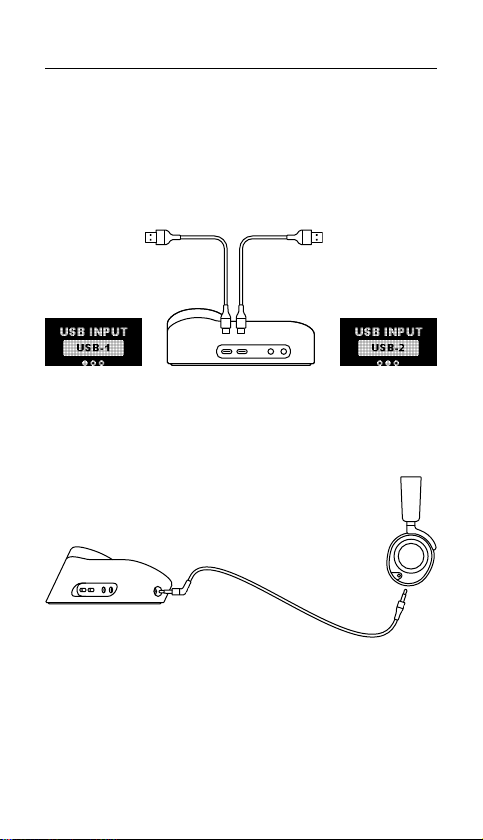

CONNECTIONS

Plug one of the USB-C to USB-A Cables (8) into the USB-1 Jack (14),

and connect the other end to your PC or console. Optionally connect the

second USB cable from the GameDAC’s USB-2 Jack (15) to a second PC

or console. Change input sources via the OLED display menu.

HEADSET TO DAC

Plug the kinked end of the Main Audio Cable (9) into the Headset Jack

(18) on the left side of the GameDAC and the straight end into the

Headset’s 3.5 mm Audio Jack (6).

PlayStation 4

PlayStation 5

Switch (TV mode)

Mac

PlayStation 4

PlayStation 5

Switch

(TV mode)

Mac

1 2

GAMEDAC OPERATION

HOME SCREEN

1 Press and release the Control Wheel (13) to toggle between Volume

and ChatMix (*available on PC with software installed).

2 Rotate the Control Wheel (13) to adjust the selected parameter.

3 Press and hold the Control Wheel (13) to bring up the main menu.

MAIN MENU

1 Rotate the Control Wheel (13) to cycle menu items.

2 Press and release the Control Wheel (13) to select.

3 Press and release the Secondary Button (12) to move back in the

menu.

AUDIO OPTIONS

SURROUND

Toggle Software Surround Sound On/O

(PC only, requires software install)

EQUALIZER

Customize your sound with included

presets or fully adjustable 10-band EQ

GAIN

Changes the maximum output level of the

GameDAC

SIDETONE

Select the amount of your own voice you

wish to hear in the headphones

MIC VOLUME

Optimize the level of the microphone for

your system

MIC MUTE

When enabled, the Secondary Button (12)

toggles microphone mute

AUDIO OUTPUT SETTINGS

SPEAKERS

Play game and chat audio through a pair of external speakers.

1 Connect a 3.5 mm cable (not included) from the GameDAC Line Out

Jack (16) to your speakers.

2 In the OLED menu set the Line Out option to ‘Speakers’.

STREAM

Mix your Main, Aux, and Mic audio together to send to a PC for streaming.

1 Connect a 3.5 mm cable (not included) from the GameDAC Line Out

Jack (16) to your stream PC’s Soundcard input.

2 In the OLED menu set the Line Out option to ‘Stream’.

3 Adjust your custom mix via the Stream Mixer on the OLED screen.

LINE OUT

MICROPHONE

RETRACTABLE MICROPHONE

Out of the box, the Retractable ClearCast Microphone (3) is retracted.

To use the microphone, slide it away from the headset until it reaches full

extension.

POSITIONING

Position the Retractable ClearCast Microphone (3) close to the corner

of your mouth with the front surface facing you.

Note: The microphone should not be used when retracted.
