Steelcase Elective Elements On-Module End Panel Manuel utilisateur

Page 1 of 8

939500242 Rev D

Elective Elements - On-Module and Off-Module End Panel

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

#2 Square

Drive Bit

#2 Phillips

Drive Bit

Components

Off-Module On-Module

End Panel Assembly End Panel Assembly

Filler Filler

Bracket-Filler

Bracket-Mounting

Off-Module End Panel On-Module End Panel

On-Module End Panel

1. Insert end panel bracket into

slots in wall panel.

2. Position end panel to bracket.

3. Align security bracket with end

panel bracket and end panel (using

holes provided), then secure with

(3) screws.

Page 2 of 8

939500242 Rev D

SECURITY

BRACKET

Page 3 of 8

939500242 Rev D

CONNECTING

BOLT

4. Insert (3) connecting

bolts into the holes on

underside of top.

5. Flip top over (5a) and

place onto the on-module

cantilever and end panel

(5b). Make sure the

connecting bolts are

inserted into the

corresponding holes.

Page 4 of 8

939500242 Rev D

Underside

of Worksurface

ARROW POINTING IN DIRECTION OF

THE CONNECTING BOLT HEAD

CAM LOCK

6. Insert (3) cam locks into the holes on the end

panel (6a), making sure the arrow on the cam

lock is pointed toward the connecting bolt (6b).

Turn cam lock with screwdriver 1/4 turn to secure

connecting bolt (6c).

7. Attach worksurface to on-module cantilever

using four (4) bolts.

8. Adjust glides as needed.

Page 5 of 8

939500242 Rev D

Off-Module End Panel

1. Assemble end panel, filler

and bracket together.

2. Remove base cover from

frame.

3. Mark bottom of frame the

distance from side of frame to

inside of end panel (3a). Attach

bracket using two (2) self-drilling

screws centered in slots. Back off

screw a 1/2 turn so the bracket

can move freely from side to side

for alignment of end panel (3b).

(2) SELF

DRILLING SCREWS

Page 6 of 8

939500242 Rev D

PANEL

END PANEL

4. Reinstall base cover onto frame.

5. Remove screw from end panel

bracket (5a). Insert bracket into slots

of the frame (5b). Fasten bracket to

end panel using previously removed

screw (5c).

Page 7 of 8

939500242 Rev D

6. Insert (3) connecting bolts

into the holes on underside of

top.

7. Flip top over (7a) and place

onto the end panel (7b). Make

sure the connecting bolts are

inserted into the corresponding

holes.

CONNECTING

BOLT

Page 8 of 8

939500242 Rev D

8. Insert (3) cam locks into the holes on the end

panel (8a), making sure the arrow on the cam

lock is pointed toward the connecting bolt (8b).

Turn cam lock with screwdriver 1/4 turn to secure

connecting bolt (8c).

9. Adjust glides as needed.

Underside

of Worksurface

ARROW POINTING IN DIRECTION OF

THE CONNECTING BOLT HEAD

CAM LOCK

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Steelcase Mobilier d'intérieur

Steelcase

Steelcase Ology Triple Sided 120 Bench Manuel utilisateur

Steelcase

Steelcase Flex Media Cart Manuel utilisateur

Steelcase

Steelcase Series 1 Manuel utilisateur

Steelcase

Steelcase Criterion 453 Series Manuel utilisateur

Steelcase

Steelcase Think Manuel utilisateur

Steelcase

Steelcase Low Lateral Manuel utilisateur

Steelcase

Steelcase Verb 36" Manuel utilisateur

Steelcase

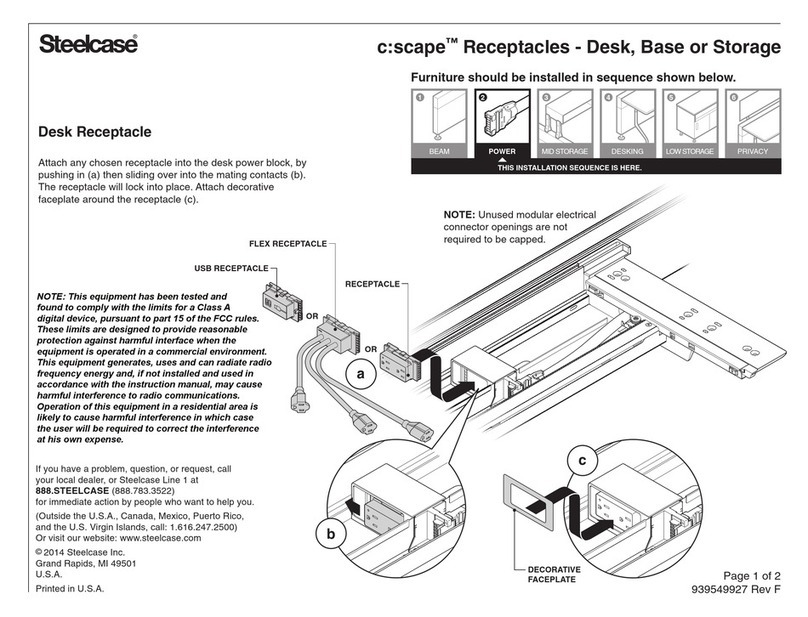

Steelcase c:scape Manuel utilisateur
