StarTech.com PM1115U2 Manuel utilisateur
Manual Revision: 04/08/2020
User Manual
For the latest information and specications visit
www.startech.com/PM1115U2
10/100 Mbps Ethernet to USB 2.0 Network LPR
Print Server
Actual product may vary from photos
SKU#: PM1115U2
1
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Compliance Statements
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du
Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other
Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and
other protected names and/or symbols of third-party companies not related in
any way to StarTech.com. Where they occur these references are for illustrative
purposes only and do not represent an endorsement of a product or service
by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct
acknowledgement elsewhere in the body of this document, StarTech.com
hereby acknowledges that all trademarks, registered trademarks, service marks,
and other protected names and/or symbols contained in this manual and
related documents are the property of their respective holders.
2
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Safety Statements
Safety Measures
• Wiring terminations should not be made with the product and/or electric
lines under power.
• Cables (including power and charging cables) should be placed and routed
to avoid creating electric, tripping or safety hazards.
Mesures de sécurité
• Les terminaisons de câblâge ne doivent pas être eectuées lorsque le produit
et/ou les câbles électriques sont sous tension.
• Les câbles (y compris les câbles d’alimentation et de chargement) doivent
être placés et acheminés de façon à éviter tout risque électrique, de chute ou
de sécurité
安全対策
• 電源が入っている状態の製品または電線の終端処理を行わないでくださ
い。
• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し
を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう
にしてください。
Misure di sicurezza
• I terminiali dei li elettrici non devono essere realizzate con il prodotto e/o le
linee elettriche sotto tensione.
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati
e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o
pericoli per la sicurezza.
Säkerhetsåtgärder
• Montering av kabelavslutningar får inte göras när produkten och/eller
elledningarna är strömförda.
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så
sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.
3
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Table of Contents
Compliance Statements........................................................................1
Safety Statements..................................................................................2
Product Diagram ....................................................................................5
Front View.................................................................................................................................................... 5
Rear View...................................................................................................................................................... 6
Product Information ..............................................................................7
Packaging Contents...............................................................................7
System Requirements............................................................................7
Operating Systems ................................................................................................................................... 7
Hardware Installation............................................................................8
Installing the Power Adapter Clip ....................................................................................................... 8
Removing the Power Adapter Clip. .................................................................................................... 8
Connecting a Printer................................................................................................................................ 9
Software Installation .............................................................................9
Setting Up the Print Server Using the Software............................................................................. 10
Manually Setting up the Print Server................................................................................................. 13
Setting Up a Printer in Windows..........................................................14
Setting Up a Printer in macOS..............................................................19
Performing a Hard Factory Reset.........................................................23
4
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Software Operation ...............................................................................23
Accessing the Web Interface................................................................................................................. 23
Changing the Screen Language.......................................................................................................... 23
Viewing Server Information/Device Information.......................................................................... 24
Viewing/Conguring Network Settings............................................................................................ 25
Restarting a Device................................................................................................................................... 27
Resetting the Device to Factory Settings ......................................................................................... 28
Creating/Changing a Password ........................................................................................................... 29
5
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Product Diagram
Front View
1Power LED
2Power Jack
3Link LED
4RJ45 Port
5Activity LED
2 3 4 5
1
6
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

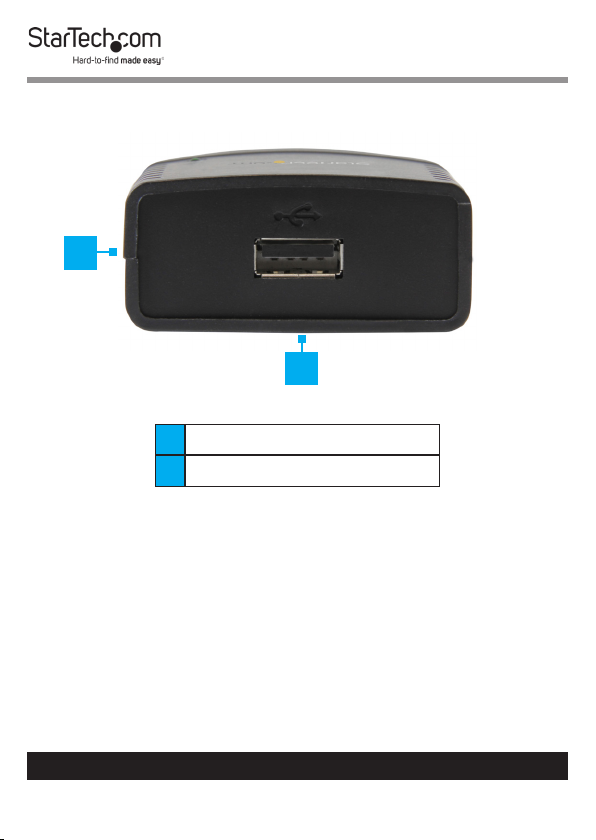

Rear View
1Recessed Reset Button (side)
2USB-A Port
2
1
7
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Product Information
Packaging Contents
• Print Server x 1
• Universal Power Adapter (NA/UK/EU/AU) x 1
• RJ45 Cable x 1
• Driver CD x 1
• Quick-Start Guide x 1
System Requirements
Operating system requirements are subject to change. For the
latest requirements, please visit www.startech.com/PM1115U2.
Operating Systems
• The Print Server is Operating System (OS) independent.
8
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Hardware Installation
Installing the Power Adapter Clip
1. Remove the Power Adapter from the box.
2. Locate the Power Clip specic to your region (e.g. U.S.).
3. Align the Power Clip with the Contact Prongs on the Power
Adapter so that the two Tabs on the Power Clip are aligned
with the cutouts on the Power Adapter.
4. Rotate the Power Clip clockwise until you hear an audible
click indicating that the Power Clip is properly attached to
the Power Adapter.
Removing the Power Adapter Clip.
1. Push and hold the Power Clip Release button on the Power
Adapter just below the Power Clip.
2. While holding the Power Clip Release button rotate the
Power Clip counter-clockwise until the Power Clip releases
from the Power Adapter.
3. Gently pull the Power Clip away from the Power Adapter.
9
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Connecting a Printer
1. Connect a USB 2.0 Cable (not included) to the USB-A Port
on the Print Server and the other end to a USB-A port on a
Printer.
2. Connect the Universal Power Adapter to the Power Jack
on the back of the Print Server and to an AC Electrical
Outlet. The Power LED will illuminate green to indicate that
the Print Server is turned on and correctly connected to the
Network.
Software Installation
Installing the Print Server Setup Software
1. Connect an CAT5e/6 Cable to the RJ45 Port on the Print
Server and to a Router or Network Device.
2. On the computer that’s connected to the same router or
network, download the drivers from www.startech.com/
PM1115U2.
3. Click on the Support tab, under Drivers and select the
appropriate driver package.
4. Once you have download and unzipped the driver. Click on
the Installation Guide PDF and follow the instructions.
