StarTech.com PEX100SFP Manuel utilisateur

Manual Revision: 09/13/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

PEX100SFP

PCI Express 10/100 Mbps Ethernet Fiber

Network Card with Open SFP Slot

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Features ........................................................................................................................................................ 1

Package Contents ..................................................................................................................................... 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Connecting to a Network....................................................................................................................... 3

Software Installation................................................................................................................................ 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

The PEX100SFP PCI Express 10/100 Mbps Ethernet Fiber Open SFP Network Card lets

you connect a PCI Express-based PC directly to a ber optic network using the 10/100

Mbps SFP of your choice.

A versatile solution for connecting a computer directly to a 10/100 Mbps ber network,

the PCIe SFP network adapter enables you to choose the 10/100 Mbps SFP that best

suits your network ber connection and distance requirements (see our full line of 100

Mbps transceivers for compatible solutions).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features

• Supports Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX

• Compliant with IEEE 802.3u 100Base-FX, IEEE802.1Q VLAN Tagging, IEEE802.1p Layer

2 Priority Encoding, IEEE 802.3x full duplex ow control, RFC 1157 SNMP v1

• Supports PCI Message Signaled Interrupt (MSI)

• Preboot Execution Environment (PXE) 2.1

Package Contents

• 1 x PCI Express Open SFP Network Card

• 1 x Driver / Instruction Manual CD

• 1 x Low Prole Bracket

Instruction Manual

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely damaged

by static electricity. Be sure that you are properly grounded before opening your

computer case or touching your PCI Express card. StarTech.com recommends that you

wear an anti-static strap when installing any computer component. If an anti-static

strap is unavailable, discharge yourself of any static electricity build-up by touching a

large grounded metal surface (such as the computer case) for several seconds. Also be

careful to handle the PCI Express card by its edges and not the gold connectors.

Hardware Installation

1. Turn OFF the computer power before installation.

2. Unplug the power cable from the rear of the power supply on the back of the

computer and disconnect all peripheral devices.

3. Remove the chassis cover from your computer.

4. Locate an unused PCI Express slot and remove the corresponding slot cover from

the rear panel of the computer chassis. Retain the screw (if applicable) used to hold

the slot cover in place.

5. Align the PCI Express card with the unused PCI Express expansion slot. Applying

pressure evenly across the top edge of the expansion card, rmly but gently insert the

card into the slot, ensuring that the card is properly aligned with the rear panel slot.

6. Secure the card to the motherboard and rear chassis using the screw removed in

step 4 (if necessary). Secure the additional serial port provided by the daughter

board (smaller circuit board to an adjacent rear bracket.

7. Replace the chassis cover (removed in step 3).

8. Plug power cable back on the rear of the power supply and power ON the computer.

Once the computer has been rebooted, the operating system will detect that the

PCI Express card has been installed and request driver installation, detailed in the

next section.

Instruction Manual

Connecting to a Network

Note: You must connect the PCI Express Fiber 10/100 Mbps Ethernet Adapter to the

network before installing the network driver.

For connector type, cabling requirements, and maximum segment distance when

connecting the PCI Express 10/100 Mbps Ethernet Adapter to your network, please

refer to the following table.

Speed Connector

Port Speed

Half/Full

Duplex

Cable Max.

Distance

100BASE-T RJ45 200Mbps 4-pair UTP/

STP Cat. 5 100m

100BASE-FX LC 200Mbps MMF (62.5um) 2km

100BASE-LX10 LC 200Mbps SMF (9, 20um) 550m, up to

10km

1. Install your desired SFP into the SFP slot on the card.

2. Prepare a network cable with corresponding connectors for the two end devices,

one end to the PCI Express Fiber 10/100 Mbps Ethernet Adapter and the other to a

1000Mbps ber port on the network switch.

3. Connect the network cable to the connector on the PCI Express Fiber 10/100 Mbps

Ethernet Adapter. This network cable consists of two individual cables: one for

‘transmission (TX)’, and the other for‘reception (RX)’.

4. Connect the other end of the network cable to a 1000BASE-SX switch.

5. i. Insert the cable that is connected to the transmit (TX) connector on the PCI

Express Fiber 10/100 Mbps Ethernet Adapter into the receive(RX) connector on the

network switch.

ii. Insert the cable that is connected to the receive (RX) connector on the PCI

Express Fiber 10/100 Mbps Ethernet Adapter into the transmit (TX) connector on

the network switch.

6. When the cable is properly connected to two end devices, turn on the power to

the PC.

Check the LNK (Link) LED. The LED will come on when the PCI Express Fiber 10/100 Mbps

Ethernet Adapter is receiving a good link signal from the connected device, a switch.

Instruction Manual

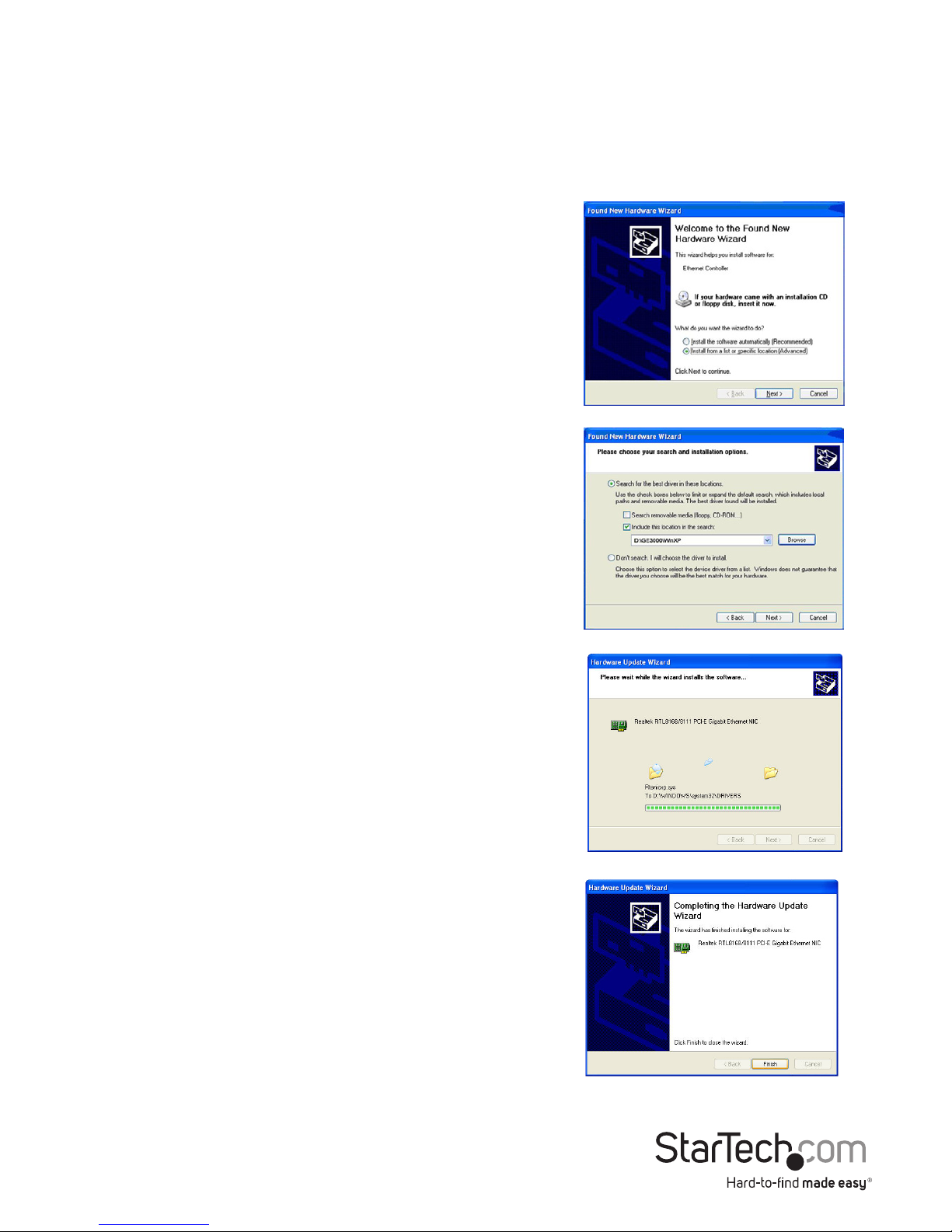

Software Installation

1. Once PEX1000SFP has been installed in the computer, turn on the power to

the computer.

2. When the Found New Hardware Wizard

window pops up, select Install from a list

or specic location (Advanced)and click

Next to continue.

3. Select Search for the best driver in these

locations. and then select Include this location

in the search. Click Browse to specify the driver

location and click Next to continue.

4. Installation will begin...

5. Click Finish to complete the driver installation.

Instruction Manual

Specications

Applicable Standards

Compliant with IEEE 802.3u 100Base-FX,

IEEE802.1Q VLAN Tagging, IEEE802.1p

Layer 2 Priority Encoding, IEEE 802.3x full

duplex ow control, RFC 1157 SNMP v1

LED Indicators Link, Activity

Operating Temperature 0°C ~ 45° C (32°F ~ 113°F)

Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)

Humidity 5% ~ 95% RH non-condensing

Chipset Realtek - RTL8168B

Maximum Connection Distance Dependent on the SFP used

OS Support

Windows® 8 (32/64bit), 7 (32/64),

Vista(32/64), XP(32/64), 2000 Windows®

Server 2008 R2, 2003(32/64)

Linux 2.4.x/ 2.6.x

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Autres manuels pour PEX100SFP

Table des matières

Autres manuels StarTech.com Carte PCI

StarTech.com

StarTech.com PEX3U3F800 Manuel utilisateur

StarTech.com

StarTech.com PEX4RISER Manuel utilisateur

StarTech.com

StarTech.com P021GI-NETWORK-CARD Manuel utilisateur

StarTech.com

StarTech.com PEXHDCAP60L Manuel utilisateur

StarTech.com

StarTech.com PEX1PCI1 Manuel utilisateur

StarTech.com

StarTech.com PCIUSB7 Manuel utilisateur

StarTech.com

StarTech.com PEX2S1050 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB3S42 Manuel utilisateur

StarTech.com

StarTech.com PCI1394_2 Manuel utilisateur

StarTech.com

StarTech.com MPEX300WN2X2 Manuel du système

StarTech.com

StarTech.com PEX4S553S Manuel utilisateur

StarTech.com

StarTech.com QUAD-M2-PCIE-CARD-B Manuel utilisateur

StarTech.com

StarTech.com PCI2USB Manuel utilisateur

StarTech.com

StarTech.com PEXSATA22I Manuel utilisateur

StarTech.com

StarTech.com PEXUSB3S24 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB3S2EI Manuel utilisateur

StarTech.com

StarTech.com PCI1394B_3 Manuel utilisateur

StarTech.com

StarTech.com PCI1394MP Manuel utilisateur

StarTech.com

StarTech.com PEX2S553B Manuel du système

StarTech.com

StarTech.com PEX16S952LP Manuel utilisateur

StarTech.com

StarTech.com PCI1S650PW Manuel utilisateur

StarTech.com

StarTech.com PEX1S1P950 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB312C2 Manuel utilisateur

StarTech.com

StarTech.com 8STPEXUSB3S44V Manuel utilisateur

Manuels Carte PCI populaires d'autres marques

ERMA

ERMA SSI 1417 Manuel utilisateur

SIIG

SIIG CyberSerial Dual PCI Instructions de montage

Moxa Technologies

Moxa Technologies CP-102E Manuel utilisateur

I-Bus

I-Bus IBC2602 Manuel utilisateur

Exsys

Exsys EX-60102 Manuel utilisateur

Chelsio Communications

Chelsio Communications T5 Series Manuel utilisateur

Conrad Electronic

Conrad Electronic 97 46 71 Manuel utilisateur

Micro Innovations

Micro Innovations USB650A Manuel utilisateur

KTI Networks

KTI Networks KF-310 Manuel utilisateur

Asus

Asus SpaceLink WL230 Manuel utilisateur

SIIG

SIIG SC2475 Manuel utilisateur

TRENDnet

TRENDnet TEW-703PI Manuel utilisateur

Belkin

Belkin F5D7000F Manuel utilisateur

Pericom

Pericom PI7C7100 Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3548 Manuel utilisateur

Digium

Digium TE200 Series Manuel utilisateur

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur

Western Digital

Western Digital FireWire PCI Adapter Manuel utilisateur
